A20350807MP Overview

Barrier Terminal Blocks Single Row 8 Pole MAGNUM 2000 SERIES

A20350807MP Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Factory Lead Time	14 weeks 5 days
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

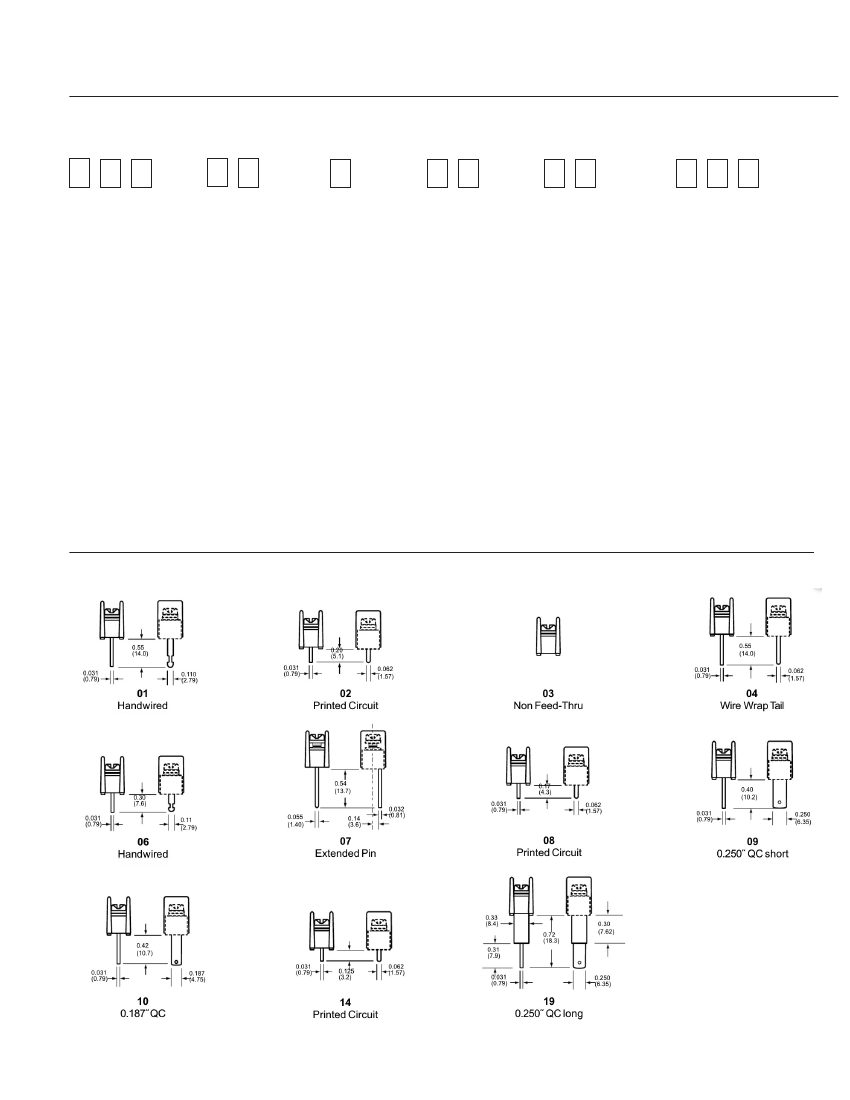

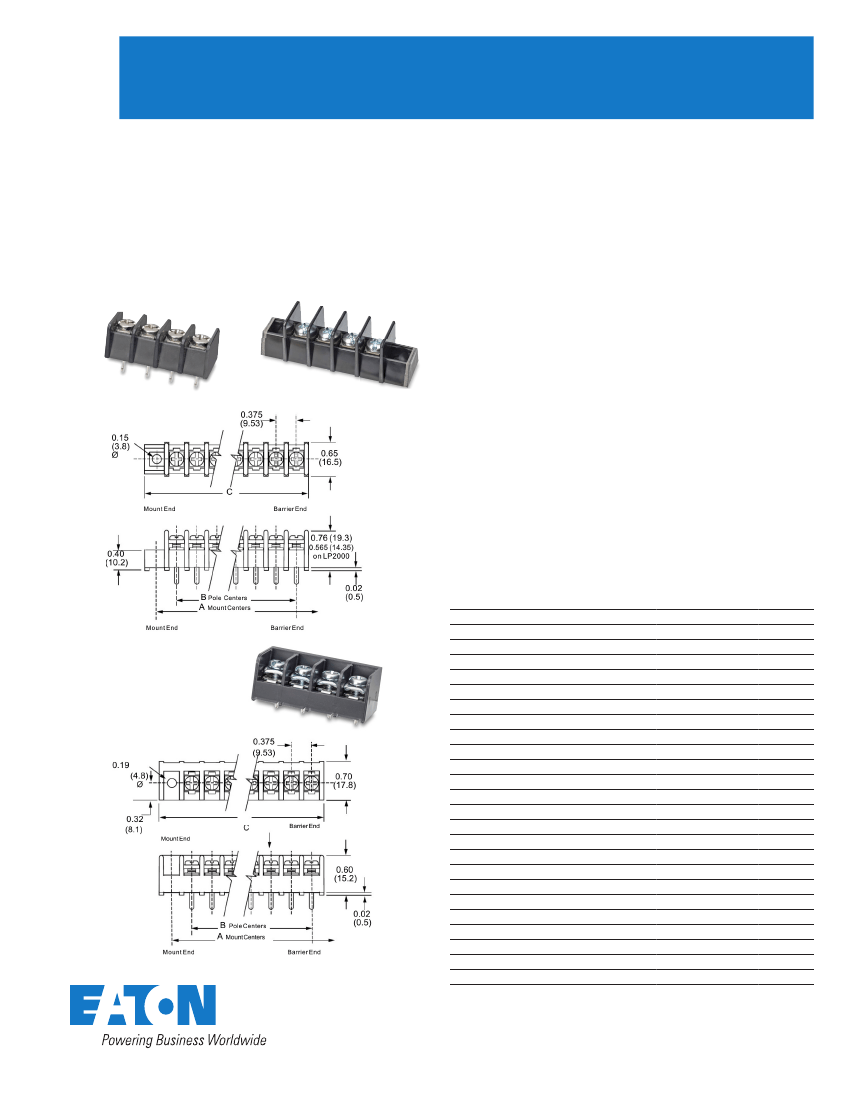

Single Row Terminal Blocks

A2000, LP2000 & CB2000

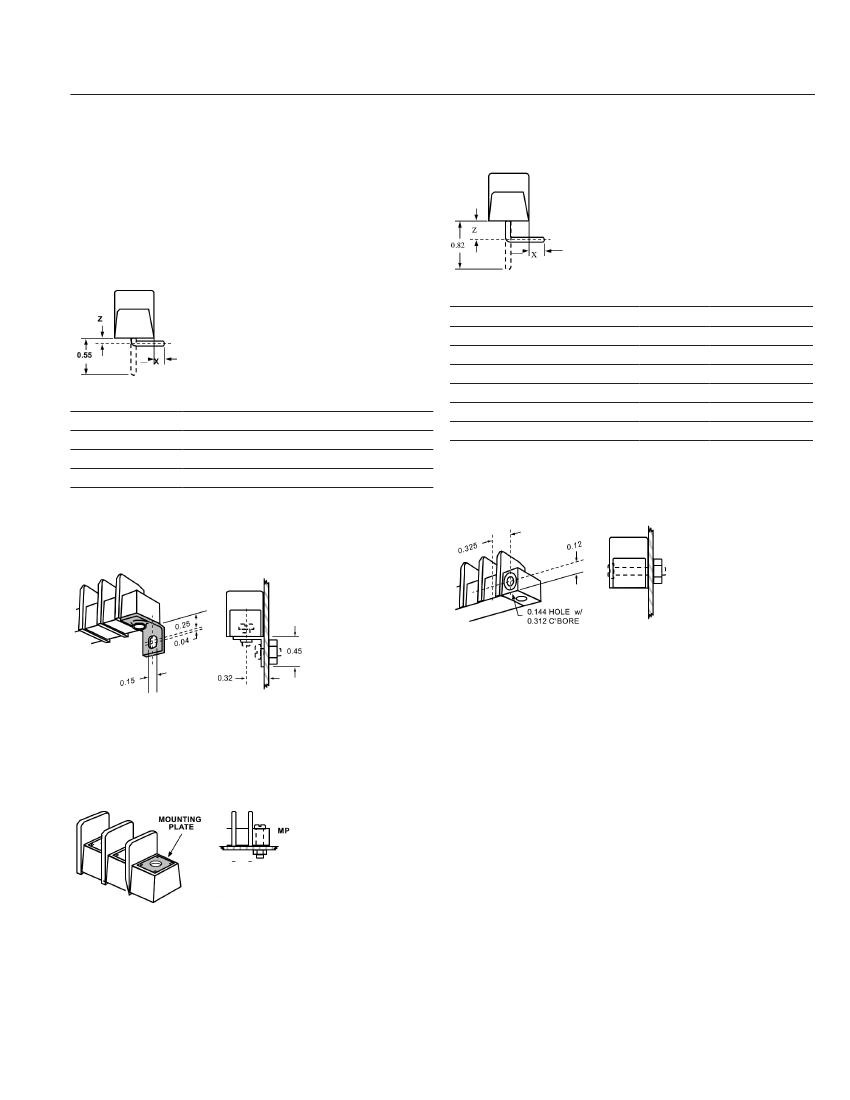

Dimensions

Inches (Millimeters)

A2000 & LP2000

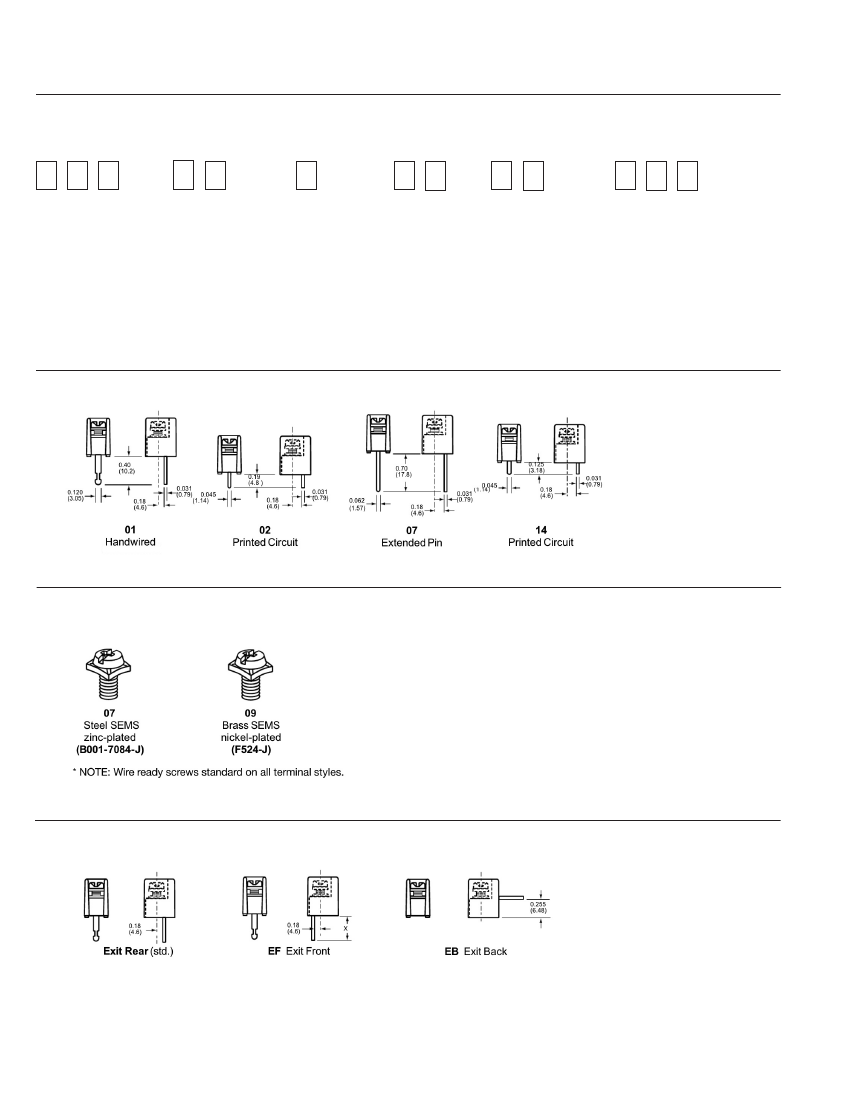

Specifications

Rating: A2:

30A, 300V*

LP2:

30A, 150V*

CB2:

30A, 300V*

Center Spacing:

0.375” or 3/8” (9.52mm)

Wire Range:

#12-22 AWG Cu

Screw Size:

#6-32 zinc-plated philslot

Torque Rating:

9 lb-in.

Base:

Standoffs standard for easy flux washing

Distance Between Barriers:

0.32” (8.1mm)

Recommended PCB Hole Diameter:

0.076” (1.93mm)

Operating Temperature:

105°C (221°F) max., -40°C (-40°F) min.

Molded Material:

Black, UL Rated 94V0 Thermoplastic

Breakdown Voltage:

3400V (A2 & LP2); 4100V (CB2).

Agency Information:

UL File E62622, CSA File 47235;

IEC Compliance; CE Certified

* 30A Rating achieved with a #10 copper wire crimped to a ring terminal.; 20A Rating

without ring terminal.

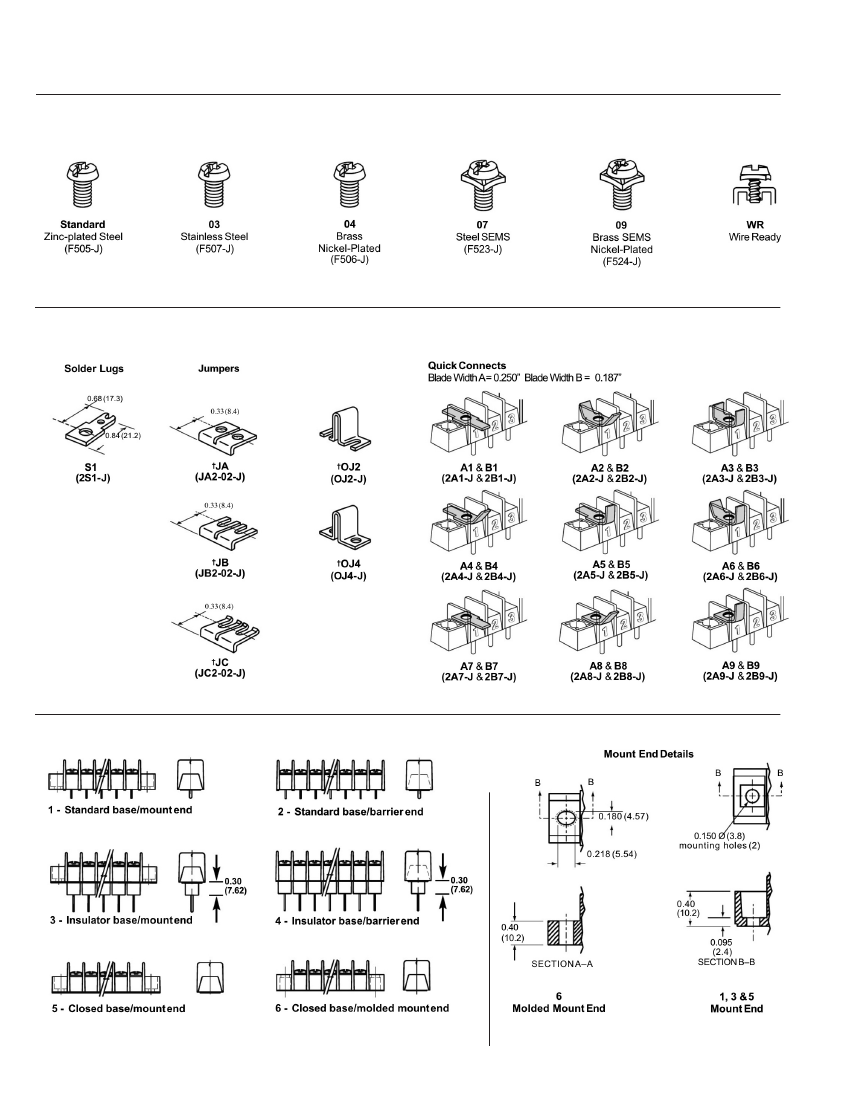

MOUNTING ENDS ONLY

Poles

Mounting Ctrs.

Length

BARRIER &

MOUNTING ENDS

Pole Ctrs.

BARRIER

ENDS

ONLY

Length

LP201204

A203504

CB2000

CB20220407

1.13

1.50

1.88

2.25

2.63

3.00

3.38

3.75

4.13

4.50

4.88

5.25

5.63

6.00

6.38

6.75

7.13

7.50

7.88

8.25

8.63

9.00

9.38

–

1.56

1.93

2.30

2.68

3.06

3.43

3.81

4.18

4.56

4.93

5.31

5.69

6.06

6.43

6.81

7.18

7.56

7.93

8.31

8.68

9.06

9.43

9.81

–

0.38

0.75

1.13

1.50

1.88

2.25

2.63

3.00

3.38

3.75

4.13

4.50

4.88

5.25

5.63

6.00

6.38

6.75

7.13

1.50

7.88

8.25

8.63

9.00

9.38

0.81

1.18

1.56

1.93

2.31

2.68

3.06

3.43

3.81

4.18

4.56

4.93

5.31

5.68

6.06

6.43

6.81

7.18

7.56

7.93

8.31

8.68

9.06

9.43

9.81
