Part Number

Search

51112-0500

Description
Headers u0026 Wire Housings 2.5 W/W PLUG HSG W/R /W PLUG HSG W/RETANR
CategoryThe connector    The connector
File Size38KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

51112-0500 Online Shopping

Suppliers Part Number Price MOQ In stock
51112-0500 - - View Buy Now

51112-0500 Overview

Headers u0026 Wire Housings 2.5 W/W PLUG HSG W/R /W PLUG HSG W/RETANR

51112-0500 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresELV AND ROHS COMPLIANT
body width0.325 inch
subject depth0.801 inch
body length0.669 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1000VAC V
Durability30 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force4.8928 N
Minimum insulation diameter0.045 inch
Insulation resistance1000000000 Ω
Insulator colorWHITE
insulator materialPBTP 30% FIBRE ENHANCED
MIL complianceNO
Manufacturer's serial number51112
Plug contact pitch0.098 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1LOCKING
Installation typeCABLE
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
polarization keyPOLARIZED HOUSING
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch2.5 mm
Termination typeCRIMP
Total number of contacts5
UL Flammability Code94V-0
Maximum wire diameter22 AWG
Minimum wire diameter28 AWG
Evacuation force-minimum value.5838 N
Base Number Matches1

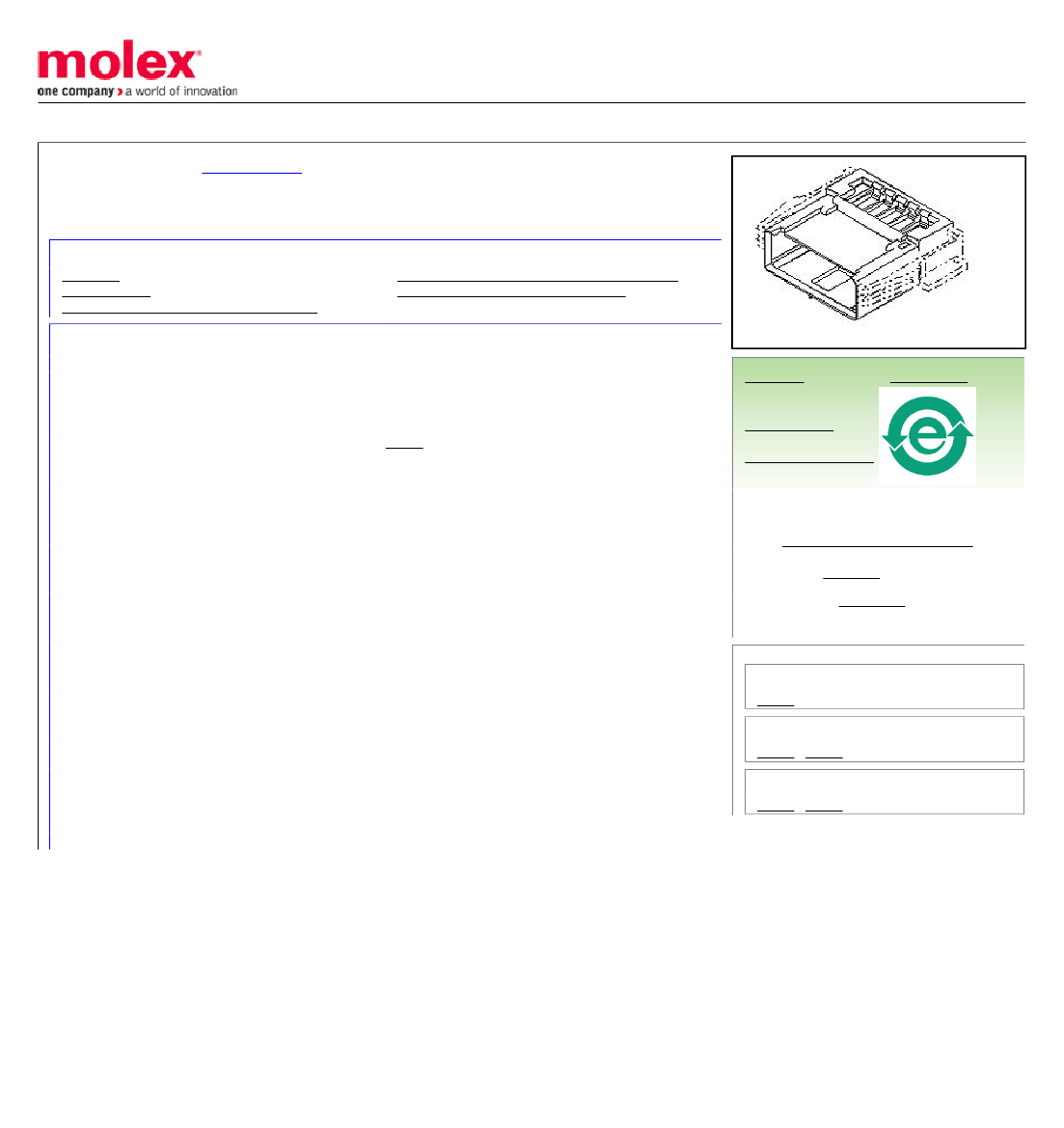

This document was generated on 07/03/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
51112-0500
Active
2.50mm Pitch Wire-to-Wire Plug Housing, with Retainer and Optional Panel Mount, 5
Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-51111-001 (PDF)
Packaging Specification SPK-51112-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Agency Certification
CSA
UL
LR19980
E29179
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Not Low-Halogen
China RoHS
General
Product Family
Series
Application
Product Name
UPC
Crimp Housings
51112
Signal, Wire-to-Wire
N/A
800754309042
Physical
Circuits (maximum)
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Material - Resin
Net Weight
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface
Stackable
Temperature Range - Operating
5
Natural
94V-0
Male
No
Polyester
1300.000/mg
1
Bag
No
2.50mm
No
-40°C to +105°C
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
51112Series
Mates With
51111 , 51111 With Retainer
Use With
50398 , 51113
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
SPK-51112-001
PS-51111-001, RPS-51111-007
SD-51112-003
This document was generated on 07/03/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
