3P4J-AZ: DescriptionSilicon Controlled Rectifier, 4.71A I(T)RMS, 400V V(DRM), 400V V(RRM), 1 Element, PLASTIC PACKAGE-3; CategoryAnalog mixed-signal IC Trigger device; File Size235KB，5 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

3P4J-AZ Overview

Silicon Controlled Rectifier, 4.71A I(T)RMS, 400V V(DRM), 400V V(RRM), 1 Element, PLASTIC PACKAGE-3

3P4J-AZ Parametric

Parameter Name	Attribute value
Maker	NEC Electronics
package instruction	IN-LINE, R-PSIP-T3
Contacts	3
Reach Compliance Code	unknown
Shell connection	ANODE
Configuration	SINGLE
Maximum DC gate trigger current	0.1 mA
JESD-30 code	R-PSIP-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	4.71 A
Off-state repetitive peak voltage	400 V
Repeated peak reverse voltage	400 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
Base Number Matches	1

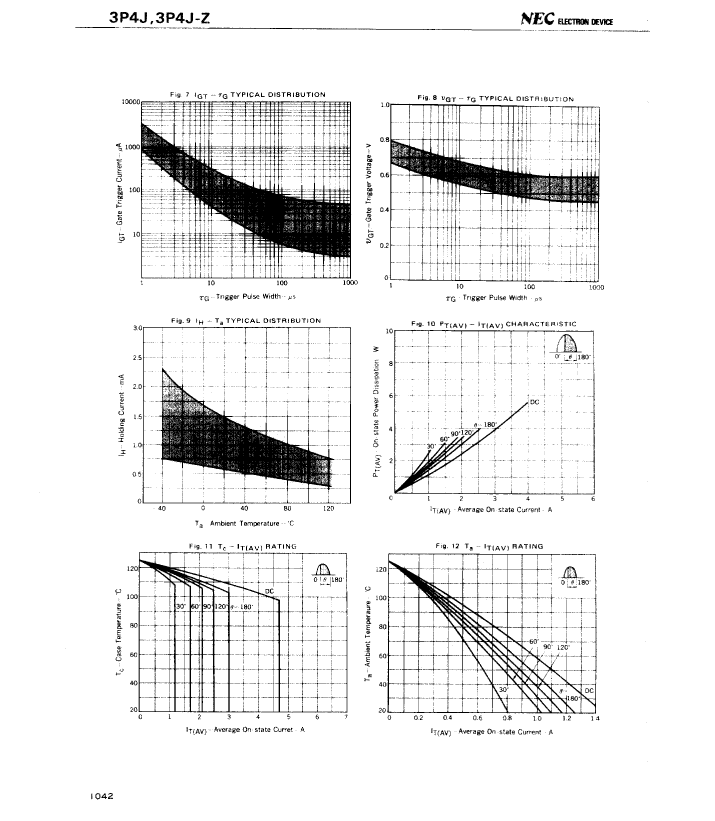

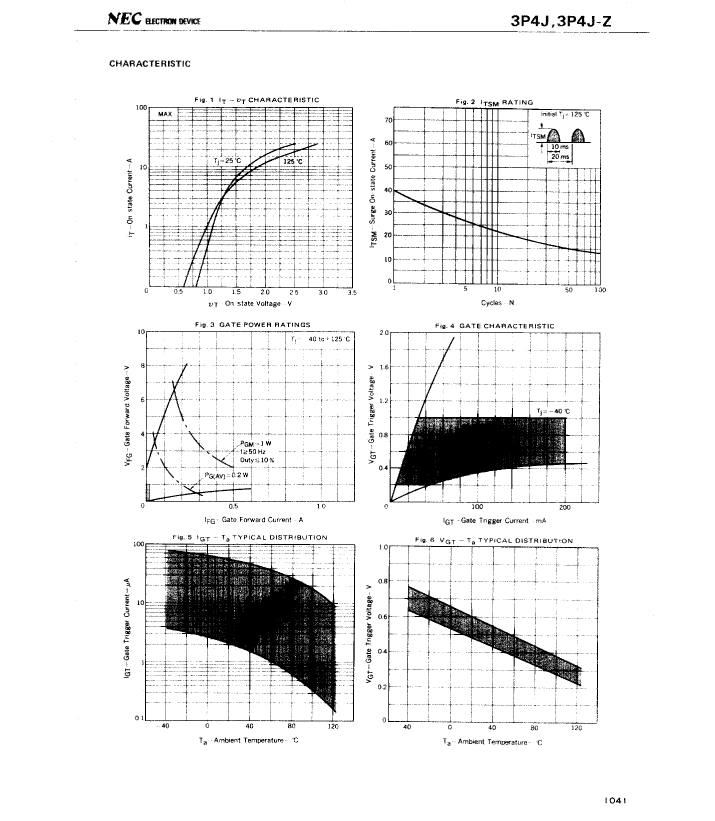

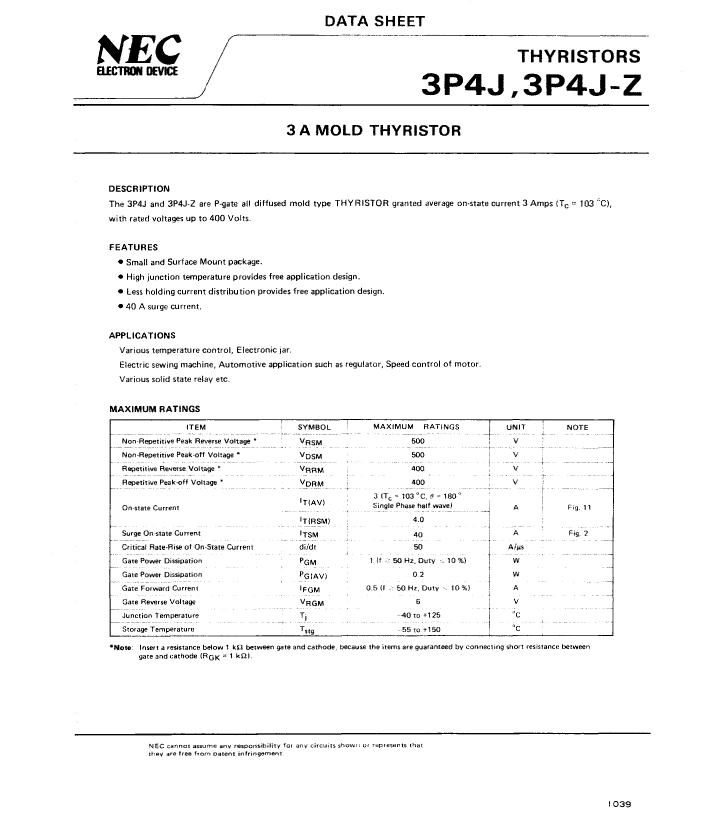

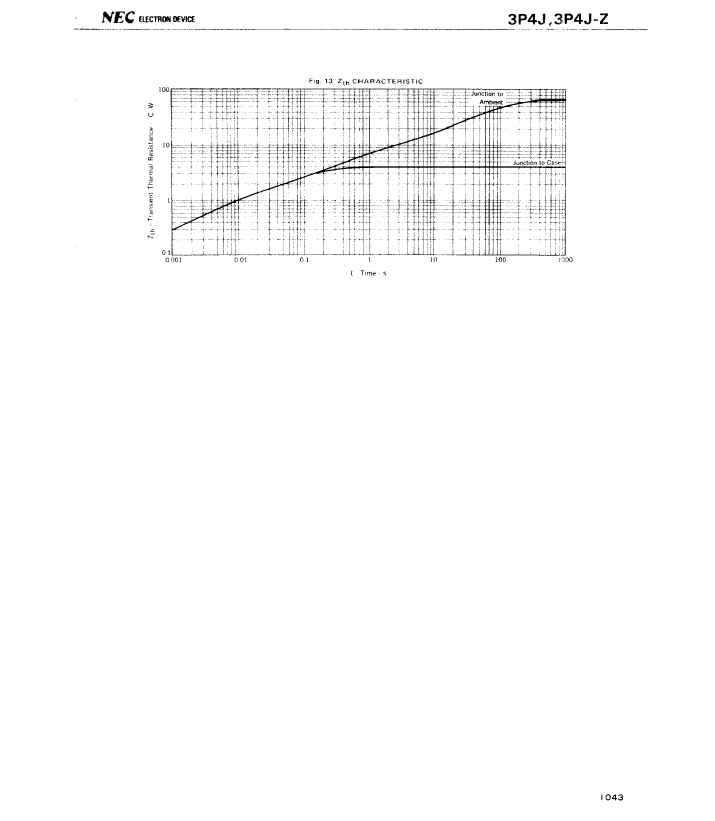

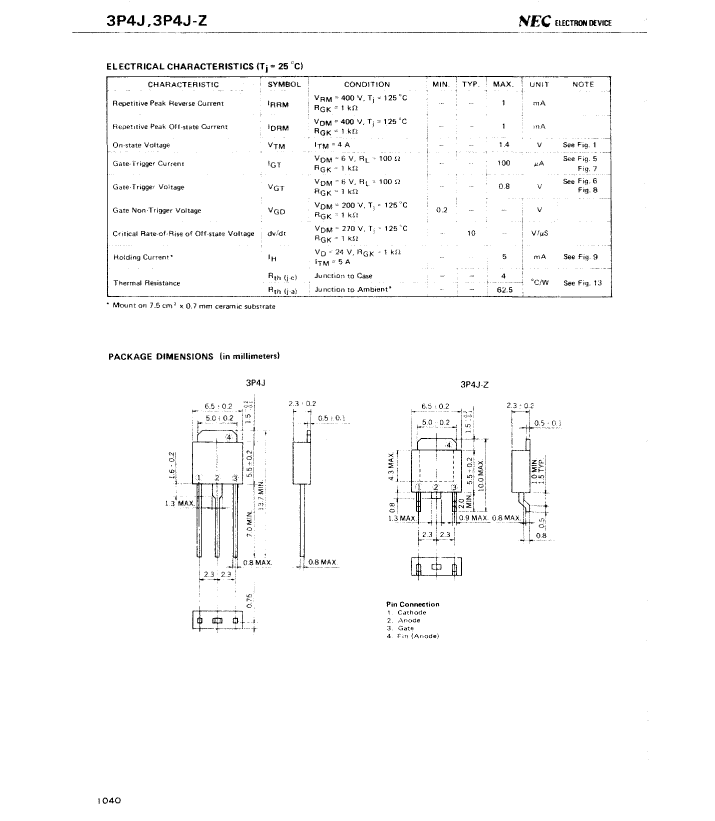

Preview

Download Datasheet

View All

3P4J-AZ Related Products

	3P4J-AZ	3P4J-Z-E2	3P4J-Z-E1	3P4J-Z-AZ
Description	Silicon Controlled Rectifier, 4.71A I(T)RMS, 400V V(DRM), 400V V(RRM), 1 Element, PLASTIC PACKAGE-3	Silicon Controlled Rectifier, 4.71A I(T)RMS, 400V V(DRM), 400V V(RRM), 1 Element, PLASTIC PACKAGE-4	Silicon Controlled Rectifier, 4.71A I(T)RMS, 400V V(DRM), 400V V(RRM), 1 Element, PLASTIC PACKAGE-4	Silicon Controlled Rectifier, 4.71A I(T)RMS, 400V V(DRM), 400V V(RRM), 1 Element, PLASTIC PACKAGE-4
Maker	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics
package instruction	IN-LINE, R-PSIP-T3	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2
Contacts	3	4	4	4
Reach Compliance Code	unknown	compliant	compliant	unknown
Shell connection	ANODE	ANODE	ANODE	ANODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Maximum DC gate trigger current	0.1 mA	0.1 mA	0.1 mA	0.1 mA
JESD-30 code	R-PSIP-T3	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2
Number of components	1	1	1	1
Number of terminals	3	2	2	2
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	4.71 A	4.71 A	4.71 A	4.71 A
Off-state repetitive peak voltage	400 V	400 V	400 V	400 V
Repeated peak reverse voltage	400 V	400 V	400 V	400 V
surface mount	NO	YES	YES	YES
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger device type	SCR	SCR	SCR	SCR
Base Number Matches	1	1	1	1
