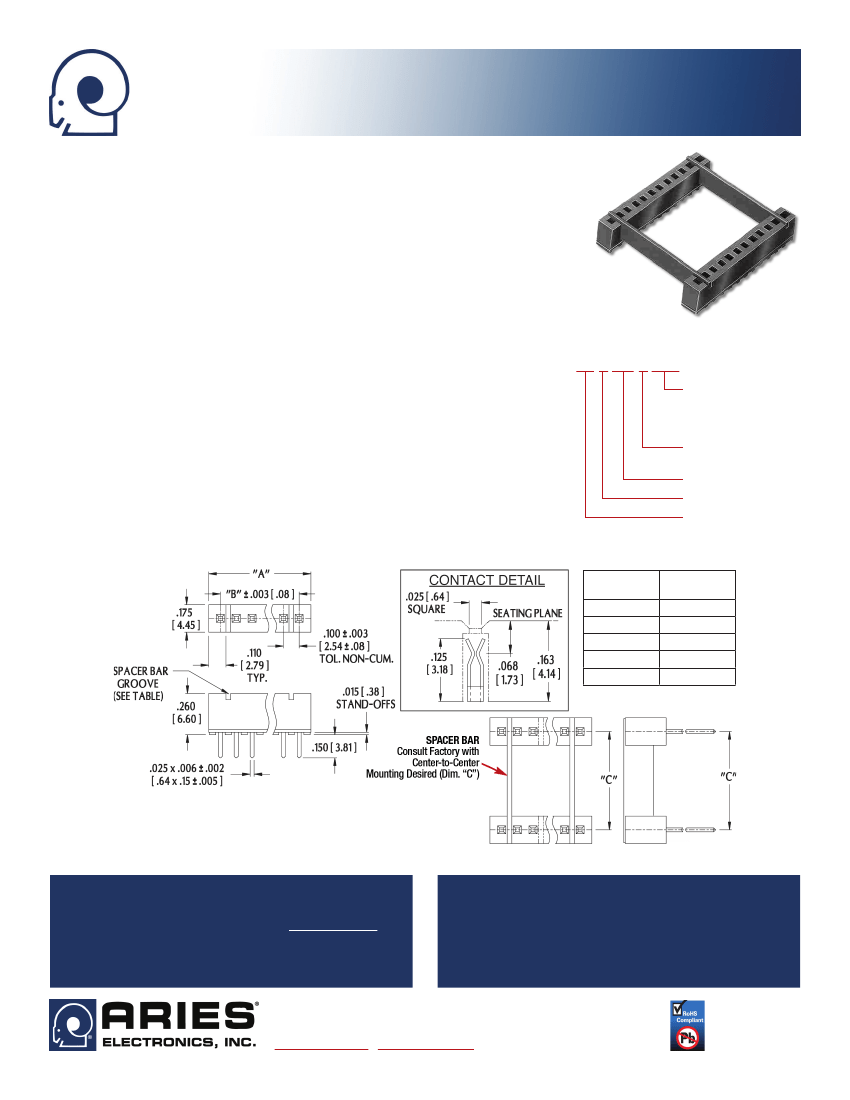

Series 511 Strip-Line Socket
w/Bifurcated Contacts & Solder Pin Tails
™
FEATURES
• Mount Liquid Crystal Displays or Other High Pin-count or Odd-centered Components
• Available in Several Sizes with Bifurcated Contacts and Solder Tail or Wire Wrap Pins
• Optional Spacer for Mounting on 0.300 [7.62], 0.600 [15.24], 0.900 [22.86], 1.100 [27.94], and
1.300 [33.02] Centers
GENERAL SPECIFICATIONS
•
BODY: Black UL 94V-0 Glass-filled 4/6 Nylon
•
PIN: Grade A Phosphor Bronze per QQ-B-750
•
OPTIONAL SPACER: FR-4 0.032 [0.81] thick
•
PIN PLATING: 50-130µ min. matte Sn per ASTM B545-97(2004)e1 over 50µ Ni per SAE
AMS-QQ-N-290B; –OR– 50-130µ 90/10 Sn/Pb per MIL-T-10727 Type 1 over 50µ Ni per SAE
ORDERING INFORMATION
AMS-QQ-N-290B; –OR– 10µ [0.25µ] min. Au per MIL-G-45204 over 50µ Ni per SAE AMS-
XX-X 511-X XXX
QQ-N-290B
•
CURRENT RATING: 1 amp
Plating
•
OPERATING TEMPERATURE: -67°F to 221°F [-55°C to 105°C] Sn and Sn/Pb; -67°F to 257°F
0 = Sn
[-55°C to 125°C] Au
0TL = Sn/Pb
•
INSERTION FORCE: 110g/pin average
1 = Au
•
WITHDRAWAL FORCE: 75g/pin average
Termination
•
ACCEPTED LEADS: Flat leads up to 0.014 x 0.020 wide [0.36-0.51]; Round Leads up to 0.020
1 = Solder Pin Tail
[0.51] dia.
Series
•
LEAD LENGTHS: from seating plane 0.080-0.160 [2.03-4.06]
Single Row Socket
No. of Pins
(See Table)
MOUNTING CONSIDERATIONS
•
SUGGESTED PCB HOLE SIZE: 0.036 ±0.002 [0.91 ±0.05] dia.
No. of Pins
20
25
30
34
40
No. of
Grooves
2
2
2
3
2
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
FOR STRIP-LINE SOCKETS w/WIRE WRAP PINS, SEE DATA SHEETS 12009
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
12008
Rev. 5.1
1 of 1
