87609-0062 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87609-0062

87609-0062: DescriptionDIMM Connectors 1.27mm MK DIMM Assy sy RA .38AuLF 168Ckt; CategoryThe connector The connector; File Size32KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

87609-0062 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87609-0062	-	-	View	Buy Now

87609-0062 Overview

DIMM Connectors 1.27mm MK DIMM Assy sy RA .38AuLF 168Ckt

87609-0062 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Samacsys Description	DIMM Connectors 1.27mm MK DIMM Assy sy RA .38AuLF 168Ckt
Other features	LATCHED, POLARIZED
Board mount options	PEG
body width	0.548 inch
subject depth	0.444 inch
body length	5.551 inch
Body/casing type	PLUG
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (15)
Contact completed and terminated	TIN (100)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	40 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	87609
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-10 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	0.062 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	168
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 06/27/2014

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

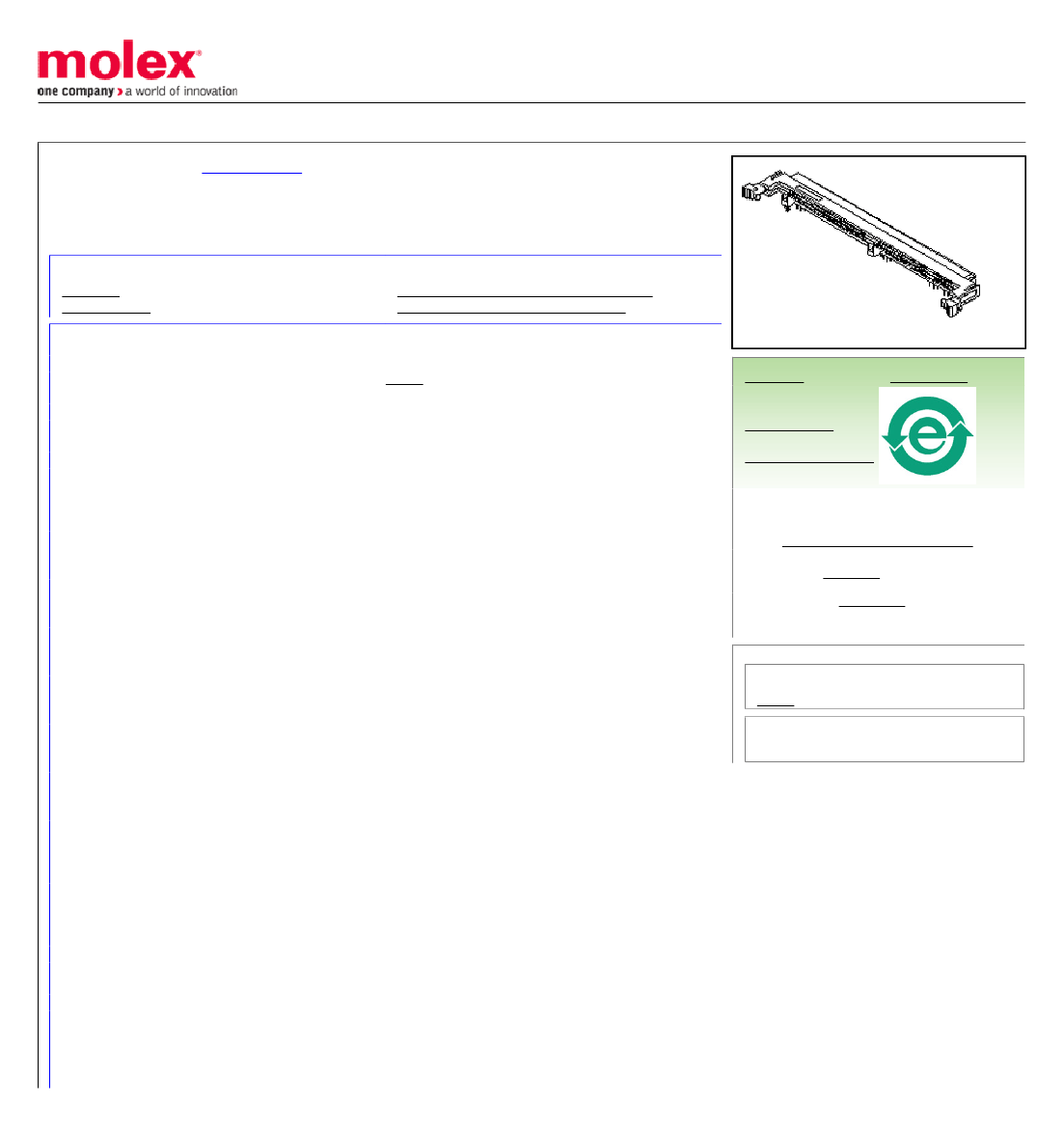

Part Number:

Status:

Description:

87609-0062

Active

1.27mm Pitch DIMM 8-Byte Socket, Right Angle, Multi-Key, 168 Circuits, with Beveled

Metal Pins and Plastic Pegs, with Beige Latches, 3.18mm Tail Length, 0.38µm Gold

(Au) Plating, Right Function Key, Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-87609-002 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

Memory Module Sockets

87609

<LI>Latches in Beige Color

Memory Module

MO-161

DIMM

822348566273

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Not Low-Halogen

China RoHS

General

Product Family

Series

Comments

Component Type

JEDEC Outline

Product Name

UPC

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Entry Angle

Function Key

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Temperature Range - Operating

Termination Interface: Style

168

Black, Natural

90° Angle (Side Entry)

Right

Yes

Brass, High Performance Alloy (HPA)

Gold

Tin

High Temperature Thermoplastic

17.372/g

3.18mm

Yes

2.40mm

Tray

1.27mm

0.381µm

2.540µm

-10°C to +85°C

Through Hole

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

87609Series

Mates With

JEDEC MO-161 Modules

Electrical

Current - Maximum per Contact

Voltage - Maximum

Voltage Key

125V

3.3V, Center

Solder Process Data

Duration at Max. Process Temperature (seconds)

Lead-free Process Capability

Max. Cycles at Max. Process Temperature

Process Temperature max. C

SMC & Wave Capable (TH only)

240

Material Info

Reference - Drawing Numbers

Product Specification

PS-87609-002
