1.27mm Pitch Two-Piece Connector
HIF6 Series
Connector in combination with the HIF6 series connection type
qHIF3B
Series
(MIL-C-83503)
qHIF2
Series
(Board direct mount type)
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
1
qHIF5
Series
(Card edge type)
2
sFeatures
1. Product Variation
The connection method is available with the board to
board type and insulation displacement type.
2. Broad applications
HIF2E, HIF3B and HIF5 can be combined one other,
because the 1.27mm pitch flat cable is used.
qRC
Series
(Micro ribbon connector)
qFD
Series
(D sub-ribbon connector)
3. Applicable Cables
The applicable cable is a (UL2651) AWG #28 flat cable
(7cores: 0.127mm, outer jacket diameter: 0.8 to1.0mm)
4. Mis-insertion Preventive Structure
The mis-insertion preventive guide prevents mis-
insertion.

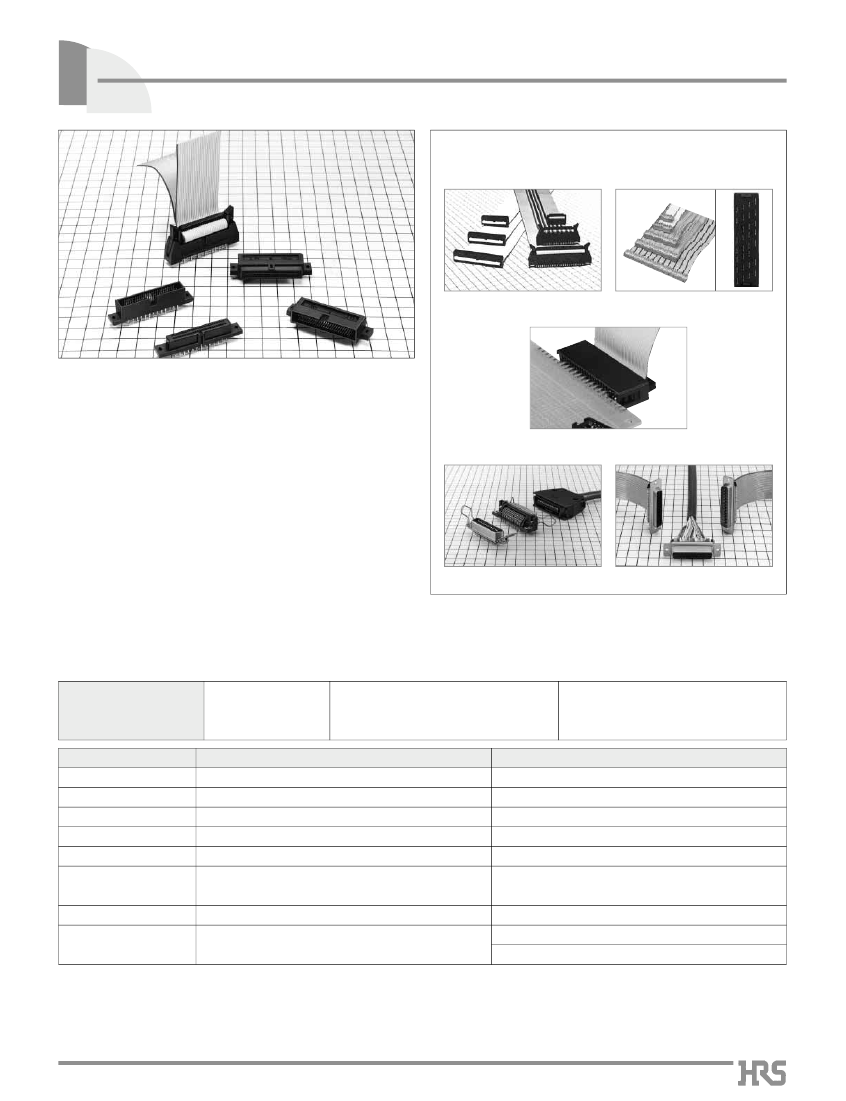

Photo1 (For further information, refer to catalog page B86.)
sApplications
Computers, peripheral and terminal equipment, PPC, various kinds of electronic equipment, Office Automation machines
sProduct
Specifications
Rating
Current rating: 0.5A
Operating Temperature Range: -55
to
+85
ç
(Note 1) Storage Temperature Range: -10
to
+60ç (Note 2)
Operating Humidity Range: 40
to
70%
(Note 2)
Voltage rating: 125V AC Operating Humidity Range: 40
to
80%
Item
1.Insulation Resistance
1000M ohms min.
Specification
250V DC
300V AC/1 minute.
0.1A
Condition
2.Withstanding Voltage
No flashover or insulation breakdown.
3.Contact Resistance
4.Vibration
30m ohms max.
No electrical discontinuity of 1µs or more
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(-65ç: 30 minutes¡15
to
35ç: 5 minutes max.¡
125ç: 30 minutes¡15
to
35ç: 5 minutes max.) 5 cycles
500 cycles
Solder bath: 260ç for 10 seconds
Manual soldering: 360ç for 5 seconds
5.Humidity
(Steady state)
Insulation resistance: 1000M
ohms min.
6.Temperature Cycle
No damage, cracks, or parts looseness.
7.Durability (Mating/un-mating) Contact resistance: 30m
ohms
max.
8.Resistance to Soldering heat
No deformation of components affecting performance.
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 3: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for
a specific part number shown.
Note 4: Please note that there is a risk of deforming the lock when an excessive load is applied to the inside.
B69
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
HIF6 Seriesq1.27mm Pitch Two-Piece Connector
sMaterial
Parts
Insulator
Socket Contact
Pin header Contact
Material
PBT
Copper alloy
Brass
Finish
Black
Selective gold plating
Remarks
UL94V-0
————
sOrdering
Information
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.

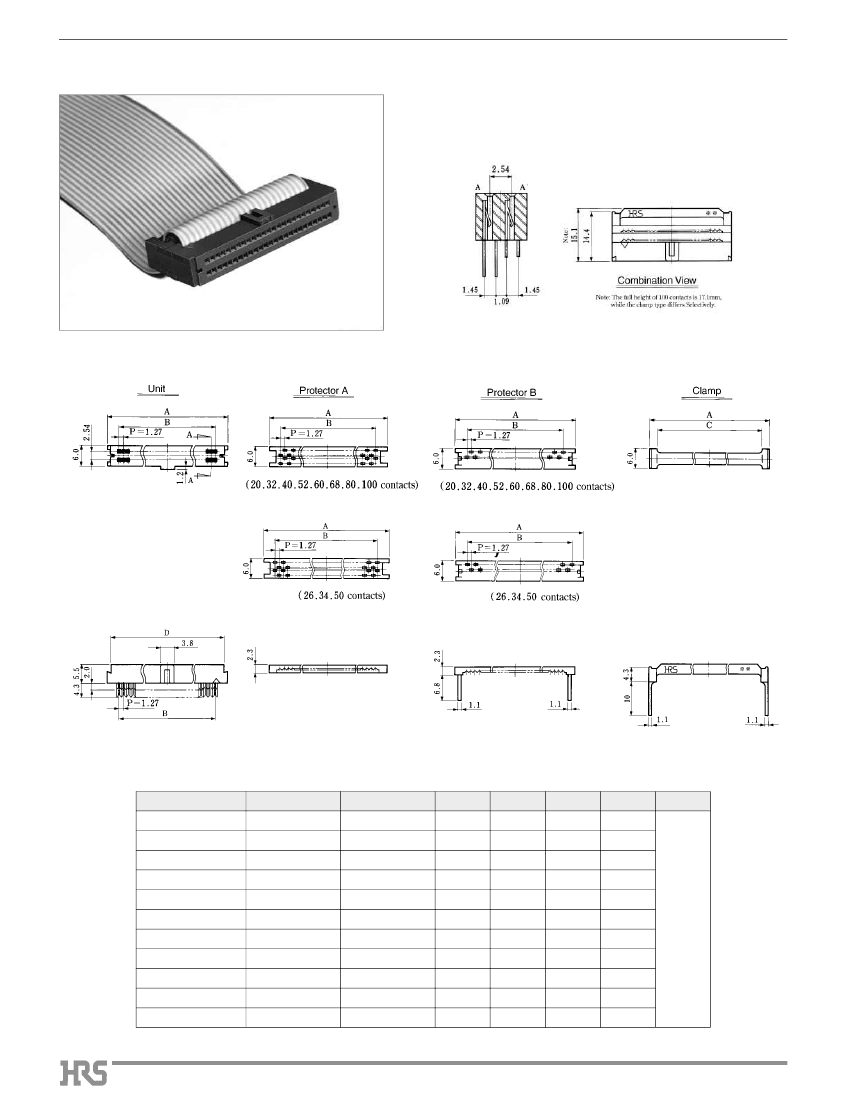

qSocket
and Receptacle
HIF6 A –
*
D A – 1.27 DSA L
q
w
e
r
t
y
u
i
q
Series Name : HIF6
w
Blank
: Ribbon cable insulation displacement type
: Without board mounting hole
: With board mounting hole
: Socket or receptacle
: Selective gold plated
: Right angle type
: Ribbon cable ID type
A
B
r
t
e
Number of contacts : 20, 26, 32, 34, 40, 50, 52, 60, 68, 80, 100
D
A
y
Contact pitch : 1.27mm
u
Contact type : DS
DSA : Straight type
R
i
L : Board pre-fixed lock pin

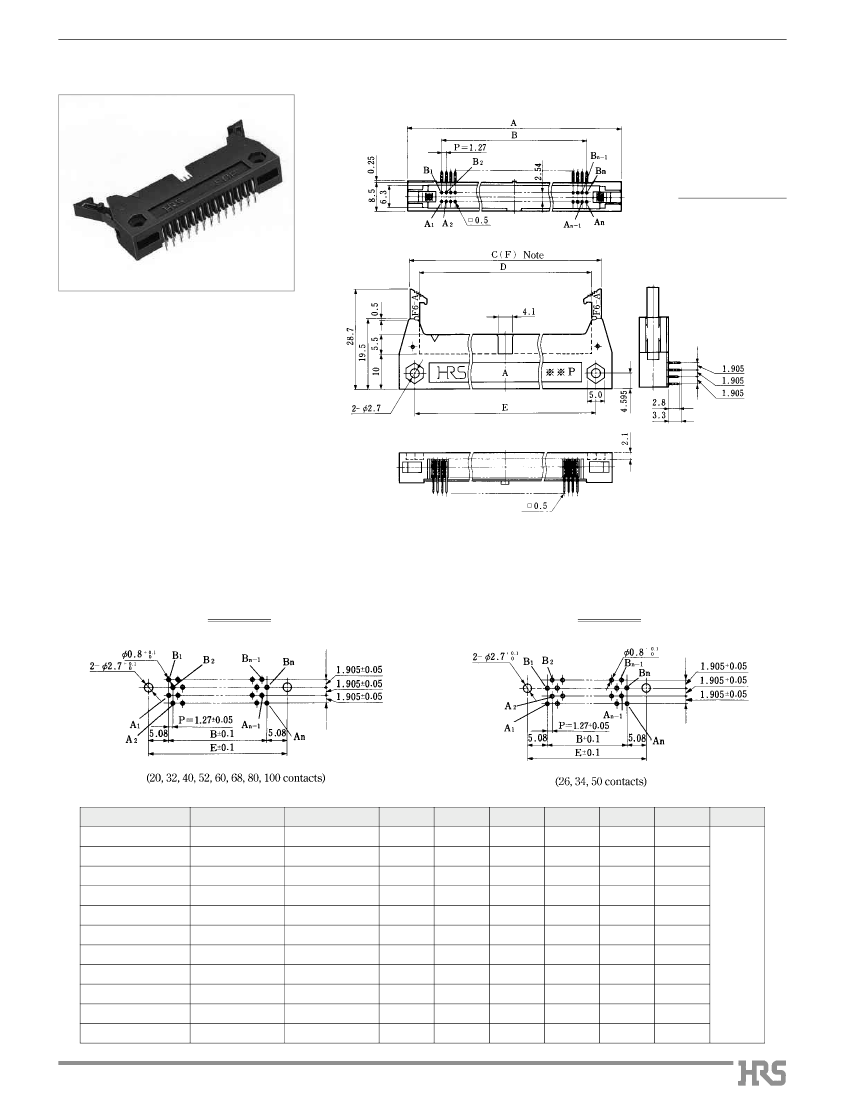

qPin
Header
HIF6 A –
*
P A – 1.27 DSA L
q
w
e
r
t
y
u
i
q
Series Name : HIF6
w
Blank
: With lock
: Without board mounting hole
: With board mounting hole
: Pin header
: Selective gold plated
: Right angle type
: Straight type
A
B
r
t
e
Number of contacts : 20, 26, 32, 34, 40, 50, 52, 60, 68, 80, 100
P
A
y
Contact pitch : 1.27mm
u
Contact style : DS
DSA
i
L : Board pre-fixed lock pin
