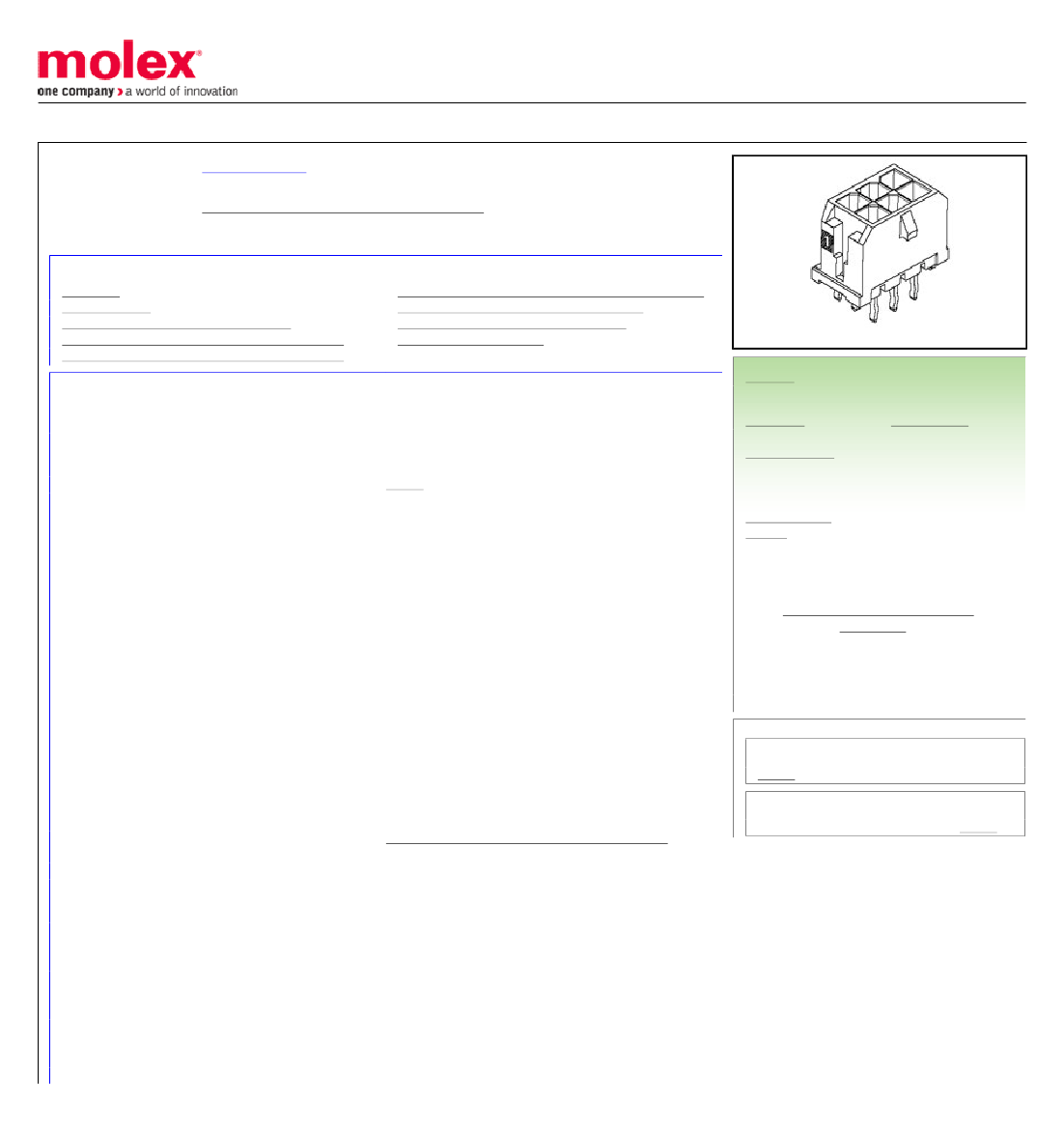

Headers u0026 Wire Housings 4 CKT VERT HEADER
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | Molex |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Samacsys Confidence | 4 |
| Samacsys Status | Released |
| Samacsys PartID | 297319 |
| Samacsys Pin Count | 16 |
| Samacsys Part Category | Connector |
| Samacsys Package Category | Other |
| Samacsys Footprint Name | 0430451614-2 |
| Samacsys Released Date | 2019-03-24 11:06:25 |
| Is Samacsys | N |
| Other features | TRAY PACKAGING |
| Board mount options | PEG |
| body width | 0.345 inch |
| subject depth | 0.39 inch |
| body length | 1.088 inch |
| Body/casing type | RECEPTACLE |
| Connector type | RECTANGULAR POWER CONNECTOR |
| Contact to complete cooperation | TIN (100) OVER NICKEL |
| Contact completed and terminated | Tin (Sn) |
| Contact point gender | MALE |
| Contact material | BRASS |
| contact mode | RECTANGULAR |
| Contact resistance | 10 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1500VAC V |
| Durability | 30 Cycles |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 8.0064 N |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLACK |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Plug contact pitch | 0.118 inch |
| Match contact row spacing | 0.118 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | POLARIZED LCK |
| Installation option 2 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.9972 mm |
| Plating thickness | 100u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 5 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Shell material | GLASS FILLED LIQUID CRYSTAL POLYMER |
| Terminal length | 0.125 inch |
| Terminal pitch | 2.9972 mm |
| Termination type | SOLDER |
| Total number of contacts | 16 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | 3.614 N |
| Base Number Matches | 1 |
