SPRING-LOADED
CONNECTORS

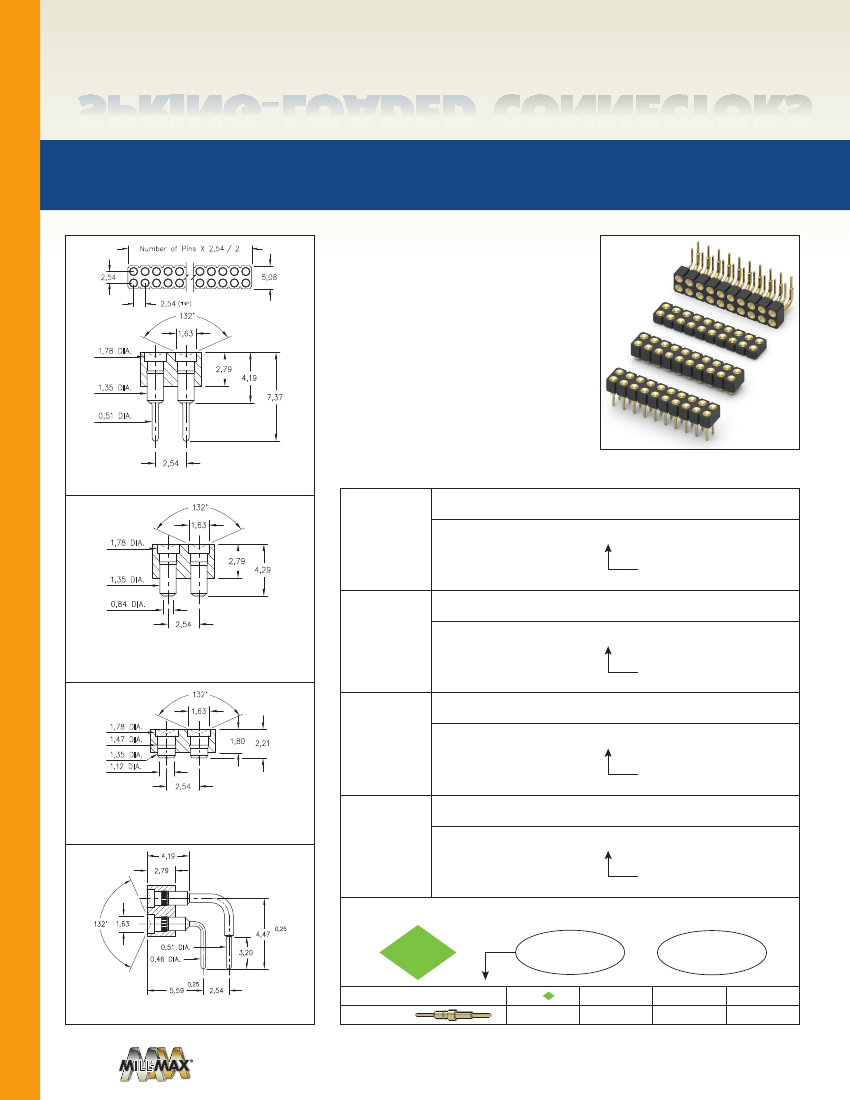

SERIES 419, 499 • 2,54 GRID CONCAVE FACE TARGET CONNECTORS
FOR SPRING
-
LOADED ASSEMBLIES • DOUBLE ROW STRIPS
• Series 419 and 499 Spring Target Connectors,
supplied in double row strips. Available in SMT
and right angle through-hole termination
configurations
• Target Connectors provide an excellent gold-
plated conductive mating surface for spring
loaded connectors. These series are offered
with a concave face for making contact with
our standard 1,07 dia. spring pin plungers
7,37
0,51 DIA.
Number of Pins X 2,54 / 2
2,54
2,54
5,08
132°
1,63
1,78 DIA.
2,79
1,35 DIA.
4,19
• Target connectors use MM #1947, #1948, #1955
and #1958/1960 pins. See pages 223.1, 223.2
and 223.3 for details
• Insulators are high temperature thermoplastic
2,54
FIG. 1
132°
1,63
ORDERING INFORMATION
Series 419...006
Standard Solder Tails
419-10-2_ _-00-006000
Specify number of pins
04-64
1,78 DIA.
2,79
1,35 DIA.
0,84 DIA.
2,54
4,29
FIG. 1
Series 419...007
Surface Mount
419-10-2_ _-30-007000
Coplanarity 0,13. For Pin counts >20 positions, consult
Technical Support.
FIG. 2
Series 419...055
FIG. 2
132°
1,63
Specify number of pins
04-72
Low Profile Surface Mount
419-10-2_ _-30-055000
1,78 DIA.
1,47 DIA.
1,35 DIA.
1,80
2,21
FIG. 3
Series 499...007
PAGE 21.2 | SPRING-LOADED CONNECTORS
1,12 DIA.
2,54
Specify number of pins
04-72
Coplanarity 0,13. For Pin counts >20 positions, consult
Technical Support.
FIG. 3
Right Angle Solder Tails
499-10-2_ _-10-007000
4,19
2,79
FIG. 4
Specify number of pins
02-64
132° 1,63
4,47
0,51 DIA.
0,46 DIA.
3,20
±
0,25
2011/65/EU
RoHS - 2
XX=Plating Code
See Below
10
0,25μm Au
For
Electrical, Mechanical
& Enviromental Data,
See page 264
5,59
±
0,25
2,54
FIG. 4
SPECIFY PLATING CODE XX=
Pin Plating
