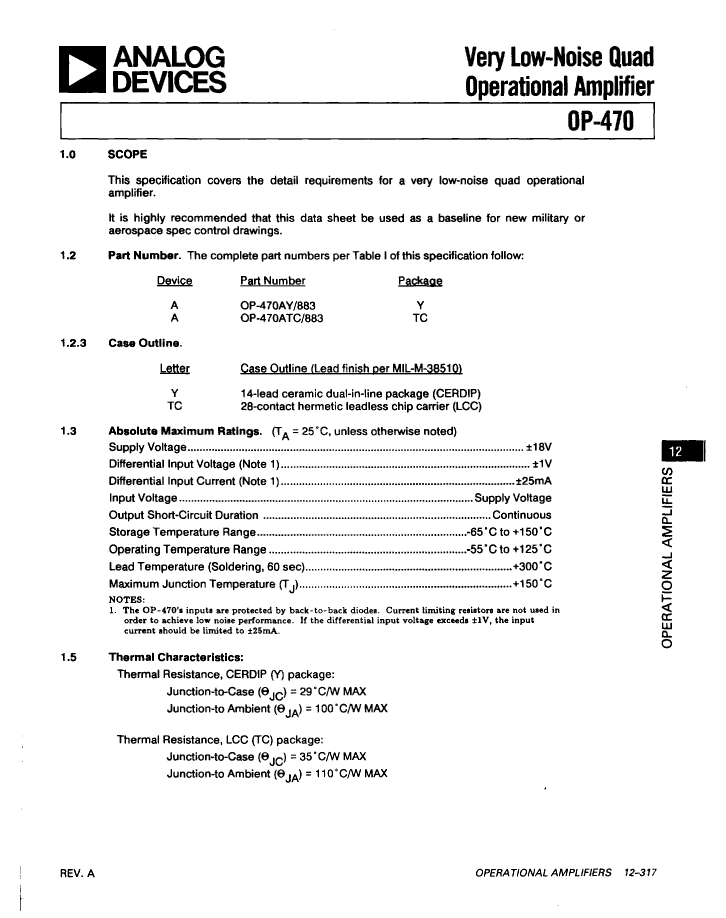

5962-88565013X amplifier basic information:
5962-88565013X is an OPERATIONAL AMPLIFIER. The commonly used packaging method is QCCN,
5962-88565013X amplifier core information:
The minimum operating temperature of 5962-88565013X is -55 °C and the maximum operating temperature is 125 °C. Its maximum average bias current is 0.02 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of 5962-88565013X is 2 V/us. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the 5962-88565013X gain becomes 0.707 times the low-frequency gain is 6000 kHz.
The nominal supply voltage of 5962-88565013X is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of 5962-88565013X is 600 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the op amp 0V (or close to 0V).)
Related dimensions of 5962-88565013X:
The width of 5962-88565013X is: 11.43 mm and the length is 11.43 mm. 5962-88565013X has 28 terminals. Its terminal position type is: QUAD. Terminal pitch is 1.27 mm. Total pins: 28
5962-88565013X amplifier additional information:
Its temperature grade is: MILITARY. The corresponding JESD-30 code is: S-CQCC-N28. The packaging code of 5962-88565013X is: QCCN. 5962-88565013X packaging materials are mostly CERAMIC, METAL-SEALED COFIRED. The package shape is SQUARE.
5962-88565013X package pin format is: CHIP CARRIER. Its terminal forms are: NO LEAD. The maximum seat height is 2.54 mm.
5962-88565013X amplifier basic information:
5962-88565013X is an OPERATIONAL AMPLIFIER. The commonly used packaging method is QCCN,
5962-88565013X amplifier core information:
The minimum operating temperature of 5962-88565013X is -55 °C and the maximum operating temperature is 125 °C. Its maximum average bias current is 0.02 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of 5962-88565013X is 2 V/us. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the 5962-88565013X gain becomes 0.707 times the low-frequency gain is 6000 kHz.
The nominal supply voltage of 5962-88565013X is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of 5962-88565013X is 600 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the op amp 0V (or close to 0V).)
Related dimensions of 5962-88565013X:
The width of 5962-88565013X is: 11.43 mm and the length is 11.43 mm. 5962-88565013X has 28 terminals. Its terminal position type is: QUAD. Terminal pitch is 1.27 mm. Total pins: 28
5962-88565013X amplifier additional information:
Its temperature grade is: MILITARY. The corresponding JESD-30 code is: S-CQCC-N28. The packaging code of 5962-88565013X is: QCCN. 5962-88565013X packaging materials are mostly CERAMIC, METAL-SEALED COFIRED. The package shape is SQUARE.
5962-88565013X package pin format is: CHIP CARRIER. Its terminal forms are: NO LEAD. The maximum seat height is 2.54 mm.

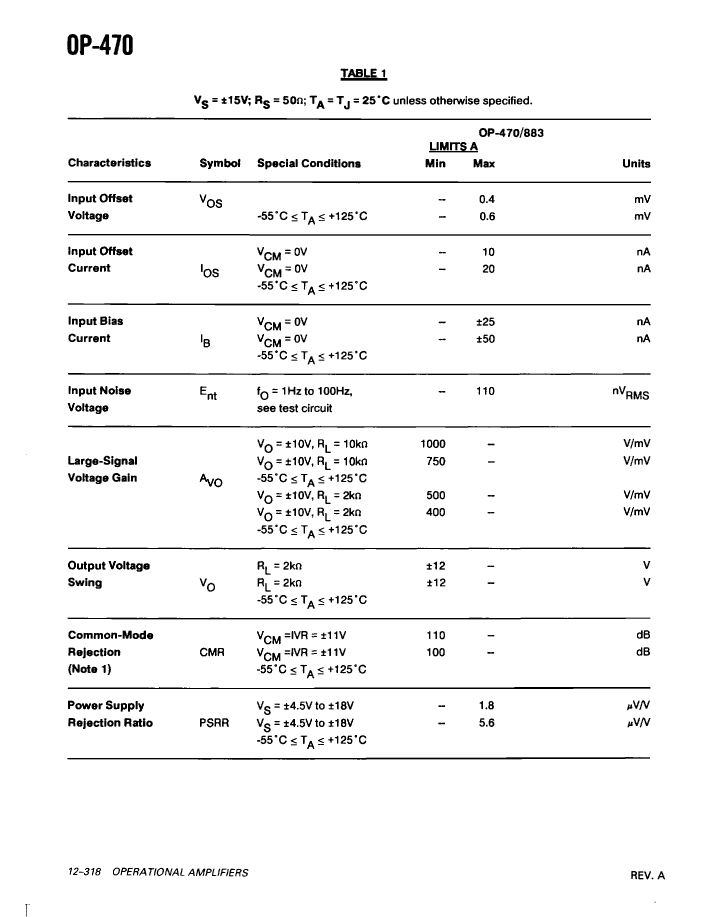

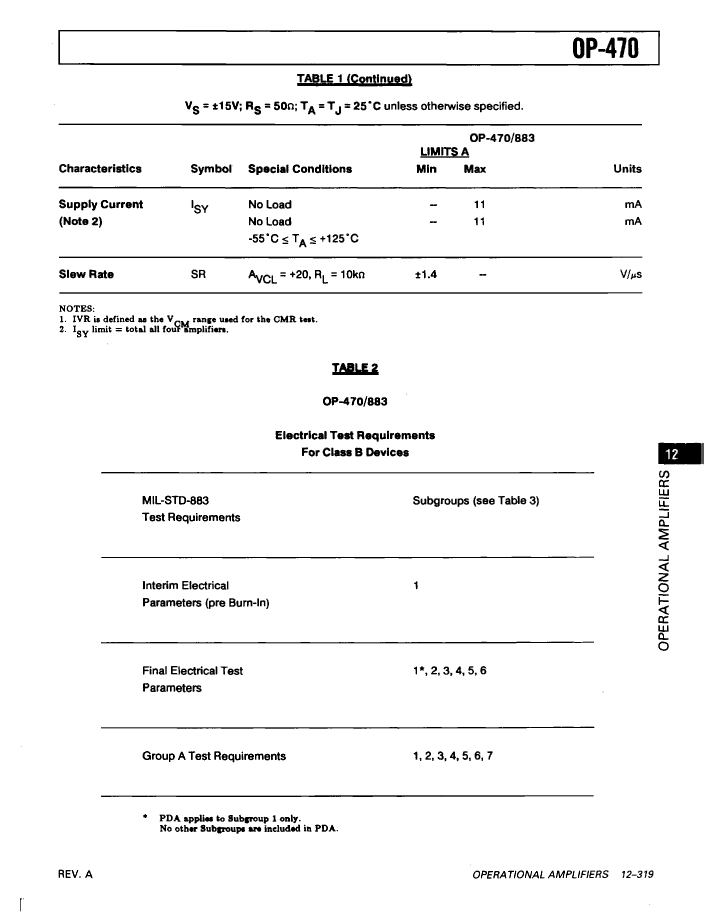

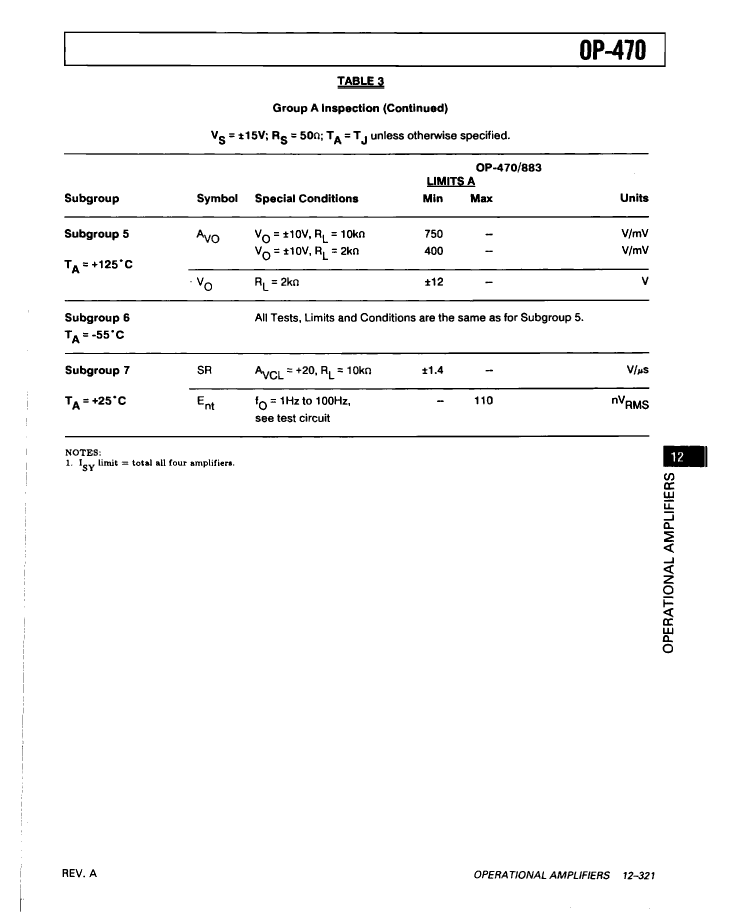

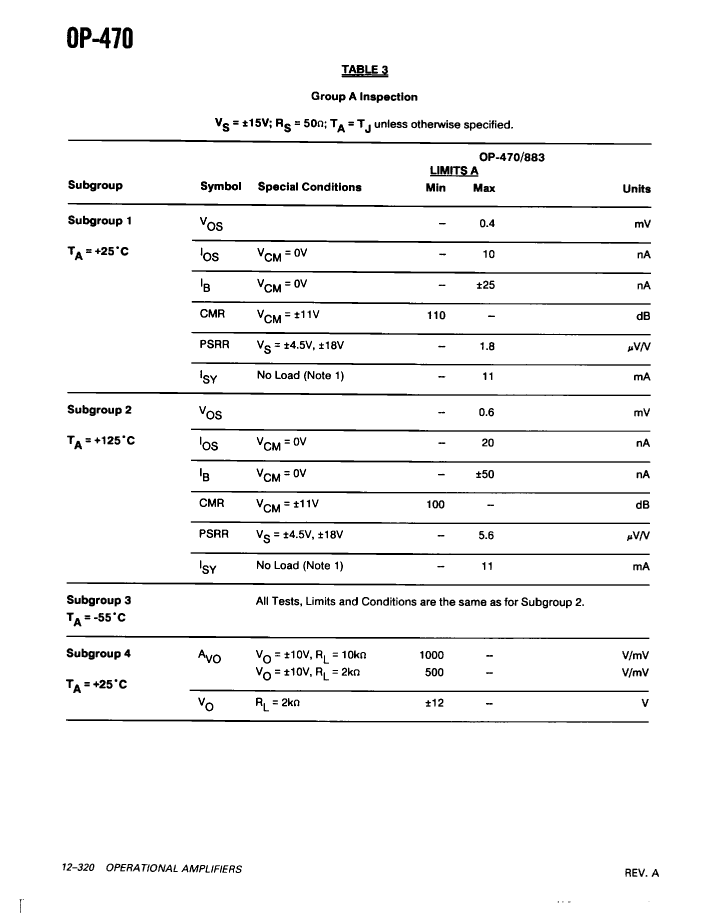

| Parameter Name | Attribute value |
| Maker | ADI |
| Parts packaging code | QFN |
| package instruction | QCCN, |
| Contacts | 28 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.02 µA |
| Nominal Common Mode Rejection Ratio | 120 dB |
| Maximum input offset voltage | 600 µV |
| JESD-30 code | S-CQCC-N28 |
| length | 11.43 mm |
| Negative supply voltage upper limit | -18 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 4 |
| Number of terminals | 28 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| Certification status | Not Qualified |
| Maximum seat height | 2.54 mm |
| Nominal slew rate | 2 V/us |
| Supply voltage upper limit | 18 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | YES |
| technology | BIPOLAR |
| Temperature level | MILITARY |
| Terminal form | NO LEAD |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| Nominal Uniform Gain Bandwidth | 6000 kHz |
| width | 11.43 mm |
| Base Number Matches | 1 |
| 5962-88565013X | 5962-8856501CX | OP-470AY/883 | |
|---|---|---|---|
| Description | IC QUAD OP-AMP, 600 uV OFFSET-MAX, 6 MHz BAND WIDTH, CQCC28, CERAMIC, LCC-28, Operational Amplifier | IC QUAD OP-AMP, 600 uV OFFSET-MAX, 6 MHz BAND WIDTH, CDIP14, GLASS SEALED, CERDIP-14, Operational Amplifier | IC QUAD OP-AMP, 600 uV OFFSET-MAX, 6 MHz BAND WIDTH, CDIP14, HERMETIC SEALED, CERDIP-14, Operational Amplifier |
| Parts packaging code | QFN | DIP | DIP |
| package instruction | QCCN, | DIP, | HERMETIC SEALED, CERDIP-14 |
| Contacts | 28 | 14 | 14 |
| Reach Compliance Code | unknown | compliant | unknown |
| Maker | ADI | - | ADI |
| ECCN code | EAR99 | EAR99 | - |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | - |
| Maximum average bias current (IIB) | 0.02 µA | 0.02 µA | - |
| Nominal Common Mode Rejection Ratio | 120 dB | 120 dB | - |
| Maximum input offset voltage | 600 µV | 600 µV | - |
| JESD-30 code | S-CQCC-N28 | R-GDIP-T14 | - |
| length | 11.43 mm | 19.81 mm | - |
| Negative supply voltage upper limit | -18 V | -18 V | - |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V | - |
| Number of functions | 4 | 4 | - |
| Number of terminals | 28 | 14 | - |
| Maximum operating temperature | 125 °C | 125 °C | - |
| Minimum operating temperature | -55 °C | -55 °C | - |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | - |
| encapsulated code | QCCN | DIP | - |
| Package shape | SQUARE | RECTANGULAR | - |
| Package form | CHIP CARRIER | IN-LINE | - |
| Certification status | Not Qualified | Qualified | - |
| Maximum seat height | 2.54 mm | 6.3 mm | - |
| Nominal slew rate | 2 V/us | 2 V/us | - |
| Supply voltage upper limit | 18 V | 18 V | - |
| Nominal supply voltage (Vsup) | 15 V | 15 V | - |
| surface mount | YES | NO | - |
| technology | BIPOLAR | BIPOLAR | - |
| Temperature level | MILITARY | MILITARY | - |
| Terminal form | NO LEAD | THROUGH-HOLE | - |
| Terminal pitch | 1.27 mm | 2.54 mm | - |
| Terminal location | QUAD | DUAL | - |
| Nominal Uniform Gain Bandwidth | 6000 kHz | 6000 kHz | - |
| width | 11.43 mm | 7.62 mm | - |
| Base Number Matches | 1 | 1 | - |
