M85049-20-19W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> M85049-20-19W

M85049-20-19W: DescriptionCircular MIL Spec Strain Reliefs u0026 Adapters CRMP RING BKSHLL SH SZ 19; CategoryThe connector; File Size99KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric Compare View All

M85049-20-19W Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M85049-20-19W	-	-	View	Buy Now

M85049-20-19W Overview

Circular MIL Spec Strain Reliefs u0026 Adapters CRMP RING BKSHLL SH SZ 19

M85049-20-19W Parametric

Parameter Name	Attribute value
Product Category	Circular MIL Spec Strain Reliefs & Adapters
Manufacturer	Glenair
Product	Adapters
MIL Type	MIL-DTL-38999 III, IV
Shell Size	19
Mating Style	Rotatable Coupling
Shell Material	Aluminum Alloy
Shell Style	Straight
Packaging	Bulk
Factory Pack Quantity	1
Type	Crimp Ring Adapters

Preview

Download Datasheet

View All

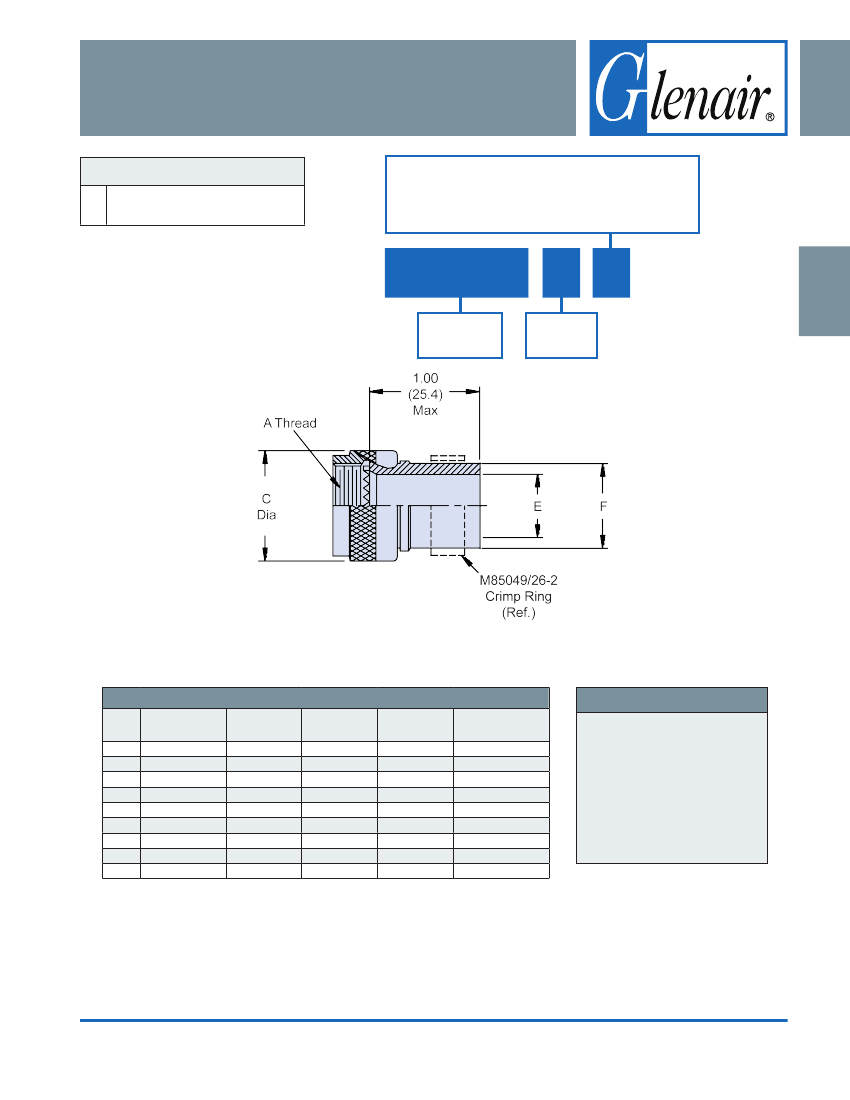

AS85049/20

Straight Crimp Ring Backshell and Crimp Ring

Finish

= Electroless Nickel

= 1,000 Hr. Cadmium Olive Drab over Electroless Nickel

= Aluminum, Nickel Fluorocarbon Polymer

= Aluminum, Zinc-Nickel, Black

CONNECTOR DESIGNATOR:

MIL-DTL-38999 Series III and IV

EN3645

M85049/20

Basic

Part Number

Shell Size

(Table I)

TABLE I: Shell Size, Thread, Cable Entry and Dimensions

Shell

Size

A Thread

Class 2B

M12 X 1 - 6H

M15 X 1 - 6H

M18 X 1 - 6H

M22 X 1 - 6H

M25 X 1 - 6H

M28 X 1 - 6H

M31 X 1 - 6H

M34 X 1 - 6H

M37 X 1 - 6H

C Dia

Max

.750

.850

1.000

1.100

1.250

1.400

1.500

1.650

1.750

E Dia

± .015 (0.4)

F Dia

Max

M85049/26-2

Crimp Ring Ref

(19.1) .250 (6.4) .347 (8.8)

(21.6) .325 (8.3) .498 (12.6)

(25.4) .420 (10.7) .510 (13.0)

(27.9) .540 (13.7) .630 (16.0)

(31.8) .670 (17.0) .760 (19.3)

(35.6) .789 (20.0) .890 (22.6)

(38.1) .914 (23.2) 1.010 (25.7)

(41.9) 1.039 (26.4) 1.130 (28.7)

(44.5) 1.112 (28.2) 1.202 (30.5)

APPLICATION NOTES

For complete dimensions

see the applicable Military

Specification.

Metric dimensions (mm) are in

parentheses.

Cable Entry is defined as

the accommodation range

for the wire bundle or cable.

Dimensions shown are not

intended for inspection criteria.

Dimensions in inches (millimeters) and are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-41

E-Mail: sales@glenair.com

AS85049

M85049-20-19W Related Products

	M85049-20-19W	M85049-20-23W	M85049-20-25W	M85049-20-9N	M85049-20-15W
Description	Circular MIL Spec Strain Reliefs u0026 Adapters CRMP RING BKSHLL SH SZ 19	Circular MIL Spec Strain Reliefs u0026 Adapters Straight Shield Termination	Circular MIL Spec Strain Reliefs u0026 Adapters STRAIGHT SHEILD TERMINATION	Circular MIL Spec Strain Reliefs u0026 Adapters Straight Shield Termination	Circular MIL Spec Strain Reliefs u0026 Adapters STRAIGHT SHEILD TERMINATION
Product Category	Circular MIL Spec Strain Reliefs & Adapters	Circular MIL Spec Strain Reliefs & Adapters	Circular MIL Spec Strain Reliefs & Adapters	Circular MIL Spec Strain Reliefs & Adapters	Circular MIL Spec Strain Reliefs & Adapters
Manufacturer	Glenair	Glenair	Glenair	Glenair	Glenair
Product	Adapters	Adapters	Adapters	Adapters	Adapters
MIL Type	MIL-DTL-38999 III, IV	MIL-DTL-38999 III, IV	MIL-DTL-38999 III, IV	MIL-DTL-38999 III, IV	MIL-DTL-38999 III, IV
Shell Size	19	23	25	9	15
Mating Style	Rotatable Coupling	Rotatable Coupling	Rotatable Coupling	Rotatable Coupling	Rotatable Coupling
Shell Material	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy
Shell Style	Straight	Straight	Straight	Straight	Straight
Factory Pack Quantity	1	1	1	1	1
Type	Crimp Ring Adapters	Crimp Ring Adapters	Crimp Ring Adapters	Crimp Ring Adapters	Crimp Ring Adapters
RoHS	-	No	No	Details	No
