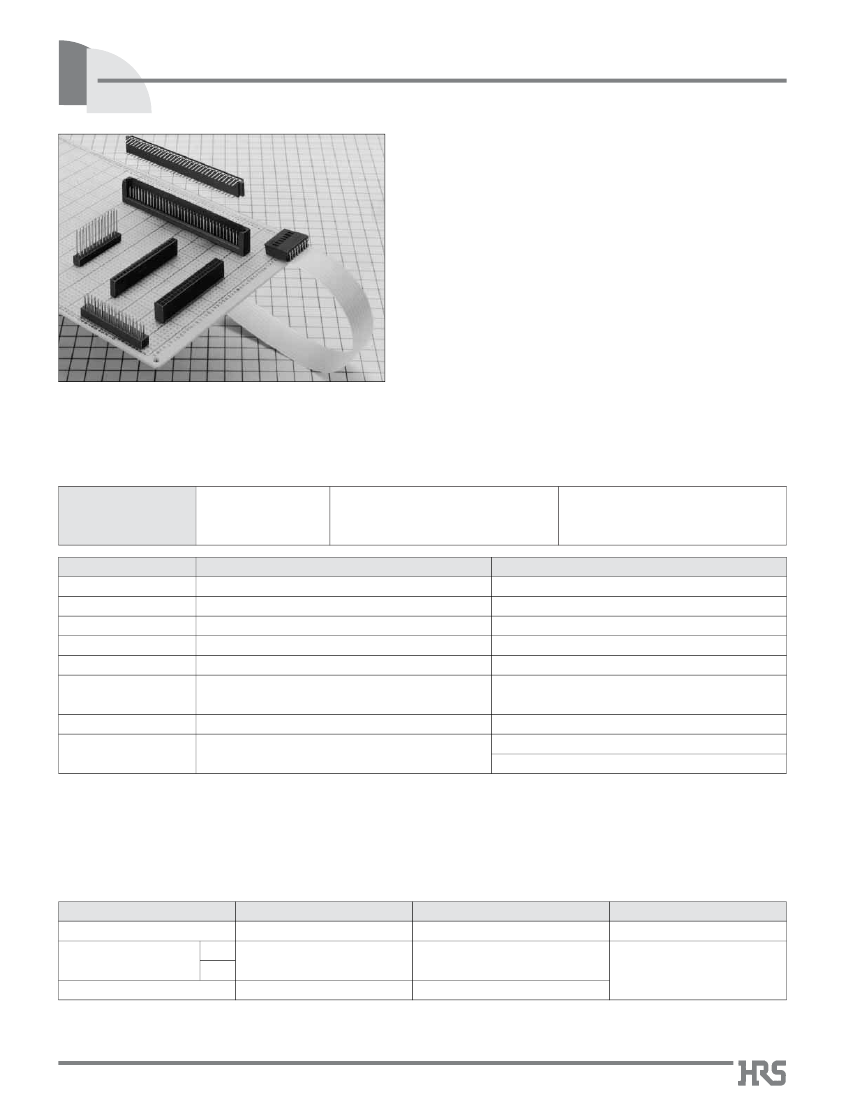

2.54mm Pitch Board to Board Connector
HIF3H Series
■Features
1. Product Variation
Afford to connect the board to board horizontally or vertically.
2. Compatibility
Achieve combination with other HIF3H series.
Jan.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
■Applications
Computers, termination equipment, various kinds of electronic equipment, Office Automation machines and so on
■Product
Specifications
Rating
Current rating: 3A
Operating Temperature Range: -55
to
+85ç (Note 1)
Storage Temperature Range: -10
to
+60ç(Note 2)
Operating Humidity Range: 40
to
70% (Note 2)
Condition
500V DC
1000V AC/1 minute.
Measured at 0.1A
Voltage rating: 300V AC Operating Humidity Range: 40
to
80%
Specification
1000M
ohms
Item
1. Insulation Resistance
2. Withstanding Voltage
3. Contact Resistance
4. Vibration
No flashover or insulation breakdown.
15m
ohms
max.
No electrical discontinuity of 1μs or more
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
( -55ç: 30 minutes→15
to
35ç: 5 minutes max.→
(125ç:
30 minutes→15
to
35ç: 5 minutes max.) 5 cycles
500 cycles
5.
Humidity (Steady state)
Insulation resistance: 1000
ohms
min.
6. Temperature Cycle
No damage, cracks, or parts looseness.
7. Durability (Mating/un-mating) Contact resistance: 15 m
ohms
max.
8. Resistance to Soldering heat
No deformation of components affecting performance.
Solder bath: 260ç for 10 seconds
Manual soldering: 360ç for 5 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 3. Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for
a specific part number shown.
■Material
Parts
Insulator
Receptacle Contact
Pin header
DS
DSA
Brass or phosphor bronze
Selective gold plated
Material
PBT
Phosphor bronze
Finish
Black
Selective gold plated
–––––––
Remarks
UL94V-0
B53
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products
Series●2.54mm Pitch
be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
HIF3H
have been discontinued, or will
Board to Board Connector
■Ordering
Information
●Pin
Header
HIF3H
q
-
*
P B - 2.54 DSA
w
e
r
t
y
: HIF3H
30, 34, 40, 50, 60, 70, 130
q
Series Name
Jan.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
w
Number of contacts : 4, 6, 10, 12, 14, 16, 20, 24, 26,
e
P
: Pin header
B: Brass
t
Contact pitch
y
Contact type
DS : Right angle type
DSA : Straight type
W : Wrapping type
: 2.54mm
r
Contact material A: Phosphor bronze (DS: brass)
●Socket
HIF3H
q
A -
*
D A - 2.54 DSA
w
e
r
t
y
u
: HIF3H
q
Series Name
A
B
w
No symbol : Standard
: With mis-insertion preventive guide
: Similarly, guide position center 1 point type for 50, 60 and 64 contacts
26, 30, 34, 40, 50, 60, 64, 70, 130
r
Contact alignment: D: double rows
S: single row
t
A
B
: Straight selective gold plated
: Right angle selective gold plated
: 2.54mm
e
Number of contacts : 4, 6, 8, 10, 12, 14, 16, 18, 20, 24, 25,
y
Contact pitch
u
Contact type
DS: Right angle type
DSA: Straight type
B54
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com,
Board to Board Connector
HIF3H Series●2.54mm Pitch
or contact your Hirose sales representative.

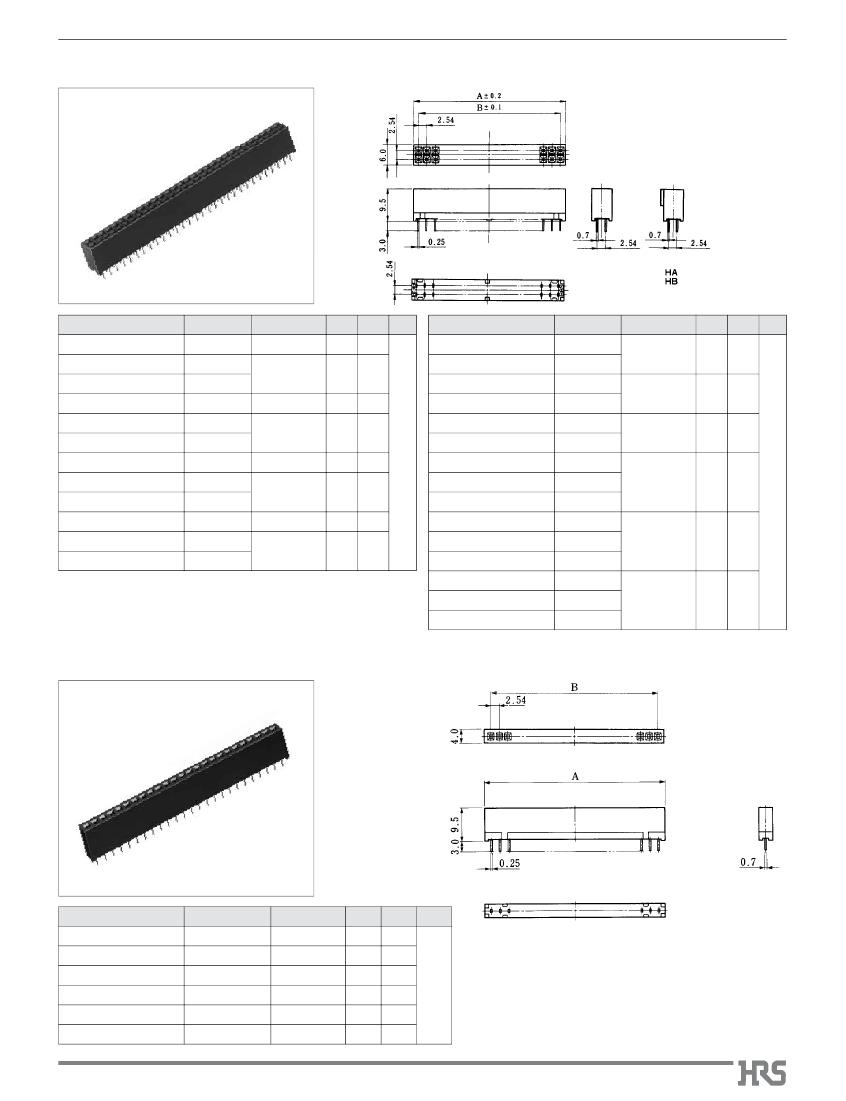

■Receptacle
Straight Through hole Type
Jan.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Unit:mm
Part Number
CL No.
Number of Contacts
6
10
12
16
18
20
24
26
A
B
RoHS
Part Number
CL No.
Number of Contacts
30
A
B
RoHS
HIF3HA- 6DA-2.54DSA(71) 618-0139-8-71
HIF3HA-10DA-2.54DSA(71) 618-0101-5-71
HIF3HA-10DA-2.54DSA(71) 618-0121-2-71
HIF3HA-12DA-2.54DSA(71) 618-0102-8-71
HIF3HA-16DA-2.54DSA(71) 618-0103-0-71
HIF3HA-16DA-2.54DSA(71) 618-0123-8-71
HIF3HA-18DA-2.54DSA(71) 618-0111-9-71
HIF3HA-20DA-2.54DSA(71) 618-0104-3-71
HIF3HA-20DA-2.54DSA(71) 618-0124-0-71
HIF3HA-24DA-2.54DSA(71) 618-0113-4-71
HIF3HA-26DA-2.54DSA(71) 618-0105-6-71
HIF3HA-26DA-2.54DSA(71) 618-0125-3-71
8.62 5.08
13.7 10.16
16.24 12.7
21.32 17.78
23.86 20.32
26.4 22.86
31.46 27.94
34.02 30.48
YES
HIF3HA-30DA-2.54DSA(71) 618-0106-9-71
HIF3HA-30DA-2.54DSA(71) 618-0126-6-71
HIF3HA-34DA-2.54DSA(71) 618-0107-1-71
HIF3HA-34DA-2.54DSA(71) 618-0127-9-71
HIF3HA-40DA-2.54DSA(71) 618-0108-4-71
HIF3HA-40DA-2.54DSA(71) 618-0128-1-71
HIF3HA-50DA-2.54DSA(71) 618-0109-7-71
HIF3HA-50DA-2.54DSA(71) 618-0129-4-71
HIF3HB-50DA-2.54DSA(71) 618-0131-6-71
HIF3HA-60DA-2.54DSA(71) 618-0110-6-71
HIF3HA-60DA-2.54DSA(71) 618-0130-3-71
HIF3HB-60DA-2.54DSA(71) 618-0132-9-71
HIF3HA-64DA-2.54DSA(71) 618-0112-1-71
HIF3HA-64DA-2.54DSA(71) 618-0134-4-71
HIF3HB-64DA-2.54DSA(71) 618-0133-1-71
39.1 35.56
34
44.18 40.64
40
51.8 48.26
50
64.5 60.96 YES
60
77.2 73.66
64
82.28 78.74
■Receptacle
Straight Through hole Type
Part Number
HIF3H-6SA-2.54DSA(71)
CL No.
562-0713-1-71
Number of Contacts
6
10
12
14
20
25
A
26.4
Unit:mm
B RoHS
22.86
YES
16.24 12.7
31.48 27.94
36.56 33.02
51.8
64.5
48.26
60.96
HIF3H-10SA-2.54DSA(71) 562-0719-8-71
HIF3H-12SA-2.54DSA(71) 562-0723-5-71
HIF3H-14SA-2.54DSA(71) 562-0655-7-71
HIF3H-20SA-2.54DSA(71) 562-0704-0-71
HIF3H-25SA-2.54DSA(71) 562-0705-3-71
B55
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products
Series●2.54mm Pitch
be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
HIF3H
have been discontinued, or will
Board to Board Connector

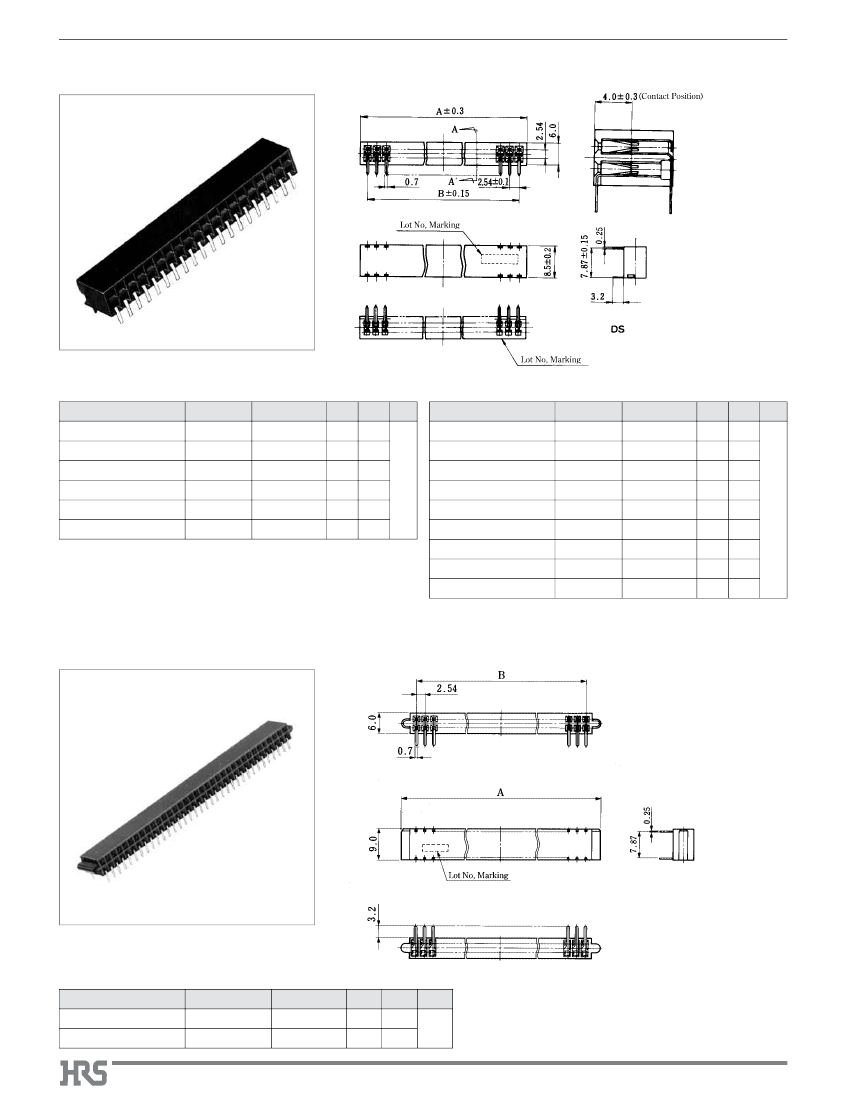

■Receptacle
Right Angle Through hole Type
Jan.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Part Number
HIF3H- 4DB-2.54DS(71)
HIF3H- 8DB-2.54DS(71)
HIF3H-10DB-2.54DS(71)
HIF3H-12DB-2.54DS(71)
HIF3H-14DB-2.54DS(71)
HIF3H-16DB-2.54DS(71)
CL No.
618-0150-0-71
618-0153-9-71
618-0141-0-71
618-0152-6-71
618-0154-1-71
618-0142-2-71
Number of Contacts
4
8
10
12
14
16
A
6.0
B
2.54
RoHS
Part Number
CL No.
Number of Contacts
18
20
24
26
30
34
40
50
60
A
Unit:mm
B RoHS
HIF3H-18DB-2.54DS(71) 618-0165-8-71
HIF3H-20DB-2.54DS(71) 618-0143-5-71
YES
HIF3H-24DB-2.54DS(71) 618-0216-7-71
HIF3H-26DB-2.54DS(71) 618-0144-8-71
HIF3H-30DB-2.54DS(71) 618-0145-0-71
HIF3H-34DB-2.54DS(71) 618-0146-3-71
HIF3H-40DB-2.54DS(71) 618-0147-6-71
HIF3H-50DB-2.54DS(71) 618-0148-9-71
HIF3H-60DB-2.54DS(71) 618-0149-1-71
23.86 20.32
26.4 22.86
31.48 27.94
34.02 30.48
39.1 35.56 YES
44.18 40.64
51.8 48.26
64.5 60.96
77.2 73.66
11.16 7.62
13.7 10.16
16.24 12.70
18.78 15.24
21.32 17.78
■Receptacle
Right Angle Through hole Type 70 · 130 contacts
Part Number
HIF3H-070DB-2.54DS(71)
HIF3H-130DB-2.54DS(71)
CL No.
618-0155-4-71
618-0151-3-71
Number of Contacts
70
130
A
171
Unit:mm
B RoHS
162.56
YES
94.8
086.36
B56
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com,
Board to Board Connector
HIF3H Series●2.54mm Pitch
or contact your Hirose sales representative.

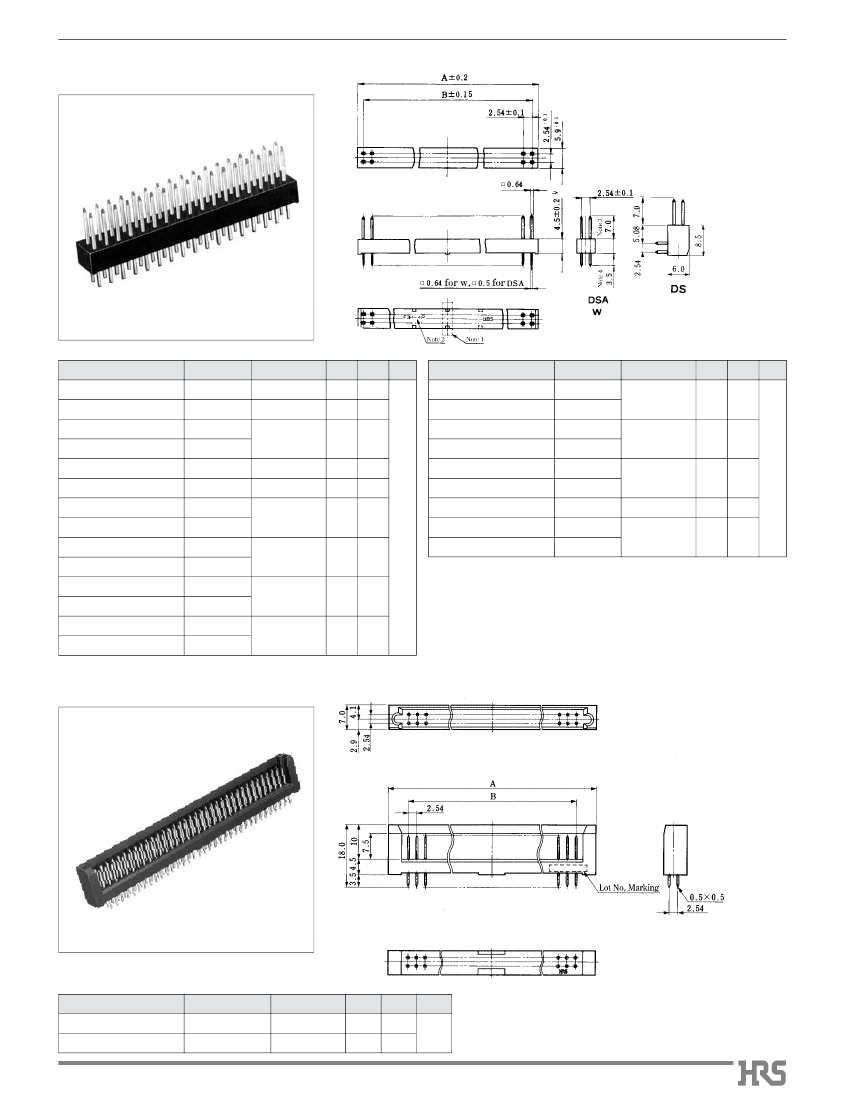

■Pin
Header Through hole Type
Jan.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Part Number
HIF3H-04PA-2.54DS(71)
HIF3H-06PB-2.54DSA(71)
HIF3H-10PB-2.54DSA(71)
HIF3H-10P0-2.54W
HIF3H-12PB-2.54DSA(71)
HIF3H-14PB-2.54DSA(71)
HIF3H-16PB-2.54DSA(71)
HIF3H-16PA-2.54DS(71)
HIF3H-20PB-2.54DSA(71)
HIF3H-20P0-2.54W
HIF3H-24PB-2.54DSA(71)
HIF3H-24PA-2.54DS(71)
HIF3H-26PB-2.54DSA(71)
HIF3H-26P0-2.54W
CL No.
618-0073-1-71
618-0215-4-71
618-0201-0-71
618-0185-5
618-0202-2-71
618-0213-9-71
618-0203-5-71
618-0065-3-71
618-0204-8-71
618-0183-0
618-0205-0-71
618-0067-9-71
618-0206-3-71
618-0184-2
Number of Contacts
4
6
10
12
14
16
A
6
B
2.54
RoHS
Part Number
HIF3H-30PB-2.54DSA(71)
HIF3H-30P0-2.54W
HIF3H-34PB-2.54DSA(71)
HIF3H-34P0-2.54W
HIF3H-40PB-2.54DSA(71)
HIF3H-40P0-2.54W
HIF3H-50PB-2.54DSA(71)
HIF3H-60PB-2.54DSA(71)
HIF3H-60P0-2.54W
CL No.
618-0207-6-71
618-0186-8
618-0208-9-71
618-0181-4
618-0209-1-71
618-0182-7
618-0210-0-71
618-0211-3-71
618-0187-0
Number of Contacts
30
A
Unit:mm
B RoHS
39.1 35.56
8.62 5.08
13.7 10.16
16.24 12.7
18.78 15.24
21.3 17.78 YES
34
44.18 40.64
YES
40
50
60
51.8 48.26
64.5 60.96
77.2 73.66
20
26.4 22.86
24
31.46 27.94
26
34.02 30.48
Note 1: The stitch line area is divided in two for 50 and 60
