HCTS244T
Data Sheet
July 1999
File Number
4618.1
Radiation Hardened Octal Buffer/Line
Driver, Three-State
Intersil‘s Satellite Applications Flow
TM
(SAF) devices are
fully tested and guaranteed to 100kRAD total dose. These
QML Class T devices are processed to a standard flow
intended to meet the cost and shorter lead-time needs of
large volume satellite manufacturers, while maintaining a
high level of reliability.
The Intersil HCTS244T is a Radiation Hardened Non-
Inverting Octal Buffer/Line Driver, Three-State, with two
active-low output enables.
Features
• QML Class T, Per MIL-PRF-38535
• Radiation Performance
- Gamma Dose (γ) 1 x 10
5
RAD(Si)
- Latch-Up Free Under Any Conditions
- SEP Effective LET No Upsets: >100 MEV-cm
2
/mg
- Single Event Upset (SEU) Immunity < 2 x 10
-9
Errors/Bit-Day (Typ)
• 3 Micron Radiation Hardened CMOS SOS
• Fanout (Over Temperature Range)
- Bus Driver Outputs - 15 LSTTL Loads
• Significant Power Reduction Compared to LSTTL ICs
• DC Operating Voltage Range: 4.5V to 5.5V
• LSTTL Input Compatibility
- V
IL
= 0.8V Max
- VI
H
= V
CC/2
Min
• Input Current Levels Ii
≤
5mA at V
OL
, V
OH
Specifications
Specifications for Rad Hard QML devices are controlled by
the Defense Supply Center in Columbus (DSCC). The SMD
numbers listed below must be used when ordering.
Detailed Electrical Specifications for the HCTS244T are
contained in SMD 5962-95744.
A “hot-link” is provided from
our website for downloading.
www.intersil.com/spacedefense/newsafclasst.asp
Intersil‘s Quality Management Plan (QM Plan), listing all
Class T screening operations, is also available on our
website.
www.intersil.com/quality/manuals.asp
Pinouts
HCTS244DTR (SBDIP), CDIP2-T20
TOP VIEW
OE 1
A0 1
1
2
3
4
5
6
7
8
9
10
20
V
CC
19 2 OE
18 1 Y0
17 2 A3
16 1 Y1
15 2 A2
14 1 Y2
13 2 A1
12 1 Y3
11 2 A0
Ordering Information
ORDERING
NUMBER
5962R9574401TRC
5962R9574401TXC
PART
NUMBER
HCTS244DTR
HCTS244KTR
TEMP.
RANGE
(
o
C)
-55 to 125
-55 to 125
Y3 2
A1 1
Y2 2
A2 1
Y1 2
A3 1
Y0 2
GND
NOTE:
Minimum order quantity for -T is 150 units through
distribution, or 450 units direct.
HCTS244KTR (FLATPACK), CDFP4-F20
TOP VIEW
OE 1
A0 1
Y3 2
A1 1
Y2 2
A2 1
Y1 2
A3 1
Y0 2
GND
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
V
CC
2 OE
1 Y0
2 A3
1 Y1
2 A2
1 Y2
2 A1
1 Y3
2 A0
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
www.intersil.com or 407-727-9207
|
Copyright
©
Intersil Corporation 1999
Satellite Applications Flow™ (SAF) is a trademark of Intersil Corporation.
HCTS244T
Die Characteristics
DIE DIMENSIONS:
(2743µm x 2692µm x 533µm
±51µm)
108 x 106 x 21mils
±2mil
METALLIZATION:
Type: Al Si
Thickness: 11.0k
Å
±1k
Å
SUBSTRATE POTENTIAL:
Unbiased Silicon on Sapphire
BACKSIDE FINISH:
Sapphire
PASSIVATION:
Type: Silox (S
i
O
2
)
Thickness: 13.0k
Å
±2.6k
Å
WORST CASE CURRENT DENSITY:
< 2.0e5 A/cm
2
TRANSISTOR COUNT:
264
PROCESS:
CMOS SOS

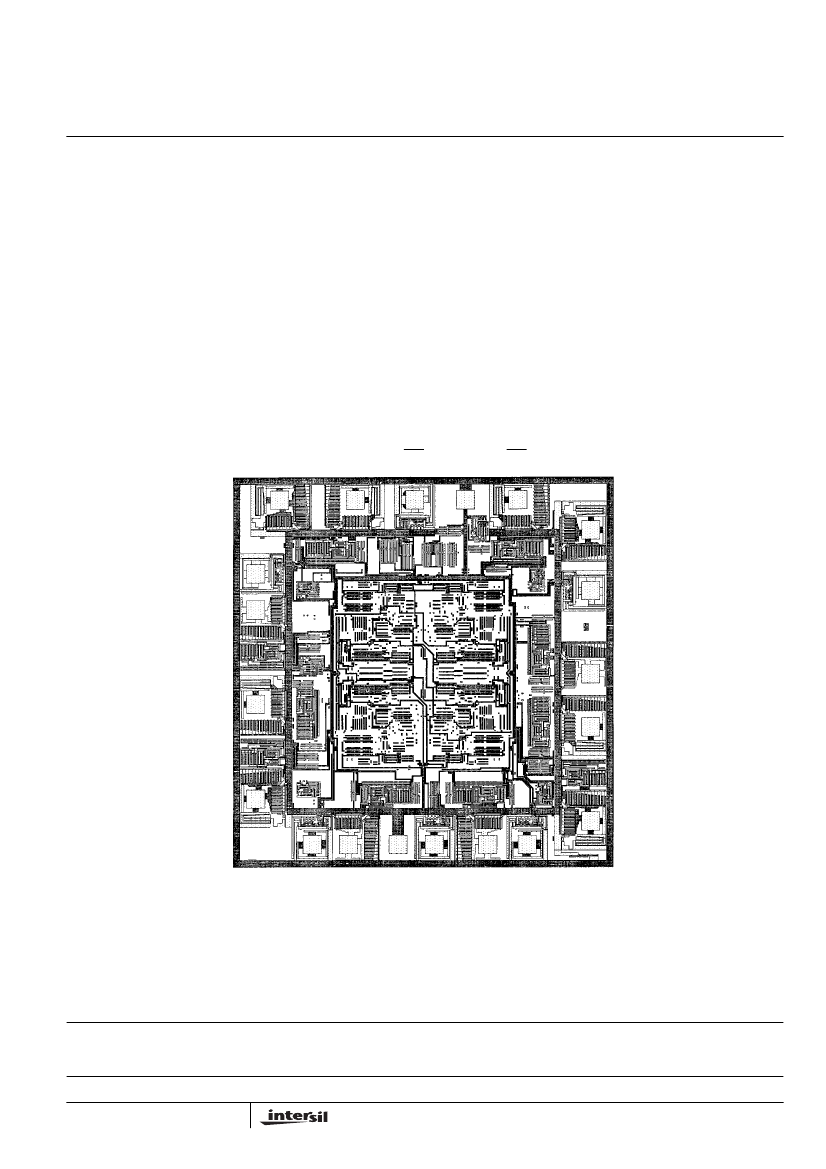

Metallization Mask Layout
HCTS244T
2Y3
(3)
1A0
(2)
1OE
(1)
V
CC
(20)
2OE
(19)
(18) 1Y0
1A1 (4)
(17) 2A3
2Y2 (5)
(16) 1Y1
1A2 (6)
(15) 2A2
2Y1 (7)
(14) 1Y2
(8)
1A3
(9)
2Y0
(10)
GND
(11)
2A0
(12)
1Y3
(13)
2A1
NOTE: The die diagram is a generic plot from a similar HCS device. It is intended to indicate approximate die size and bond pad location. The mask
series for the HCTS244 is TA14402A.
