Part Number

Search

LFSPXO025176Bulk

Description
Standard Clock Oscillators 12MHz 1.8V 50ppm -10C +70C
CategoryPassive components
File Size697KB,2 Pages
ManufacturerIQD
Download Datasheet Parametric View All

LFSPXO025176Bulk Online Shopping

Suppliers Part Number Price MOQ In stock
LFSPXO025176Bulk - - View Buy Now

LFSPXO025176Bulk Overview

Standard Clock Oscillators 12MHz 1.8V 50ppm -10C +70C

LFSPXO025176Bulk Parametric

Parameter NameAttribute value
Product CategoryStandard Clock Oscillators
ManufacturerIQD
RoHSDetails
ProductStandard Clock Oscillators
Frequency12 MHz
Frequency Stability50 PPM
Load Capacitance15 pF
Operating Supply Voltage1.8 V
Supply Voltage - Min1.71 V
Supply Voltage - Max1.89 V
Output FormatCMOS
Termination StyleSMD/SMT
Package / Case7 mm x 5 mm
Minimum Operating Temperature- 10 C
Maximum Operating Temperature+ 70 C
Length7.2 mm
Width5.2 mm
Height1.4 mm
PackagingBulk
Current Rating6 mA
Duty Cycle - Max60 %
Factory Pack Quantity100
TypeCrystal Oscillator

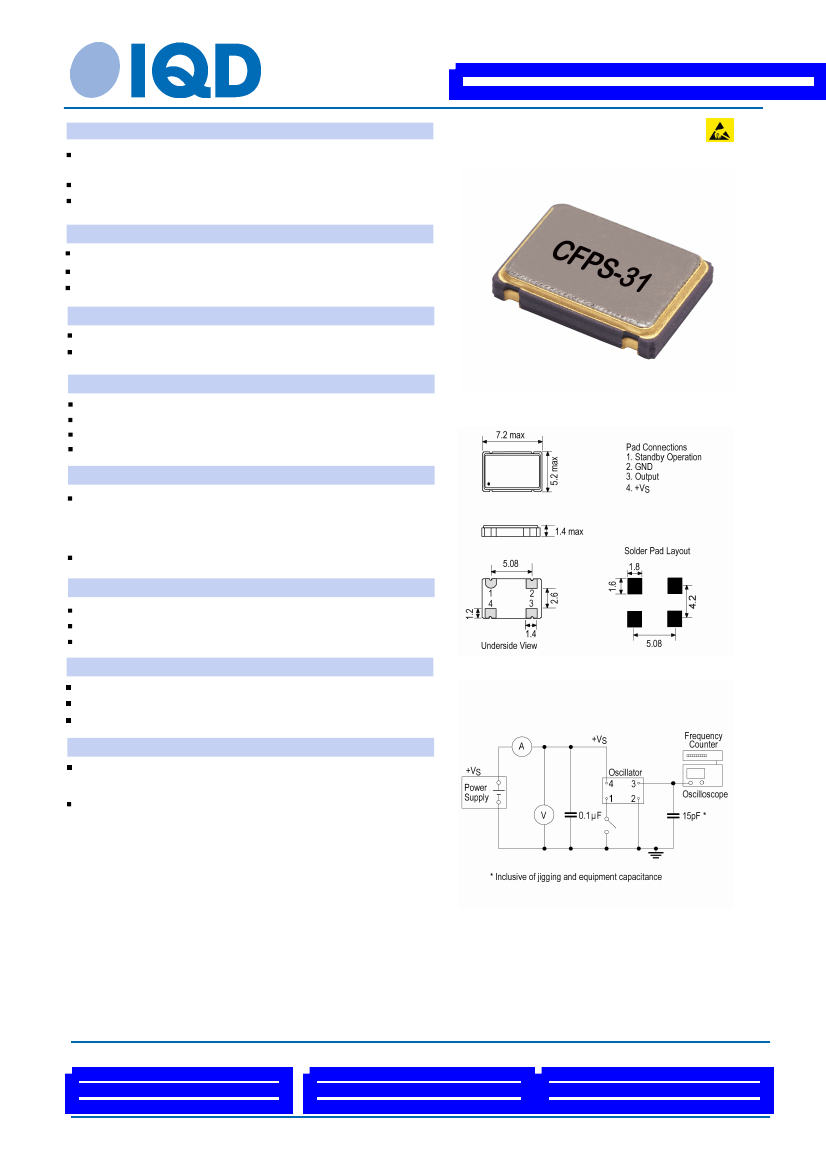

Crystal Clock Oscillator Specification
Part No. + Packaging:
LFSPXO025176Bulk
Description
Surface mount oscillator in a ceramic package with a
hermetically sealed metal lid
Model
CFPS-31
Model Issue number
5
Frequency Parameters
Frequency
Frequency Stability
Operating Temperature Range
Electrical Parameters
12.0MHz
±50.00ppm
-10.00 to 70.00°C
Supply Voltage
Current Draw
Output Details
1.8V ±5%
6.00mA
Output Compatability
Drive Capability
Rise and Fall Time
Duty Cycle
Output Control
CMOS
15pF max
5.0ns max
40/60%
Outline (mm)
Logic ‘1’ (>70% VS) to pad 1 enables oscillator output
Logic ‘0’ (<30% VS) to pad 1 disables oscillator output; the
oscillator output goes to the high impedance state
No connection to pad 1 enables oscillator output
Standby Current: 10μA max
Environmental Parameters
Storage Temperature Range: –55 to 125°C
Shock: MIL-STD-202, Method 213, Condition E
Vibration: MIL-STD-883, Method 2007, Condition A
Compliance
Test Circuit
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Bulk
Pack Size: 100
Loose in bulk pack
Alternative packing option available
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 2
