Part Number

Search

M20-9712845

Description
Headers u0026 Wire Housings 28 SIL HORIZONTAL PIN HEADER GOLD HT
CategoryThe connector    The connector
File Size47KB,1 Pages
ManufacturerHarwin
Websitehttp://www.harwin.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

M20-9712845 Online Shopping

Suppliers Part Number Price MOQ In stock
M20-9712845 - - View Buy Now

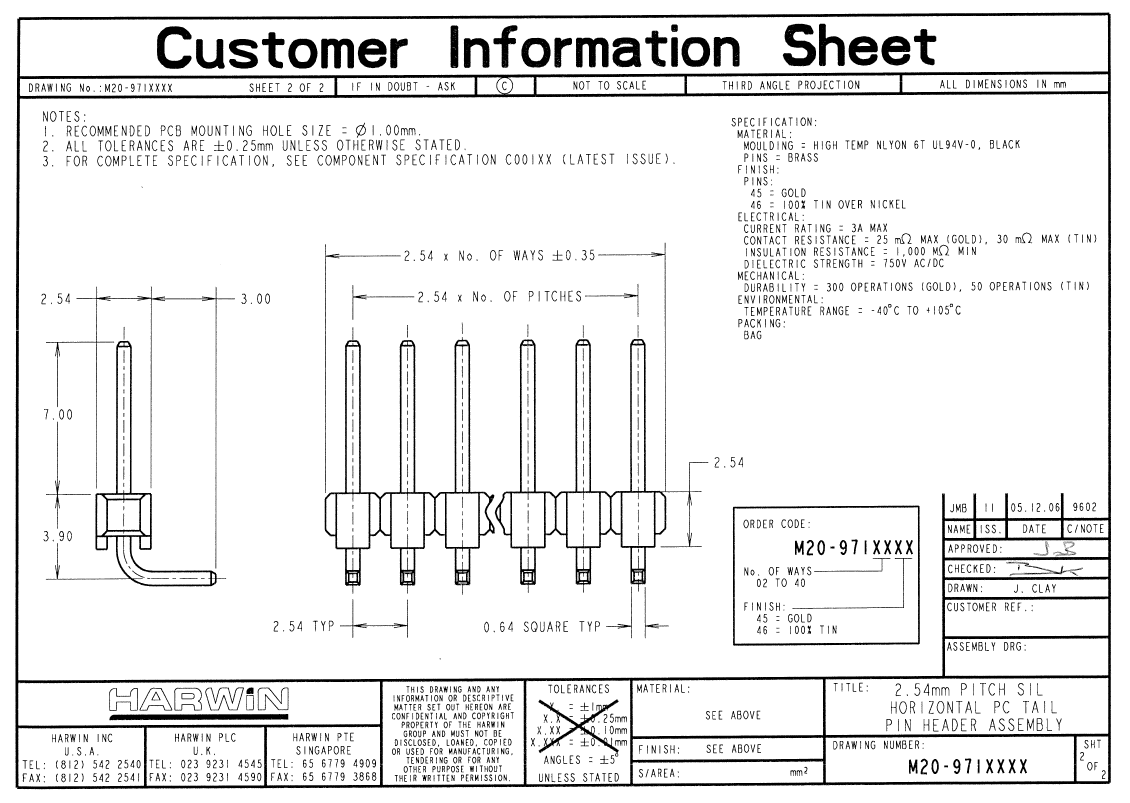

M20-9712845 Overview

Headers u0026 Wire Housings 28 SIL HORIZONTAL PIN HEADER GOLD HT

M20-9712845 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerHarwin
package instructionLEAD FREE
Reach Compliance Codecompliant
Other featuresROHS COMPLIANT
body width0.1 inch
subject depth0.166 inch
body length2.8 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGold (Au)
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance25 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage750VAC V
Durability300 Cycles
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialNYLON
JESD-609 codee4
MIL complianceNO
Plug contact pitch0.1 inch
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.118 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts28
UL Flammability Code94V-0
OBSOLETE
No. of Contacts:
21, 24, 25, 27 to 35, 37 to 39
