87933-1007: DescriptionHeaders u0026 Wire Housings 1.27mm DRSW Hdr SMT/ Cap O/Peg GFLF10Ckt; CategoryThe connector The connector; File Size26KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

87933-1007 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87933-1007	-	-	View	Buy Now

87933-1007 Overview

Headers u0026 Wire Housings 1.27mm DRSW Hdr SMT/ Cap O/Peg GFLF10Ckt

87933-1007 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.135 inch
body length	0.25 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e4
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	2u inch
Rated current (signal)	3 A
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	10

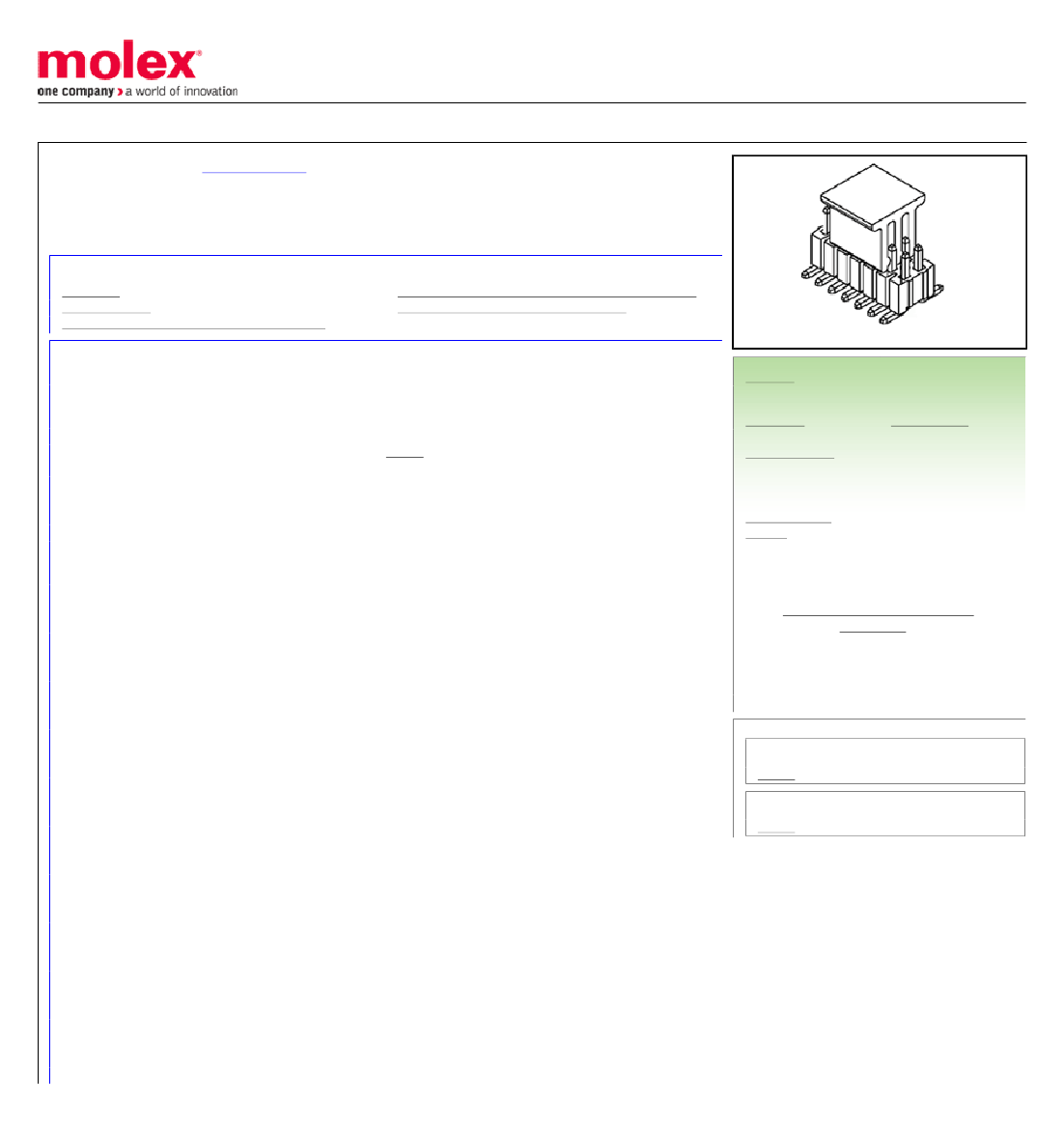

Preview

Download Datasheet

View All

This document was generated on 10/23/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0879331007

Active

1.27mm Pitch Board-to-Board Header, Dual Row, Surface Mount, Vertical, 10 Circuits,

0.05µm Gold (Au) Plating, Mating Pin Length 1.65mm, with Cap, without Peg, Tube

Packaging, Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification 879330001-000 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Comments

Packaging Specification PK-89990-565-000 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

LR19980

E29179

PCB Headers

87933

Board-to-Board, Signal

4.3 Amps per Pole with only 1 contact powered up

<br><br>1.4 Amps per Pole with max contacts powered

N/A

884982052826

Yes

Black

100

94V-0

None

1.65mm

Copper Alloy

Gold

Nickel

High Temperature Thermoplastic

0.151/g

Vertical

None

Tube

1.27mm

0.051µm

1.270µm

Pick and Place Cap

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/21/2016 (20 June

2016)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Robotic Placement

Shrouded

Stackable

Search Parts in this Series

87933 Series

Mates With

78120 Board-to-Board Receptacles
