Agamem Technology Inc.

PRELIMINARY

SERVO MOTOR CONTROLLER

INTRODUCTION

The AA51880 is a BJT integrated circuit for use in servo motor control applications.

The built -in voltage regulato r provides the AA51880 with e xtremely stable output voltage.

AA51880

FEATURES

Built-in voltage regulator.

Larger driving capability.

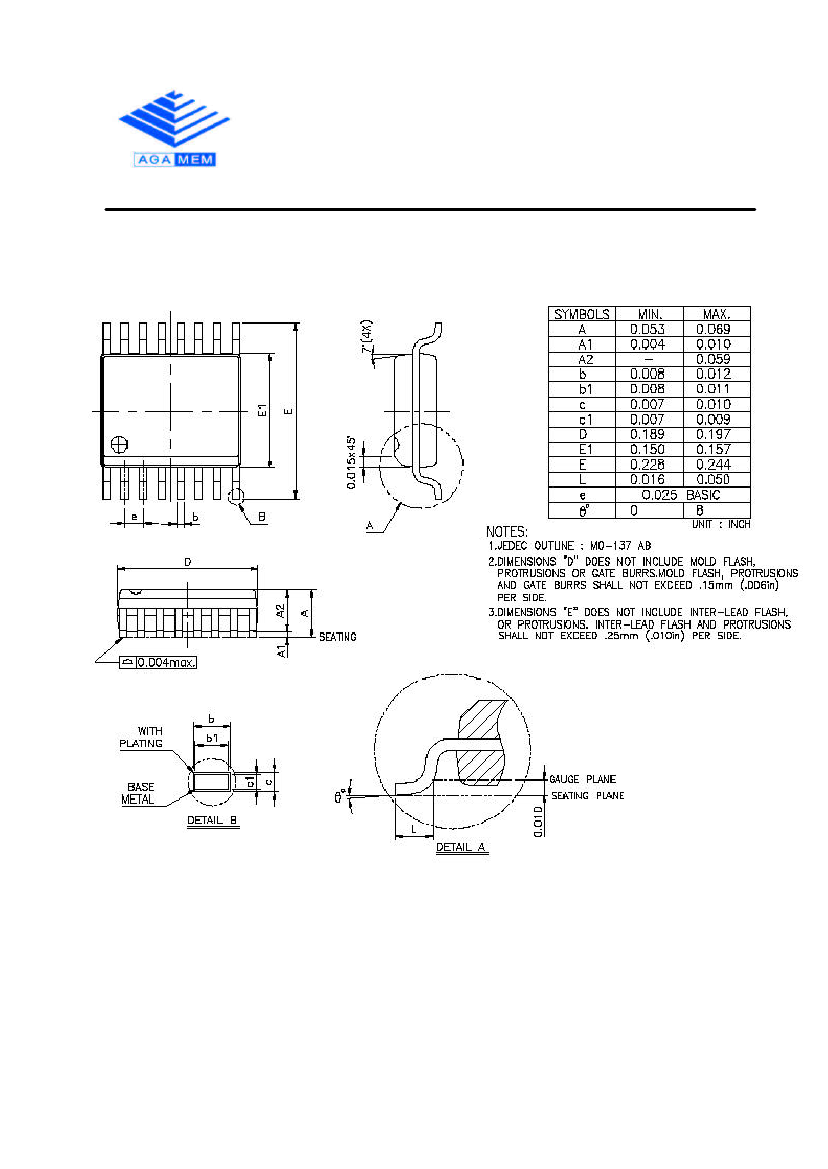

Small outline package.

APPLICATIONS

Servo motor control.

Radio controlled car, boat, airplane.

IA products (such as air-condition).

BLOCK DIAGRAM

EXP1

Output

Driver

Timing control

Voltage

Regulator

OUT1

OUT2

EXP2

REG

FUNCTION DESCRIPTION

Timing control block detects the motor position and adjust dead band.

Output driver circuit control the servo motor current direction.

The voltage regulator supports the application reference voltage.

2003-04-24
