Base strip - SMSTB 2,5/10-G - 1769311
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 10, Pitch: 5 mm, Color: green,
Contact surface: Tin, Mounting: Wave soldering

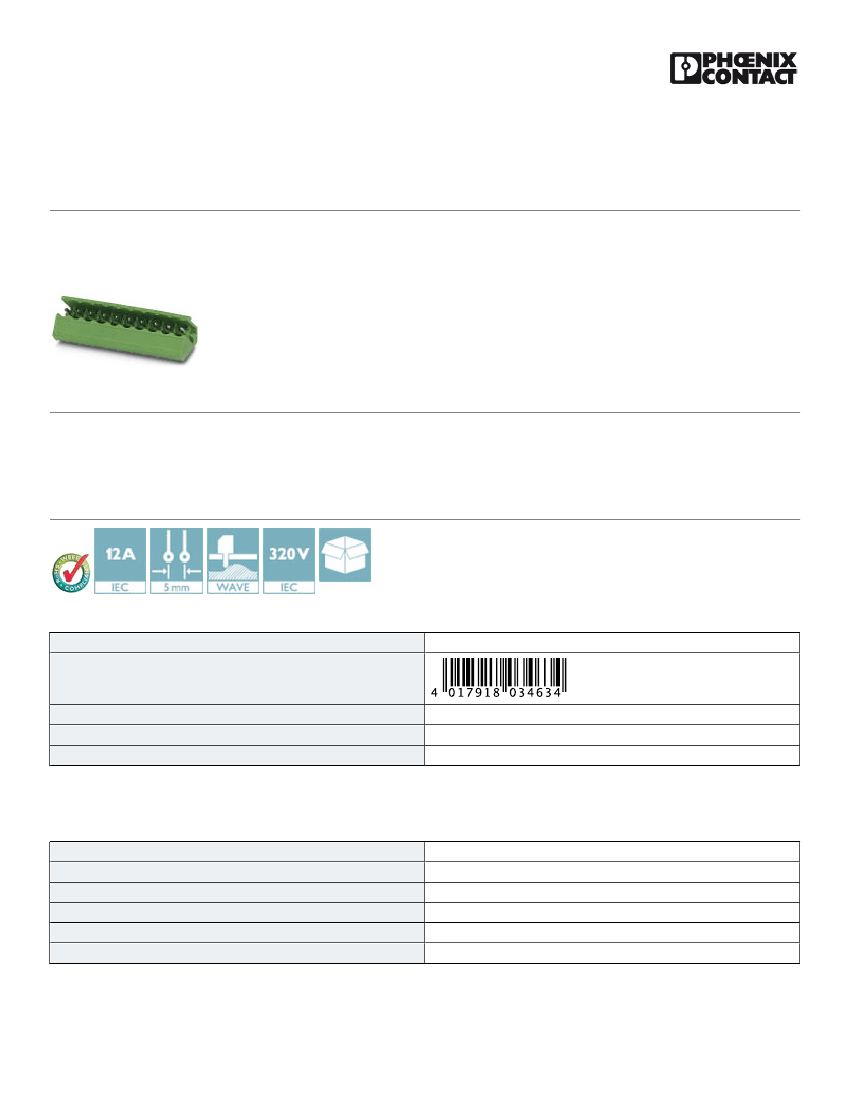

The figure shows a 10-position
version of the product
Product Features
■
■
■
Plug-in direction 45° to the PCB
Used where space is restricted overhead
Versions without side panel
Key Commercial Data
Packing unit
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
6.81 g
85366990
Germany
1 pc
Technical data
Dimensions
Length
Pitch
Dimension a
Width
Constructional height
Height
16.5 mm
5.00 mm
45 mm
50 mm
14.8 mm
18.3 mm
04/20/2016 Page 1 / 8
https://www.phoenixcontact.com/us/products/1769311
Base strip - SMSTB 2,5/10-G - 1769311
Technical data
Dimensions
Length of the solder pin
Pin dimensions
Hole diameter
3.5 mm
1 x 1 mm
1.4 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Maximum load current
Insulating material
Flammability rating according to UL 94
Color
Number of positions
SMSTB 2,5/..-G
I
4 kV
4 kV
4 kV
250 V
320 V
400 V
EN-VDE
12 A
12 A
PA
V0
green
10
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CSA
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
272607xx
27260701
27260701
27260701
27260704
27440402
27440402
27440402
04/20/2016 Page 2 / 8
https://www.phoenixcontact.com/us/products/1769311
Base strip - SMSTB 2,5/10-G - 1769311
Classifications
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002637
EC002637
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211810
39121409
39121409
39121409
39121409
Approvals
Approvals
Approvals
CSA / VDE Gutachten mit Fertigungsüberwachung / IECEE CB Scheme / EAC / cULus Recognized / EAC
Ex Approvals
Approvals submitted
Approval details
CSA
Nominal current IN
Nominal voltage UN
B
15 A
300 V
D
10 A
300 V
VDE Gutachten mit Fertigungsüberwachung
Nominal current IN
12 A
04/20/2016 Page 3 / 8
https://www.phoenixcontact.com/us/products/1769311
Base strip - SMSTB 2,5/10-G - 1769311
Approvals
Nominal voltage UN
250 V
IECEE CB Scheme
Nominal current IN
Nominal voltage UN
12 A
250 V
EAC
cULus Recognized
Nominal current IN
Nominal voltage UN
B
15 A
300 V
D
10 A
300 V
EAC
Accessories
Accessories

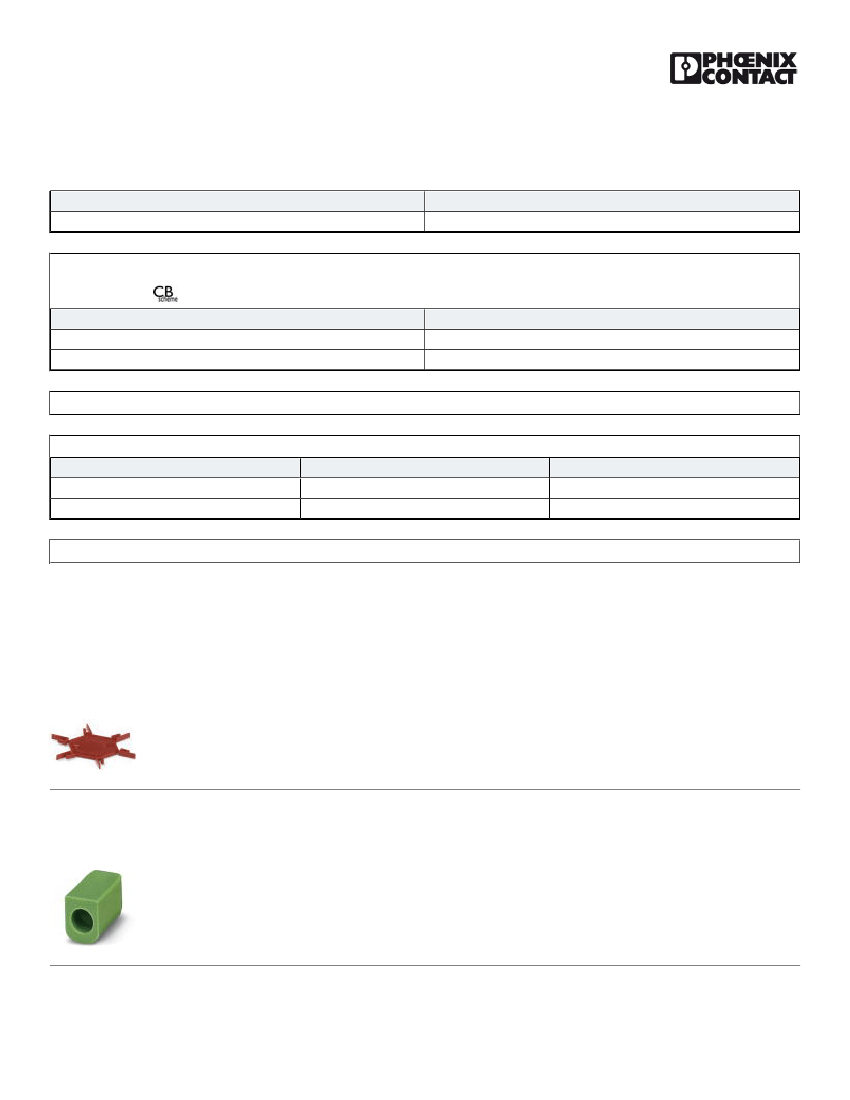

Coding element
Coding star - CR-MSTB - 1734401
Coding section, inserted into the recess in the header or the inverted plug, red insulating material
Filler plug
Accessories - MSTB-BL - 1755477
Keying cap, for forming sections, plugs onto header pin, green insulating material
04/20/2016 Page 4 / 8
https://www.phoenixcontact.com/us/products/1769311
Base strip - SMSTB 2,5/10-G - 1769311
Accessories
Labeled terminal marker

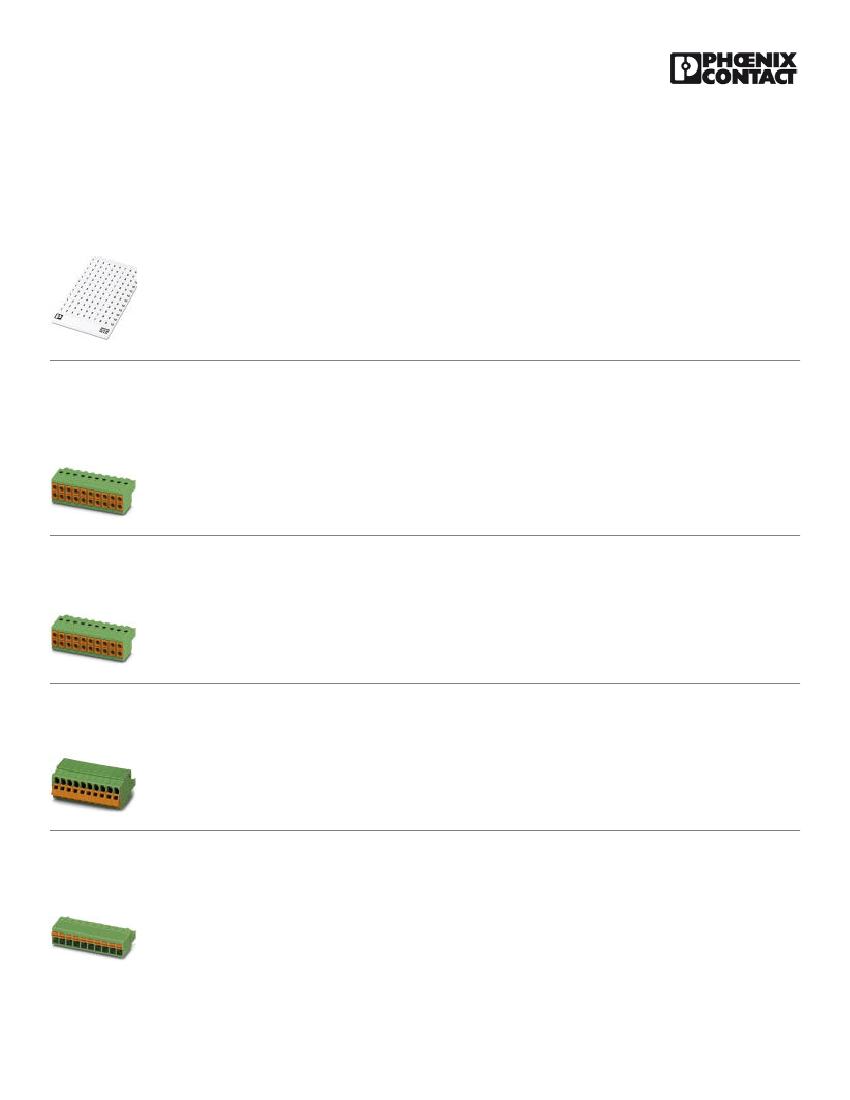

Marker card - SK 5/3,8:FORTL.ZAHLEN - 0804183
Marker card, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - (99)100, Mounting
type: Adhesive, for terminal block width: 5 mm, Lettering field: 5 x 3.8 mm
Additional products
Printed-circuit board connector - TVFKC 1,5/10-ST - 1713910
Plug component, Nominal current: 10 A, Rated voltage (III/2): 320 V, Number of positions: 10, Pitch: 5 mm, Connection
method: Push-in spring connection, Color: green, Contact surface: Tin
Printed-circuit board connector - TVFKCL 1,5/10-ST - 1716001
Plug component, Nominal current: 10 A, Rated voltage (III/2): 320 V, Number of positions: 10, Pitch: 5 mm, Connection
method: Push-in spring connection, Color: green, Contact surface: Tin
Plug - QC 1,5/10-ST - 1718041
Plug component, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 10, Pitch: 5 mm, Connection
method: Displacement connection, Color: green, Contact surface: Tin
Printed-circuit board connector - FKCN 2,5/10-ST - 1732823
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 10, Pitch: 5 mm, Connection
method: Push-in spring connection, Color: green, Contact surface: Tin
04/20/2016 Page 5 / 8
