Base strip - MC 1,5/ 8-GR-3,5 THT - 1961724
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 8, Pitch: 3.5 mm, Color: black,
Contact surface: Tin, Mounting: THR soldering, Two-in-one – Pin strips must always be made up of a left (L) and
a right (R) segment. Please allow for the corresponding counterpart from the accessories to complete the THR
pin strip. User information and design recommendations on Through Hole Reflow Technology can be found at:
"Downloads".
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
50 pc
3.44 g
85366990
Germany
Technical data
Dimensions
Length
Pitch
Dimension a
Constructional height
Height
Length of the solder pin
Pin dimensions
Pin spacing
Hole diameter
9.2 mm
3.50 mm
24.5 mm
8 mm
7.25 mm
3.4 mm
0,8 x 0,8 mm
3.50 mm
1.3 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
MC 1,5/..-GR-THT
IIIa
2.5 kV
04/24/2016 Page 1 / 6
https://www.phoenixcontact.com/us/products/1961724
Base strip - MC 1,5/ 8-GR-3,5 THT - 1961724
Technical data
General
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Maximum load current
Insulating material
Flammability rating according to UL 94
Color
Number of positions
2.5 kV
2.5 kV
160 V
160 V
250 V
EN-VDE
8A
8 A (per position)
PA
V0
black
8
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CUL
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
272607xx
27260701
27260701
27260701
27260704
27440402
27440402
27440402
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002637
EC002637
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
30211810
39121409
04/24/2016 Page 2 / 6
https://www.phoenixcontact.com/us/products/1961724
Base strip - MC 1,5/ 8-GR-3,5 THT - 1961724
Classifications
UNSPSC
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
39121409
39121409
39121409
Approvals
Approvals
Approvals
cULus Recognized
Ex Approvals
Approvals submitted
Approval details
cULus Recognized
Nominal current IN
Nominal voltage UN
B
8A
300 V
D
8A
300 V
Accessories
Accessories
Coding element
Coding profile - CP-MSTB - 1734634
Coding profile, is inserted into the slot on the plug or inverted header, red insulating material
Labeled terminal marker
04/24/2016 Page 3 / 6
https://www.phoenixcontact.com/us/products/1961724
Base strip - MC 1,5/ 8-GR-3,5 THT - 1961724
Accessories
Marker card - SK 3,81/2,8:FORTL.ZAHLEN - 0804109
Marker card, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - (99)100, Mounting
type: Adhesive, for terminal block width: 3.81 mm, Lettering field: 3.81 x 2.8 mm
Coding profile - CP-MSTB NAT HT - 1954359
Coding profile, prior to reflow soldering it is inserted in the groove on the plug and header, made from high-temperature-
resistant beige insulation material
Drawings
04/24/2016 Page 4 / 6
https://www.phoenixcontact.com/us/products/1961724
Base strip - MC 1,5/ 8-GR-3,5 THT - 1961724

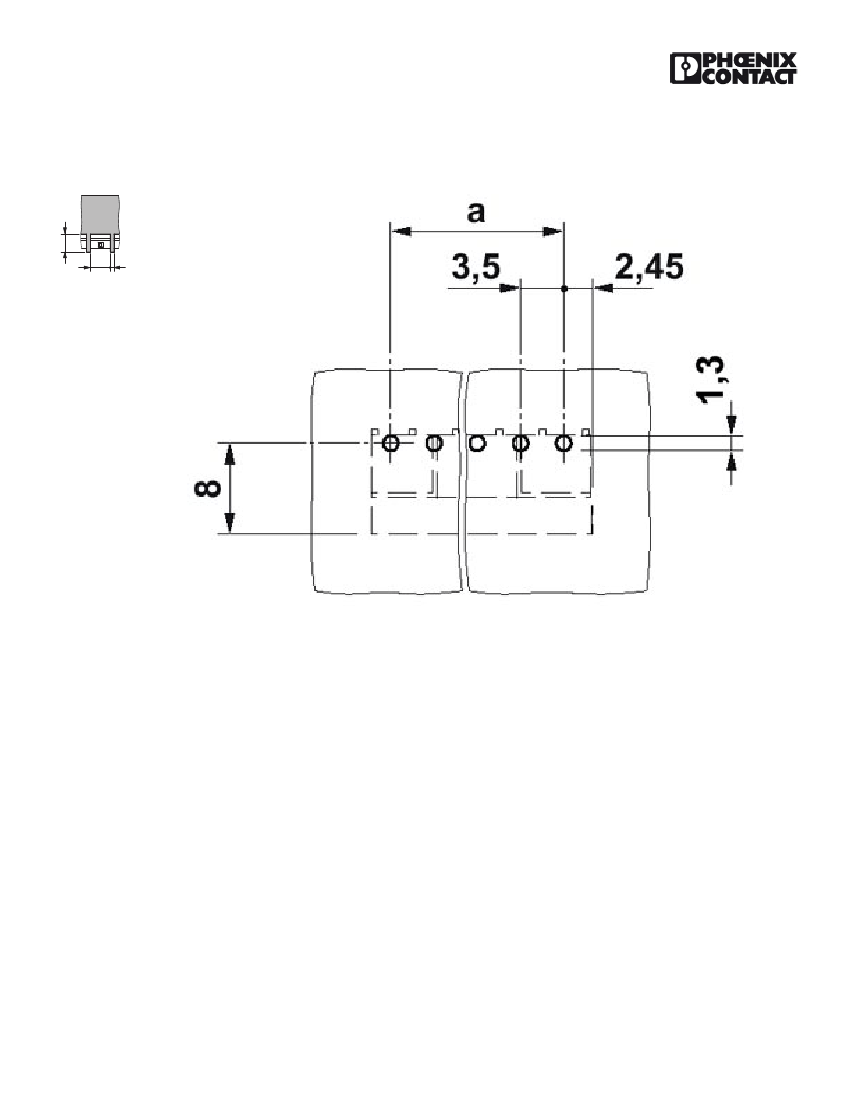

Drilling diagram
Drilling diagram
2,95
2,89
0,61
Space, solder
paste
04/24/2016 Page 5 / 6
