2mm Double-Row Connector (Product Compliant to UL/CSA Standard)
DF11 Series
Jan.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.

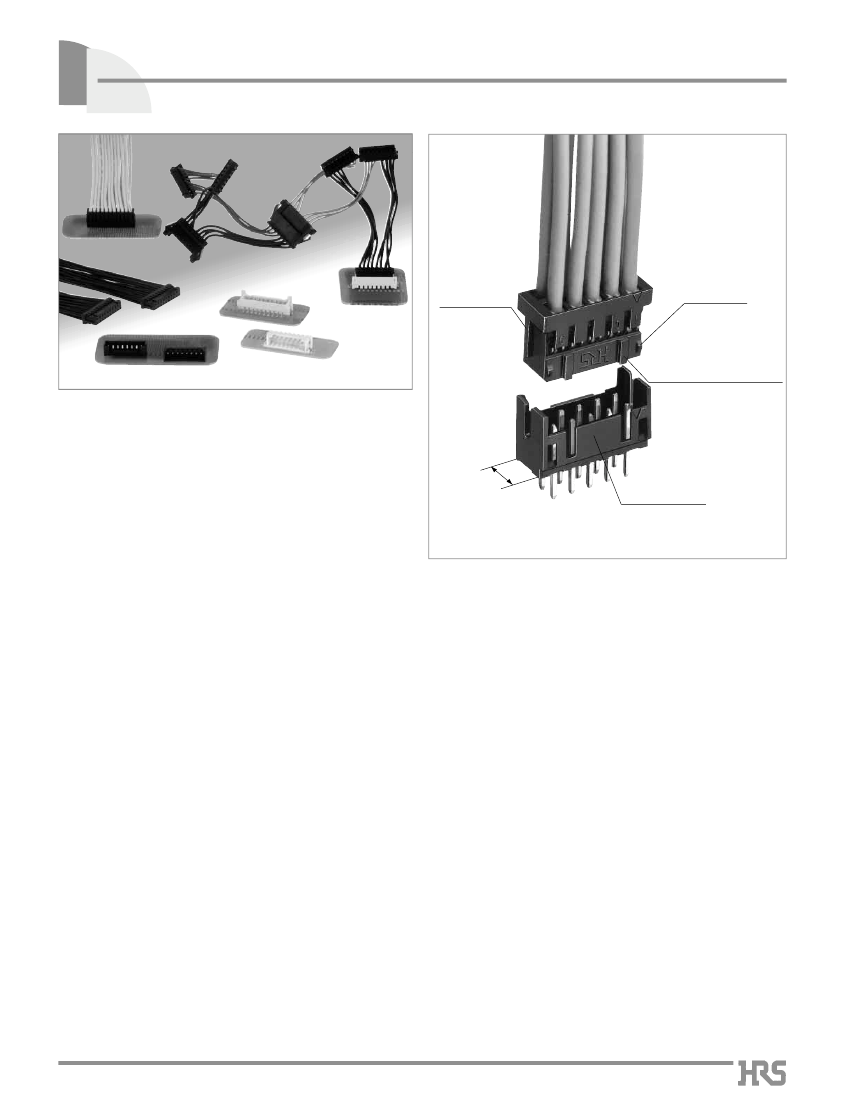

Rib to prevent
mis-insertion
Simple lock
Rib to prevent contact
mis-insertion as well as
disimilar contact mis-insertion
sFeatures
1. Space-saving on Board Realized
Double rows of 2mm pitch contact has been condensed
within the 5mm width.
The multiple number of signals can be secured in the same
space as the conventional 2mm single-row contact.
5mm
4 wall box style
2. Broad Variation
The insulation displacement and crimping methods are
prepared for connection. Thus, board to cable, in-line,
board to board connectors are provided in order to widen a
board design variation.
In addition, "Gold" or "Tin" can be selected for the plating
according application, while the SMT products line up.
3. Applicable Wire Covers Wide Range
According to the double rows of 2mm pitch compact
design, the applicable wire can cover AWG22 to 30.
4. The ID Type Connector Achieves Connection
Work.
Using the full automatic insulation displacement machine,
the complicated multi-harness can be easily connected,
reducing the man-hour and eliminating the manual work
process.
103
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
DF11 Seriesq2mm Double-Row Connector (Product Compliant to UL/CSA Standard)
sFeatures
of DF11 Insulation Displacement Machine
(Single Core Punching Full Automatic ID Machine AM700/DF11)
q
5 Major Features of ID Machine AM700/DF11
1. Perform the multi-harness.
2. The setup time has been widely reduced. (10 minutes maximum)
3. Space saving design.
(About half space compared with the conventional machine)
4. Minimize initial cost with low cost.
5. The harness data can be saved in the floppy disk and easily
changed.
Data storage
Low cost
Setup in 10 minutes
Multi-harness
Half space
Jan.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
sPoints
Since the DF11 insulation displacemention allows double rows ID with a single part, the harness service is completed with
machine connection only.
sProduct
Specifications
AWG #22 to #26 : 2A
Current rating
Rating
(Note 1)
Insulation Displacement Wire size
Voltage rating
Crimping
Crimping
Wire size
AWG #28
AWG #30
AWG #26
: 1A
: 0.5A
: 1A
Storage Temperature Range -10 to 60ç Note 3
40 to 70%
Operating Temperature Range -30 to 85ç Note 2
Operating Humidity Range
40 to 80%
250V AC Insulation Displacement 100V AC Storage Humidity Range
UL-CSA Safety Standard Approved Specification
AWG #22
Rating
Current rating
Voltage rating
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
5. Vibration
1000M
ohms
min.
Wire size
AWG #24 to #28
AWG #30
30V AC
Specification
500V DC
: 2A
: 1A
: 0.5A
sUL
·CSA Safety Standard File No.
UL
:E52653
CSA
:LR95109
Condition
650V AC/1 minute
100mA
Measured by the square steel-made pin of 0.5±0.002mm
No flashover or insulation breakdown.
30m
ohms
max.
4. Single Insertion/Extraction Force 0.3N (30gf) min., 4.4N(450gf) max.
No electrical discontinuity of 1µs or more
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
No deformation of components affecting performance.
Manual soldering:
300ç for 2 seconds
Manual soldering:
260ç for 10 seconds
Reflow:
At the recommended temperature profile 300ç for 3 seconds
Note 1: Current rating of header is 2A.
Note 2: Includes temperature rise caused by current flow.
Note 3: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 4: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for
a specific part number shown.
104
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
DF11 Seriesq2mm Double-Row Connector (Product Compliant to UL/CSA Standard)
sMaterial
Product Type
Crimping Socket
Crimping Contact for Socket
ID Socket
Receptacle
Pin Header
Part
Insulator
Contact
Insulator
Contact
Insulator
Contact
Insulator
Contact
Insulator
SMT Header
In-line Plug
In-line Plug Crimping Contact
In-line Adaptor
Contact
Metal fittings
Insulator
Contact
Insulator
Contact
MateriaI
Polyamide
Phosphor copper
Polyamide
Phosphor copper
Polyamide
Phosphor copper
Polyamide
Brass
Polyamide
Brass
Brass
Polyamide
Phosphor copper
Polyamide
Brass
Finish
Black
Tin plated or gold plated
Black
Tin plated
Black
Tin plated or gold plated
Black
Tin plated or gold plated
Beige
Tin plated or gold plated
Tin plated
Black
Tin plated or gold plated
Black
Tin plated
Remarks
UL94V-0
–––––––
UL94V-0
–––––––
UL94V-0
–––––––
UL94V-0
–––––––
UL94V-0
–––––––
–––––––
UL94V-0
–––––––
UL94V-0
–––––––
Jan.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
sOrdering
Information
qConnector
DF11 -
*
DS - 2C
q
q
Series Name
e
Connector Type
DS : Double Row socket
DP : Double Row pin header
DEP : Double Row in-line plug
r
Contact Pitch
: 2mm
: DF11
w
e
r t
t
Connection Form/Contact Style
C
: Crimping socket
R26 : Insulation Displacemented socket for AWG26
DSA: Straight through hole
DS : Right angle through hole
V
A
: Straight SMT
: Adaptor
w
Number of Contacts : 4
to
32
qContact
DF11 - EP2428PCFA
q
q
Contact Type
Blank : For socket
EP
22
30
: For in-line plug
: AWG22
: AWG30
w
Applicable Wire Size
2428 : AWG24
to
28
w
e
r
e
Contact Type/Packaging Type
SCF
SC
PCF
PC
Blank
A
: Socket contact, Embossed tape
: Socket contact, Bag
: Plug contact, Embossed tape
: Plug contact, Bag
: Tin plated
: Gold plated
r
Plating Type
105
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
DF11 Seriesq2mm Double-Row Connector (Product Compliant to UL/CSA Standard)

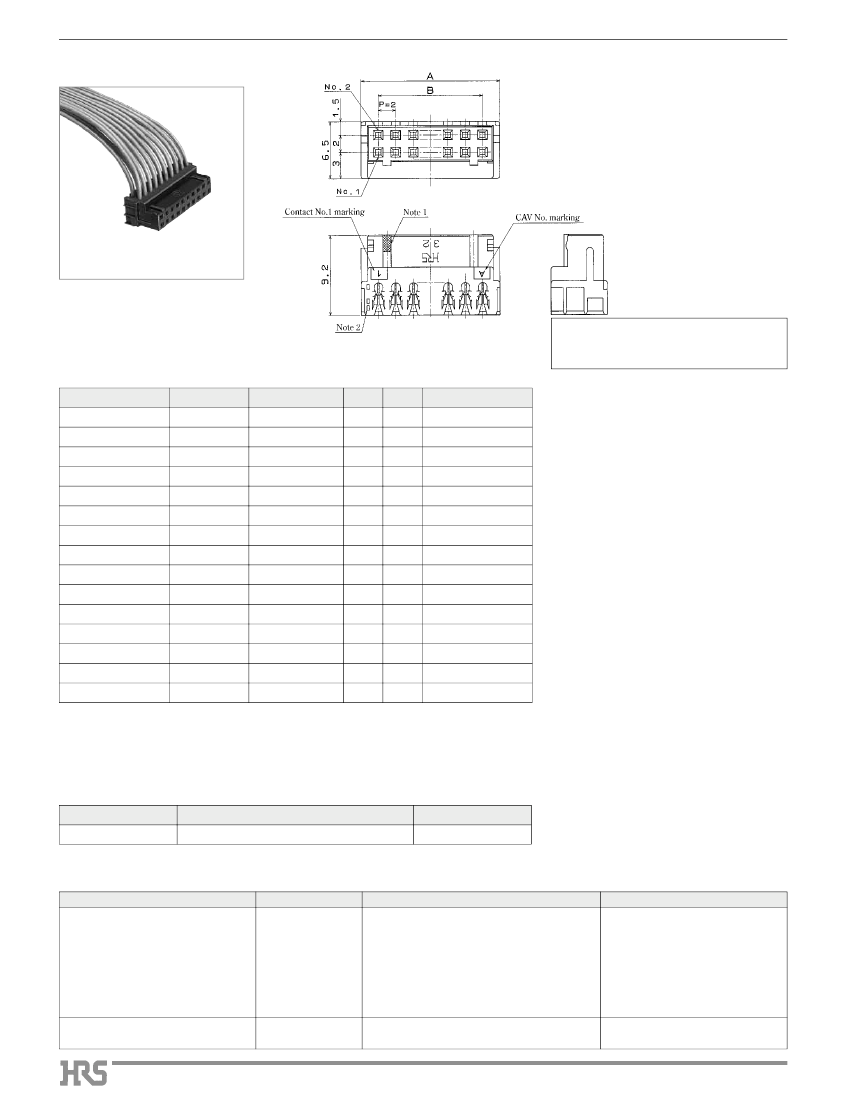

sID
Socket
Note1: Port 1-piece indicates odd number row,
and port 2- pcs. indicate even number row.
Note2: Use the dip type header as follows.
·
Straight angle type : DF11-*DP-2DSA ( 08 )
·
Angle type: DF11-*DP-2DS(24)
Jan.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Photo: Cable connection status
[Specific No.]
–
* *
,
(*
*)
(05)
:Tin plated, 100 pcs. per bag
(25)
:Tin plated, Tube packaging
Unit: mm
Part Number
CL No.
Number of Contacts
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
A
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
32.0
34.0
B
2.0
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
Tube Packaging Quantity
188
140
112
94
80
70
62
56
50
46
42
40
36
34
32
DF11- 4DS-2R26(**) 543-0652-0-**
DF11- 6DS-2R26(**) 543-0653-3-**
DF11- 8DS-2R26(**) 543-0654-6-**
DF11-10DS-2R26(**) 543-0655-9-**
DF11-12DS-2R26(**) 543-0656-1-**
DF11-14DS-2R26(**) 543-0657-4-**
DF11-16DS-2R26(**) 543-0658-7-**
DF11-18DS-2R26(**) 543-0659-0-**
DF11-20DS-2R26(**) 543-0660-9-**
DF11-22DS-2R26(**) 543-0661-1-**
DF11-24DS-2R26(**) 543-0662-4-**
DF11-26DS-2R26(**) 543-0663-7-**
DF11-28DS-2R26(**) 543-0664-0-**
DF11-30DS-2R26(**) 543-0665-2-**
DF11-32DS-2R26(**) 543-0666-5-**
Note1: The specific No. (05) item is delivered per bag unit (100 pcs.). Please order products per bag unit.
Note2: To use the full automatic insulation displacement machine to punch the DF11 single contact, the (25) tube packaging specification
should be applied.
Note3: Please order the tube packaging products by multiplying the packaging quantity ( pcs.).
sApplicable
Cable
Part Number
DF11-*DS-2R26
Applicable Cable
UL1061 AWG26 (7/0.16)
Jacket Diameter
Ø0.9 to
1.05mm
sDF11-*DS-2R
Insulation Displacement Machine
Type
Part Number
Connection Type
sEffective
harness form
1. DF11-both ended, one ended
2. DF11-DF11, separation
3. DF11-DF3, separation
sEffective
harness length
100 to 2,000mm
sContinuity
Inspection Mechanism Equipped
sUsed
for DF11 only, No restricted condition
Remarks
Punching full automatic ID
machine DF11 single contact
AM700/DF11
The connector is applicable to
(25) tube packaging.
Desktop ID Machine
SA700/DF11
CL903-0013-5
Desktop machine for small lot
106
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
DF11 Seriesq2mm Double-Row Connector (Product Compliant to UL/CSA Standard)

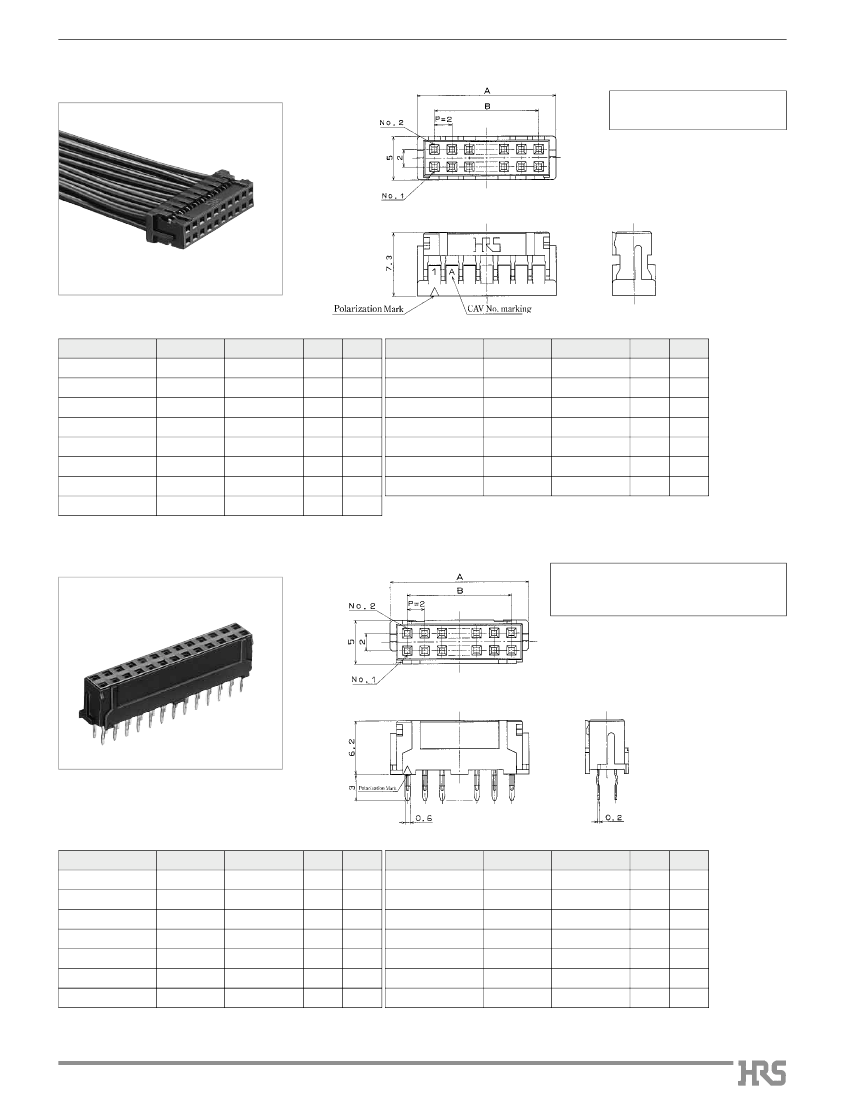

sCrimping
Socket
[Specific No.]
–
* *
,
(*
*)
Blank :100 pcs. per pack
Jan.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Photo: Contact insertion status
Unit: mm
Part Number
DF11- 4DS-2C(**)
DF11- 6DS-2C(**)
DF11- 8DS-2C(**)
DF11-10DS-2C(**)
DF11-12DS-2C(**)
DF11-14DS-2C(**)
DF11-16DS-2C(**)
CL No.
543-0568-6-**
543-0502-8-**
543-0503-0-**
543-0504-3-**
543-0505-6-**
543-0506-9-**
543-0507-1-**
Number of Contacts
4
6
8
10
12
14
16
A
6.0
8.0
10.0
12.0
14.0
16.0
18.0
B
2.0
4.0
6.0
8.0
10.0
12.0
14.0
Part Number
DF11-20DS-2C(**)
DF11-22DS-2C(**)
DF11-24DS-2C(**)
DF11-26DS-2C(**)
DF11-28DS-2C(**)
DF11-30DS-2C(**)
DF11-32DS-2C(**)
CL No.
543-0509-7-**
543-0510-6-**
543-0511-9-**
543-0512-1-**
543-0513-4-**
543-0514-7-**
543-0515-0-**
Number of Contacts
20
22
24
26
28
30
32
A
22.0
24.0
26.0
28.0
30.0
32.0
34.0
B
18.0
20.0
22.0
24.0
26.0
28.0
30.0
20.0 16.0
18
DF11-18DS-2C(**) 543-0508-4-**
Note: Delivered per bag unit (100 pcs.). Please order products bag pack unit.
sReceptacle
(DIP)
[Specific No.]
–
* *
,
(*
*)
(05) :Tin plated 100 pcs. per pack
(06) :Gold plated 100 pcs. per pack
qBoard
Through-hole Diameter:
Ø0.8
+
0.1
+
0
qKink
Prefixed Effective Diameter:
Ø0.8
+
0.05
+
0
Unit: mm
Part Number
CL No.
Number of Contacts
6
8
10
12
14
16
A
8.0
10.0
12.0
14.0
16.0
18.0
B
4.0
6.0
8.0
10.0
12.0
14.0
Part Number
CL No.
Number of Contacts
20
22
24
26
28
30
32
A
22.0
24.0
26.0
28.0
30.0
32.0
34.0
B
18.0
20.0
22.0
24.0
26.0
28.0
30.0
DF11- 6DS-2DSA(**) 543-0553-9-**
DF11- 8DS-2DSA(**) 543-0554-1-**
DF11-10DS-2DSA(**) 543-0555-4-**
DF11-12DS-2DSA(**) 543-0556-7-**
DF11-14DS-2DSA(**) 543-0557-0-**
DF11-16DS-2DSA(**) 543-0558-2-**
DF11-20DS-2DSA(**) 543-0560-4-**
DF11-22DS-2DSA(**) 543-0561-7-**
DF11-24DS-2DSA(**) 543-0562-0-**
DF11-26DS-2DSA(**) 543-0563-2-**
DF11-28DS-2DSA(**) 543-0564-5-**
DF11-30DS-2DSA(**) 543-0565-8-**
20.0 16.0 DF11-32DS-2DSA(**) 543-0566-0-**
18
DF11-18DS-2DSA(**) 543-0559-5-**
Note: Delivered per bag unit (100 pcs.). Please order products per bag unit.
Yuantuo Technology ATM-DVR-HRC-168ATM digital image monitoring system is an advanced digital image monitoring system. It can record, play, query and edit the monitored images on a standard computer. T...
ADS1118 is a 16-bit ADC and can use SPI. But what if we use IO to simulate the timing? DIN is sent from the microcontroller to the chip twice. CONFIG configuration data is read by the microcontroller ...
[table=98%,rgb(238, 238, 238)] [tr][td]When using DAC1220, there is always a voltage of about 1mV at the zero potential. I would like to ask if there is any way to make the zero potential of DAC1220 h...
Abstract: The components of switching power supply ripple and noise and which components need to be suppressed are analyzed. The equivalent circuit of ferrite beads suppressing baseband ripple and hig...
[i=s]This post was last edited by Jacktang on 2020-6-21 08:37[/i]If there is coupling between the magnetic fields of the inductors, the expression for the total inductance becomes slightly more compli...
1. Several nouns
ABI:
The specifications that an executable file must follow in order to run in a specific execution environment;
Separately generated relocatabl...[Details]
PV DC fuses are safety devices used to protect PV panels, inverters, and DC loads. To ensure their safety and reliability, they must be UL248 certified.
Before applying for UL248 certifi...[Details]
Reflow soldering, a common soldering method in modern electronics manufacturing, primarily melts solder paste and pads to form solder joints. With technological advancements, soldering equipment ha...[Details]
The jammer is a signal blocker, mainly composed of a chip and a radio transmitter. When the car owner presses the remote control lock button, the jammer interferes with the electronic lock receivin...[Details]
Electric vehicles are currently gaining momentum, but this is just a facade. Fuel-powered vehicles remain unchallenged. While electric vehicles boast unique advantages in environmental emissions an...[Details]
Whether it is an electric car or an ordinary fuel car, for the vast majority of car buyers, the final cost of use is what they care about most. For fuel cars, how to save fuel is what drivers care ...[Details]
Today's security industry has entered the era of massive networking. Many enterprises, especially financial institutions, have established multi-level video surveillance networking platforms. Lever...[Details]
On August 22nd, Lantu Motors unveiled a new technology called "Lanhai Intelligent Hybrid" during a live broadcast of CCTV News' "Top Laboratory." The name sounds like another new term, but a closer...[Details]
With the rapid advancement of automation technology, collaboration between robots is no longer just science fiction. Imagine dozens of machines moving goods in a warehouse without interfering with ...[Details]
In the summer of 2025, BlueOval SK, a joint venture between Ford and SK On, officially started production at its first battery factory in Kentucky.
According to the original plan, this w...[Details]
The automotive industry in 2025 is undergoing a thorough intelligent reshuffle.
Geely wants to make changes in the field of AI cockpits: in the future, there will be no traditional smart...[Details]
Overview
As handheld voice communication devices become more and more popular, they are increasingly used in noisy environments, such as airports, busy roads, crowded bars, etc. In such noisy ...[Details]
Electric vehicles' 12V batteries don't rely on a generator to power them. Only gasoline-powered vehicles rely on the engine to drive a generator to generate electricity while driving, which is used...[Details]
The practice of warming up a car originated with gasoline-powered vehicles. Warming up the engine allows it to enter a better working state and ensures good lubrication. This has become a habit for...[Details]
SMT placement machines are important equipment in surface mount technology (Surface Mount Technology). Their performance has a decisive impact on the quality and efficiency of electronic manufactur...[Details]
Industrial Control Electronics
京公网安备 11010802033920号
EEWORLD
