26-65-4030

Description
Headers u0026 Wire Housings HOUSING KK .156IN GWT 3 ckt
CategoryThe connector    The connector
File Size65KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

26-65-4030 Online Shopping

Suppliers Part Number Price MOQ In stock
26-65-4030 - - View Buy Now

26-65-4030 Overview

Headers u0026 Wire Housings HOUSING KK .156IN GWT 3 ckt

26-65-4030 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresSTACKED
Board mount optionsLOCATING POSTS
body width0.394 inch
subject depth0.446 inch
body length0.462 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGold (Au)
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance6 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1500VAC V
Filter functionNO
IEC complianceNO
Insulation resistance50000000000 Ω
insulator materialPOLYESTER
JESD-609 codee4
MIL complianceNO
Plug contact pitch0.156 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1LATCH
Installation option 2PLASTIC
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Plating thickness20u inch
polarization keyHOUSING SIDE
Rated current (signal)7 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.14 inch
Terminal pitch3.96 mm
Termination typeSOLDER
Total number of contacts3
UL Flammability Code94V-0
Base Number Matches1
This document was generated on 12/05/2017
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:

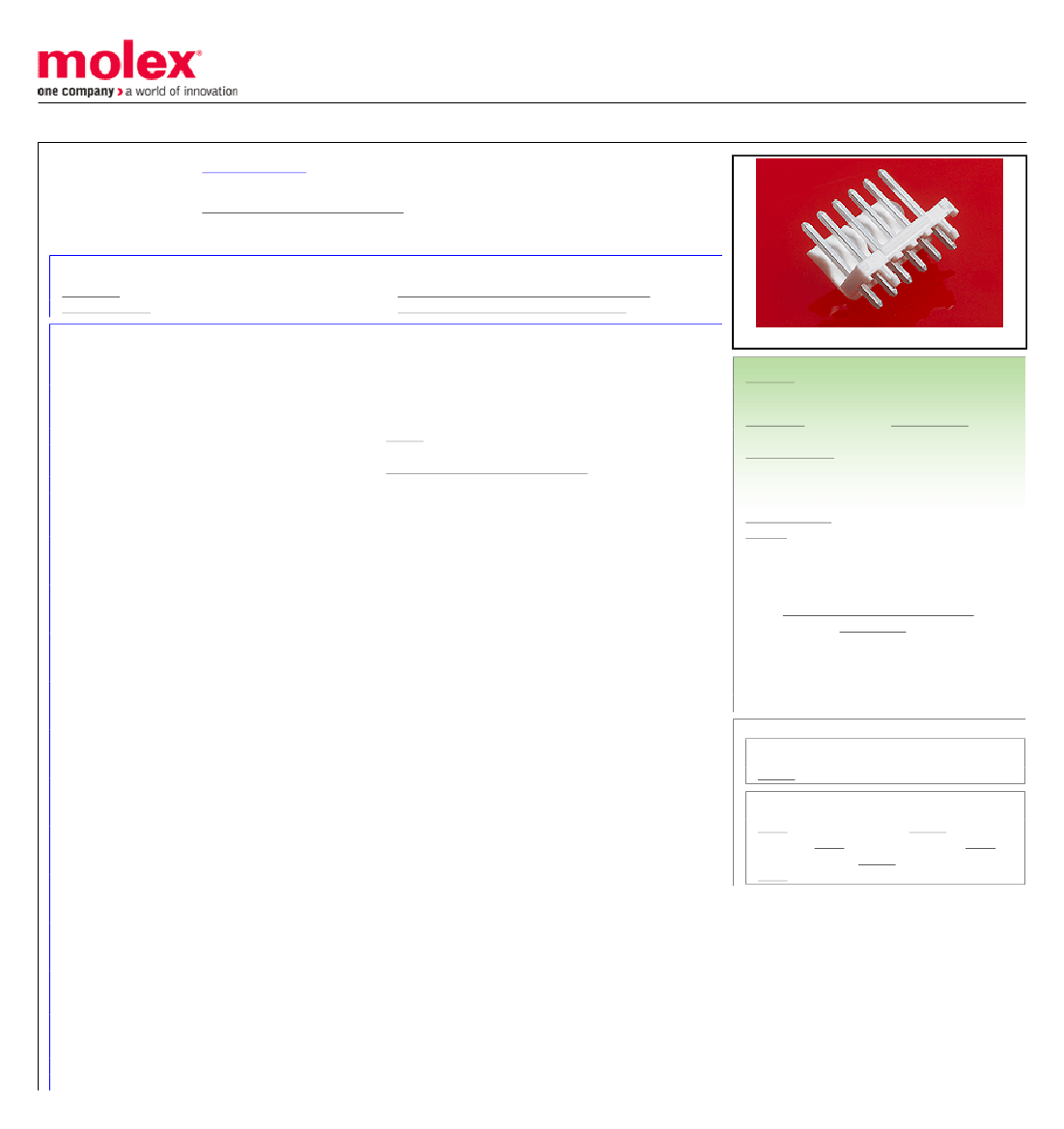

0026654030
Active
KK® Interconnect System - Molex
KK 396 Header, Vertical, Friction Lock with Press-fit Plastic Peg PCB, 3 Circuits, Gold
(Au) Plating
Documents:
3D Model
Drawing (PDF)
Agency Certification
CSA
UL
General
Product Family
Series
Application
Overview
Product Name
UPC
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Net Weight
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Plating min - Mating
Plating min - Termination
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
Electrical
Current - Maximum per Contact
Voltage - Maximum
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-freeProcess Capability
Product Specification PS-08-50-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
LR19980
E29179
PCB Headers
42491
Power, Wire-to-Board
KK® Interconnect System - Molex
KK 396
800754928427
No
3
3
100
94V-0
No
Yes
Brass
Gold
Matte Tin
1.135/g
1
Vertical
3.56mm
Yes
Yes
1.60mm
Bag
3.96mm
0.508µm
0.508µm
Yes
Yes
Partial
Yes
See Product Specification
Through Hole
7.0A
250V
005
WAVE
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/30/2017 (7 July
2017)
Halogen-Free
Status
Not Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Search Parts in this Series
42491 Series
Mates With
2139 KK Crimp Housing, 41695 KK Crimp
Housing, 6442 KK Crimp Housing, 2145
PCB Connector, 41815 PCB Connector,
3069 KK Crimp Housing
