M80-7700845 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> M80-7700845

M80-7700845: DescriptionHeaders u0026 Wire Housings 4+4 DIL FEMALE VERT 4.5MM TAIL; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M80-7700845 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M80-7700845	-	-	View	Buy Now

M80-7700845 Overview

Headers u0026 Wire Housings 4+4 DIL FEMALE VERT 4.5MM TAIL

M80-7700845 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	POLARISED
subject depth	0.202 inch
body length	0.439 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (12)
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	POLYAMIDE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	M80
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	12u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.177 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0
Base Number Matches	1

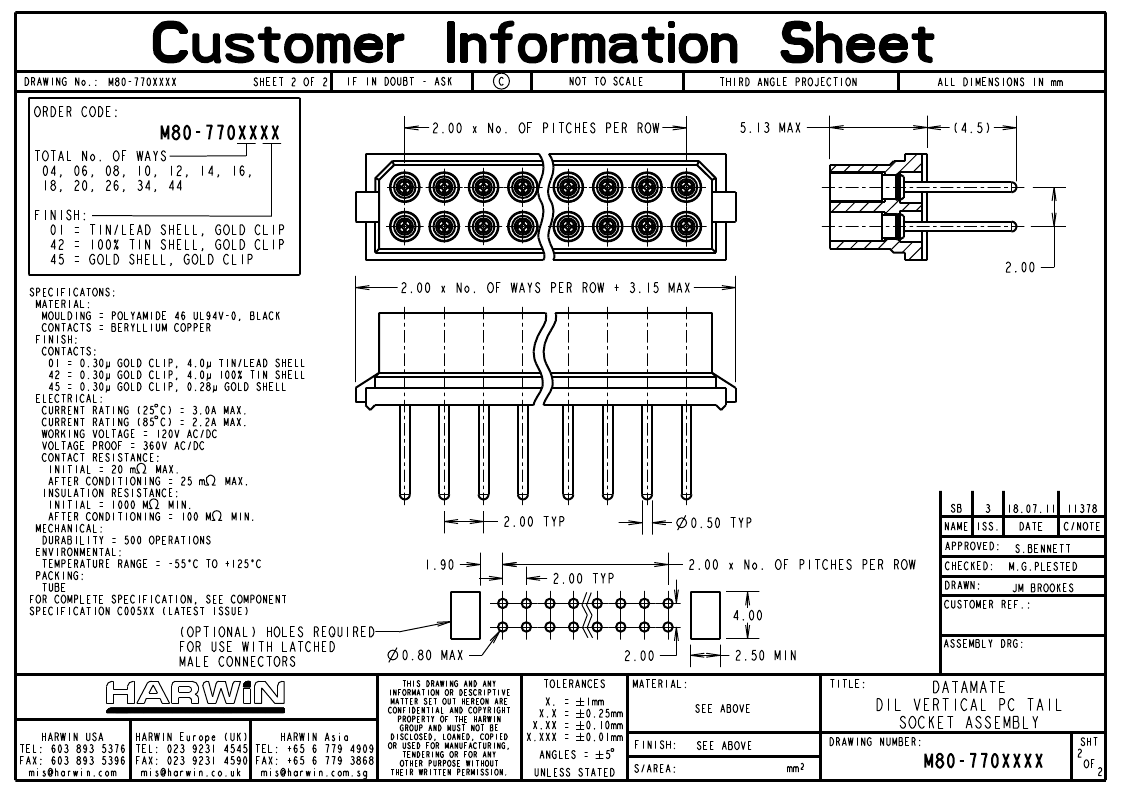

Preview

Download Datasheet

View All

M80-7700845 Related Products

	M80-7700845	M80-7701642	M80-7701242	M80-7701042	M80-7700645	M80-7701245	M80-7701045
Description	Headers u0026 Wire Housings 4+4 DIL FEMALE VERT 4.5MM TAIL		Current Sense Resistors - SMD 0.010ohms 1% +/- 75PPM		Headers u0026 Wire Housings 3+3 DIL FEMALE VERT 4.5MM TAIL	Headers u0026 Wire Housings 6+6 DIL FEMALE VERT 4.5MM TAIL	Headers u0026 Wire Housings 5+5 DIL FEMALE VERT 4.5MM TAIL
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	POLARISED	POLARISED	POLARISED	POLARISED	POLARISED	POLARISED	POLARISED
subject depth	0.202 inch	0.204 inch	0.204 inch	0.204 inch	0.202 inch	0.202 inch	0.202 inch
body length	0.439 inch	0.753 inch	0.592 inch	0.517 inch	0.36 inch	0.596 inch	0.518 inch
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (12)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	Gold (Au)	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Gold (Au)	Gold (Au)	Gold (Au)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	BERYLLIUM COPPER	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
JESD-609 code	e4	e3	e3	e3	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.177 inch	0.177 inch	0.177 inch	0.177 inch	0.177 inch	0.177 inch	0.177 inch
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	8	16	12	10	6	12	10
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Contact resistance	25 mΩ	-	-	-	25 mΩ	25 mΩ	25 mΩ
Durability	500 Cycles	-	-	-	500 Cycles	500 Cycles	500 Cycles
Insulation resistance	100000000 Ω	-	-	-	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	-	-	-	BLACK	BLACK	BLACK
Maximum operating temperature	125 °C	-	-	-	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-	-	-55 °C	-55 °C	-55 °C
Plating thickness	12u inch	-	-	-	12u inch	12u inch	12u inch
Rated current (signal)	3 A	-	-	-	3 A	3 A	3 A
Guideline	UL	-	-	-	UL	UL	UL
