M85049-30-16W

Description
Circular MIL Spec Backshells TAG RING BKSHLL SH SZ 16
CategoryThe connector
File Size116KB,1 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet Parametric View All

M85049-30-16W Online Shopping

Suppliers Part Number Price MOQ In stock
M85049-30-16W - - View Buy Now

M85049-30-16W Overview

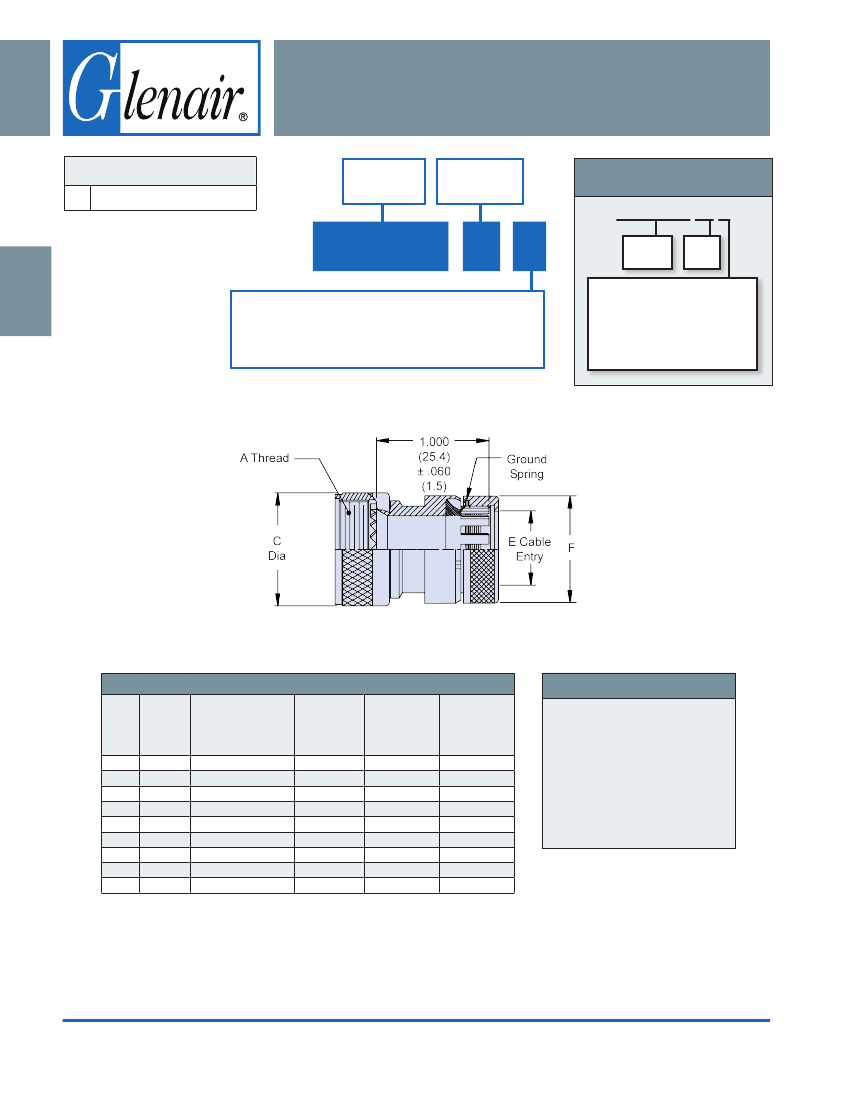

Circular MIL Spec Backshells TAG RING BKSHLL SH SZ 16

M85049-30-16W Parametric

Parameter NameAttribute value
Product CategoryCircular MIL Spec Backshells
ManufacturerGlenair
MIL TypeMIL-DTL-38999 I, II
Factory Pack Quantity1
AS85049/30 and M38999/4
Straight TAG
®
Ring Backshell
B
AS85049
CONNECTOR DESIGNATOR:
F
MIL-DTL-38999 Series I and II
Basic
Part Number
Shell Size
(Table II)
Superseded
Part Number
M38999/4 12 B
M85049/30
-
10
W
Basic
Part No.
Shell
Size
Finish
N
= Electroless Nickel
W
= 1,000 Hr. Cadmium Olive Drab over Electroless Nickel
X
= Aluminum, Nickel Fluorocarbon Polymer
Z
= Aluminum, Zinc-Nickel, Black
(Material is Aluminum Only)
B
=
Cadmium Olive Drab over Nickel
F
=
Electroless Nickel
Finish
TABLE I: Clamp Size, Cable Range and Dimensions
Shell
Shell
Size
Size Series I
Ref
08
10
12
14
16
18
20
22
24
9
11
13
15
17
19
21
23
25
A
Thread
Class 2B
.438 - 28 UNEF
.562 - 24 UNEF
.688 - 24 UNEF
.813 - 20 UNEF
.938 - 20 UNEF
1.063 - 18 UNEF
1.188 - 18 UNEF
1.313 - 18 UNEF
1.438 - 18 UNEF
C
Dia
Max
.75
.85
1.00
1.10
1.25
1.40
1.50
1.65
1.75
E
Cable Entry
Max
F
Dia
Max
.545
.670
.795
.920
1.045
1.170
1.295
1.420
1.670
(13.8)
(17.0)
(20.2)
(23.4)
(26.5)
(29.7)
(32.9)
(36.1)
(42.4)
1.
2.
3.
APPLICATION NOTES
For complete dimensions
see the applicable Military
Specification.
Metric dimensions (mm) are in
parentheses.
Cable Entry is defined as
the accommodation range
for the wire bundle or cable.
Dimensions shown are not
intended for inspection criteria.
(19.1)
.250 (6.4)
(21.6)
.375 (9.5)
(25.4) .500 (12.7)
(27.9) .625 (15.9)
(31.8) .750 (19.1)
(35.6) .844 (21.4)
(38.1) .970 (24.6)
(41.9) 1.094 (27.8)
(44.5) 1.219 (31.0)
© 2013 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
