(No capacitance variation with voltage or pressure)
CAPACITANCE DRIFT:
±(0.02% or 0.02 pF), whichever is greater
OPERATING TEMPERATURE RANGE:
From -55°C to +125°C
TERMINATION STYLES:
RoHS Compliant and Solder Plate
See Mechanical Configurations, page 3
TERMINAL STRENGTH:
Terminations for chips withstand a pull of
5 lbs. min., 15 lbs. typical, for 5 seconds in direction perpendicular
to the termination surface of the capacitor. Test per MIL-STD-202,
Method 211.
ENVIRONMENTAL TESTS
ATC 800 R Series Capacitors are designed and manufactured to
meet and exceed the requirements of EIA-198, MIL-PRF-55681 and
MIL-PRF-123.
THERMAL SHOCK:
MIL-STD-202, Method 107, Condition A
MOISTURE RESISTANCE:
MIL-STD-202, Method 106
LOW VOLTAGE HUMIDITY:
MIL-STD-202, Method 103, Condition A, with 1.5 Volts D.C. applied
while subjected to an environment of 85°C with 85% relative
humidity for 240 hours min.
LIFE TEST:
MIL-STD-202, Method 108, for 2000 hours, at 125°C
200% WVDC applied
THE ENGINEERS’ CHOICE
®
www.at c er ami c s . co m
ATC # 001-1029
Rev. M; 1/18
ATC 800 R Series NPO Ceramic Ultra-Low ESR Multilayer Capacitors
ATC 800 R Capacitance Values
CAP.
CODE00
1R0
1R1
1R2
1R3
1R4
1R5
1R6
1R7
1R8
1R9
2R0
2R1
2R2
2R4
2R7
3R0
3R3
3R6
CAP.
(pF)
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2.0
2.1
2.2
2.4
2.7
3.0
3.3
3.6
TOL.
RATED
WVDC
CAP.
CODE
3R9
4R3
4R7
5R1
5R6
6R2
6R8
7R5
8R2
9R1
100
110
120
130
150
160
180
200
CAP.
(pF)
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
TOL.
RATED
WVDC
CAP.
CODE
220
240
270
300
330
360
390
430
470
510
560
620
680
750
820
910
101
CAP.
(pF)
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
TOL.
RATED
WVDC
B, C, D
B, C, D
500
B, C, J,
K, M
500
G, J
K, M
500
G, J
K, M
VRMS = 0.707 X WVDC
SPECIAL VALUES, TOLERANCES AND MATCHING AVAILABLE. PLEASE CONSULT FACTORY.
ATC PART NUMBER CODE
ATC800 R 10 0 J T
Series
Case Size
Capacitance Code:
First 2 significant digits for capacitance.
R=Decimal Point
Indicates number of zeros following digits
of capacitance in picofarads except for decimal values.
Capacitance Tolerance
500 X
T
Packaging
T - (Standard) Electrodes in Vertical Orientation
Tape and Reel: 500 and 1000 pc. qty. std.*
TS - Electrodes in Horizontal Orientation
Tape and Reel: 500 and 1000 pc. qty. std.*
Laser Marking**
WVDC
Termination Code
CAPACITANCE TOLERANCE
Code
B
C
D
G
J
K
M
Tol.
±0.1 pF ±0.25 pF ±0.5 pF ±2% ±5% ±10% ±20%
The above part number refers to a 800 R Series (case size R) 10 pF capacitor, J tolerance (±5%), 500 WVDC, with T termination (Tin Plated over
Nickel Barrier, RoHS Compliant), laser marked, and tape and reel packaging.
*Consult ATC for other quantities. **Laser Marking is optional.
ATC accepts orders for our parts using designations or the “ATC” prefix.
Both methods of defining the part number are equivalent, i.e., part numbers
referenced with the “ATC” prefix are interchangeable to parts referenced
without the “ATC” prefix. Customers are free to use either in specifying or
procuring parts from American Technical Ceramics.
For additional information and catalogs contact your ATC representative
or call direct at (+1-631) 622-4700.
Consult factory for additional performance data.
A M E R I C A N
ATC North America
sales@atceramics.com
T E C H N I C A L
ATC Europe
saleseur@atceramics.com
C E R A M I C S
ATC Asia
sales@atceramics-asia.com
2
w w w.a t c e r am ic s .c o m
ATC 800 R Series NPO Ceramic Ultra-Low ESR Multilayer Capacitors

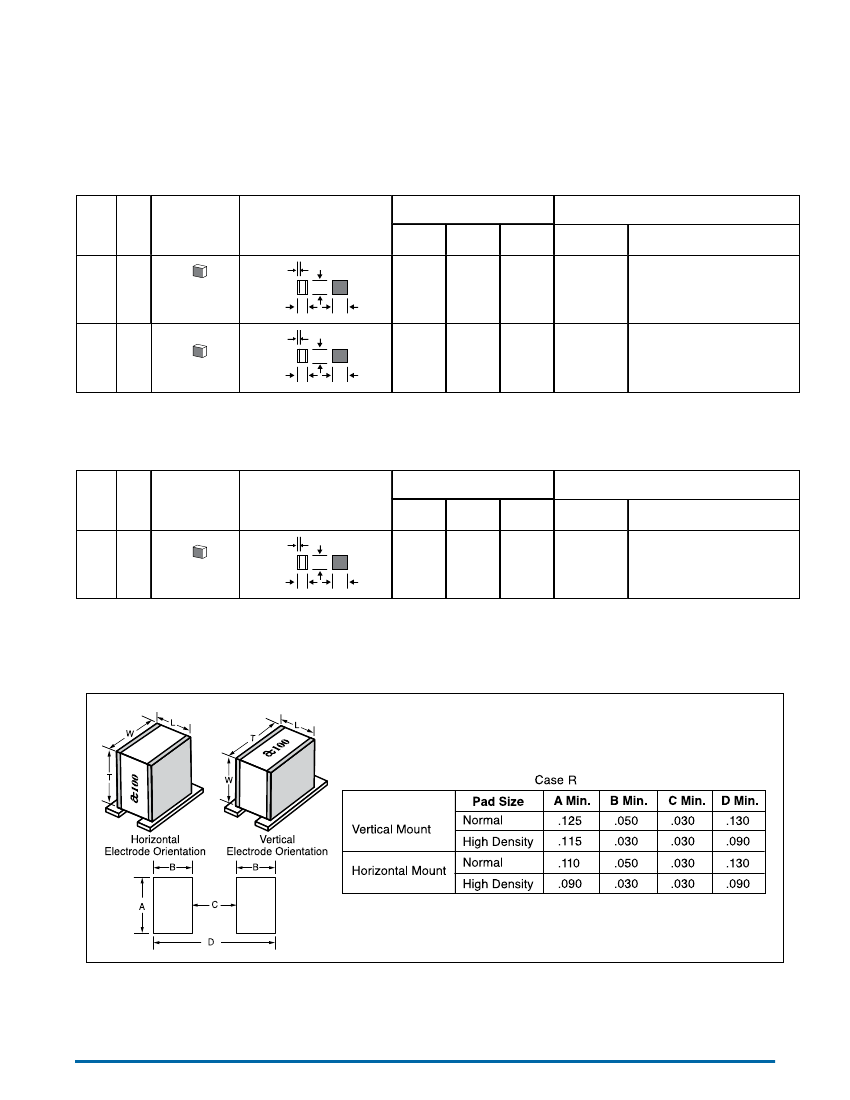

ATC 800 R Capacitors: Mechanical Configurations
ATC
ATC
SERIES
TERM.
& CASE
CODE
SIZE
CASE SIZE
& TYPE
OUTLINES
W/T IS A
TERMINATION SURFACE
Y
T
L
Y
W
BODY DIMENSIONS
Inches (mm)
LENGTH
(L)
WIDTH
(W)
THICKNESS
(T)
.115
(2.92)
max.
LEAD AND TERMINATION
DIMENSIONS AND MATERIALS
OVERLAP
(Y)
.010
+.010 - .005
(0.25
+0.25 - 0.13)
.010
+.010 - .005
(0.25
+0.25 - 0.13)
MATERIALS
800R
T
R
Solderable Nickel
Barrier
.070 ±.015 .090 ±.010
(1.78
(2.29
±0.38)
±0.25)
RoHS Compliant
Tin Plated over
Nickel Barrier Termination
800R
W
R
Solder Plate
T
L
W
.070 ±.015 .090 ±.010
(1.78
(2.29
±0.38)
±0.25)
.115
(2.92)
max.
Tin /Lead, Solder Plated over
Nickel Barrier Termination
ATC 800 R Non-Magnetic Capacitors: Mechanical Configurations
ATC
ATC
SERIES
TERM.
& CASE
CODE
SIZE
CASE SIZE
& TYPE
OUTLINES
W/T IS A
TERMINATION SURFACE
Y
BODY DIMENSIONS
Inches (mm)
LENGTH
(L)
WIDTH
(W)
THICKNESS
(T)
.115
(2.92)
max.
LEAD AND TERMINATION
DIMENSIONS AND MATERIALS
OVERLAP
(Y)
.010
+.010 - .005
(0.25
+0.25 - 0.13)
MATERIALS
800R
TN
R
Non-Mag
Solderable Barrier
T
L
W
.070 ±.015 .090 ±.010
(1.78
(2.29
±0.38)
±0.25)
RoHS Compliant
Tin Plated over
Non-Magnetic Barrier Termination
Suggested Mounting Pad Dimensions
Dimensions are in inches.
A M E R I C A N
ATC North America
sales@atceramics.com
T E C H N I C A L
ATC Europe
saleseur@atceramics.com
C E R A M I C S
ATC Asia
sales@atceramics-asia.com
w w w.a t c e r am ic s .c o m
3
ATC 800 R Series NPO Ceramic Ultra-Low ESR Multilayer Capacitors
800 R

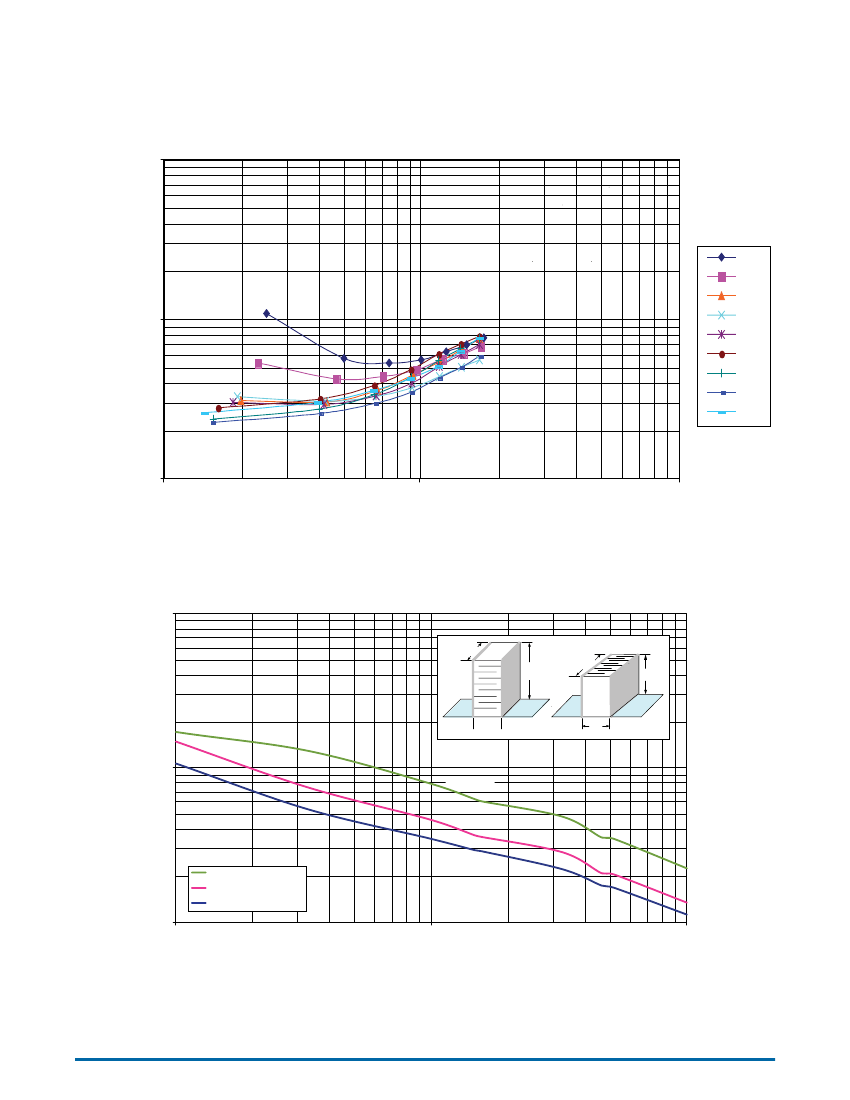

ESR vs. Frequency
1.00
1.0 pF
3.3 pF
10 pF
12 pF
15 pF
33 pF
47 pF
51 pF
100 pF
ESR (Ohms)
0.10
0.01
100
1000
10000
Frequency (MHz)
100
800 R Resonance
Vertical and Horizontal Orientation
W
T
T
W
L
L
Vertical Orientation
Frequency (GHz)
Horizontal Orientation
10
Vertical Fpr
Horizontal Fpr
Vertical Fpr
Horizontal Fpr
Vertical & Horizontal Fsr
Vertical &
Horizontal Fsr
1
1.0
10.0
100.0
Capacitance (pF)
A M E R I C A N
ATC North America
sales@atceramics.com
T E C H N I C A L
ATC Europe
saleseur@atceramics.com
C E R A M I C S
ATC Asia
sales@atceramics-asia.com
4
w w w.a t c e r am ic s .c o m
ATC 800 R Performance Data
800R Capacitance Change vs. Temperature
TCC= 0 ±30 PPM/C
1
0.8
0.6
0.4
% Change in Capacitance
0.2
0
-0.2
-0.4
-0.6
-0.8
-1
-55
-35
-15
5
25
45
65
85
105
125
Temperature (Degrees C)
Sales of ATC products are subject to the terms and conditions contained in American Technical Ceramics Corp. Terms and Conditions of Sale (ATC document #001-992). Copies of
these terms and conditions will be provided upon request. They may also be viewed on ATC’s website at www.atceramics.com/productfinder/default.asp. Click on the link for Terms and
Conditions of Sale.
ATC has made every effort to have this information as accurate as possible. However, no responsibility is assumed by ATC for its use, nor for any infringements of rights of third parties
which may result from its use. ATC reserves the right to revise the content or modify its product without prior notice.
