FEATURES
APPLICATIONS
High Pulse Currents
-
High voltage
Power Semiconductor Circuits
–
SCR Commutation
Ballast controls
–
Switching Power Supplies
-55°C to +105°C
+10% at 1 kHz, 25°C
+5% optional
100
WVDC
250
400
630
1600
2000
0
VAC
160
200
400
630
650
700
For T>+85°C , The voltage (DC/AC)must be decreased by (1.5/2.25)% per °C

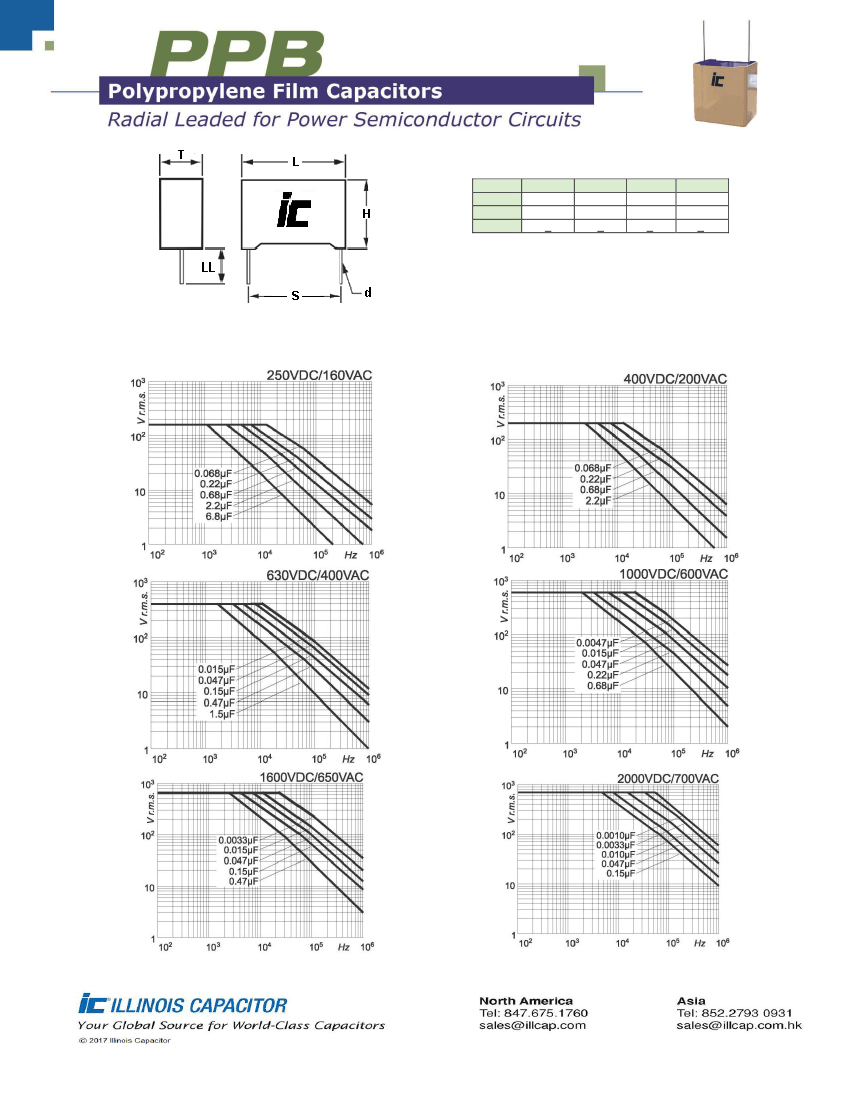

Frequency (kHz)
C<0.1uF
0.1uF<C<1uF
C>1uF
1
0.05%
0.04%
0.05%
10
0.05%
0.06%
-
100
0.16%
-
-
Insulation
Capacitance
Resistance
<0.33μF
100000 MΩ
>0.33μF
30000 MΩxμF
<1 nano-Henry per mm of lead spacing
<0.5% after 2 years at 40°C
2000 Hours, +85C with 125% of rated voltage
Capacitance Change
<1% of initially measured value
<0.001 at 10kHz and 25°C for C<1uF
Dissipation Factor
<0.001 at 1kHz and 25°C for C>1uF
Insulation Resistance
>50% of maximum specified value
2 Fit, VDC<400 WVDC
1 Fit, VDC>400 WVDC
Capacitance Change
<10% of initially measured value
Dissipation Factor
<200% of initially specified value
Insulation Resistance
>50% of maximum specified value
56 days at40°C with 90 to 95%RH, +40°C and no voltage applied
Capacitance Change
<5% of initially measured value
Dissipation Factor
<0.005 at 1kHz and 25°C
Insulation Resistance
>50% of maximum specified value
<1 nano-Henry per mm of lead spacing
<0.5% after 2 years at 40°C
-200 ppm/°C, +100ppm/°C
Terminal to case
3kVAC @ 50/60 Hz applied between
160% of rated VDC or 150% VAC applied
terminals and case for 60 seconds at
for 2 Seconds and 25°C
25°C
Polypropylene
Metallized film
Flame Retardant epoxy resin (UL94V0)
Lead free tinned copper leads
Terminal to Terminal
Operating Temperature Range
Capacitance Tolerance
AC voltage (50/60 Hz)
Dissipation Factor (MAX)
25°C
Insulation Resistance
@25°C (<70% RH)for 1 minute at
100VDC applied
Self Inductance
Capacitance Drift Factor
Load Life
Reliability
(0.5xRated Voltage,
40°C)
1 FIT=1 failure/1 billion
component hours
Damp Heat test
Self Inductance
Capacitance Drift Factor
Capacitance Temperature
Coefficient
Dielectric Strength
Dielectric
Construction
Coating
Leads
Feb-17
