General Purpose, Pulse and DC Transient Suppression
F622 Series Metallized Polyester Film,
5 mm Lead Spacing, 50 – 630 VDC
Overview

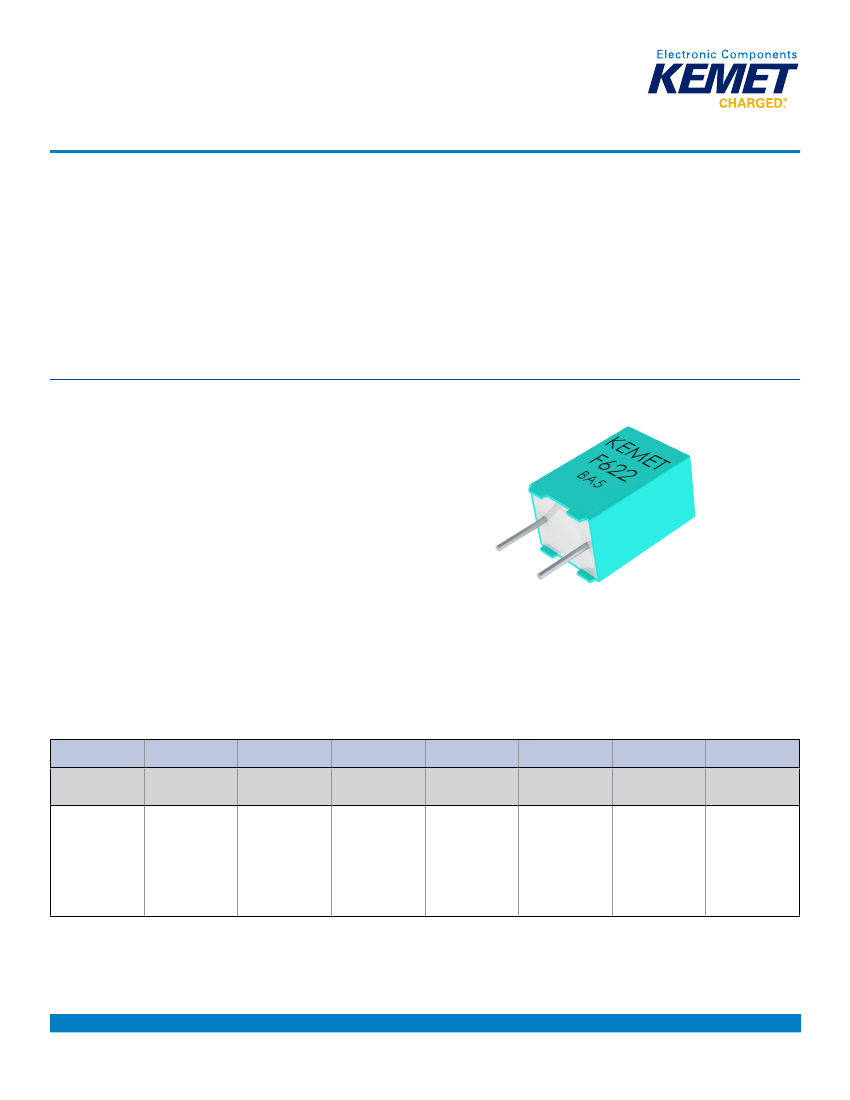

The F622 Series is constructed of metallized stacked polyester
film capacitor with radial leads of tinned wire. Radial leads are
electrically welded to the contact metal layer on the ends of
the capacitor winding. The capacitor is encapsulated in a self-
extinguishing material meeting the requirements of UL 94 V–0.
Applications
Typical applications include high performance, high temperature
blocking, coupling, decoupling, bypassing and interference
suppression in low voltage applications such as automotive. Not
for use with the mains.
Benefits
•
•
•
•
•
•
•
•
•
Voltage range: 50 – 630 VDC
Capacitance range: 0.001 – 2.2 µF
Lead spacing: 5 mm
Capacitance tolerance: ±10%, ±20%, ±5% on request
Climatic category: 55/125/56
Tape and reel packaging in accordance with IEC 60286–2
RoHS Compliant and lead-free terminations
Operating temperature range of -55˚C to +125˚C
Designed for high performance, high temperature applications
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Part Number System
F
Capacitor Class
F = Film
622
Series
Metallized
Polyester
J
Lead Spacing
(mm)
J=5
F
Size Code
See Dimension
Table
104
Capacitance Code
(pF)
First two digits
represent
significant
figures. Third
digit specifies
number of zeros.
M
Capacitance
Tolerance
J = ±5%
K = ±10%
M = ±20%
050
Rated Voltage
(VDC)
050 = 50
063 = 63
100 = 100
250 = 250
400 = 400
500 = 500
630 = 630
C
Packaging
See Ordering
Options Table
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3066_F622 • 7/8/2016
1
Film Capacitors
General Purpose, Pulse and DC Transient Suppression – F622 Series Metallized Polyester Film, 5 mm Lead Spacing, 50 – 630 VDC
Ordering Options Table
Lead Spacing
Nominal (mm)
Type of Leads and Packaging
Standard Lead and Packaging Options
Bulk (Bag) – Short Leads
Bulk (Bag) – Long Leads
Tape & Reel (Standard Reel)
Other Lead and Packaging Options
Bulk (Bag) – Max Length Leads
Ammo Pack
20 +5/-0
H
0
= 18.5 +/-0.5
ALL0L
R
4 +2/-0
17 +0/-1
H
0
= 18.5 +/-0.5
C
A
L
Lead Length
(mm)
Lead and
Packaging
Code
5
Dimensions – Millimeters
FRONT VIEW
L
SIDE VIEW
B
H
d
p
LL
0.5
Size Code
JF
JG
JM
JQ
JT
p
Nominal
5.0
5.0
5.0
5.0
5.0
Tolerance
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
Nominal
2.5
3.5
4.5
5.0
6.0
B
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
6.5
7.5
9.5
10.0
11.0
H
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
7.2
7.2
7.2
7.2
7.2
L
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
0.5
0.5
0.5
0.5
0.5
d
Tolerance
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
Note: See Ordering Options Table for lead length (LL) options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3066_F622 • 7/8/2016
2
Film Capacitors
General Purpose, Pulse and DC Transient Suppression – F622 Series Metallized Polyester Film, 5 mm Lead Spacing, 50 – 630 VDC
Performance Characteristics
Capacitance Tolerance
Category Temperature Range
Voltage Derating
Rated Temperature
±20%, ±10%, ±5% on request
-55°C to 125°C
Above +85°C DC and AC voltage derating is 1.25%/°C
+85°C
–55 to +125°C
Climatic Category
Average relative humidity ≤ 75%
RH = 95% for 30 days per year
RH = 85% for further days limited by average value per year
Test Voltage
Capacitance Drift
1.6 x V
R
VDC for 2 seconds
Maximum 3% after a 2 year storage period at a temperature of +10°C to +40°C and a relative humidity of 40% to 60%
Operational life > 200,000 hours
Reliability
Failure rate < 3 FIT, T = +40°C, V = 0.5 x V
R
Failure criteria: open circuit, short circuit, cap change > 10%, DF 2 times the catalog limits, IR < 50 MΩ
Maximum Pulse Steepness
Temperature Coefficient
Self Inductance
dV/dt according to Table 1. For peak to peak voltages lower than rated voltage (Vpp < V
R
), the specified dV/dt can
be multiplied by the factor V
R
/Vpp.
+400 (±200) ppm/°C at 1 kHz
Approximately 6 nH/cm for the total length of capacitor winding and the leads
Maximum Values at +23°C
C ≤ 0.1 µF
Dissipation Factor tanδ
1 kHz
10 kHz
100 kHz
0.8%
1.2%
2.5%
Measured at +20°C, according to IEC 60384–2
Minimum Values Between Terminals
Insulation Resistance
V
R
≤ 100 VDC
V
R
> 100 VDC
C ≤ 0.33 µF
15,000 MΩ
30,000 MΩ
C > 0.33 µF and < 1 µF
5,000 MΩ • µF
10,000 MΩ • µF
C > 1.0 µF
1,000 MΩ • µF
0.1 µF < C ≤ 1.0 µF
0.8%
1.2%
C > 1.0 µF
0.8%
1.5%
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3066_F622 • 7/8/2016
3
Film Capacitors
General Purpose, Pulse and DC Transient Suppression – F622 Series Metallized Polyester Film, 5 mm Lead Spacing, 50 – 630 VDC

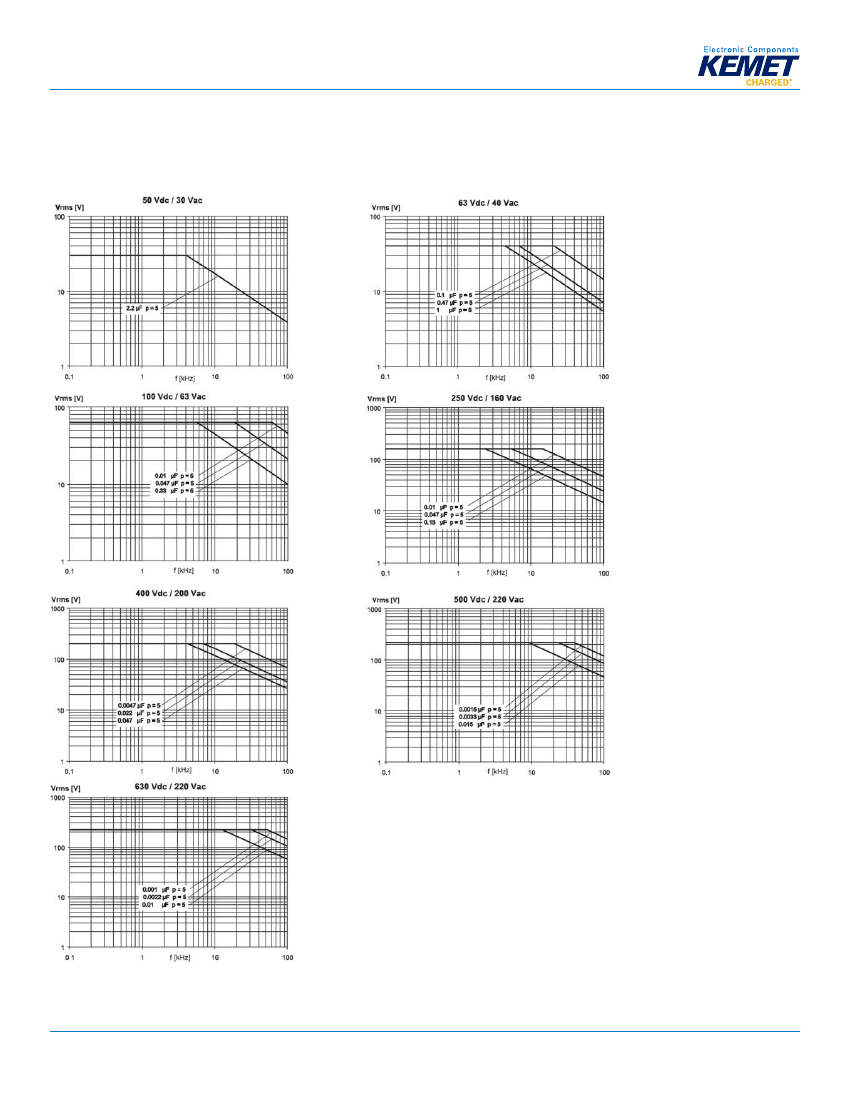

Maximum Voltage (V
rms
) vs. Frequency (Sinusoidal Waveform/T ≤ 40°C)
Lead Spacing 5 mm
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3066_F622 • 7/8/2016
4
Film Capacitors
General Purpose, Pulse and DC Transient Suppression – F622 Series Metallized Polyester Film, 5 mm Lead Spacing, 50 – 630 VDC

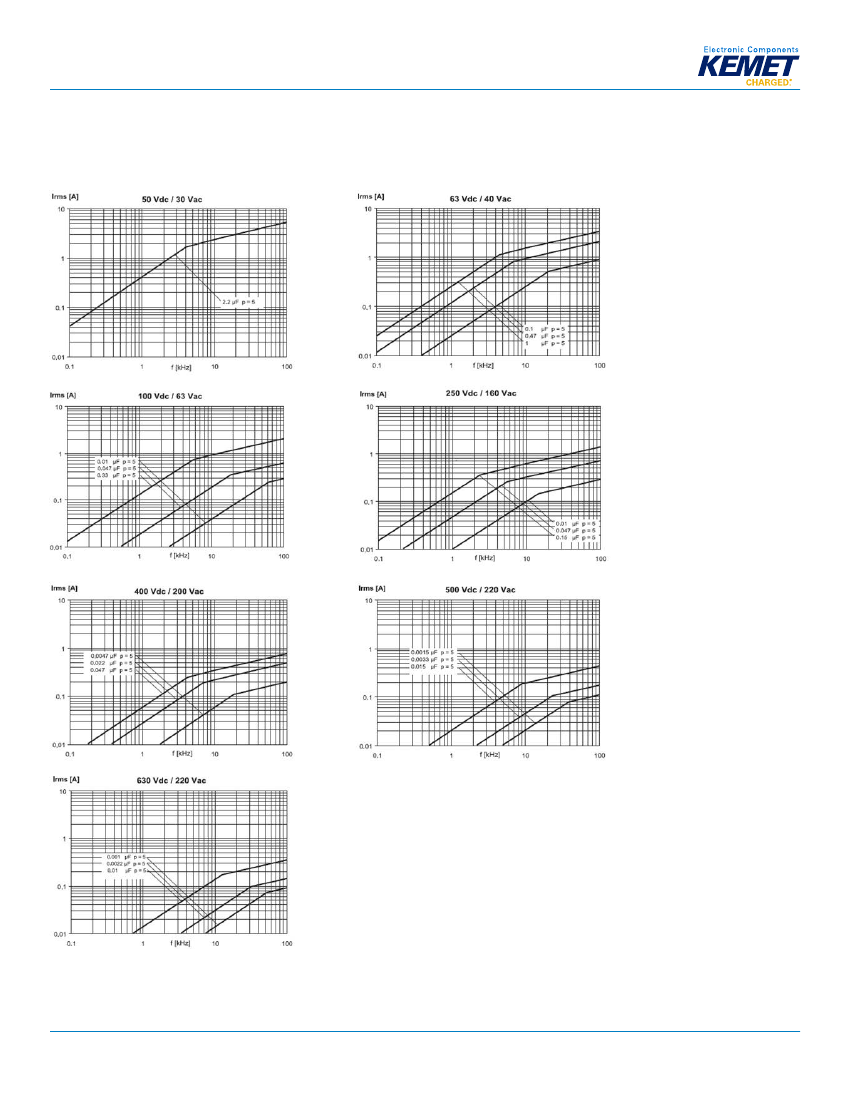

Maximum Current (I
rms
) vs. Frequency (Sinusoidal Waveform/T ≤ 40°C)
Lead Spacing 5 mm
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3066_F622 • 7/8/2016
5
