0910-0-57-20-76-14-11-0: DescriptionTest Plugs u0026 Test Jacks BANANA PLUG BLACK; CategoryThe connector terminals; File Size633KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

0910-0-57-20-76-14-11-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0910-0-57-20-76-14-11-0	-	-	View	Buy Now

0910-0-57-20-76-14-11-0 Overview

Test Plugs u0026 Test Jacks BANANA PLUG BLACK

0910-0-57-20-76-14-11-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
terminal gender	MALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

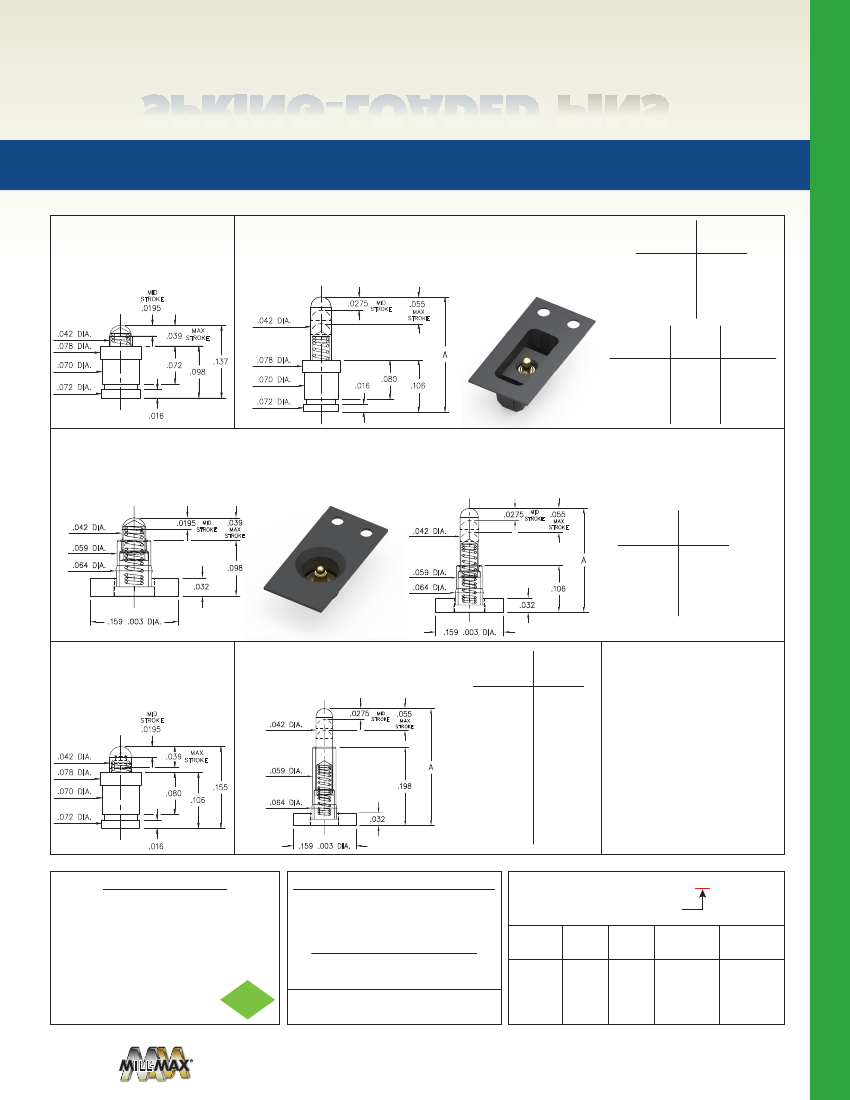

SPRING-LOADED

PINS

DISCRETE SPRING

-

LOADED CONTACTS • SURFACE MOUNT

0910-0

0910-0-57-20-76-14-11-0

0910-1[4

Short stroke, Surface mount

Packaged on 16mm wide carrier tape:

2,000 parts per 13” reel.

MID

STROKE

0910-X-57-20-7X-14-11-0

Basic Part

Number

Length

A

Standard stroke, Surface mount

Packaged on carrier tape.

See chart for tape width and qty. per reel

.0275

.042 DIA.

MID

STROKE

.0195

.042 DIA.

.078 DIA.

.070 DIA.

.072 DIA.

.072

.039

MAX

STROKE

MAX

STROKE

.055

0910-1

0910-2

0910-3

0910-4

Basic Part

Number

Tape

Width

.177

.197

.217

.236

Quantity

per Reel

.137

.098

.078 DIA.

.070 DIA.

.072 DIA.

.016

.080

.106

A

.016

0910-1

0910-2

0910-3

0910-4

16mm

24mm

1,500

1,100

0990-0

0990-0-50-20-76-14-11-0

0990-1[4

Short stroke, Surface mount, Large base

Also available on 16mm wide carrier tape: 2,150 parts per 13” reel.

Order as:

0990-0-57-20-76-14-11-0

.0195

MID

STROKE

0990-X-50-20-7X-14-11-0

Standard stroke, Surface mount, Large base

Also available on 16mm wide carrier tape: 850 parts per 13” reel.

Order as:

0990-4-57-20-75-14-11-0

ONLY 0990-4 currently available

MID

.0275

STROKE

.055

MAX

STROKE

.042 DIA.

.059 DIA.

.064 DIA.

MAX

STROKE

.039

.042 DIA.

Basic Part

Number

A

Length

A

.098

.032

.059 DIA.

.064 DIA.

.032

.106

0990-1

0990-2

0990-3

0990-4

.177

.197

.217

.236

.159

±

.003 DIA.

.159

±

.003 DIA.

0910-8

0910-8-57-20-76-14-11-0

0997-0[9

0997-X-50-20-7X-14-11-0

.0275

.042 DIA.

Short stroke, Surface mount

Packaged on 16mm wide carrier tape:

1,800 parts per 13” reel.

MID

STROKE

Basic Part

Number

Length

A

Standard stroke, Surface mount, Large base, Mid profile

.0195

.042 DIA.

.078 DIA.

.070 DIA.

.072 DIA.

.080

.155

.106

.039

MAX

STROKE

.198

.064 DIA.

.032

.016

.159

±

.003 DIA.

Material Specifications:

Sleeve & Plunger Material:

Copper Alloy

Spring Material:

BeCu or Stainless Steel 302

*

Sleeve & Plunger Finish:

20

μ”

Gold over Nickel

Spring Finish:

10

μ”

Gold over Nickel

Dimensions: Inches

Tolerances On:

Lengths: ± .006

Diameters: ± .002

Angles:

±2°

Mechanical & Electrical Specifications:

Durability:

Up to 1,000,000 cycles

Current Rating:

2A continuous, 3A peak

Contact Resistance:

20 mW max.

Order Code: 09XX - X - XX - 20 -

XX

- 14 - 11 - 0

Spring Number

Spring

Number

09

75

76

Mid.

Stroke

.015

.0275

.0195

Max.

Stroke

.030

.055

.039

Initial Force

Force @

Mid. Stroke (Pre-Load)

65 g

60 g

XX g

25 g

Environmental Specifications:

Operating temperature range:

-55/+125° C (discontinuous)

09, 75, 76

Springs are not

interchangeable

2011/65/EU

RoHS - 2

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 26 | SPRING-LOADED CONNECTORS

.059 DIA.

A

0997-0

0997-1

0997-2

0997-3

0997-4

0997-5

0997-6

0997-7

0997-8

0997-9

.255

.275

.295

.315

.335

.350

.370

.390

.410

.430
