Data Sheet
Dual Channel Function/Arbitrary Waveform Generators
4050 Series

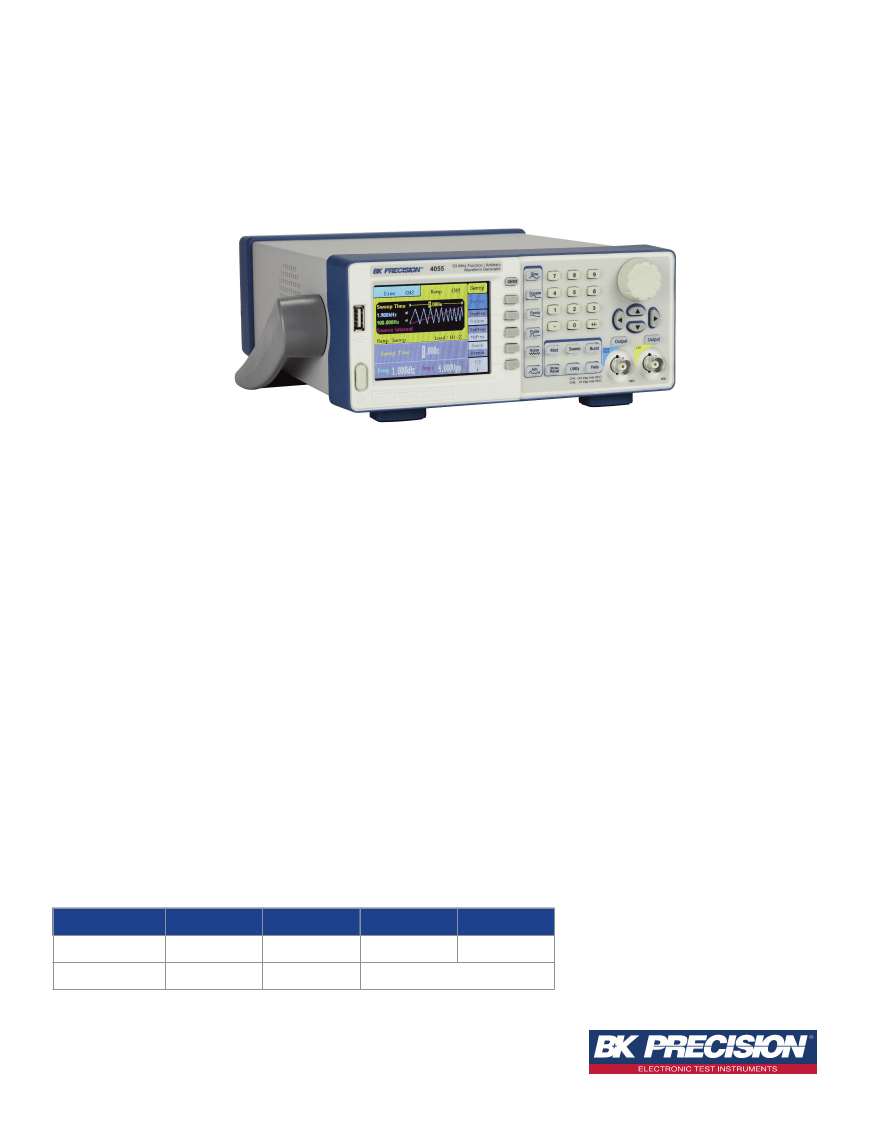

The 4050 Series Dual Channel Function/Arbitrary
Waveform Generators are capable of generating
stable and precise sine, square, triangle, pulse,
and arbitrary waveforms. With easy-to-read color
displays and an intuitive user interface with
numeric keypad, these instruments offer plenty
of features including linear/logarithmic sweep,
built-in counter, extensive modulation and
triggering capabilities, a continuously variable DC
offset, and a high performance 14-bit, 125 MSa/s
arbitrary waveform generator. The main output
voltage can be varied from 0 to 10 Vpp into 50
ohms (up to 20 Vpp into open circuit) and the
secondary output can be varied from 0 to 3 Vpp
into 50 ohms (up to 6 Vpp into open circuit).
Easily create custom arbitrary waveforms using
the included waveform editing software or output
any of the 48 built-in predefined arbitrary
waveforms. Up to 10 user-defined 16 kpt
arbitrary waveforms can be saved to the
instrument. Additionally, the included LabVIEW™
drivers allow users to conveniently load and save
.CSV or text file data directly into the arb memory
without having to use waveform editing software.
Extensive modulation capabilities include
amplitude and frequency modulation (AM/FM),
double sideband amplitude modulation
(DSB-AM), amplitude and frequency shift keying
(ASK/FSK), phase modulation (PM), and pulse
width modulation (PWM).
The standard external 10 MHz reference clock
input allows the instrument to be synchronized
to an external 10 MHz source or another
generator. This feature is typically not found in
function generators at this price point.
Additionally, the phase of both output channels
can be conveniently synchronized with the push
of a button.
These versatile function/arbitrary waveform
generators are suitable for education and other
applications that require high signal fidelity, a
variety of modulation schemes, or arbitrary
waveform generation capabilities.
Features & Benefits
I
14-bit, 125 MSa/s, 16k point arbitrary
waveform generator
Generate sine waves up to 50 MHz
Large 3.5-inch LCD color display with
waveform preview
Linear and logarithmic sweep
AM, DSB-AM, ASK, FM, FSK, PM, and PWM
modulation functions
Variable DC offset
Adjustable duty cycle
Two independent channels with individual
output ON/OFF buttons
Internal/external triggering
Gate and burst mode
48 built-in predefined arbitrary waveforms
Store/recall up to 10 instrument settings and
10 arbitrary waveforms
Built-in counter
USB device port (USBTMC-compliant) and
front panel USB host port
GPIB connectivity with optional USB-to-GPIB
adapter
SCPI-compliant command set
Arbitrary waveform editing software provided
Short circuit protection on output
LabVIEW™ drivers available
I
I
I
I
I
I
I
I
I
I
I
I
I
I
Model
Sine frequency range
Square frequency range
4052
1 µHz – 5 MHz
1 µHz – 5 MHz
4053
1 µHz – 10 MHz
1 µHz – 10 MHz
4054
1 µHz – 25 MHz
4055
1 µHz – 50 MHz
I
I
I
I
1 µHz – 25 MHz
Technical data subject to change
© B&K Precision Corp. 2014
www.bkprecision.com
Dual Channel Function/Arbitrary Waveform Generators
4050 Series

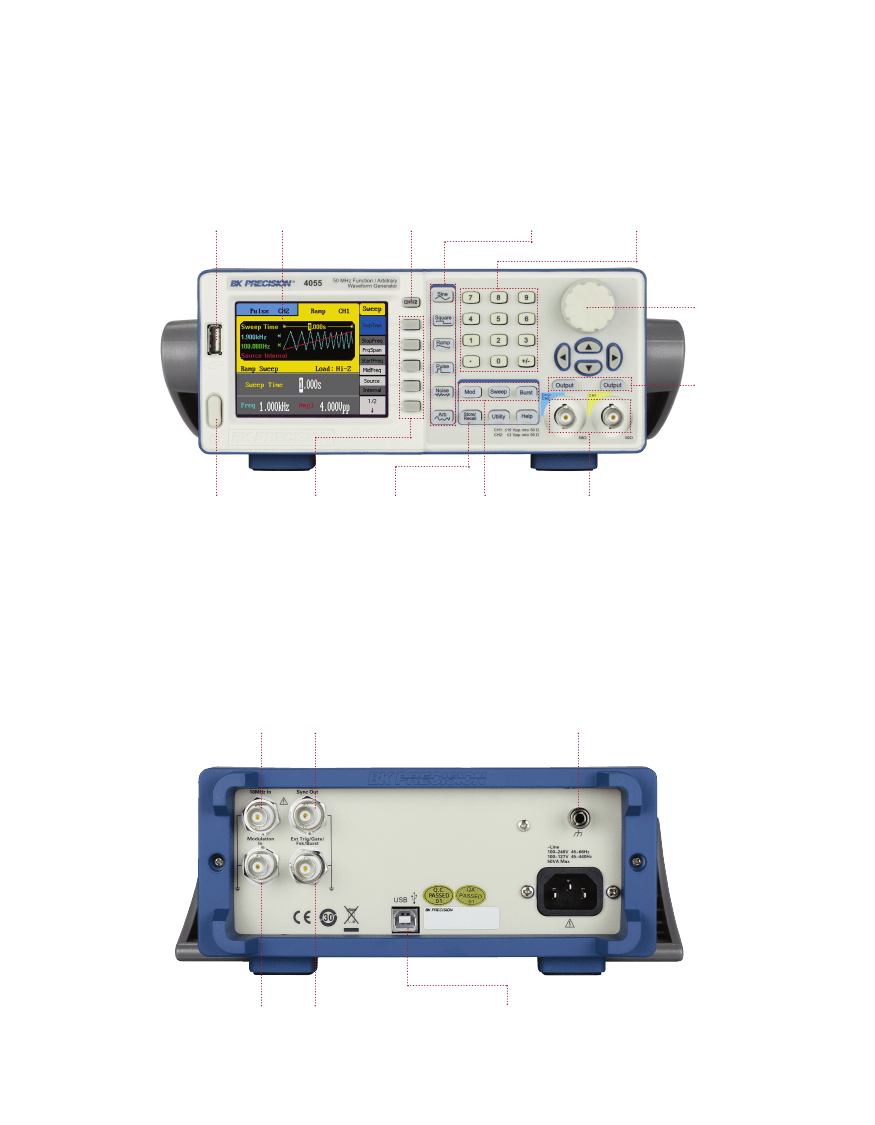

Front panel
USB host port
3.5” color
LCD display
Channel selection
button
Dedicated backlit
waveform keys
Numeric keypad
Rotary control
knob
Dedicated output
On/Off button for
each channel
Power button
Menu function
keys
Store/Recall
key
Modulation, Sweep,
and Burst keys
Channel outputs

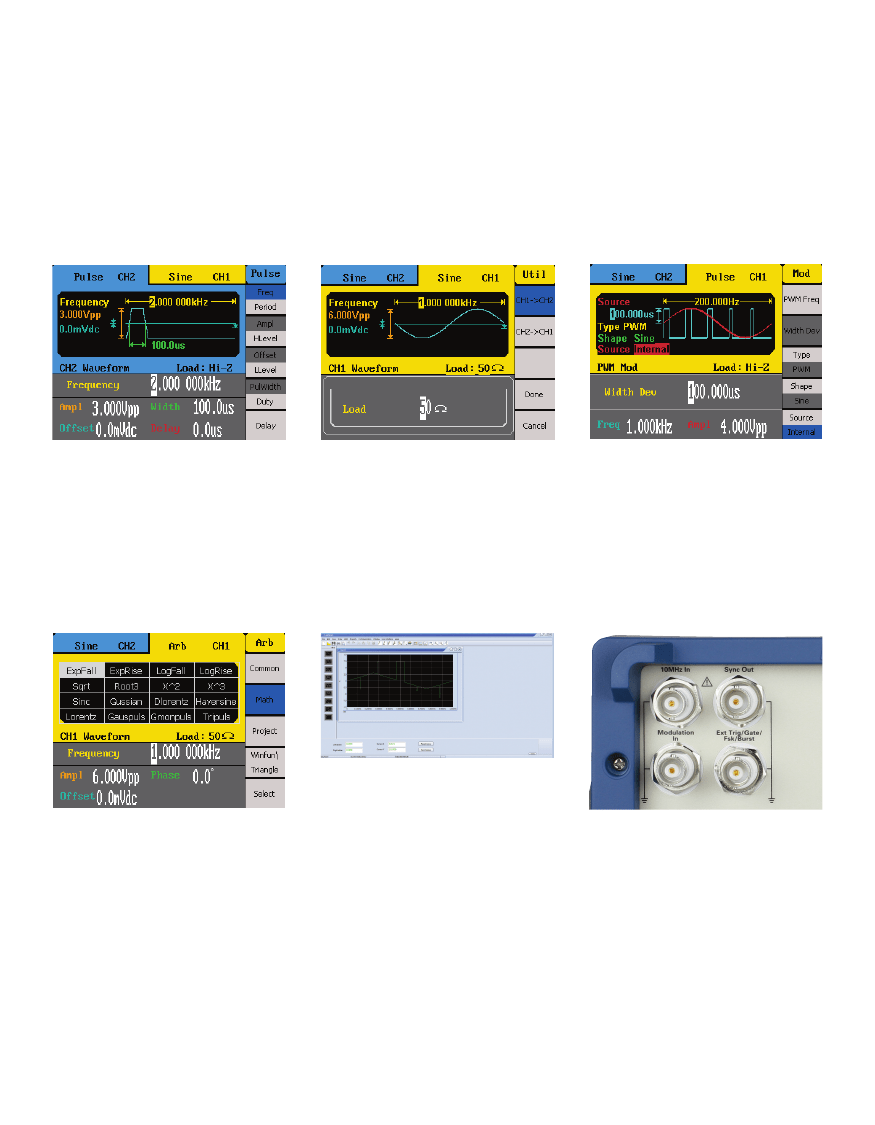

Intuitive user interface
Easily adjust all waveform parameters using the intuitive menu-driven front panel keypad with dedicated waveform keys, numeric keypad, and rotary control knob.
Connect your USB flash drive to the USB host port to quickly save and recall instrument settings and waveforms.
Rear panel
External 10 MHz
clock input BNC
Sync output BNC
Chassis ground
Modulation
input BNC
External trigger/gate/FSK/burst BNC
USB interface
2
www.bkprecision.com
Dual Channel Function/Arbitrary Waveform Generators
4050 Series
Flexible operation
Color display with waveform preview
Duplicate channel parameters
Wide variety of modulation schemes
The large 3.5” color display highlights the
currently selected channel and shows all relevant
parameters with a preview of the waveform being
generated.
Quickly copy all waveform parameters between
channels via the Utility menu. This feature can
help you save time when you need to set up two
identical output signals.
These instruments are capable of many different
types of modulation for various applications.
Modulate your waveforms with AM, DSB-AM,
FM, PM, ASK, FSK, and PWM modulation
schemes.
Arbitrary waveform generation
Generate waveforms with ease
Synchronization and external triggering
All models in the 4050 series have non-volatile
memory to create, store, and recall up to 10
different arbitrary waveforms of up to 16,000
points each. Users can also output any of the 48
built-in predefined arbitrary waveforms.
The provided waveform editing software can
be used to create point-by-point arbitrary
waveforms via freehand or waveform math
functions. A standard USBTMC-compliant USB
device port on the rear panel allows users to
easily interface with a PC to load these arbitrary
waveforms into the instrument.
Use the external 10 MHz clock input to
synchronize your signals to a master time base.
The Sync output generates a TTL pulse for
synchronization to a channel’s frequency. An
external trigger connector is also available for
inputting or outputting trigger signals.
3
www.bkprecision.com
Dual Channel Function/Arbitrary Waveform Generators
4050 Series
Specifications
Model
Channels
Frequency Characteristics
4052
4053
2
4054
4055
Sine
Square
Triangle, Ramp
Pulse
Gaussian Noise (-3 dB)
Arbitrary
Accuracy
Resolution
Arbitrary Characteristics
1 µHz – 5 MHz
1 µHz – 5 MHz
> 5 MHz
1 µHz – 10 MHz
1 µHz – 25 MHz
1 µHz – 50 MHz
1 µHz – 10 MHz
1 µHz – 25 MHz
1 µHz – 300 kHz
500 µHz – 5 MHz
> 10 MHz
> 25 MHz
> 50 MHz
1 µHz – 5 MHz
± 50 ppm (90 days)
± 100 ppm (1 year)
1 µHz
48 built-in waveforms (includes DC)
16,000 points / Ch
14 bits
125 MSa/s
7 ns (typical)
8 ns (typical)
10 waveforms
Built-in Waveforms
Waveform Length
Vertical Resolution
Sampling Rate
Minimum Rise/Fall Time
Jitter (pk-pk)
Non-volatile Memory Storage
Output Characteristics
Amplitude Range
Amplitude Resolution
Amplitude Accuracy (100 kHz)
Amplitude Flatness
(relative to 100 kHz, 5 Vpp)
Cross Talk
Offset Range (DC)
Offset Resolution
Offset Accuracy
Channel Output Impedance
Output Protection
Sync Out
Waveform Characteristics
channel 1: 2 mVpp – 10 Vpp into 50
Ω
(4 mVpp – 20 Vpp into open circuit),
≤
10 MHz
2 mVpp – 5 Vpp into 50
Ω
(4 mVpp – 10 Vpp into open circuit), > 10 MHz
channel 2: 2 mVpp – 3 Vpp into 50
Ω
(4 mVpp – 6 Vpp into open circuit)
up to 4 digits
± (0.3 dB + 1 mVpp of setting value)
± 0.3 dB
< -70 dBc
channel 1: ± 5 V into 50
Ω (±
10 V into open circuit)
channel 2: ± 1.5 V into 50
Ω (±
3 V into open circuit)
up to 4 digits
± ( |offset setting value| x 1% + 3 mV)
50
Ω,
high impedance
short-circuit protection
TTL compatible, 2 MHz maximum frequency
> 50 ns width, not adjustable
50
Ω
(typical) output impedance
DC – 1 MHz, < - 60 dBc
1 MHz – 5 MHz, < -53 dBc
5 MHz – 25 MHz, < - 35 dBc
25 MHz – 50 MHz, < -32 dBc
DC – 20 kHz at 1 Vpp, < 0.2 %
DC – 1 MHz, < -70 dBc
1 MHz – 10 MHz, < -70 dBc + 6 dB/spectrum phase
10 kHz offset, - 108 dBc/Hz (typical)
< 12 ns (10 % – 90 %) at full amplitude into 50
Ω
20% – 80% to 10 MHz
40% – 60% to 20 MHz
50% > 20 MHz
1% of period + 20 ns (typical,1 kHz, 1 Vpp))
0.1% of period (typical, 1 kHz, 1 Vpp)
0% – 100%
< 0.1% of peak output (typical)
Harmonic Distortion
Total Harmonic Distortion
Spurious (non-harmonic)
Phase Noise
Rise/Fall Time (square)
Variable Duty Cycle (square)
Asymmetry (50% duty cycle)
Jitter (square)
Ramp Symmetry
Linearity (triangle, ramp at 1 kHz,
1 Vpp, 100% symmetry)
4
www.bkprecision.com
Dual Channel Function/Arbitrary Waveform Generators
4050 Series
Model
Pulse
4052, 4053, 4054 & 4055
Sweep Characteristics
Pulse Width
Rise/Fall Time
Duty Cycle
Overshoot
Jitter (pk-pk)
Burst
16 ns minimum, 8 ns resolution
7 ns (typical) at 1 kHz, 1 Vpp from 10% – 90%
0.1% resolution
< 5%
8 ns
sine, square, ramp, pulse, arbitrary (except DC)
cycle (1 – 50,000 cycles), infinite, gated
0 ° – 360 °
1 µs – 500 s
external trigger
internal, external, manual
0 ° – 360 °
0.1 °
Waveforms
Sweep Shape
Sweep Time
Sweep Trigger
Inputs
sine, square, ramp, arbitrary (except DC)
linear or logarithmic, up or down
1 ms – 500 s
internal, external, manual
± 6 Vpp for 100% modulation
> 5 kΩ input impedance
maximum voltage input: ± 6 V
TTL compatible
maximum voltage input: ± 6 V
10 MHz ± 100 Hz, TTL compatible for synchronization
to external 10 MHz clock or another generator
frequency, period, duty cycle,
positive/negative pulse width
single channel: 100 mHz – 200 MHz
pulse width/duty cycle: 1 Hz – 10 MHz
6 bits
DC offset range: ± 1.5 VDC
100 mHz – 100 MHz, 50 mVrms – ± 2.5 V
100 MHz – 200 MHz, 100 mVrms – ± 2.5 V
1 Hz – 100 MHz, 50 mVrms – 5 Vpp
100 MHz – 200 MHz, 100 mVrms – 5 Vpp
50 mVrms – 5 Vpp
1 MΩ
AC, DC
-3 V – 1.8 V
operating: 32 ºF – 104 ºF (0 °C – 40 °C)
storage: -4 ºF – 140 ºF (-20 °C – 60 °C)
< 95º F (35 °C),
≤
90 % RH
95 ºF – 104 ºF (35 °C – 40 °C),
≤
60 % RH
operating: below 9,842 ft (3,000 m)
storage: below 49,212 ft (15,000 m)
EMC Directive 2004/108/EC, EN61326:2006,
EN61000-3-2:2006+A2:2009, EN61000-3-3:2008
Low voltage directive 2006/95/EC, EN61010-1:2001,
EN61010-031:2002+A1:2008
3.5” TFT-LCD display, 320 x 240
USBTMC (standard), GPIB (optional), USB host port
10 instrument settings, 10 arbitrary waveforms
100 – 240 VAC ± 10%, 50 / 60 Hz ± 5%
100 – 120 VAC ± 10%, 45 – 440 Hz
50 W max.
8.4” x 3.5” x 11.1” (213 x 89 x 281 mm)
5.7 lbs (2.6 kg)
Waveform
Type
Start/Stop Phase
Internal Period
Gated Source
Trigger Source
Phase Offset
Modulation In
Ext Trig/Gate/FSK/Burst
External Clock
Frequency Counter
Range
Resolution
Trigger Characteristics
Measurement
Measurement Range
Frequency Resolution
Trigger Input
Max. Input Voltage
Input Level
Slope
Pulse Width
Input Impedance
Maximum Frequency
Input Latency
Trigger Output
Voltage Level
Pulse Width
Output Impedance
Maximum Frequency
Carrier
Source
Modulation Waveform
AM Modulation Depth
FM Frequency Deviation
PM Phase Deviation
Carrier
Source
Modulation Waveform
Carrier
Source
Modulation Waveform
Frequency
Source
Modulation Waveform
External Modulation
Duty Cycle
Modulating Frequency
±6V
TTL compatible
rising or falling, selectable
> 100 ns
> 5 kΩ, DC coupling
1 MHz
< 300 ns
TTL compatible
> 400 ns
50
Ω
1 MHz
sine, square, ramp, arbitrary (except DC)
internal, external
sine, square, ramp, noise, arbitrary (2 mHz – 20 kHz)
0% – 120%, 0.1% resolution
0 – 0.5*bandwidth, 10 µHz resolution
0 – 360 °, 0.1 ° resolution
sine, square, ramp, arbitrary (except DC)
internal, external
50% duty cycle square waveform (2 mHz – 50 kHz)
sine, square, ramp, arbitrary (except DC)
internal, external
sine, square, ramp, noise, arbitrary (2 mHz – 1 kHz)
500 µHz – 20 kHz
internal, external
sine, square, ramp, arbitrary (except DC)
- 6 V – 6 V (max. width deviation)
2 mHz – 20 kHz
DC Coupling
AC Coupling
Pulse Width/Duty Cycle
Voltage Range
Input Impedance
Coupling
Trigger Level Range
Environmental and Safety
Temperature
Humidity
Altitude
Electromagnetic
Compatibility
Safety
General
AM, FM & PM Modulation Characteristics
ASK & FSK Modulation Characteristics
DSB-AM Modulation Characteristics
Display
Interfaces
Storage Memory
Power
Power Consumption
Dimensions (W x H x D)
Weight
PWM Modulation Characteristics
Three-Year Warranty
Standard Accessories
Optional Accessories
Getting Started manual, full instruction manual on CD,
AC power cord, USB type A-to-type B cable,
certificate of calibration
USB-to-GPIB adapter (model AK40G)
5
v070814
www.bkprecision.com
京公网安备 11010802033920号
EEWORLD
