Fluke 750 Series
Documenting Process Calibrators:
Work smarter. Work faster.
Fluke 750 Series Documenting
Process Calibrators:
Work Smarter. Work Faster.
Whether you’re calibrating instruments, troubleshoot-
ing a problem or running routine maintenance, Fluke
750 Series process calibrators can help you get the
job done faster. It does so many different tasks, so
quickly and so well, it’s the only process calibrator you
need to carry.
•
Multifunctional.
Calibrate temperature, pressure,
voltage, current, resistance, and frequency. Since it
both measures and sources, you can troubleshoot
and calibrate all with one rugged tool.
•
Powerful, yet easy to use.
The easy-to-follow,
menu-driven display guides you through any task.
Programmable calibration routines enable you to
create and run automated as-found/as-left
procedures to ensure fast, consistent, calibrations.
•
Records and documents results.
To support your ISO-9000 or regulatory
standards, the Fluke 753, and 754 capture your
calibration results, eliminating the need to juggle a
pen and pad in the field. The USB interface in the
Fluke 753 and 754 lets you transfer the results to
a PC, thus saving the time of having to manually
transcribe them when you return to the shop.
•
Supports popular instrumentation management
software.
The 753 and 754 work with the Fluke
DPC/TRACK™ software, and with popular programs
from Honeywell Meridium, Emerson, Cornerstone,
Yokogawa, Prime Technologies, Intergraph and oth-
ers. It allows you to create procedures, instructions,
and action lists to deliver fast, easy documentation.
•
Truly hand-held.
Small enough to fit easily into a
tool bag and to use in tight spaces. Runs an entire
shift on a rechargeable Li-ion battery pack.
•
Rugged and reliable.
Overmolded urethane case
stands up to rough handling in industrial environ-
ments. Calibrators offer one- or two-year calibration
cycles and three-year warranty.
•
Bright white display
lets you read your results in
any kind of light. Backlight has three (3) settings.
•
Soft keys
provide one-touch access to enhanced
functions such as task lists, automated procedures,
scaling, min/max, stepping and ramping, andreview
memory.
•
Three operating modes
Measure, Source, or
simultaneous Measure/Source, —enable technicians
to troubleshoot, calibrate, or maintain
instrumentation with just one tool.
•
Integrated HART communication capability
lets you program and control HART instrumentation
(754 only).
•
Use it immediately.
If you’ve used the Fluke 74X
Documenting Process Calibrator you’ll be able to
pick up the 75X and start using it immediately,
without a learning curve.
2 Fluke Corporation
750 Series Brochure
•
Multi-lingual interface
displays instructions in Eng-
lish, French, German, Spanish, and Italian.
•
AutoStep
allows technicians to set the calibrator for
a delayed start and a specific sequence of steps, so
it can run unattended as a continuously varying test
source.
•
User entered values
enable users to capture
readings measured or sourced by other devices.
•
Custom units
allow readings to be scaled and
displayed in any user-defined units.
•
Switch calibration procedures
perform fast,
automated calibration of one- and two-point switches
for voltage, current, temperature, and pressure.
•
Differential pressure flow
instrument calibration
routines use a square root
function to directly calibrate DP flow instruments.
•
Built-in algebraic calculator
with four functions — plus square root—stores, recalls,
and performs calculations required for setting up
instruments or evaluating data in the field. Use it to
set the source function to a calculated value. There’s
no need to carry a pencil and paper or a separate
calculator.
•
Programmable measurement delay
inside
automated procedures permits calibrating
instruments that respond slowly.
Get the knowledge straight from the product
expert in these process tools videos:
719 Electric Pressure Calibrator
789 ProcessMeter™
773 Milliamp Process Clamp Meter
754 Video Series
Online now at www.fluke.com/ptoolsvideos
Bonus feature available with
product registration:
while you get a replacement.
•
Transmitter mode: simulate a transmitter
Fluke 750 Series Documenting Process Calibrators:
Calibrators as versatile as you are.
The Fluke 750 Calibrators, offered in two models, let
you choose the right set of capabilities for your needs.
•
The
Fluke 753
offers simultaneous source and mea-
sure capabilities for all common process parameters.
Create and execute automated procedures and auto-
matically capture the results results. The USB inter-
face enables two-way communication with popular
PC-based instrumentation management applications.
•
The
Fluke 754
offers all of the capabilities of the
753, plus the ability to maintain and calibrate se-
lected HART transmitters without a second tool.
Capability
Source /measure
Automated procedures
Results capture
Uses all Fluke pressure modules
Transmitter mode
Serial interface
Data logging
HART communications
Pulsed RTD simulation to 1 ms
Li-ion battery with “Gas Gauge”
753 754
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Fluke 754 HART Documenting Process Calibrator:
Get HART-ability.
Process plants have taken advantage of smart
transmitters, the need for a new generation of
calibrators has emerged — calibrators that can
communicate via industry standard digital protocols.
The 754 combines HART communication capability in a
documenting process calibrator to deliver an integrated
communicating calibrator. This rugged, reliable tool is
ideal for calibrating, maintaining, and troubleshooting
HART instrumentation. The 754 offers:
•
Integrated HART communication functions,
permitting you to monitor, control, and calibrate
HART instrumentation.
•
Handling of fast pulsed RTD transmitters and PLCs,
with pulses as short as 1 mS.
•
Li-ion battery with 4400 mA hour life and gas gauge.
The field calibrator for HART instruments that’s
both powerful and easy to use.
The 754 offers the most complete HART
implementation of any process calibrator. The 754:
•
Requires no external box or second tool for everyday
HART calibration and maintenance.
•
Offers fast HART communication.
•
Supports popular models of HART transmitters with
device-specific command support.
•
Fully complies with the Data Link Layer of the HART
protocol, including multiple masters, burst mode,
and multi-drop configurations.
•
Is easy to update as additional instruments are
added and new HART versions are released.
•
Is based on the 740 series calibrators, the most
rugged, reliable multifunction field calibrators
ever made.
•
Is backed by the service and support of the
Fluke organization, a member of the HART
Communications Foundation.
The 754 is designed to take on nearly all the day-
to-day tasks you now perform with a separate com-
municator. In fact, it offers many of the communication
capabilities of the 475 HART communicator except
for the DD interpreter, which can read command set
libraries from any HART supplier. This is not necessary
for daily HART maintenance.
3 Fluke Corporation
750 Series Brochure

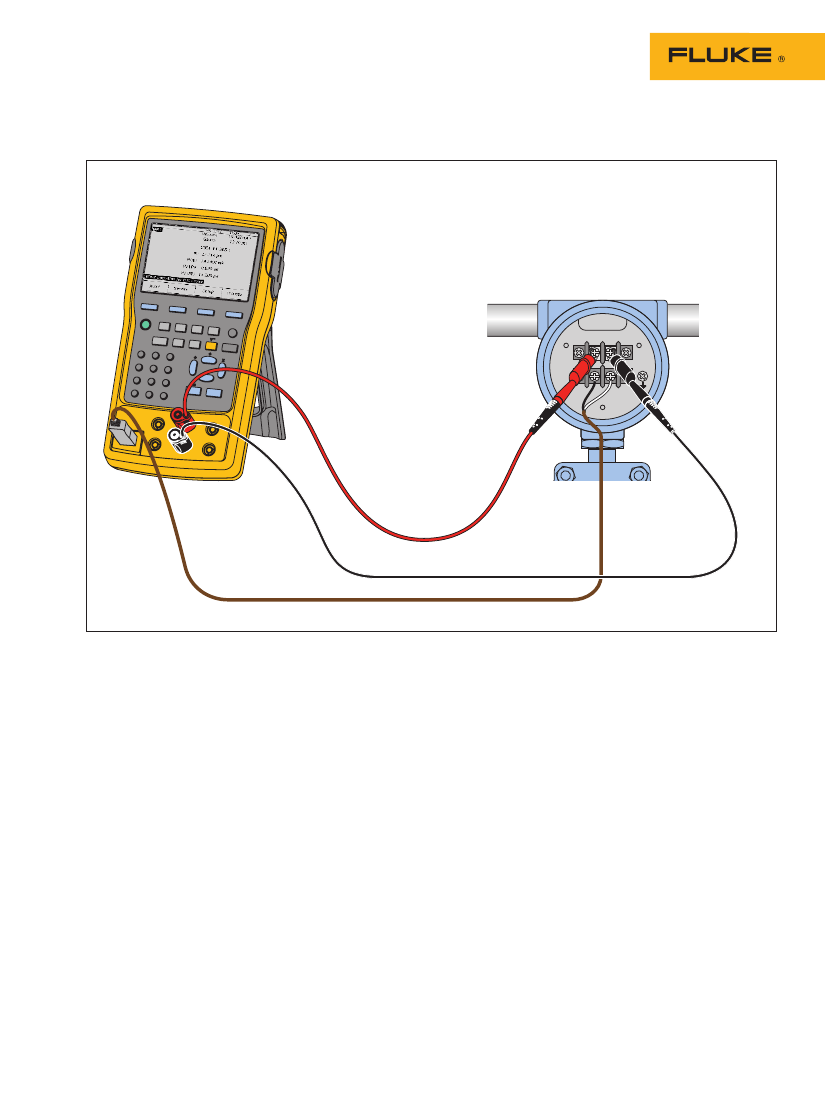

It’s easy to calibrate and maintain HART instrumentation with one powerful tool.
+
–
With the 754 DPC, you can:
•
Generate precision electrical, temperature, or
pressure signals for
analog stimulus
or sensor
simulation.
•
Simultaneously
measure
electrical, temperature,
or pressure signals from
transmitter output.
•
Determine type, manufacturer, model, tag ID by
interrogating HART devices.
•
Read HART PV
function and smart transmitter
digital output
while measuring
analog mA output.
•
Read and write HART configuration functions
to
make field adjustments to PV range points, damping,
and other top-level configuration settings.
•
Change sensor configuration
on supported
temperature transmitters.
•
Re-label smart transmitters
by reading and writing
HART tag and message fields.
•
Clone additional transmitters
by reading and
storing basic HART configurations.
•
Perform
automated HART sensor trim
and output
trim for selected devices in conjunction with
As Found/As Left tests.
•
Perform
loop test
with simultaneous analog and
digital mA readout.
•
Address new, fast, pulsed-excitation smart
trans-mitters and PLCs.
•
Control Hart Scientific Dry Block Calibrator.
4 Fluke Corporation
750 Series Brochure

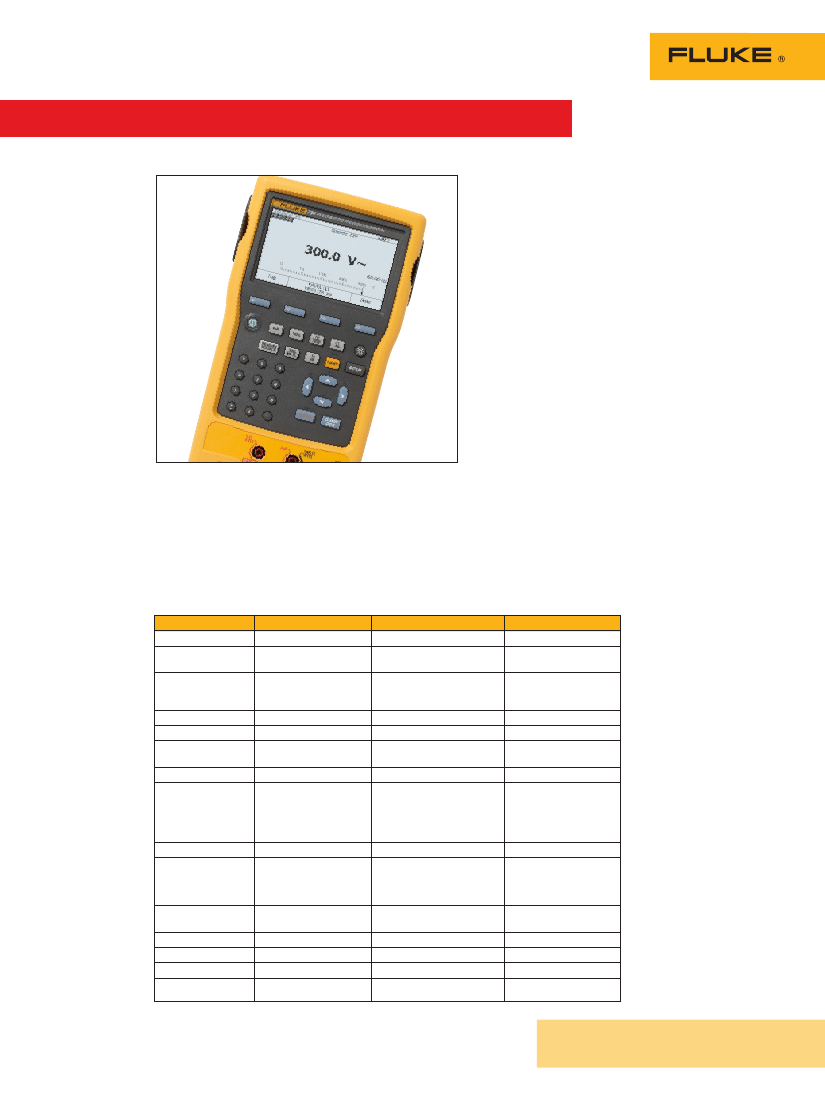

HART applications
Fluke 754: The HART calibrator that is easy to use.
•
Common practice commands—provide
functions
that are common to
many but not all field devices,
for example read multiple variables, set damping
time, or perform loop test
•
Device-specific commands—provide
functions
that are
unique to a particular field device,
for
example sensor trim. The 754 supports these
devices:
Today’s 754 supports device-specific instructions for a
variety of popular instruments. Additional support may
be added periodically with a simple software update
available on diskette or via download for a modest
upgrade fee.
HART operating modes supported
•
For
Point to Point operation,
the most commonly
used mode, connects the 754 to a single HART
device in a 4-20 mA loop.
•
In
Multi-Drop
mode, several HART instruments
can be bussed together. The 754 searches for each,
identifies addresses in use, and allows you to select
the instrument for calibration and related operations.
•
In
Burst Mode,
the HART instrument transmits
bursts of data without waiting to be interrogated
by a master unit. The 754 can take transmitters out
of burst mode during test or calibration, then later
restore them to burst mode.
Versatile HART protocol support
The 754 supports the commands contained in HART
protocol version 5.7. The 754 supports a substantial set
of HART instructions:
•
Universal commands—provide
functions that are
implemented in
all field devices,
for example, read
manufacturer and device type, read primary variable
(PV), or read current output and percent of span
Manufacturer
ABB/Kent-Taylor
ABB/
Hartmann & Braun
Endress & Hauser
Pressure instruments
600T
Contrans P,
AS 800 Series
1
Temperature instruments
658T
1
Coriolis instruments
CERABAR S,
CERABAR M,
DELTABAR S
I/A Pressure
FCX
FCXAZ
ST3000
TMT 122
1
, TMT 182
1
,
TMT 162
1
TI/RTT20
1
FRC
STT25T
1
, STT25H
1
2000
2000 IS
9701
9712
9739
344
1
Foxboro Eckardt
Foxboro/Invensys
Fuji
Honeywell
Micro Motion
Moore Products
Rosemount
1151
2088
3001C
3051, 3051S
SITRANS P DS
SITRANS P ES
LD301
I/A Pressure
UNITRANS
EJA
3044C
644
3144
3244, 3144P
Siemens
SMAR
Viatran
Wika
Yokogawa
1
TT301
1
T32H
1
YTA 110, 310 and 320
Sensor Trim not supported
www.fluke.com/processtools
