3744A-02 Overview

Test Plugs u0026 Test Jacks BANANA PLUG RED BU-00243-2

3744A-02 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Other features	POLYPROPYLENE
Connector type	INTERCONNECTION DEVICE
Base Number Matches	1

Preview

Download Datasheet

View All

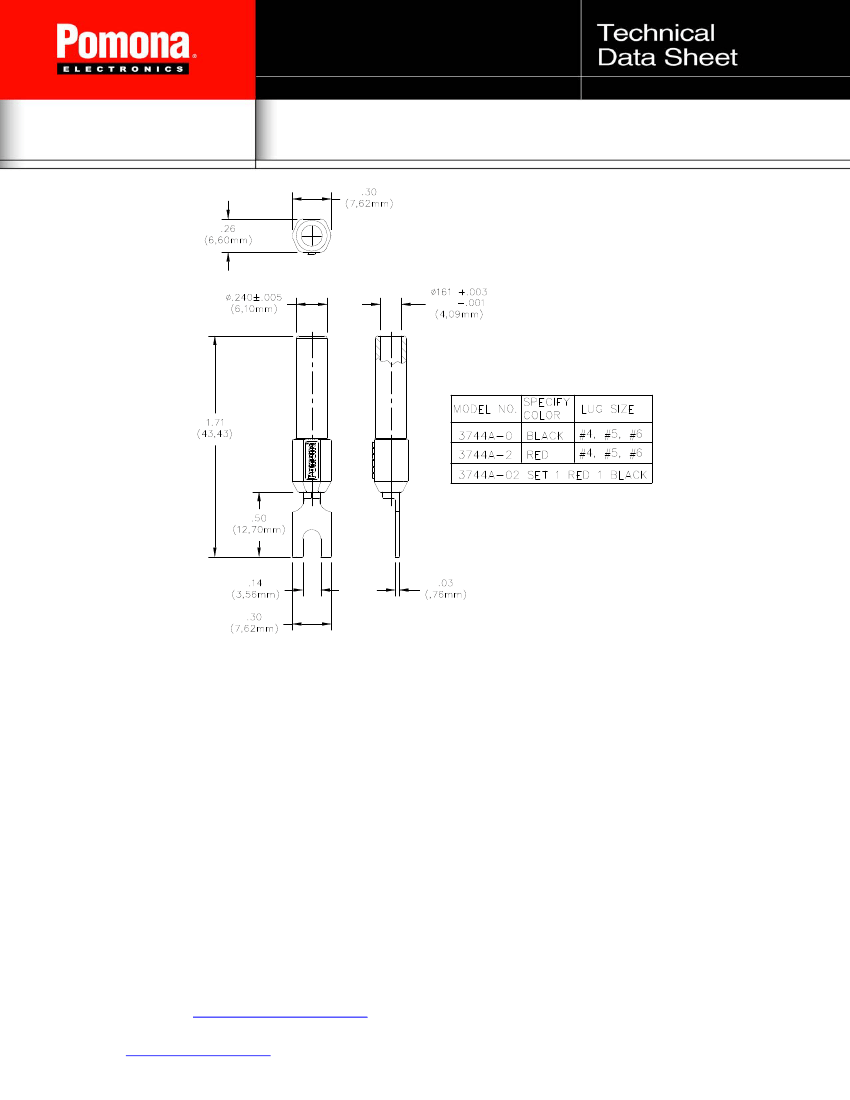

Model 3744A

Spade Lug to Banana Jack

MATERIALS:

1

st

End:

Banana Jack

Material: Brass per QQ-B-626, Alloy 360, ½ Hard.

Finish: Nickel plated per Q-N-290, Class 2, 200/300 microinches.

Insulation: Polypropylene (Fire Retardant) molded to Banana Jack Body. Color: See Tab Block.

Marking: “POMONA”

nd

2 End:

Spade Lug

Material: Copper.

Finish: Electro-tin plated.

RATINGS:

Operating Temperature:

+50º C (+122º F) Max.

Operating Voltage:

5000 VDC

Current:

15 Amperes

ORDERING INFORMATION:

See table above

Sales: 800-490-2361

Technical Support:

technicalsupport@pomonatest.com

Fax: 425-446-5844

Europe:

31-(0) 40 2675 150

International:

425-446-5500

Where to Buy:

www.pomonaelectronics.com

USA:

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),

.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.

Specifications are subject to change without notice. Registered trademarks are

the property of their respective companies.

D1093974 Rev. 102

Page 1 of 1
