Vectorbord
®
Backplanes
VME & VME64x
VME64x 160-pin
VME J1/J2 & VME64x J1/J2/P0,
Monolithic 6U Backplanes, 2 to 21-Slot
Vectorbord® VME & VME64x backplanes per
ANSI/VITA 1-1994 (R2002) and ANSI/VITA 1.1-1997
Vector VME and VME64x monolithic backplanes are fully RoHS
compliant and perform to ANSI/VITA 1.7-2003 (R2009).
Increased current level for VME (96 pin) & VME64x (160 pin)
DIN / IEC connectors. BothVector VME and VME64x
backplanes are 6U (10.317”) are an easy replacement or
addition to any 6U rack system. PCB thickness 0.160”
eliminates need for backplane stiffener.
General Backplane Specification for VME and VME64x

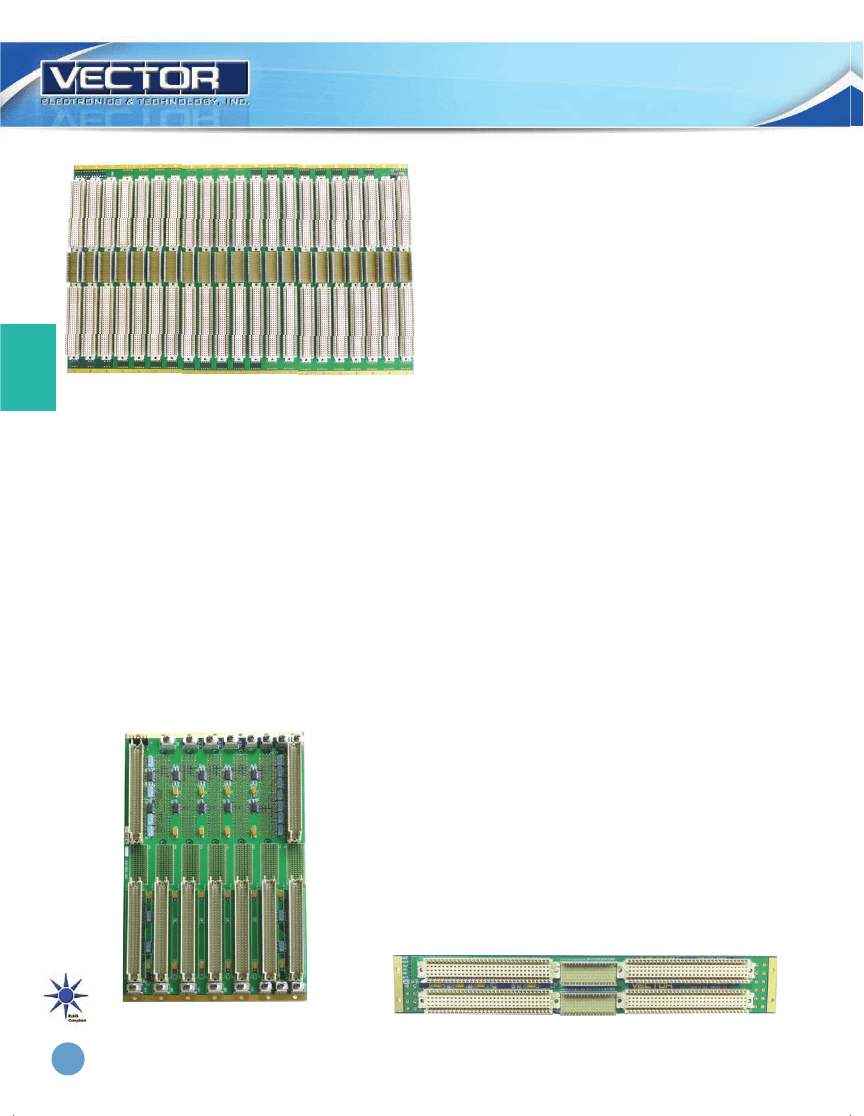

VME64E21P01 Front View
Slot Count : 2-21 slot options
Size : “True” 6U, 10.317” X 0.160” thick
10-layer FR-4 construction, UL94V-0, RoHS compliant
Greater than 64MHz high speed design
Signal lines shielded, low crosstalk and controlled impedance
EMI shielding
OR-logic electronic daisy-chaining* (EBG) with on-board
passive termination. All termination and EBG components are
surface mounted (SMT)
• Screw terminal (power bug) and Faston input power
connections
• Conformal coating available
• Fully assembled and tested
Connectors:
96-PIN, 3-ROW (VME)
The IEC 60603-2 standard defines the level 2 performance
requirements and test sequences for the 3 row DIN connectors.
All VME and VME64x systems require a minimum of level 2 per-
formances. Vector uses Harting Type C, 96-pin, press-fit, ther-
moplastic with nickel plated copper alloy contacts tested to IEC
60512-3
160-PIN, 5-ROW (VME64x)
The IEC 61076-4-113 standard defines the level 2 performance
requirements and test sequences for the 5 row DIN connector.
All VME64x systems require a minimum of level 2 performance.
Vector uses Harting Har-bus 160-pin, VME64x connectors man-
ufactured to IEC 60512-3.
133-PIN, Type B, 19-ROW, 2mm HM (VME64x P0 only)
The IEC 61076-4-101 defines the level 2 performance require-
ments and test sequences for this 19-row, 2mm x 2mm pitch
connector. All VME64x systems require a minimum of level 2
performance. Vector uses ERNI P0 connectors.
•
•
•
•
•
•
•
Backplanes
Technical Information :
Ohm Resistance of signal lines
Basic Power consumption
(both ends terminated)
Current loading per power bug
Current loading for Faston
Current loading per each slot
<1.5 ohm
1.6 A
25A
10A
3.3V 12.5A (VME64x only)
5V 9.0A
+12V 1.5A
-12V 1.5A
+5V Standby 1.5A
+V1 (38-75V)48V Nom. 3.0A
-V1 (38-75V)48V Nom. 3.0A
Fully populated VME64x with J0,
200,000 hours, Ground @ +40
C
-40 C to +85 C
90%, non-condensing
2-slot = 0.53 lbs; 3-slot = 0.6 lbs
(add 0.11 per slot over 3 slots)
o
o
o
MTBF
Operating Temperature Range
Relative Humidity
Weight
VMEBP07P00
Rear View
VME64E02P01
Specification subject to change without notice
16
www.vectorelect.com
800-423-5659
Vectorbord
®
Backplanes
VME & VME64x
Ordering Options

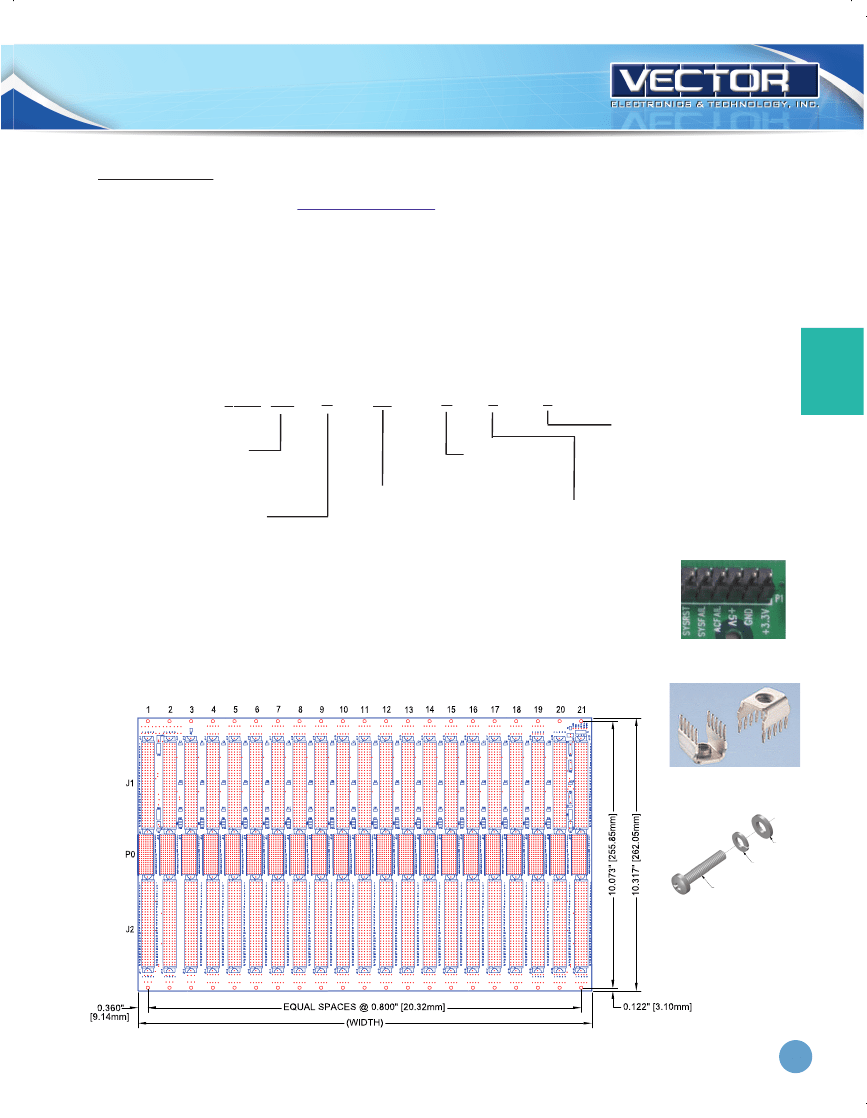

VME J1/J2 & VME64x J1/J2/P0 Monolithic Backplanes
Our standard configurations can be ordered using the table below, however Vector can custom configure any of our backplanes
to suit your specific needs. Contact
inquire@vectorelect.com
for more information and specific part number assignment.
Standard backplane equipped with surface-mounted (SMT) caps, resistors, etc. Long-tail connectors with
shrouds on P2 and (P0 if VME64x).
Standard backplanes include on-board termination and electronic daisy chaining(EBG) with OR-logic integrated into the backlane.
Order ‘VMEBP’ for 96-pin connectors (J1/J2) or ‘VME64’ for 160-pin J1/J2 and 133-pin P0.
Conformal coating available and is MIL-I-46058C and IPC-CC-830 qualified and U.L. recognized.
VME / VME64x Backplane
Standard 10.317”H (262.05mm), 6U
Ordering Information
E
P
0
1
02
VME BP
Backplane Type
BP = Standard VME J1/J2
64 = VME64x J1/J2/P0
Auto-Jumper
E = EBG
Power Bug
Only Option
at this time
P0
0 = No P0
1 = With P0
Backplanes
No of Slots
02 = 1.55”W (39.24mm)
03 = 2.35”W (59.56mm)
04 = 3.15”W (79.88mm)
05 = 3.95”W (100.20mm)
06 = 4.75”W (120.65mm)
07 = 5.55”W (140.84mm)
08 = 6.35”W (161.16mm)
10 = 7.95”W (201.80mm)
12 = 9.55”W (242.44mm)
16 = 12.75”W (323.72mm)
20 = 15.95”W (405.00mm)
21 = 16.75”W (425.32mm)
Conf. Coating
0 = None
C = Conformal Coating
6-Pin Utility Connector
On rear of Backplanes
SLOT
POSITIONS
10-Pin
Power Bug
(2.5 amps/pin)
Backplane Mounting Hardware
Each Set includes:
M2.5 X 12MM Screw
#3 Lockwasher
M2.5 (DIN#125) Flat Washer
HD56-1
42 sets
HD56
12 sets
FRONT SHOWN
www.vectorelect.com
800-423-5659
17
