2-104351-1 datasheet, PDF - EEWORLD Datasheet

2-104351-1: DescriptionCONNECTOR, 26 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size69KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

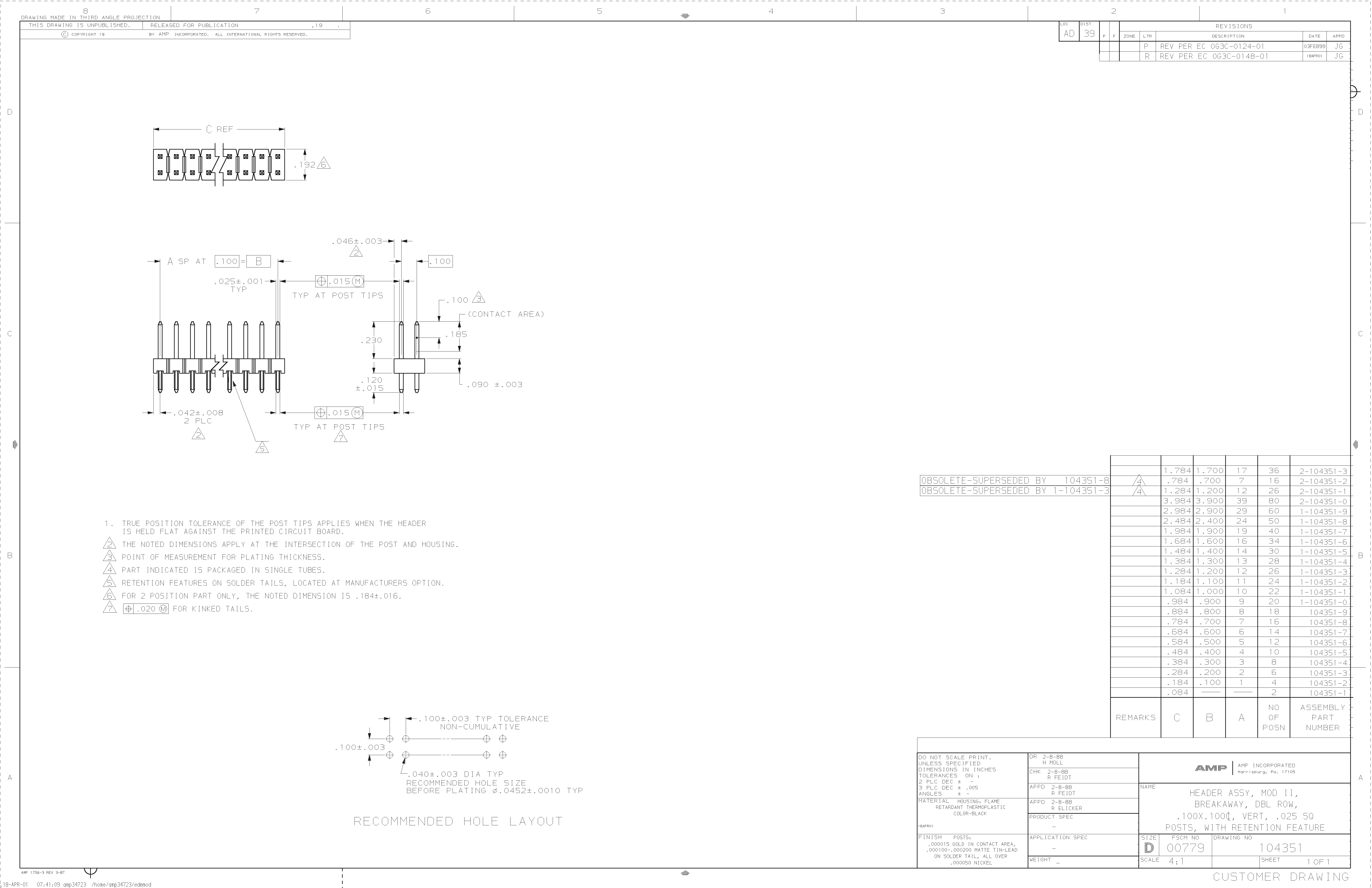

2-104351-1 Overview

CONNECTOR, 26 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL
Contact completed and terminated	MATTE TIN LEAD (200) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	104351
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	26
Base Number Matches	1

	2-104351-1	2-104351-2	104351-9	2-104351-3	1-104351-1
Description	CONNECTOR, 26 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	CONNECTOR, 16 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	HEADER CONNECTOR,PCB MNT,RECEPT,18 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL,BLACK	36 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	HEADER CONNECTOR,PCB MNT,RECEPT,22 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL,BLACK
Reach Compliance Code	unknown	unknow	unknow	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL	GOLD (15) OVER NICKEL	AU	NOT SPECIFIED	AU
Contact point gender	MALE	MALE	MALE	MALE	MALE
Manufacturer's serial number	104351	104351	104351	104351	104351
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER KINKED LEADS	SOLDER	SOLDER KINKED LEADS
Total number of contacts	26	16	18	36	22
Maker	TE Connectivity	-	-	TE Connectivity	TE Connectivity
DIN compliance	NO	NO	-	NO	-
Filter function	NO	NO	-	NO	-
IEC compliance	NO	NO	-	NO	-
MIL compliance	NO	NO	-	NO	-
Mixed contacts	NO	NO	-	NO	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	-
Base Number Matches	1	1	1	1	-
Is it Rohs certified?	-	-	incompatible	incompatible	incompatible
Contact material	-	-	COPPER ALLOY	NOT SPECIFIED	COPPER ALLOY
