MAX161CMJI-883B datasheet, PDF

Datasheet> All Categories > semiconductor> Analog mixed-signal IC> MAX161CMJI-883B

MAX161CMJI-883B: DescriptionData Acquisition ADCs/DACs - Specialized; Categorysemiconductor Analog mixed-signal IC; File Size341KB，8 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

MAX161CMJI-883B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MAX161CMJI-883B	-	-	View	Buy Now

MAX161CMJI-883B Overview

Data Acquisition ADCs/DACs - Specialized

MAX161CMJI-883B Parametric

Parameter Name	Attribute value
Product Category	Data Acquisition ADCs/DACs - Specialized
Manufacturer	Maxim
Resolution	8 bit
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Package / Case	CDIP-Wide-28
Height	3.98 mm (Max)
INL - Integral Nonlinearity	+/- 0.5 LSB
Input Type	Single Ended
Interface Type	Parallel
Length	37.85 mm (Max)
Sampling Rate	50 kS/s
SNR - Signal to Noise Ratio	Yes
Supply Voltage - Max	7 V
Supply Voltage - Min	- 0.3 V
Width	15.75 mm (Max)

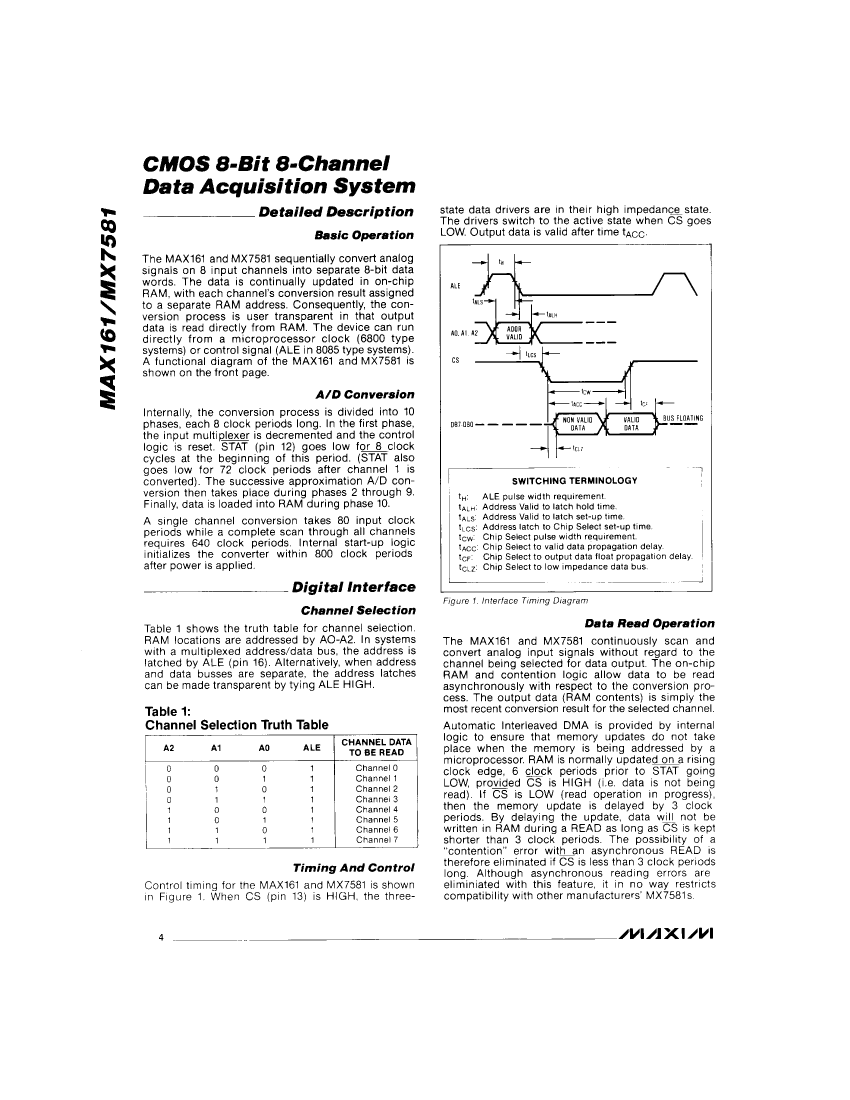

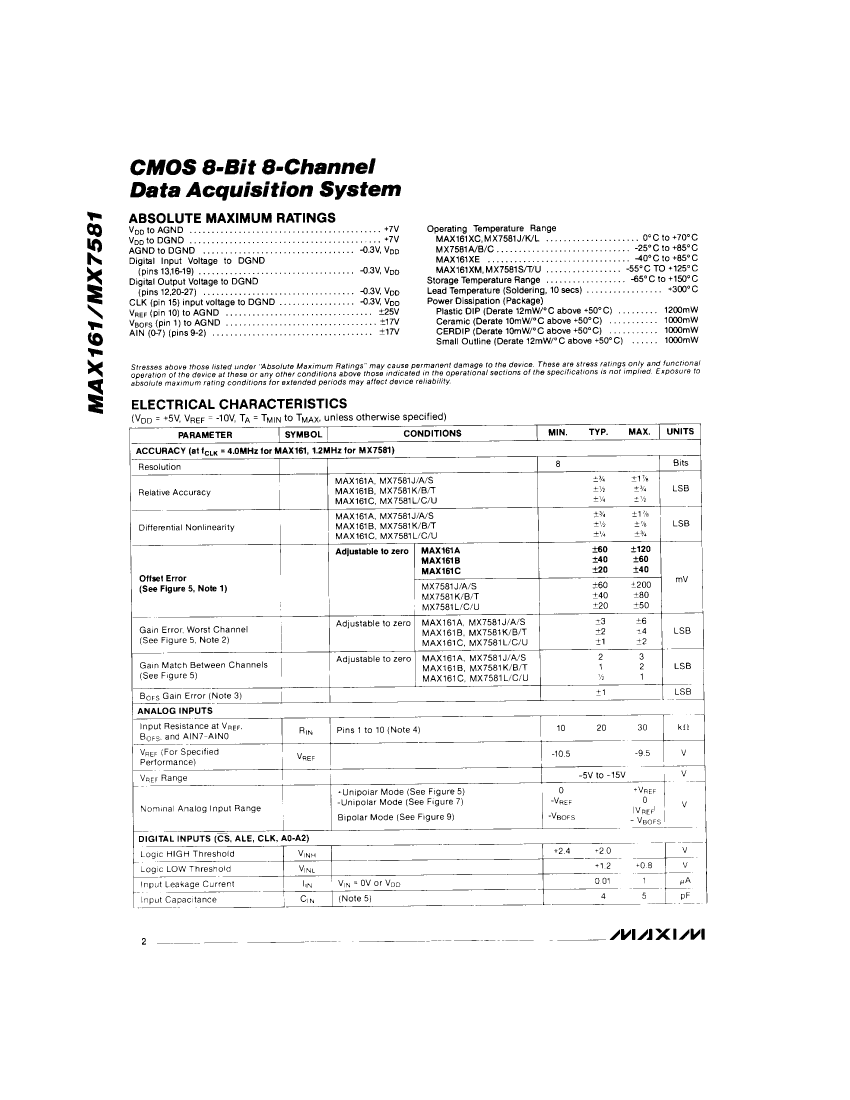

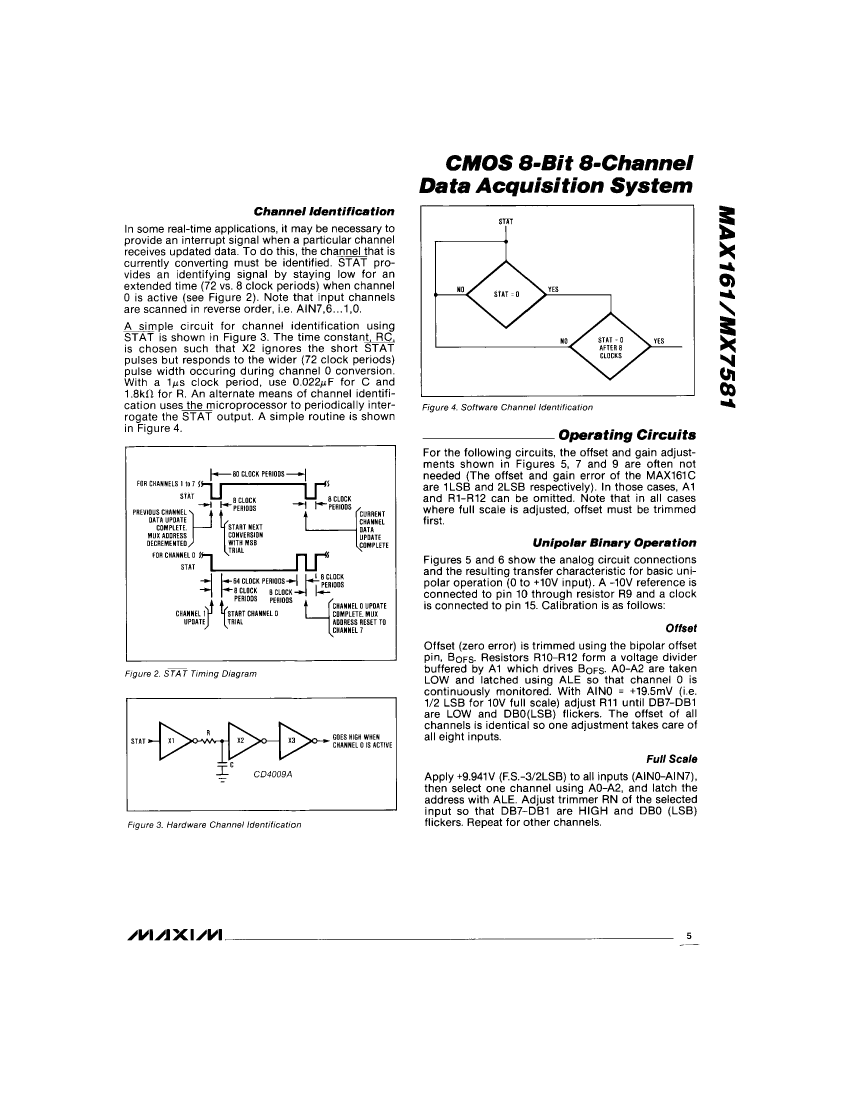

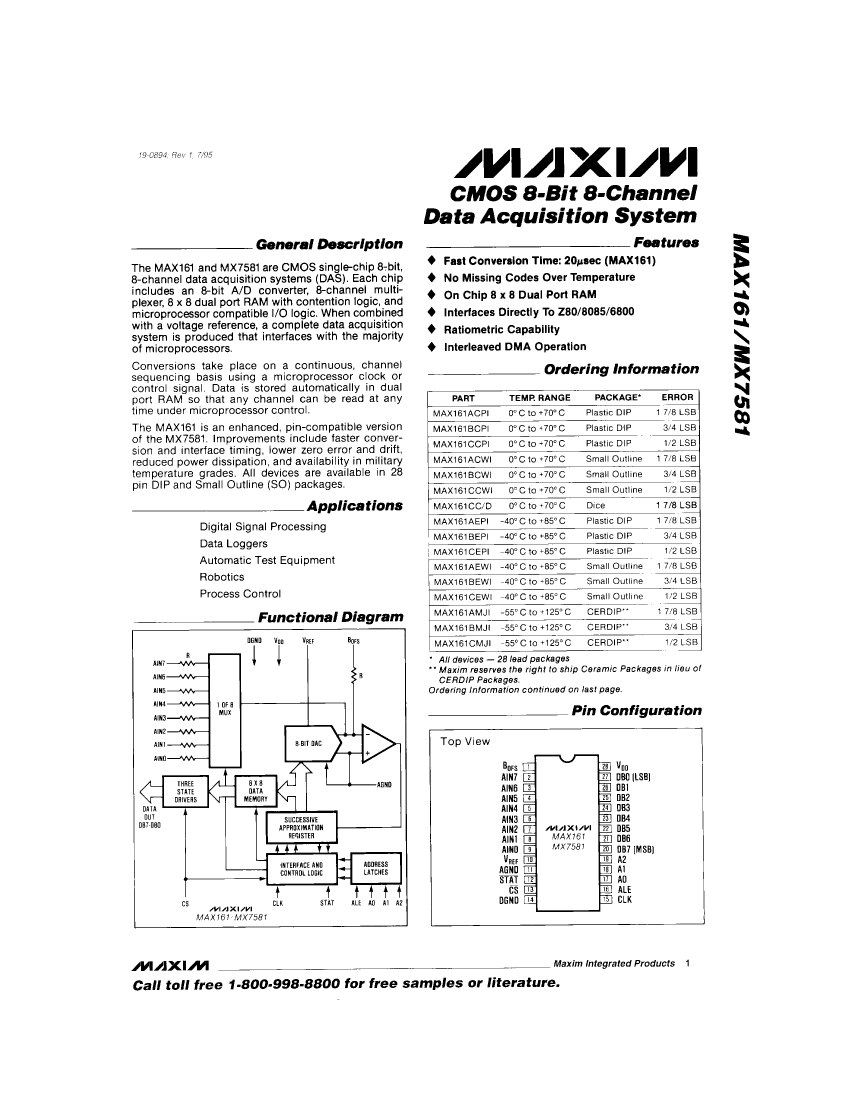

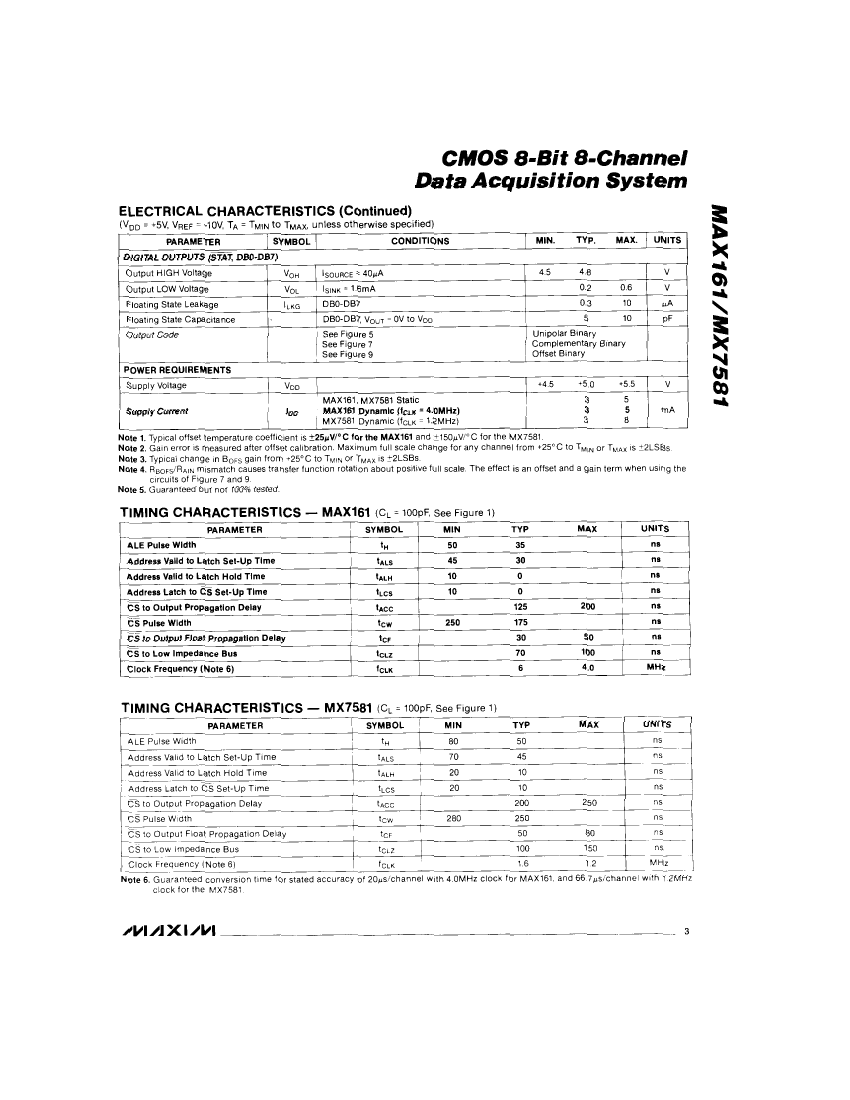

Preview

Download Datasheet

View All

MAX161CMJI-883B Related Products

	MAX161CMJI-883B	MAX161AMJI-883B	MX7581TQ	MX7581SQ	MAX161BMJI/883B	MX7581JN+	MAX161CCWI+T	MX7581J/D-T
Description	Data Acquisition ADCs/DACs - Specialized	Data Acquisition ADCs/DACs - Specialized	Analog to Digital Converters - ADC	Analog to Digital Converters - ADC	Data Acquisition ADCs/DACs - Specialized	IC DAS 8BIT 8CH 28-DIP	IC DAS 8BIT 8-CH 28-SOIC	ADC, Successive Approximation, 8-Bit, 1 Func, 8 Channel, Parallel, 8 Bits Access, CMOS, DIE-28
Is it lead-free?	-	-	Contains lead	Contains lead	-	Lead free	Lead free	Contains lead
Is it Rohs certified?	-	-	incompatible	incompatible	incompatible	conform to	conform to	incompatible
Maker	-	-	Maxim	Maxim	Maxim	Maxim	Maxim	-
Parts packaging code	-	-	DIP	DIP	DIP	DIP	SOIC	DIE
package instruction	-	-	CERDIP-28	CERDIP-28	CERDIP-28	DIP, DIP28,.6	SOP, SOP28,.5	DIE,
Contacts	-	-	28	28	28	28	28	28
Reach Compliance Code	-	-	not_compliant	not_compliant	not_compliant	compliant	compliant	compliant
ECCN code	-	-	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	EAR99	EAR99	EAR99
Maximum analog input voltage	-	-	5 V	5 V	5 V	5 V	5 V	5 V
Minimum analog input voltage	-	-	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V
Converter type	-	-	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	-	-	R-GDIP-T28	R-GDIP-T28	R-GDIP-T28	R-PDIP-T28	R-PDSO-G28	R-XUUC-N28
JESD-609 code	-	-	e0	e0	e0	e3	e3	e0
Maximum linear error (EL)	-	-	0.293%	0.7324%	0.293%	0.7324%	0.1953%	-
Humidity sensitivity level	-	-	1	1	1	1	1	-
Number of analog input channels	-	-	8	8	8	8	8	8
Number of digits	-	-	8	8	8	8	8	8
Number of functions	-	-	1	1	1	1	1	1
Number of terminals	-	-	28	28	28	28	28	28
Maximum operating temperature	-	-	125 °C	125 °C	125 °C	70 °C	70 °C	70 °C
Output bit code	-	-	BINARY, OFFSET BINARY, COMPLEMENTARY BINARY	BINARY, OFFSET BINARY, COMPLEMENTARY BINARY	BINARY, OFFSET BINARY, COMPLEMENTARY BINARY	BINARY, OFFSET BINARY, COMPLEMENTARY BINARY	BINARY, OFFSET BINARY, COMPLEMENTARY BINARY	BINARY, OFFSET BINARY, COMPLEMENTARY BINARY
Output format	-	-	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS
Package body material	-	-	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	UNSPECIFIED
encapsulated code	-	-	DIP	DIP	DIP	DIP	SOP	DIE
Encapsulate equivalent code	-	-	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.6	SOP28,.5	-
Package shape	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	-	IN-LINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	UNCASED CHIP
Peak Reflow Temperature (Celsius)	-	-	245	245	245	260	260	NOT SPECIFIED
power supply	-	-	5 V	5 V	5 V	5 V	5 V	-
Certification status	-	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	-	-	5.89 mm	5.89 mm	5.89 mm	5.08 mm	2.65 mm	-
Nominal supply voltage	-	-	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	-	-	NO	NO	NO	NO	YES	YES
technology	-	-	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	-	-	MILITARY	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD	Matte Tin (Sn)	Matte Tin (Sn)	TIN LEAD
Terminal form	-	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	NO LEAD
Terminal pitch	-	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	-
Terminal location	-	-	DUAL	DUAL	DUAL	DUAL	DUAL	UPPER
Maximum time at peak reflow temperature	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	-	-	15.24 mm	15.24 mm	15.24 mm	15.24 mm	7.5 mm	-
