MIL-DTL-24308
D-Subminiature
M85049/48-1
Rectangular Strain-Relief Backshells
for Unjacketed Wire Bundles
M85049/48-1-3 F
Basic Part No.
Dash No.
A
C
E
Cable Entry in Shell
F Cable Entry
in Shell
Finish
F = Yellow Chromate over Cadmium
H
G

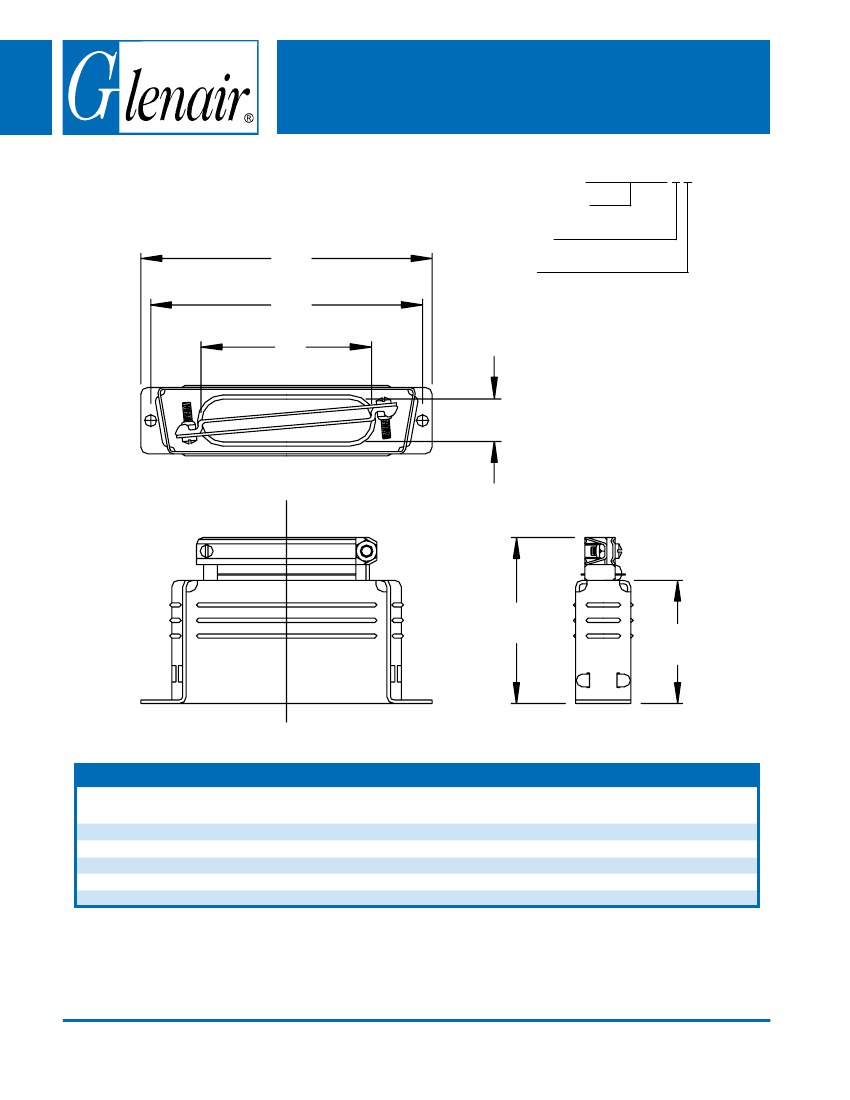

TABLE I: CONNECTOR INTERFACE, CABLE ENTRY & BACKSHELL DIMENSIONS
Dash No.
1
2
3
4
5
± .015
1.203
1.531
2.078
2.718
2.625
A
(0.4)
(30.6)
(38.9)
(52.8)
(69.0)
(66.7)
C
± .005
(.1)
.984 (25.0)
1.312 (33.3)
1.852 (47.0)
2.500 (63.5)
2.406 (61.1)
± .015
.375
.713
1.000
1.375
1.406
E
(0.4) ± .015 (0.4)
(9.5)
.375 (9.5)
(18.1)
.312 (7.9)
(25.4)
.312 (7.9)
(34.9)
.312 (7.9)
(35.7)
.406 (10.3)
F
G
± .015 (0.4)
.750 (19.1)
.750 (19.1)
1.000 (25.4)
1.000 (25.4)
1.125 (28.6)
H
Max
1.250 (31.8)
1.250 (31.8)
1.563 (39.7)
1.563 (39.7)
1.688 (42.9)
1. For complete dimensions see applicable Military Specification.
2. Metric dimensions (mm) are indicated in parentheses.
3. Material: Steel.
© 2011 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-112
