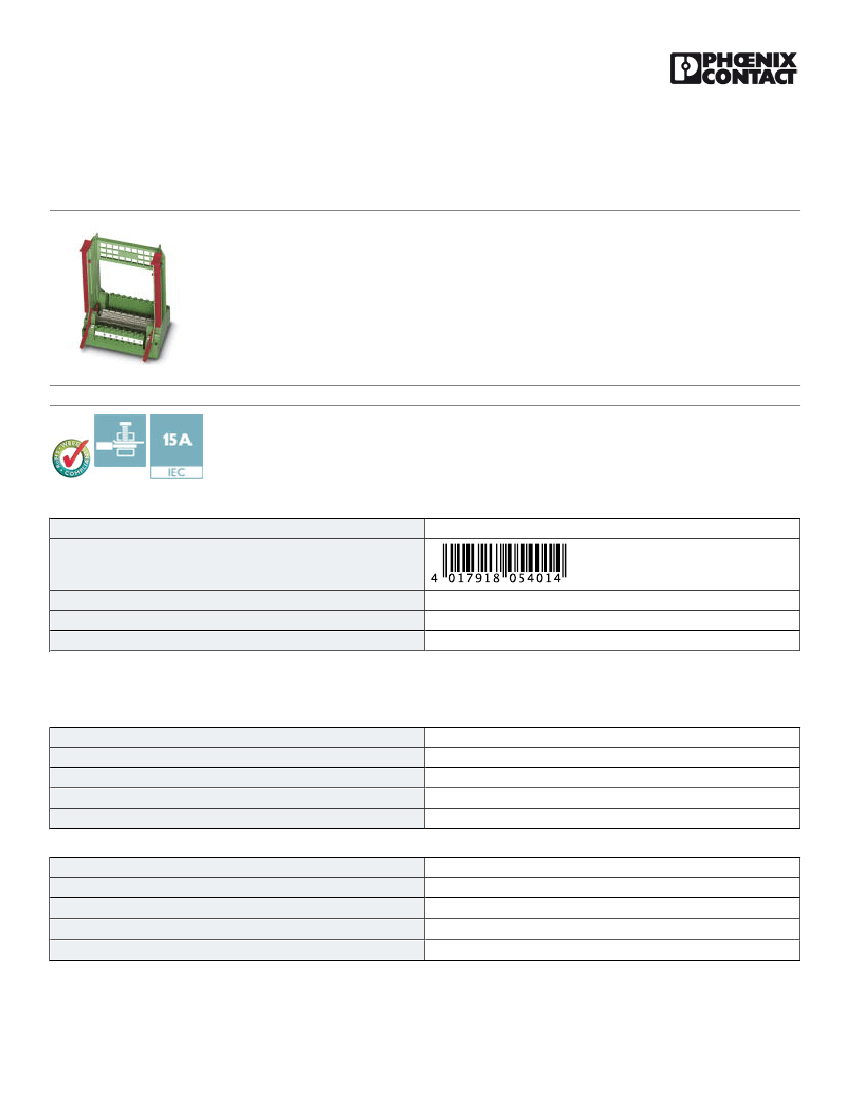

Plug-in card block - SKBI 64/H15-MKDS5 - 2269153
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug-in card block, Nominal current: 15 A, Pitch: 0 mm, Connection method: Screw connection with tension
sleeve
Key Commercial Data
Packing unit
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
244.1 g
85369010
Germany
1 pc
Technical data
Dimensions
Length
Height
Width
Pitch
Hole diameter
66 mm
162 mm
118 mm
0.00 mm
4.2 mm
General
Range of articles
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Nominal cross section
SKBI 64
EN-VDE
15 A
500 V (overvoltage category III/contamination class 2)
2.5 mm²
04/26/2016 Page 1 / 4
https://www.phoenixcontact.com/us/products/2269153
Plug-in card block - SKBI 64/H15-MKDS5 - 2269153
Technical data
General
Stripping length
Screw thread
Tightening torque, min
Tightening torque max
8 mm
M3
0.5 Nm
0.6 Nm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
0.2 mm²
6 mm²
0.2 mm²
4 mm²
24
10
Standards and Regulations
Connection in acc. with standard
EN-VDE
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
272607xx
27260701
27260701
27260701
27260710
27141152
27141152
27141152
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002642
EC002780
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211810
39121409
39121409
39121409
39121409
04/26/2016 Page 2 / 4
https://www.phoenixcontact.com/us/products/2269153
Plug-in card block - SKBI 64/H15-MKDS5 - 2269153
Approvals
Approvals
Approvals
EAC / EAC
Ex Approvals
Approvals submitted
Approval details
EAC
EAC

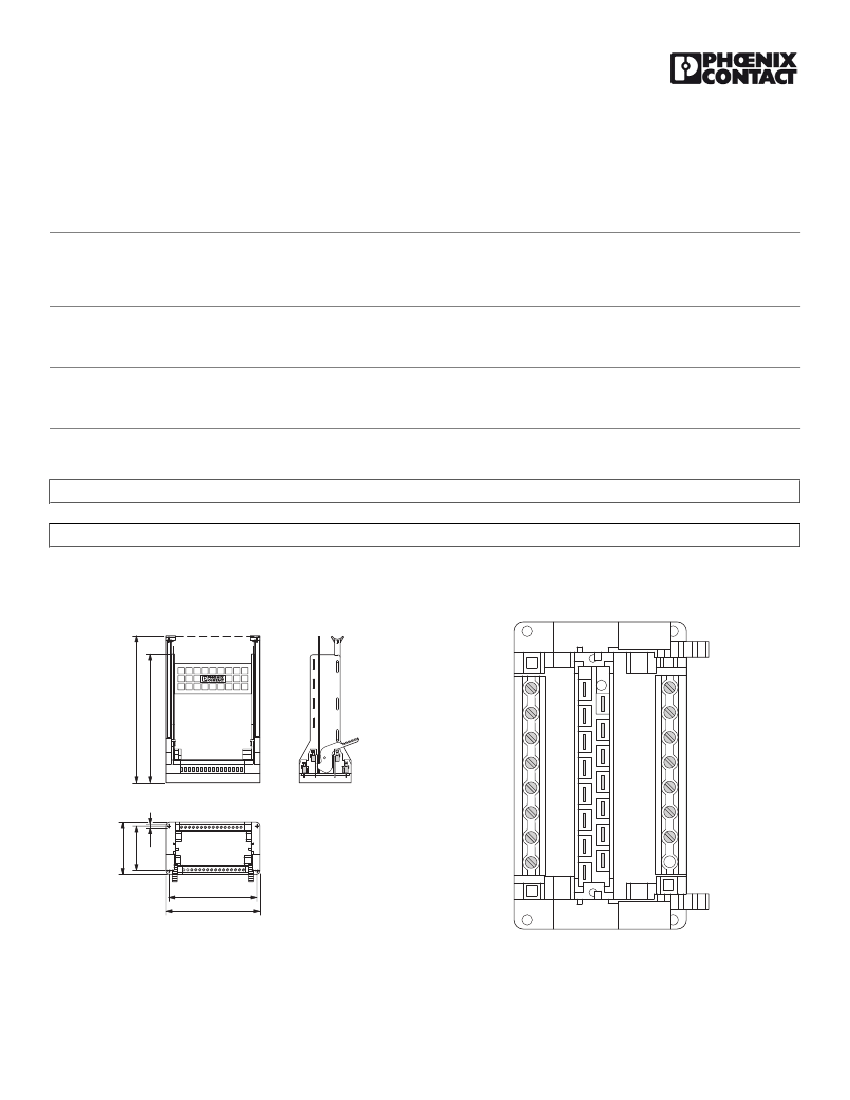

Drawings
Dimensional drawing
Schematic diagram
z
d
4
6
185
162
8
10
12
14
16
18
20
22
24
26
4,2
28
30
66
55
32
d
111
118
z
04/26/2016 Page 3 / 4
https://www.phoenixcontact.com/us/products/2269153
Plug-in card block - SKBI 64/H15-MKDS5 - 2269153

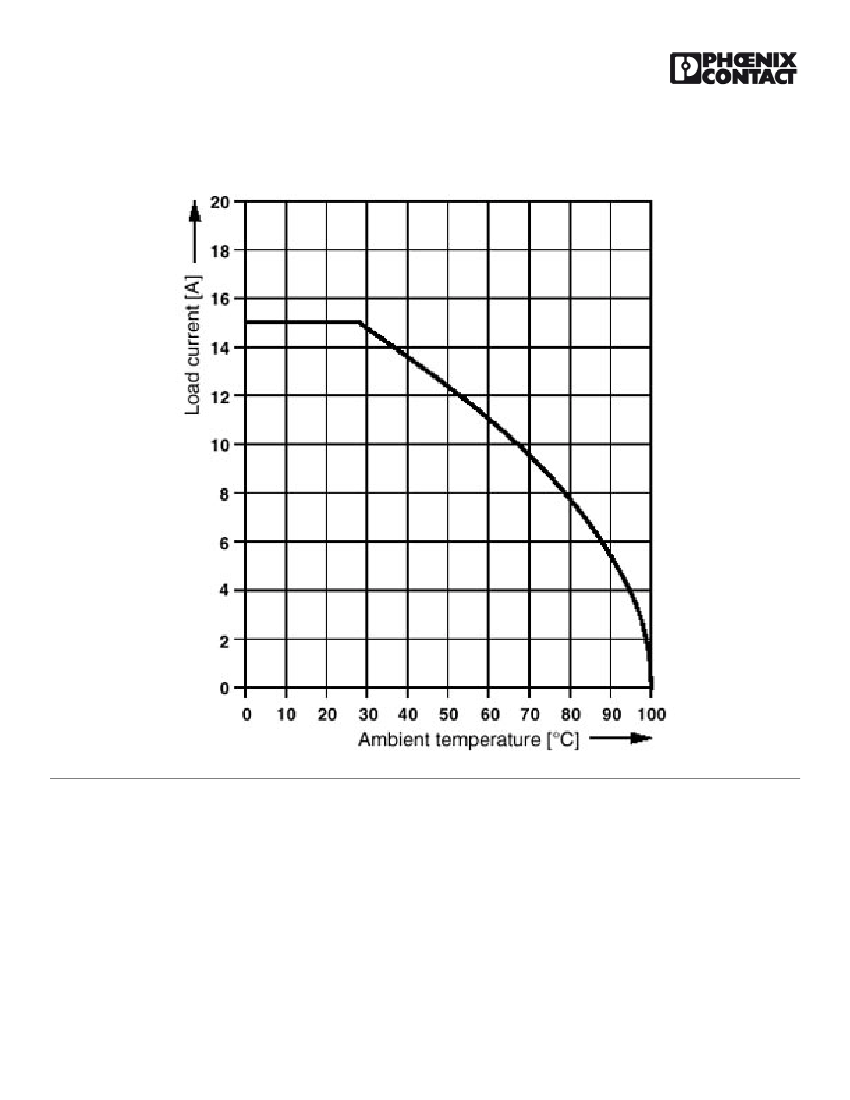

Diagram
