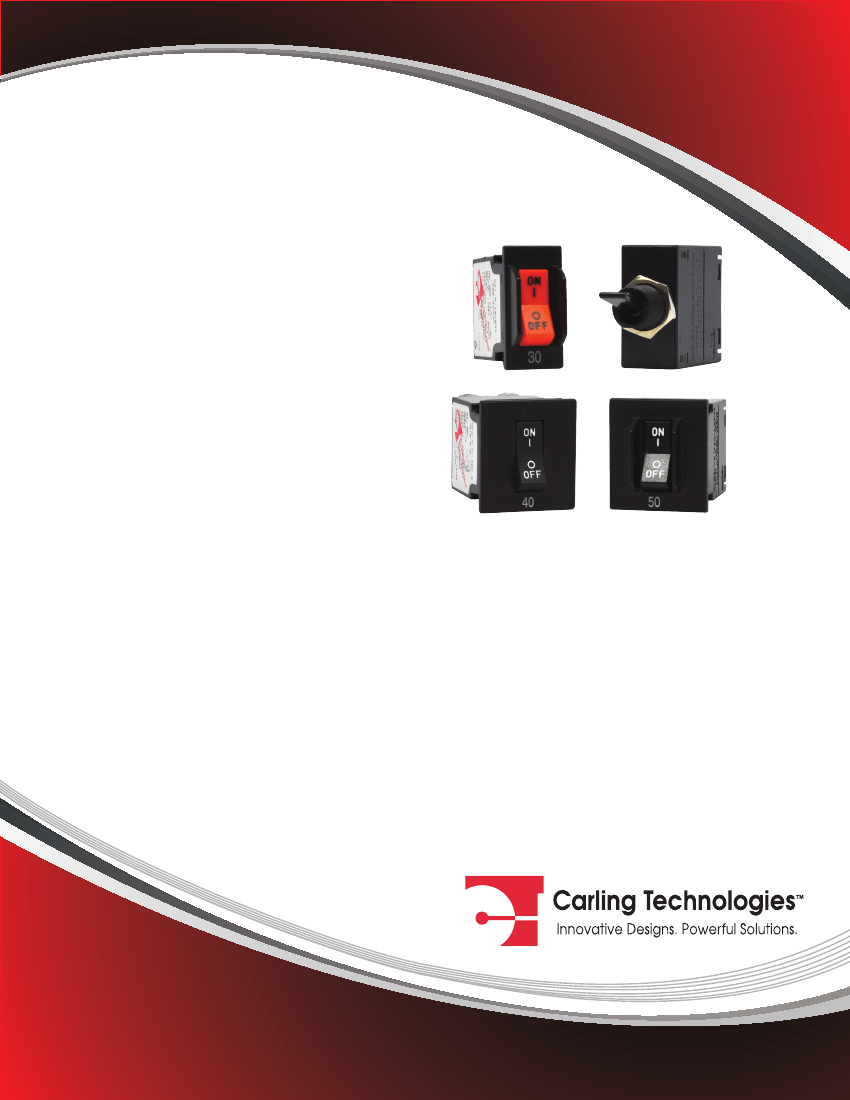

M-Series
Circuit Breaker
The M-Series is a low cost, miniature hydraulic/magnetic
circuit breakers ideally designed for demanding
applications requiring space saving features, aesthetics and
snap-in front panel mounting.
Its newest design features a compact, space saving,
vertically mounted parallel pole configuration, which
is UL489A listed up to 50 amps and is well suited for
telecommunication equipment fitting in one rack unit.
Furthermore, it features two uniquely designed terminals
that provide the highest level of balanced circuit
protection.
In addition, these circuit breakers feature various styling
options allowing for design flexibility. They are available
in choices of rocker actuator styles and colors, including
paddle and baton style handle actuators, push-to-reset
and push-pull pushbutton actuators, Visi-Rocker two color
actuators as well as non-illuminated or illuminated rocker
versions with LED or neon bulbs. The exclusive Rockerguard
bezel helps prevent inadvertent actuation and wiping
contact design insures long-term reliability. The M-Series
circuit breakers are available in 1 & 2 poles or parallel poles,
0.02 to 50 amps, up to 250VAC or 80VDC with choices of
time delays, terminals, panel hardware, actuator styles,
colors, and imprinting.
Features:
Parallel pole configuration well suited for one rack unit
Compact design
Applications:
Communication equipment
Vehicles
Marine
Generators
Power supplies
Medical equipment
Carling Technologies, Inc.
60 Johnson Avenue • Plainville, CT 06062
Phone: (860) 793-9281 • Fax: (860) 793-9231
Email: sales@carlingtech.com • www.carlingtech.com
2 | M-Series Circuit Breaker - General Specifications
Electrical
Mechanical
Endurance
Trip Free
10,000 ON-OFF operations @ 6
per minute with rated Current and
Voltage.
All M-Series Circuit Breakers will
trip on overload, even when
actuator is forcibly held in the ON
position.
The actuator moves positively
to the OFF position when an
overload causes the circuit
breaker to trip.
1 or 2
Series with or without
Auxiliary Switch.
Switch Only with or without
Auxiliary Switch.
Approximately 30 grams/pole
(Approximately 1.07 ounces/pole)
See Ordering Scheme.a
Maximum Voltage
125/250 VAC 50/60 Hz, 80 VDC
(See Rating Tables.)
Current Ratings
Standard current coils: 0.100,
0.250, 0.500, 0.750, 1.00 thru 15.0
in 1 amp increments, 18.0, 20.0,
25.0, 30.0. Other ratings available
- see Ordering Scheme.
Auxiliary Switch Rating SPDT; 7A 250VAC, 7A (Res)
28VDC, 4A (Ind.) 28VDC, 0.25A
80VDC (Res) (silver contacts),
0.1A 125VAC (gold contacts).
Insulation Resistance
Minimum of 100 Megohms at 500
VDC.
Dielectric Strength
UL, CSA 1500V, 50/60 Hz for one
minute between all electrically
isolated terminals. M-Series
Circuit Breakers comply with the
8mm spacing and 3750 V 50/60Hz
dielectric requirements from
hazardous voltage to operator
accessible surfaces, per
Publications IEC 380, 435, 950,
EN 60950 and VDE 0805.

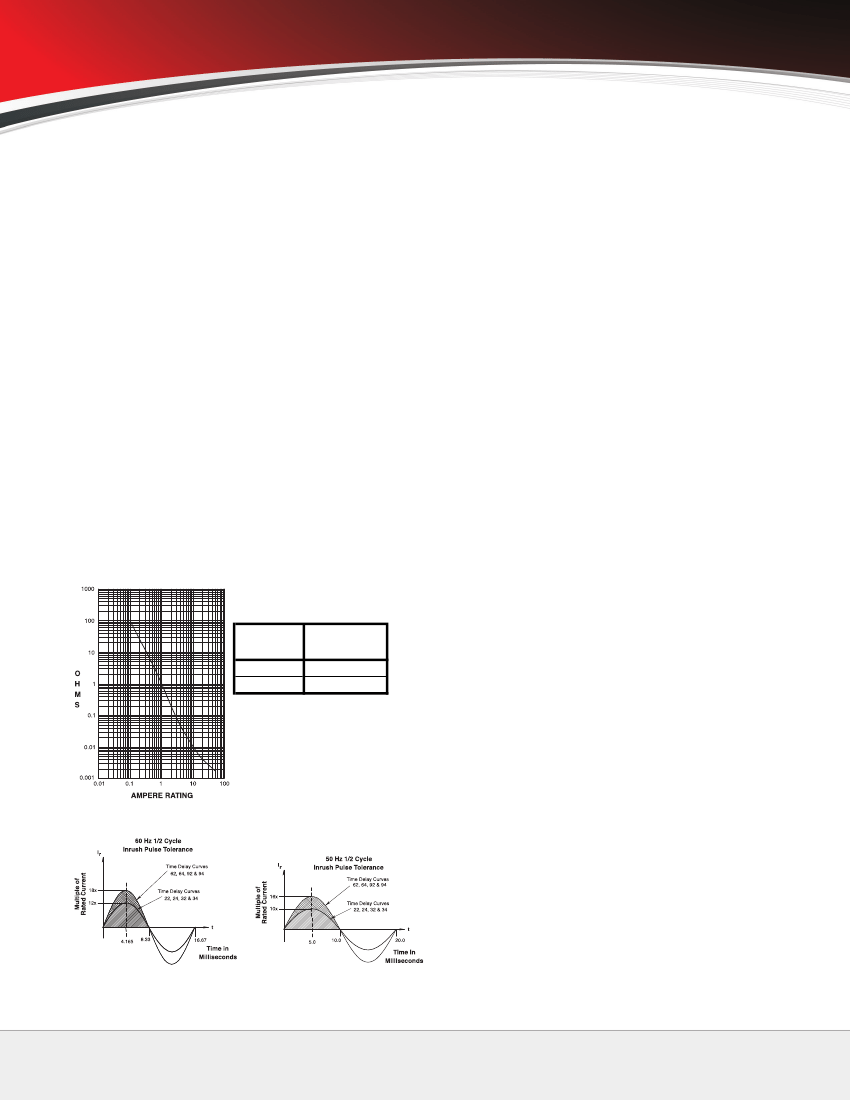

Resistance, Impedance Values from Line to Load Terminal
- based on Series Trip Circuit
Breaker.
RESISTANCE PER POLE VALUES
from Line to Load Terminals
(Values Based on Series Trip Circuit Breaker)
Trip Indication
Physical
Number of Poles
Internal Circuit Configs.
Weight
Standard Colors
Environmental
CURRENT
(AMPS)
0.10 - 20.0
20.1 - 50.0
TOLERANCE
(%)
±25
±35
Pulse Tolerance Curves
*Manufacturer reserves the right to change product specification without prior notice.
Designed in accordance with requirements of specification
MIL PRF-55629 & MIL-STD-202G as follows:
Shock
Withstands 100 Gs, 6ms, sawtooth
while carrying rated current per
Method 213, Cond. I. Instantaneous
curves tested at 80% of rated
current.
Vibration
Withstands 0.060” excursion
from 10-55 Hz, and 10 Gs 55-500
Hz, at rated current per Method
204C, Test Condition A.
Instantaneous curves tested at
80% of rated current.
Moisture Resistance
Method 106D, i.e., ten 24-hour
cycles @ + 25°C to +65°C, 80-
98% RH.
Salt Spray
Method 101, Condition A (90-95%
RH @ 5% NaCl Solution, 96 hrs).
Thermal Shock
Method 107D, Condition A (Five
cycles @ -55°C to +25°C to +85°C
to +25°C).
Operating Temperature -40° C to +85° C
Chemical Resistance
Only the outside surfaces of the
case and the handles may be
cleaned with detergents or
alcohol. Organic (hydrocarbon
based) solvents are not
recommended because they
attack plastics. Caution should
be taken when solvents are used
to clean and remove flux from
terminals. Lubricants should not
be introduced into the handle/
bushing openings
60 Johnson Avenue • Plainville, CT 06062 • Phone: (860) 793–9281 • Fax: (860) 793–9231
Email: sales
@
carlingtech.com • www.carlingtech.com
M-Series Circuit Breaker - General Specifications | 3

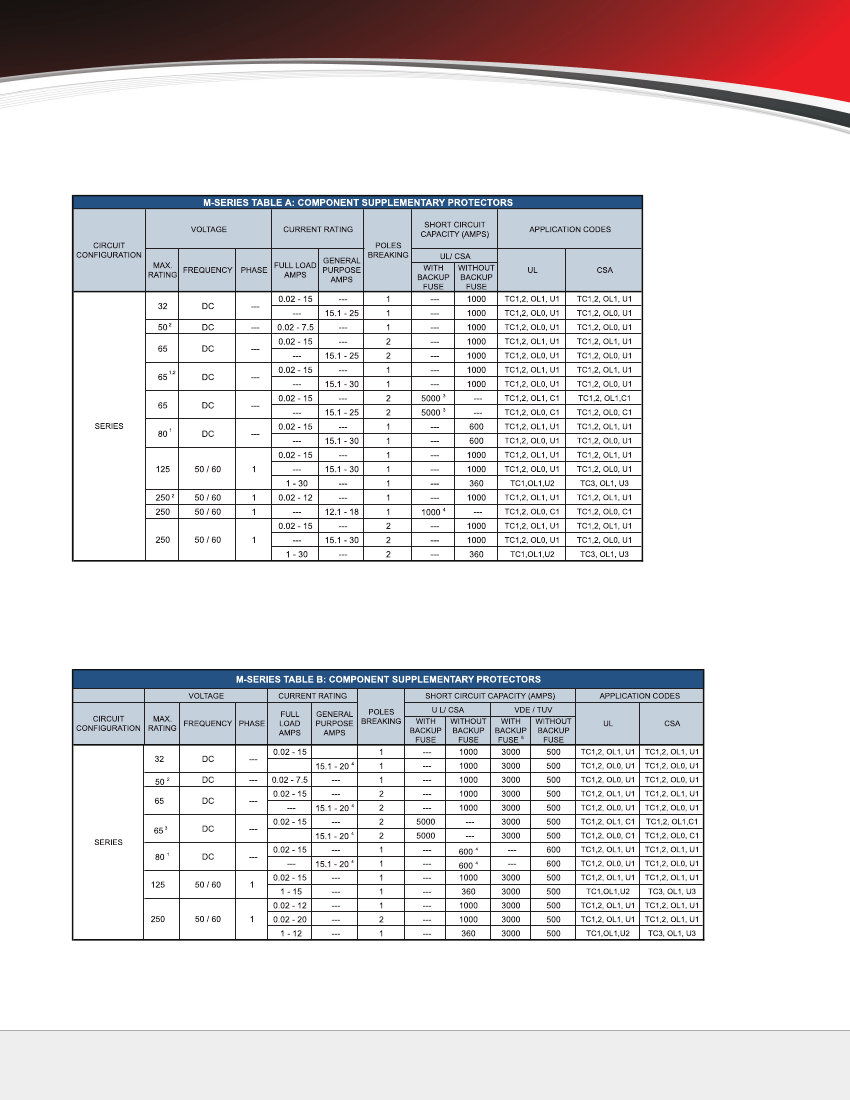

Electrical Tables
Table A:
Lists UL Recognized and CSA Accepted configurations & performance capabilities as a Component Supplementary
Protector.
Table A Notes:
1
Polarity Sensitive
2
Available only with Special Catalog Number. Consult Factory.
3
Requires Branch Circuit Backup with a UL Listed type K-5 or RK-5 fuse rated 30 Amps maximum
4
Requires Branch Circuit Backup with a UL Listed type K-5 or RK-5 fuse rated 60 Amps maximum
Table B:
Lists UL Recognized,CSA Accepted and TUV and VDE Certified configurations and performance capabilities as a
Component Supplementary Protector.
Table B Notes:
1
Polarity Sensitive
2
Available only with Special Catalog Number. Consult Factory.
3
Requires Branch Circuit Backup with a UL Listed type K-5 or RK-5 fuse rated 30 Amps maximum
4
TUV only, not VDE
5
Requires backup protection with a thermal magnetic circuit breaker rated 32 amps and having a Type C trip characteristic per
EN60898/DIN VDE 0641 (C32A) for ratings greater than 15amps, and a thermal magnetic circuit breaker rated 16 amps and
having a Type C trip characteristic per EN60898/DIN VDE 0641 (C16A) for ratings 15 amps and less
60 Johnson Avenue • Plainville, CT 06062 • Phone: (860) 793–9281 • Fax: (860) 793–9231
Email: sales
@
carlingtech.com • www.carlingtech.com
4 | M-Series Circuit Breaker - General Specifications
Electrical Tables
Table C:
Lists UL489A Listed and TUV Certified configurations and performance capabilities for use in Communications Equipment.
M-SERIES TABLE C: UL489A Listed
Table C Notes:
1
Available only with Special Caralog Number

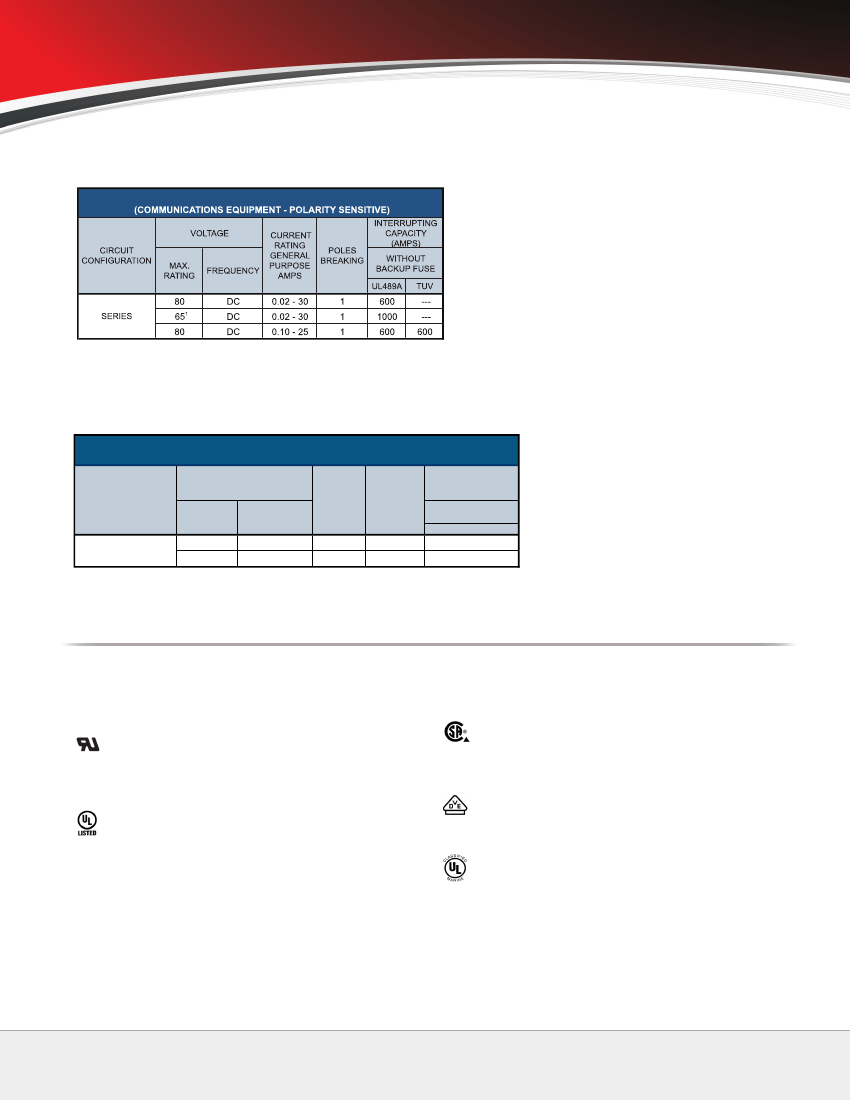

Table D:
Lists UL489A Listed configurations and performance capabilities for use in Communications Equipment.
M-SERIES TABLE D: Parallel Pole Construction UL489A Listed
(COMMUNICATIONS EQUIPMENT - POLARITY SENSITIVE)
CIRCUIT
CONFIGURATION
VOLTAGE
MAX. RATING
FREQUENCY
CURRENT
RATING
GENERAL
PURPOSE
AMPS
POLES
BREAKING
INTERRUPTING
CAPACITY (AMPS)
WITHOUT BACKUP
FUSE
UL489A
SERIES
80
65
1
DC
DC
31-50
31-50
2
2
600
1000
Table D Notes:
1.
Available only with
Special Catalog Number. Consult Factory.
1
Available only with
Special Caralog Number
Agency Certifications
UL Recognized
UL Standard 1077
Component Recognition Program
as Protectors, Supplementary
(Guide CCN/QVNU2, File E75596)
Communications Equipment
(Guide CCN/DITT, File E189195)
CSA Accepted
Component Supplementary
Protector (Class 3215 30, File
047848 0 000)
CSA Standard C22.2 No. 235
EN60934, VDE 0642 under File
10537
EN60934, under License No.
R9671109
UL Listed
UL Standard 489A
VDE Certified
TUV Certified
60 Johnson Avenue • Plainville, CT 06062 • Phone: (860) 793–9281 • Fax: (860) 793–9231
Email: sales
@
carlingtech.com • www.carlingtech.com
M-Series Parallel Pole Rocker - Ordering Scheme | 5
1
Series
M E 2
2
Actuator
3
Poles
4
Circuit
P
5
Frequency
& Delay
D2
6
Current
Rating
650
A
5
7
Terminal
5
9
8
Illumination Actuator
Color &
Legend
A 1 2
10
Legend
11
Bezel
Color
B
12
Agency
Approval
T
1 SERIES
M
2 ACTUATOR
Single Color Rocker
A
Angled
B
Flat
Two Color Visi-Rocker
D
Indicate ON
E
Indicate OFF
Single Color Translucent Rocker
F
Angled
G
Flat
7 TERMINAL
Push in Stud
10-32 Screw (Bus Type)
8 ILLUMINATION
Non-Illuminated
A
Non-Illuminated
9 ACTUATOR COLOR & LEGEND
1
2
3
4
5
6
7
8
Actuator Visi
1
White
Black
Red
Green
Blue
Yellow
Gray
Orange
3 POLES
2
Two
Legend
Black
White
White
White
White
Black
Black
Black
4 CIRCUIT/AUXILIARY SWITCH
2
P
Series Trip Current (Parallel Pole)
with Auxiliary Switch, Silver Contacts
Q
Series Trip Current (Parallel Pole)
with Auxiliary Switch, Gold Contacts
R
Series Trip Current (Parallel Pole)
10 LEGEND
.110 x 0.20 Q.C
.110 x 0.20 Q.C
2
3
6
7
ON - OFF Vertical
ON - OFF Horizontal
Dual Vertical
Dual Horizontal
5 FREQUENCY & TIME DELAY
D2
D4
DC Short
DC Medium
11 BEZEL COLOR
A
B
G
1
2
7
CODE
6 CURRENT RATING (AMPERES)
AMPERES
631
635
640
645
650
31.000
35.000
40.000
45.000
50.000
White without Rockerguard
Black without Rockerguard
Gray without Rockerguard
White with Rockerguard
Black with Rockerguard
Gray with Rockerguard
12 AGENCY APPROVAL
T
UL 489A Listed
Notes:
1
Reminder of Rocker same color as Visi
2
Aux Switch only available with screw terminals
60 Johnson Avenue • Plainville, CT 06062 • Phone: (860) 793–9281 • Fax: (860) 793–9231
Email: sales
@
carlingtech.com • www.carlingtech.com
MCU
