BB080-92-A-1-0270-0150-L-B: DescriptionBoard Connector, 92 Contact(s), 2 Row(s), Male, Straight, 0.032 inch Pitch, Surface Mount Terminal, Locking, Plug,; CategoryThe connector The connector; File Size107KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BB080-92-A-1-0270-0150-L-B Overview

Board Connector, 92 Contact(s), 2 Row(s), Male, Straight, 0.032 inch Pitch, Surface Mount Terminal, Locking, Plug,

BB080-92-A-1-0270-0150-L-B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Global Connector Technology
Reach Compliance Code	compli
body width	0.12 inch
subject depth	0.059 inch
body length	1.459 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	200VAC V
Insulation resistance	500000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	BB080
Plug contact pitch	0.032 inch
Match contact row spacing	0.047 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.8128 mm
Termination type	SURFACE MOUNT
Total number of contacts	92

Preview

Download Datasheet

View All

5

3

1

2

4

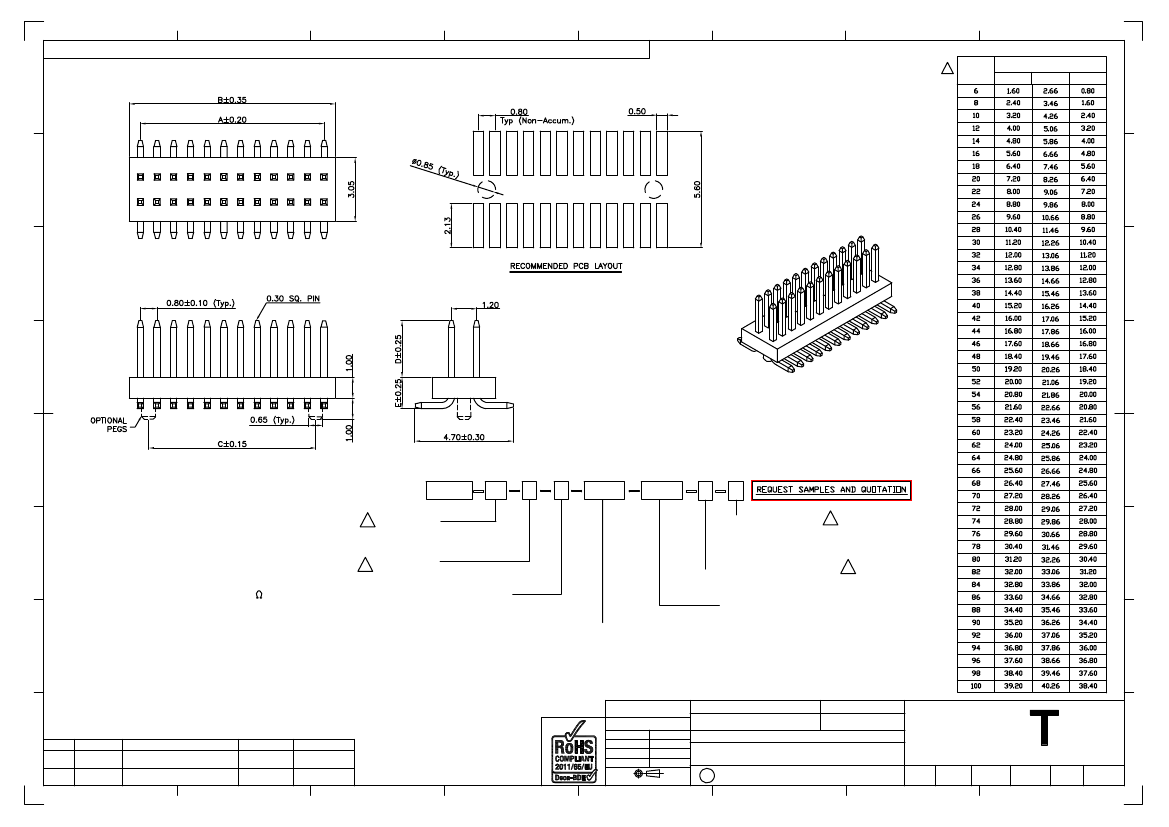

Global Connector Technology Ltd. - BB080: 0.8mm x 1.2mm PITCH PIN HEADER, DUAL ROW, SURFACE MOUNT, VERTICAL

A

6

7

8

DIMENSIONS

CONTACTS

A

B

C

B

A

B

C

D

E

Ordering Grid

E

BB080

SPECIFICATIONS

规格

:

B No. of Contacts

06 to 100

00 = 100

XX

A

X

XXXX

L

X

F

G

CURRENT RATING

电流额定值：

0.5 AMP

Contact Plating

C A = Gold Flash

(Standard)

INSULATOR RESISTANCE

绝缘电阻值

: 500 MEGOHMS MIN.

DIELECTRIC WITHSTANDING

耐电压：

AC 200 V

Locating Peg

CONTACT RESISTANCE

接触电阻值：

20m Max.

0 = No Peg

OPERATING TEMPERATURE

工½温度：

-40°C TO +105°C

1 = With Peg

CONTACT MATERIAL

端子物料：

PHOSPHOR BRONZE

INSULATOR MATERIAL

绝缘½物料

:

STANDARD

标准物料

: POLYESTER

聚酯

, LCP, UL 94-V0

SOLDERING PROCESS

可焊性

:

LCP (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

):

BB060

By

DETAIL

REV

DATE

AE

DRAWING

RELEASE

A

18/09/09

PN

SA

AMENDMENT TO PACKING OPTIONS,

AMENDMENT TO

DIMENSION TABLE & NO. OF CONTACTS PLATING OPTIONS

Packing Options

B

B = Tape and Reel with Cap (Standard)

D = Tube

(Unavailable in 6 & 8 Contacts)

E = Tube with Cap

(Unavailable in 6 & 8 Contacts)

G = Box

(6 & 8 Contacts only)

D

Insulator Material

L = LCP (Standard)

Dimension E (1/100mm)

(Top of Insulator to Bottom of Pin)

Standard - 1.50mm = 0150

or specify Dimension E

e.g. 2.50mm = 0250

Tol +/- 0.2mm

F

Dimension D (1/100mm)

(Post Height)

Standard - 2.70mm = 0270

or specify Dimension D

e.g. 2.50mm = 0250

Tol +/- 0.2mm

Tolerances

(Except as noted)

G

Part Number:-

Date:-

Dimensions in mm

X. ± 0.30

X.X ± 0.25

X.XX ± 0.15

X.XXX ± 0.10

BB080

18 SEP 09

H

AJO

PCN BB080-001

20121220

D

20/12/12

B

28/09/09

C

22/12/09

X.°± 5.0°

Description:-

X.X°± 3.0°

0.8mm x 1.2mm PITCH PIN HEADER, DUAL ROW,

X.XX°± 2.0°

SURFACE MOUNT, VERTICAL

X.XXX°± 1.0°

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Third Angle Projection

www.globalconnectortechnology.com

Scale

NTS

GC

Material

See Note

H

C

Revision

D

Drawn by

AE

E & OE

Sheet No.

1/1
