54ABT541/BKA datasheet, PDF - EEWORLD Datasheet

54ABT541/BKA: DescriptionIC ABT SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDFP20, Bus Driver/Transceiver; Categorylogic logic; File Size180KB，7 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

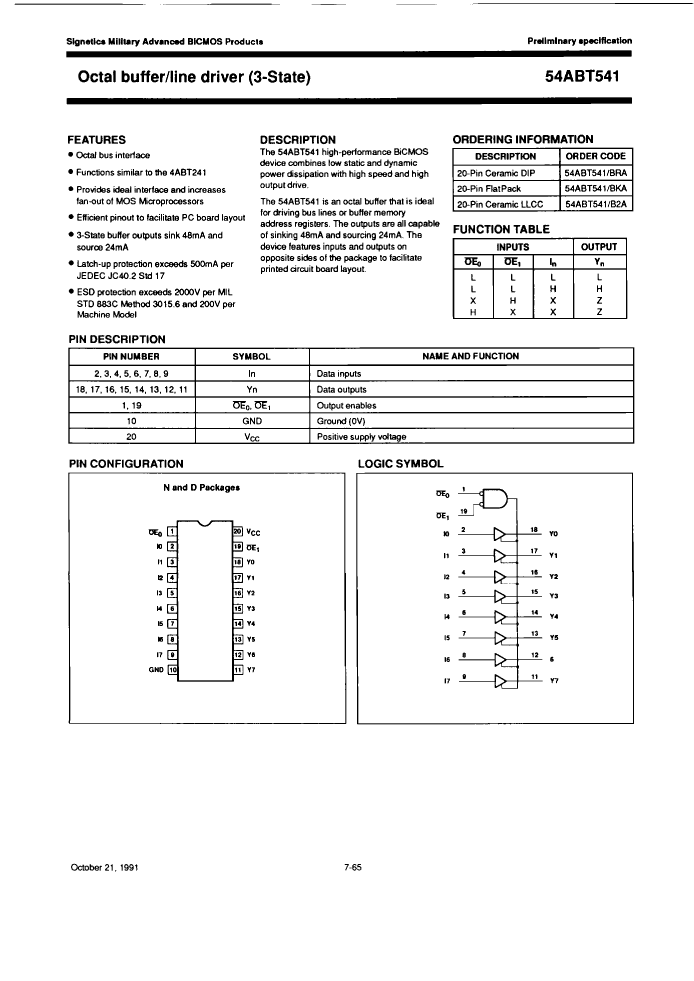

54ABT541/BKA Overview

IC ABT SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDFP20, Bus Driver/Transceiver

Parameter Name	Attribute value
Maker	NXP
Reach Compliance Code	unknown
Other features	WITH DUAL OUTPUT ENABLE
series	ABT
JESD-30 code	R-PDFP-F20
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20

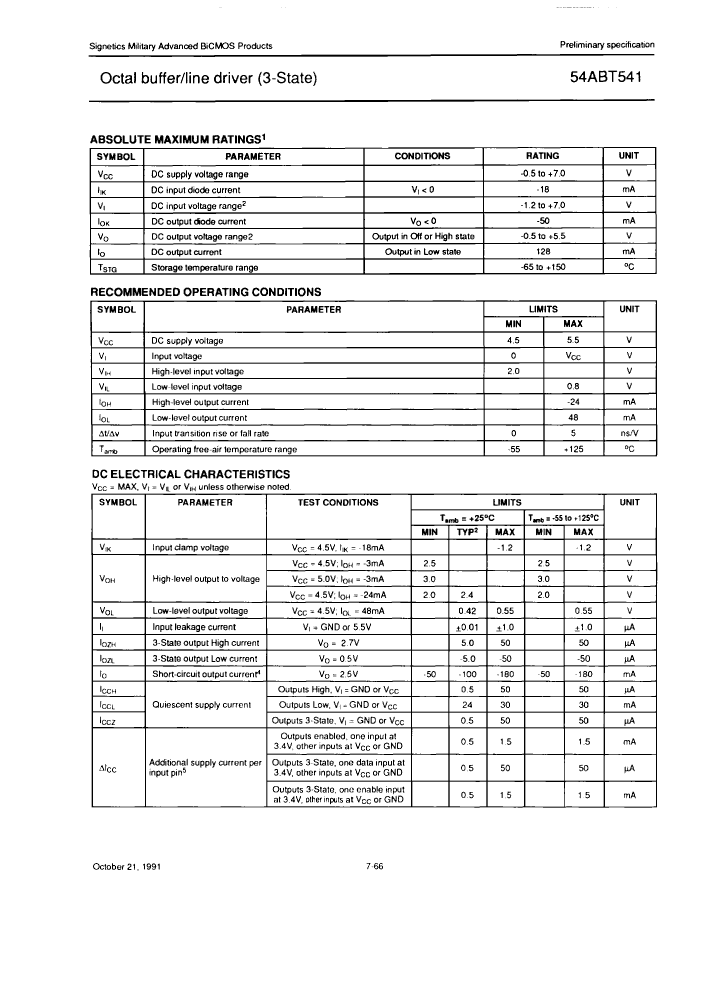

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK

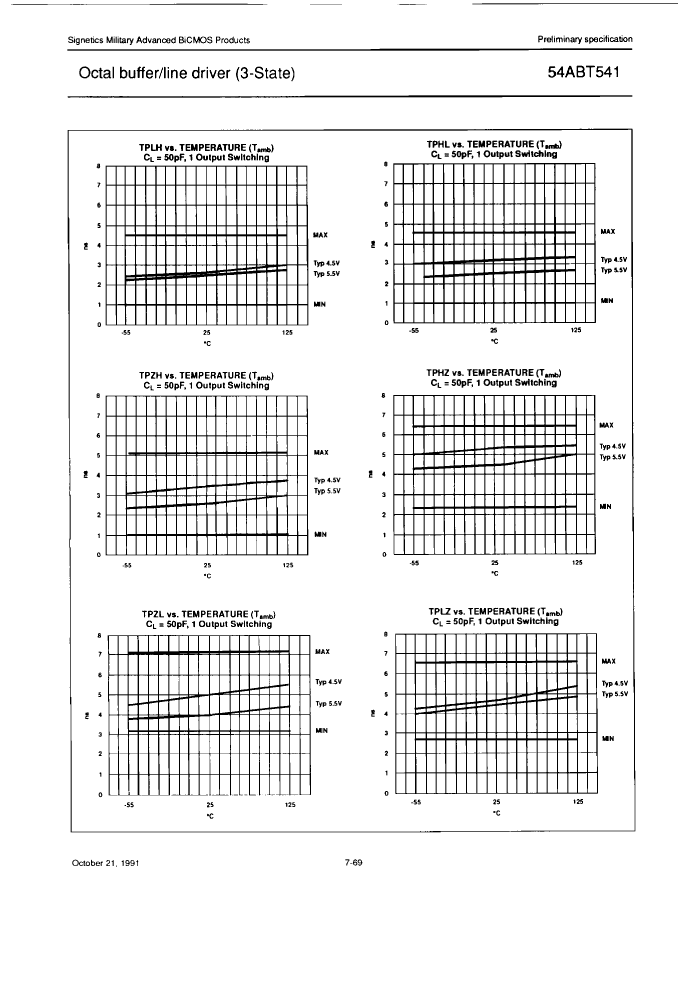

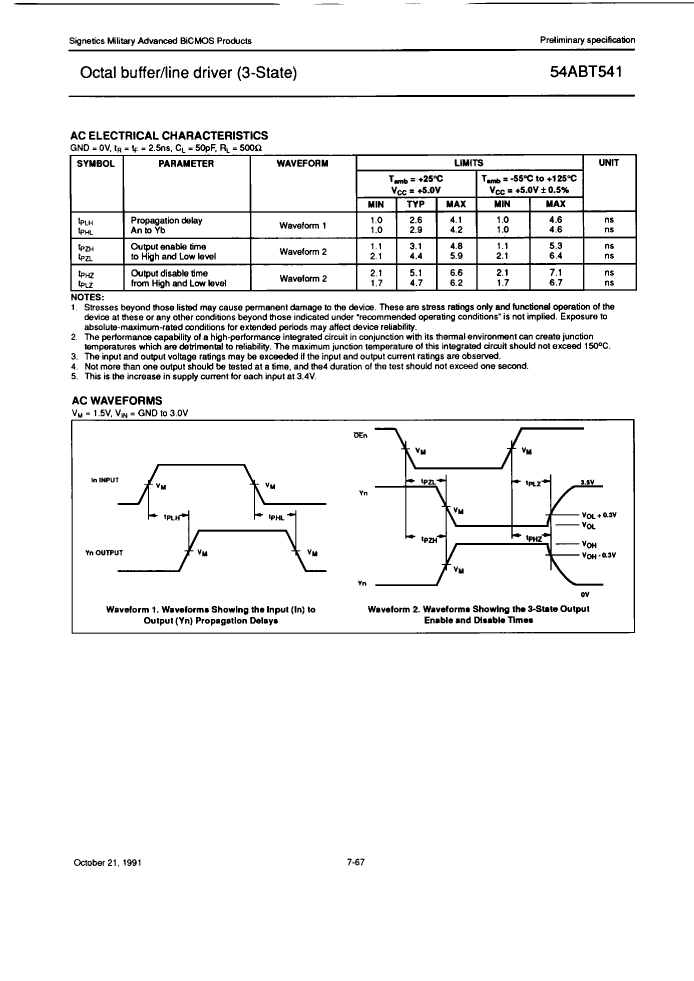

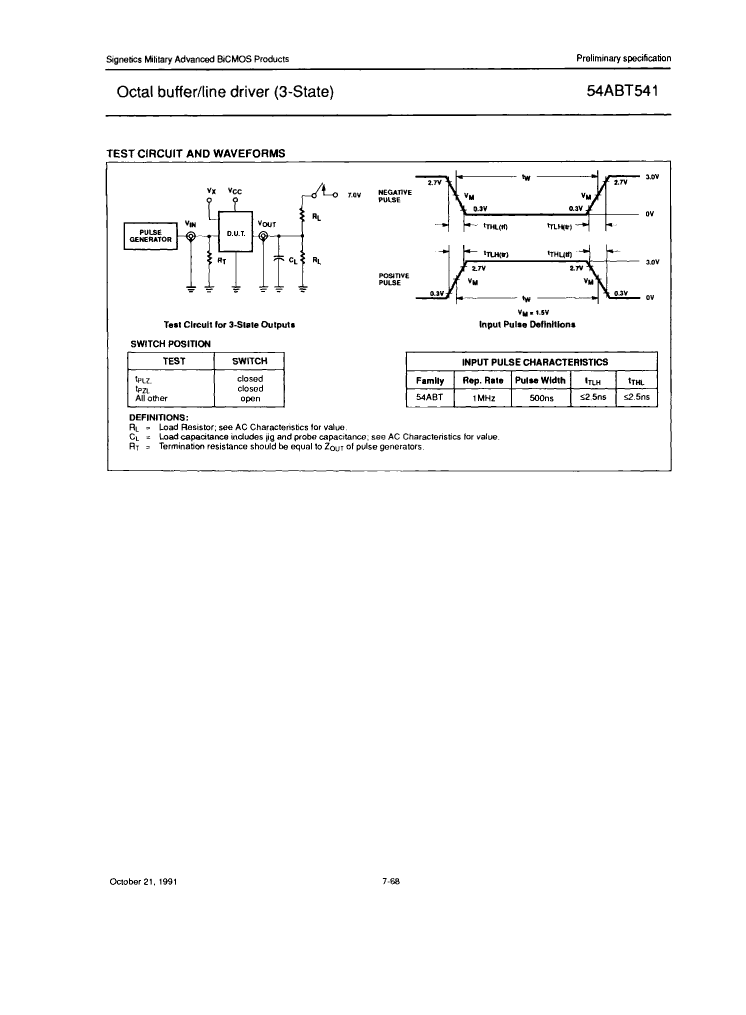

propagation delay (tpd)	4.6 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BICMOS
Temperature level	MILITARY
Terminal form	FLAT
Terminal location	DUAL
Base Number Matches	1

	54ABT541/BKA	54ABT541/BRA	54ABT541/B2A
Description	IC ABT SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDFP20, Bus Driver/Transceiver	IC ABT SERIES, 8-BIT DRIVER, TRUE OUTPUT, CDIP20, Bus Driver/Transceiver	IC ABT SERIES, 8-BIT DRIVER, TRUE OUTPUT, CQCC20, Bus Driver/Transceiver
Reach Compliance Code	unknown	unknown	unknown
Other features	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE
series	ABT	ABT	ABT
JESD-30 code	R-PDFP-F20	R-CDIP-T20	S-CQCC-N20
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	8	8	8
Number of functions	1	1	1
Number of ports	2	2	2
Number of terminals	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DIP	QCCN
Package shape	RECTANGULAR	RECTANGULAR	SQUARE
Package form	FLATPACK	IN-LINE	CHIP CARRIER
propagation delay (tpd)	4.6 ns	4.6 ns	4.6 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	NO	YES
technology	BICMOS	BICMOS	BICMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	THROUGH-HOLE	NO LEAD
Terminal location	DUAL	DUAL	QUAD
Base Number Matches	1	1	1
package instruction	-	DIP,	QCCN,
