5962-9220902M2A datasheet, PDF

5962-9220902M2A: DescriptionLCC-20, Tube; Categorylogic logic; File Size200KB，7 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric View All

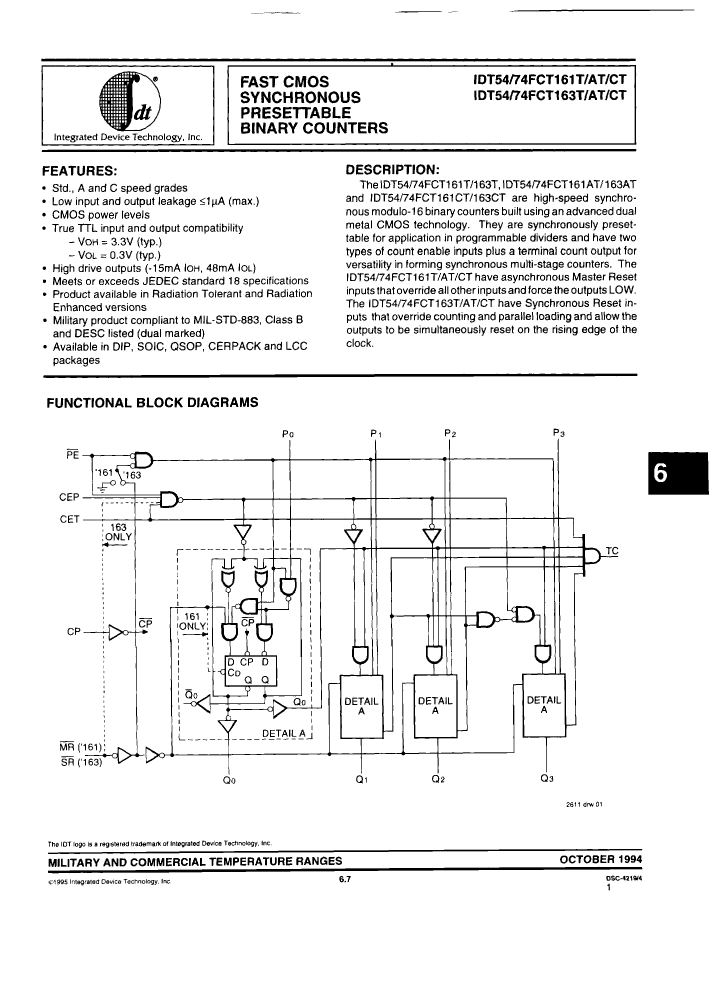

5962-9220902M2A Overview

LCC-20, Tube

Parameter Name	Attribute value
Brand Name	Integrated Device Technology
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	LCC
package instruction	LCC-20

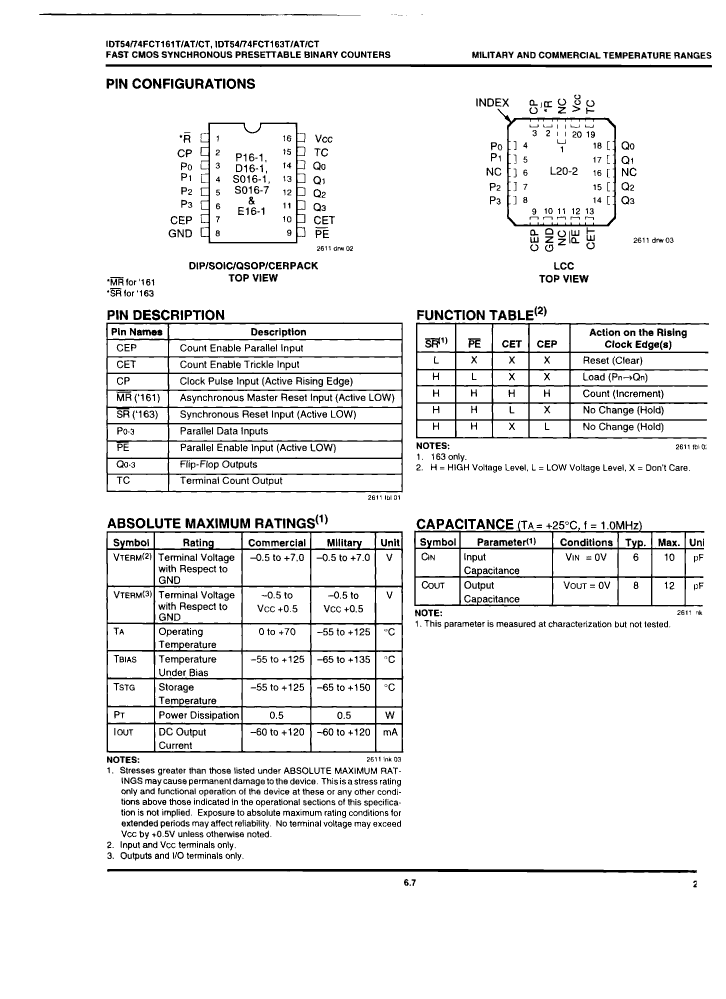

Contacts	20
Manufacturer packaging code	LC20
Reach Compliance Code	not_compliant
Other features	TCO OUTPUT
Counting direction	UP
series	FCT
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.89 mm
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Operating mode	SYNCHRONOUS
Humidity sensitivity level	1
Number of digits	4
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	240

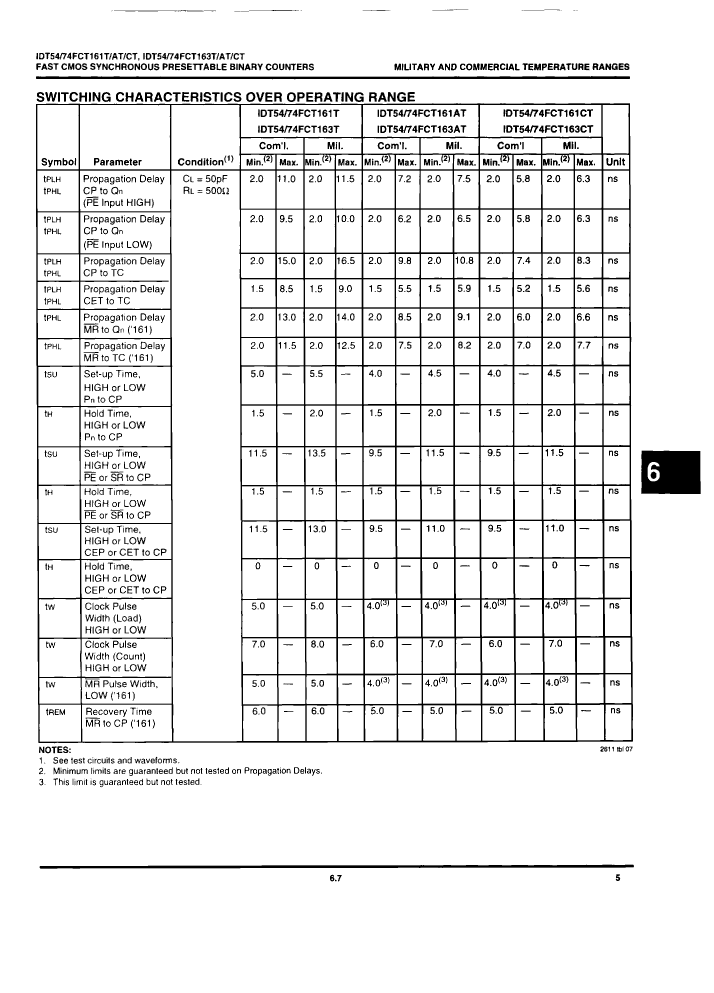

propagation delay (tpd)	11.5 ns
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	2.54 mm

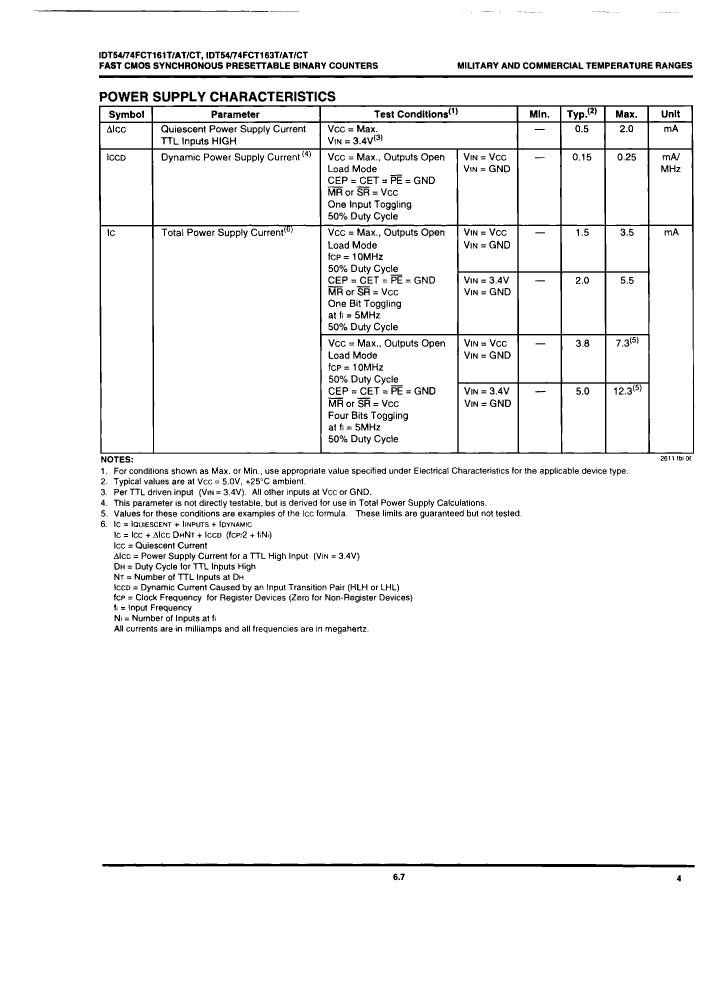

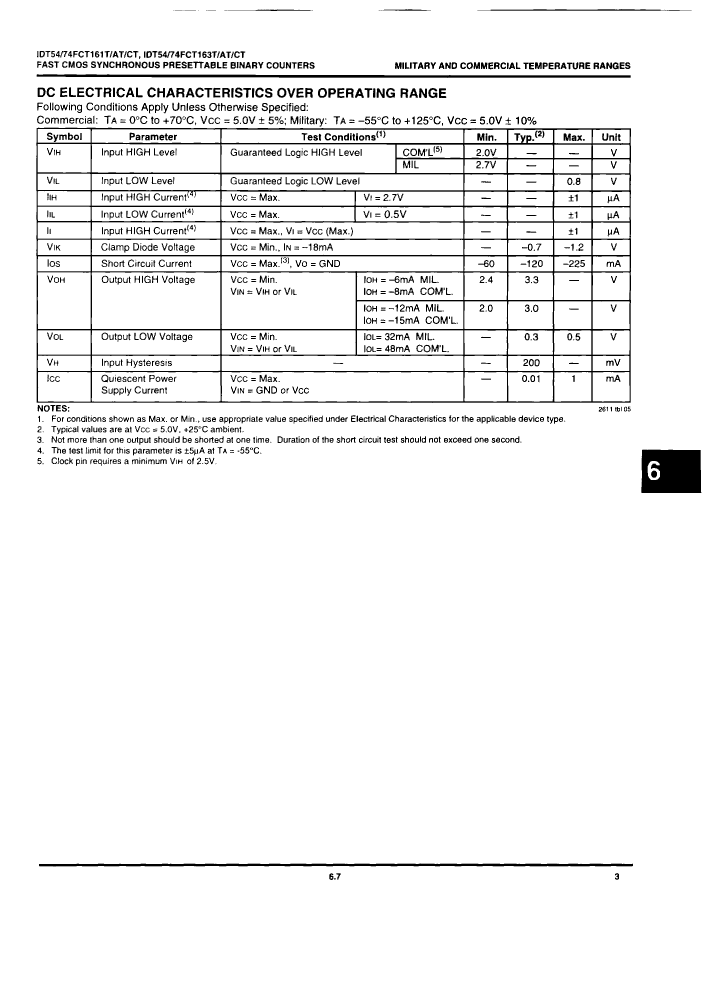

Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	8.89 mm
Base Number Matches	1
