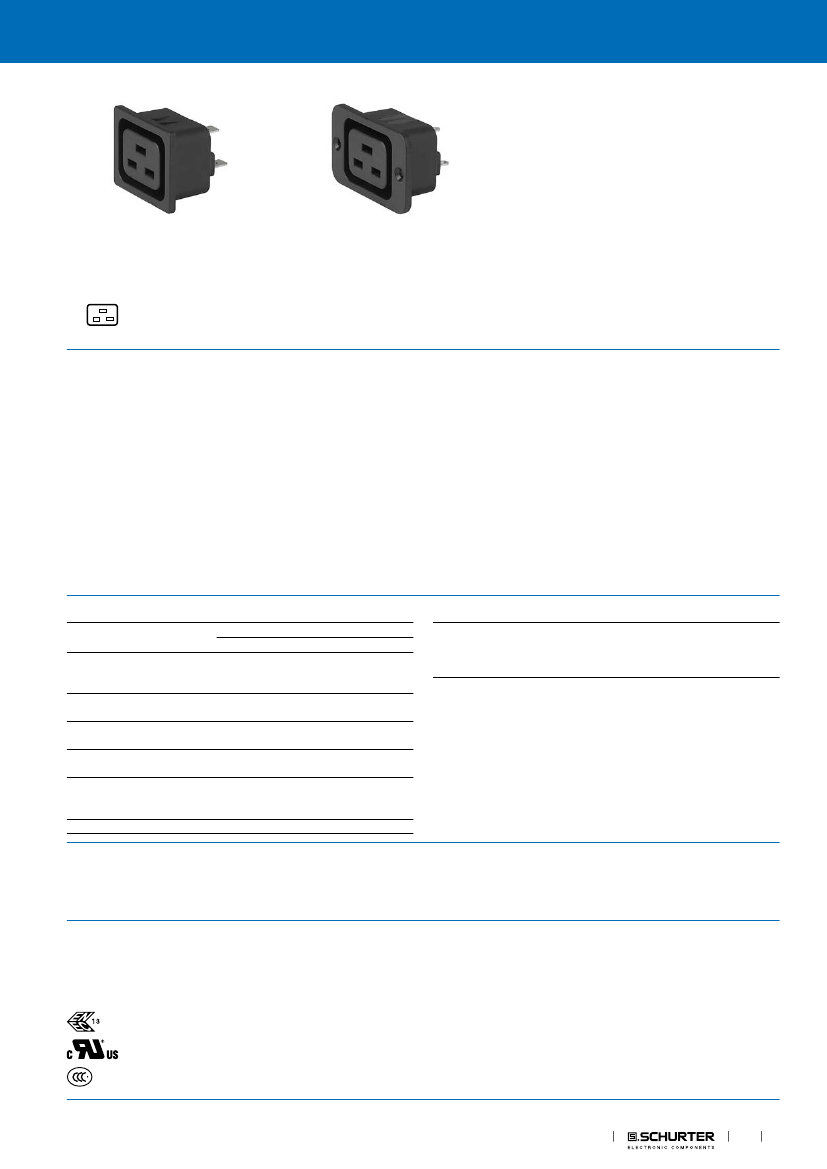

IEC Appliance Outlet J, Snap-in/Screw-on Mounting, Front Side, Solder or Quick-connect Terminal
Snap-in version
Screw-on Version
J
70° C
Approvals and Compliances
Description
-
-
-
-
Snap-in or screw-on mounting , from front side
Connector , Pin temperature 70 °C Protection class I
V-Lock notch standard
Safety of electrical appliances for household and similar purposes.
Meets the requirements for appliances in unattended use. This inclu-
des the enhanced requirements of glow wire tests acc. to IEC 60695-
2-12 and -13.
- Solder terminals or quick connect terminals
Characteristics
- Suitable for use in equipment according to IEC/UL 60950
Other versions on request
- Other panel thickness
- Variants in white color
- For protection class II
References
Weblinks
Substitute for type
0723; 5213; 5216
Alternative: version with integrated light pipes
4797-5
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product, Microsite,
Landing Page
The integration of light pipes in the appliance outlet provides status indication in smart PDUs. See PDU Landing Page for more information.
Power Distribution Units
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
16 A / 250 VAC; 50 Hz
20 A / 250 VAC; 60 Hz
> 2.5 kVAC between L-N
> 3 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
Suitable for appliances with protection
class I or II acc. to IEC 61140
Solder terminals or quick connect ter-
minals
Screw: max 8 mm
Mounting screw torque max 0.5 Nm
Snap-in: 0.8 mm to 3 mm
Thermoplastic, black, UL 94V-0
appliance inlet/-outlet
J acc. to 60320-2-2
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 16 A,
Protection Class I
Allowable Operation Tempe-
rature
Insulation cover
Terminal
Panel Thickness S
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: 4797
Approval Logo
Certificates
SEV Approvals
UL Approvals
CQC Approvals
Certification Body
SEV
UL
CQC
Description
Certificate Number:
UL File Number: E103791
CCC File Number: 2016180204002357
Connectors
1
4797
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
60320-2-2
UL 498
CSA C22.2 no. 42
Description
Connectors (Inlets/Outlets)
https://www.schurter.com /PG07
Appliance couplers for household and similar general purposes
Appliance couplers for household and similar general purposes
Standard for Attachment Plugs and Receptacles
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Designed for applications acc.
Standard
IEC/UL 60950
IEC 60335-1
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Safety of electrical appliances for household and similar purposes. Meets
the requirements for appliances in unattended use. This includes the en-
hanced requirements of glow wire tests acc. to IEC 60695-2-12 and -13.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
V-Lock system are based on a matching plug-dose combination. The
connector is equipped with a notch intended for use with the latching
cordset. The cord latching system prevents against accidental removal of
the cordset.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
MicrositeV-Lock
SCHURTER AG
Dimensions [mm]
Snap-in mounting from front side
42
R1
.5
24.7
3
37.6
-0
+0.2
R
29.5
-0
5
m
ax
.
34
34.1
2
Connectors
+0.2
Connectors (Inlets/Outlets)
https://www.schurter.com /PG07
4797
Screw-on mounting from front side
54
3.6/M3
29.5
-0
+0.2
45
R6
24.7
3
37.6
-0
+0.2
34
R
Ø
Ø
5
3.5
6x90°
34.1
45
±0.1
m
All Variants
Panel mounting
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Screw
Screw
█
Most Popular.
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-
SCHURTER
Panel Thickness
s [mm]
1
1.2
1.5
2
2.5
3
1
1.2
1.5
2
2.5
3
-
-
Terminal
Quick connect terminals 6.3 x 0.8 mm
Quick connect terminals 6.3 x 0.8 mm
Quick connect terminals 6.3 x 0.8 mm
Quick connect terminals 6.3 x 0.8 mm
Quick connect terminals 6.3 x 0.8 mm
Quick connect terminals 6.3 x 0.8 mm
Solder terminals
Solder terminals
Solder terminals
Solder terminals
Solder terminals
Solder terminals
Quick connect terminals 6.3 x 0.8 mm
Solder terminals
Protection Class
I
I
I
I
I
I
I
I
I
I
I
I
I
I
Order Number
4797.0010
4797.0012
4797.0015
4797.0020
4797.0025
4797.0030
4797.3010
4797.3012
4797.3015
4797.3020
4797.3025
4797.3030
4797.0000
4797.3000
█
█
█
█
█
█
Packaging unit
50 Pcs
Connectors
Ø
ax
.
3
4797

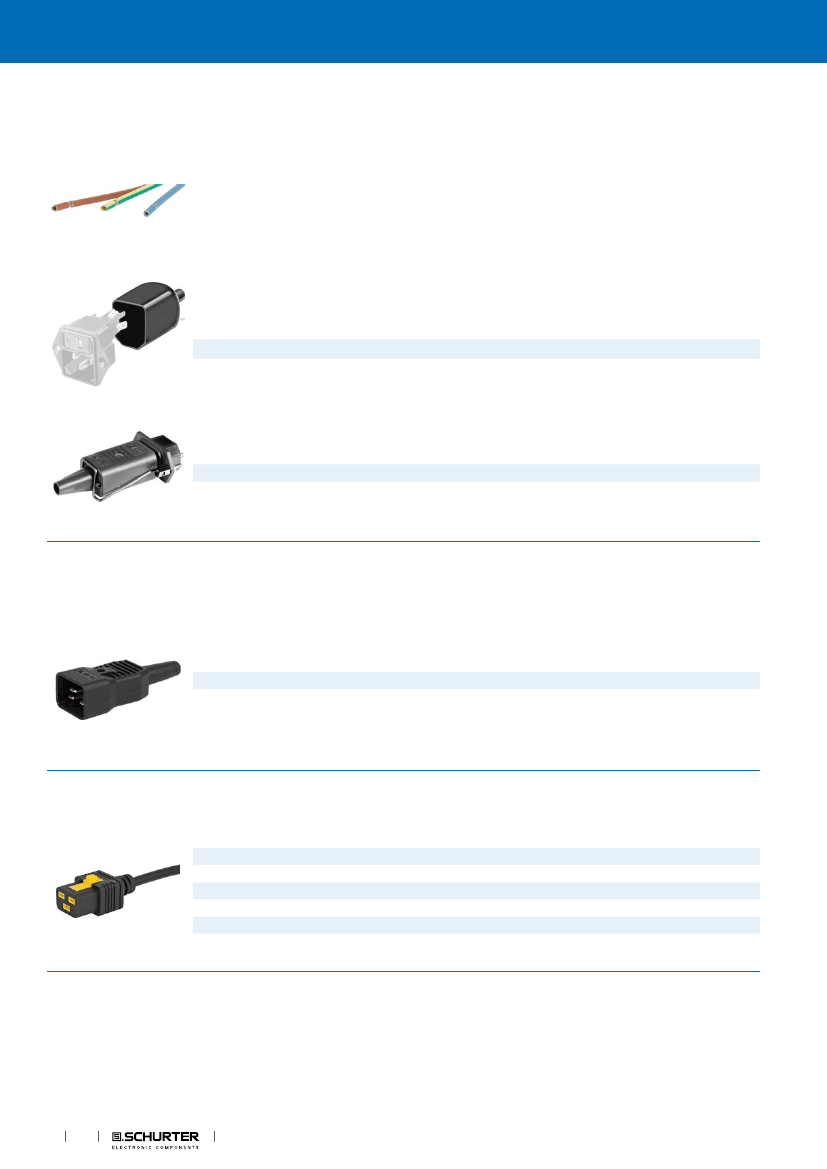

Accessories
Description
Connectors (Inlets/Outlets)
https://www.schurter.com /PG07
Wire Harness
Wire harness for SCHURTER products
Assorted Covers
Rear Cover
0859.0075
Cord retaining kits
Cord retaining strain relief
Countersunk, J
Flat head, L
4700.0009
4700.0011
Mating Inlets/Plugs
Category / Description
Plug Overview complete
IEC Plug I, Cord Connector (Rewireable), Straight
IEC Plug I, Cord Connector (Rewireable), Angled
Plug further types to 4797
4796
4789
Mating Inlets/Plugs shuttered
Interconnection Cord Overview complete
VAC19KS, Interconnection, V-Lock cord retaining, 2.0 m, Connector IEC C19, H05VV-F3G1.5 / SJT 3x14 AWG, black
VAC19KS, Interconnection, V-Lock cord retaining, 3.0 m, Connector IEC C19, H05VV-F3G1.5 / SJT 3x14 AWG, black
VAC19KS, Interconnection, V-Lock cord retaining, 1.0 m, Connector IEC C19, H05VV-F3G1.5, black
VAC19KS, Interconnection, V-Lock cord retaining, 1.0 m, Connector IEC C19, H05VV-F3G1.5 / SJT 3x14 AWG, black
VAC19KS, Interconnection, V-Lock cord retaining, 2.0 m, Connector IEC C19, H05VV-F3G1.5, black
Interconnection Cord further types to 4797
3-100-362
3-100-363
6051.2147
6051.2197
6051.2047
4
Connectors
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
29.11.2017
