5-146131-6 datasheet, PDF - EEWORLD Datasheet

5-146131-6: Description14 MODII HDR DRST SFMNT B/A LF; CategoryThe connector; File Size148KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

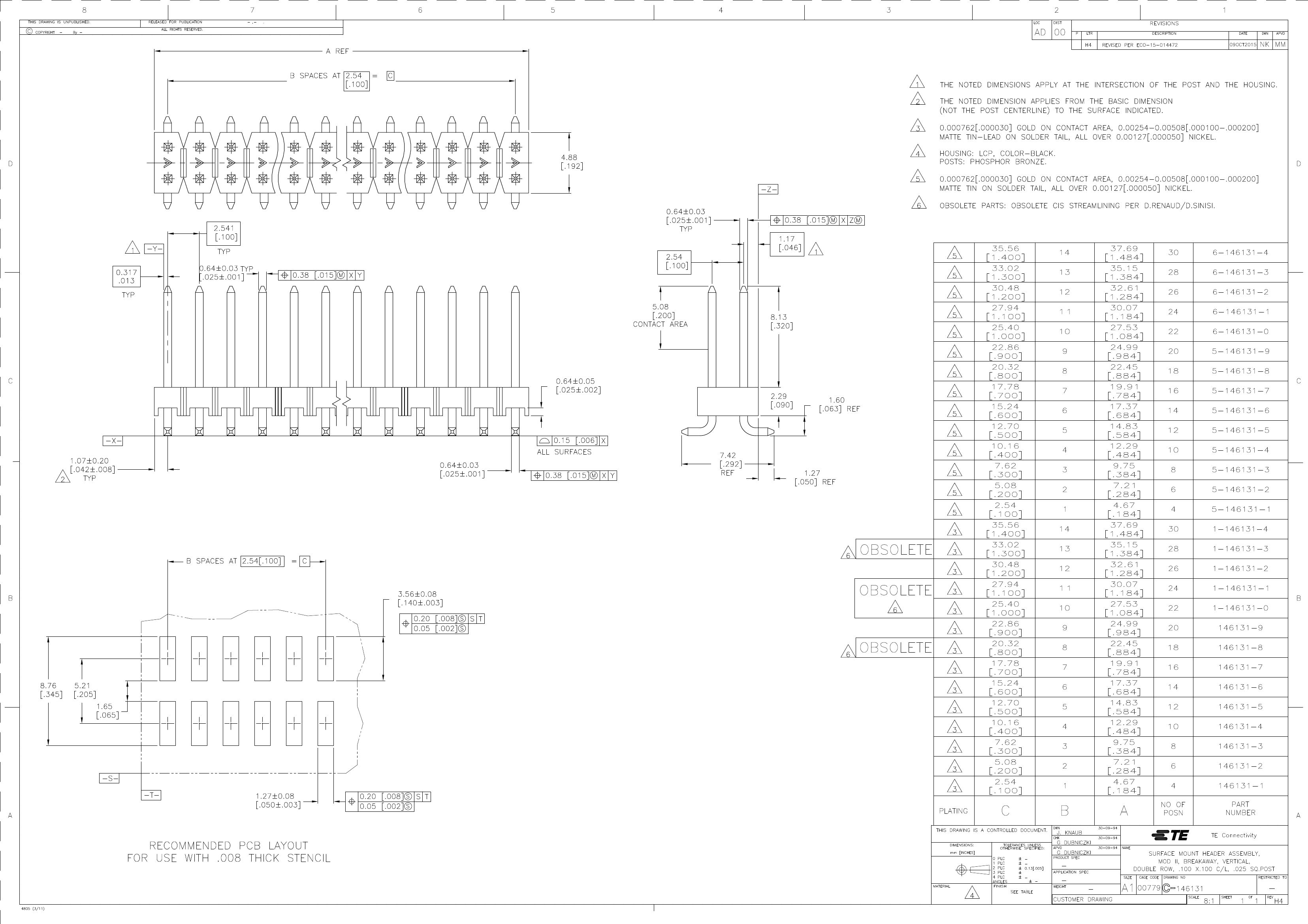

Download Datasheet Parametric View All

5-146131-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-146131-6	-	-	View	Buy Now

14 MODII HDR DRST SFMNT B/A LF

Parameter Name	Attribute value
PCB Connector Component Types	PCB mounting header
Connectors and terminals terminate to	A printed circuit board
Connector type	separation
Line spacing	2.54 mm [ .1 in ]
sealing ring	Without
shape	standard
stabilizing device	Without
plate support	Without
stress relief	Without
Connector terminal load status	Fully loaded
PCB mounting direction	vertical
Number of Positions	14
Rows	2
keying	no
Medium pressure resistance	750 V
Voltage (VAC)	30
Cylinder size	.64 mm [ .025 in ]
Terminal base material	Phosphor bronze
PCB terminal termination area plating materials	tin
Terminal base material	nickel
Terminal protection	Without
Terminal shape	square
Terminal type	Pin
Contact Current Rating (Max) (A)	3
Terminal Contact Plating Thickness (µin)	30
Terminal contact plating material	gold
PCB Termination Methods	surface mount
Termination cylinder length	1.27 mm [ .05 in ]
Terminal Plating Thickness (µin)	100 – 200
Terminal plating materials	matte tin lead
PCB installation and fixation	Without
Panel mount features	Without
Engage connector latch	Without
PCB installation method	Through hole
joint alignment	Without
Centerline (Pitch)	2.54 mm [ .1 in ]
Shell material	thermoplastic
Shell color	black
PCB thickness (recommended)	1.57 mm [ .062 in ]
Joint post length	8.13 mm [ .32 in ]
Working group temperature range (°C)	-65 – 125
High temperature compatible	yes
High temperature shell	yes
High speed serial data connector	no
approved standards	CSA LE7189, UL E28476
UL flammability rating	UL 94V-0
Package quantity	30
Encapsulation method	Tube
