Terminal Blocks - Single Row
Series A5000 & Series CB5000
Single Row Terminal Blocks
SPECIFICATIONS
Rating:
10A, 300V*
Center Spacing:
0.250” (6.35mm)
Wire Range:
#18-30 AWG Cu
Screw Size:
#3-48 zinc-plated philslot SEMS screws,
wire-ready standard
Torque Rating:
4 lb-in.
Distance Between Barriers:
0.20” (5.08mm)
Recommended PCB Hole Diameter:
0.062” (1.57mm)
Operating Temperature:
105°C (221°F) max., -40°C
(-40°F) min.
Molded Material:
Black, UL Rated 94V0 Thermoplastic
Breakdown Voltage:
1600V rms
Agency Information:
UL File E62622; CE Certified
* Max. rating shown; some options may be rated lower – consult factory.
Terminal Blocks:
Single & Double Row
A50110507
EuroMag Series
CB50220807

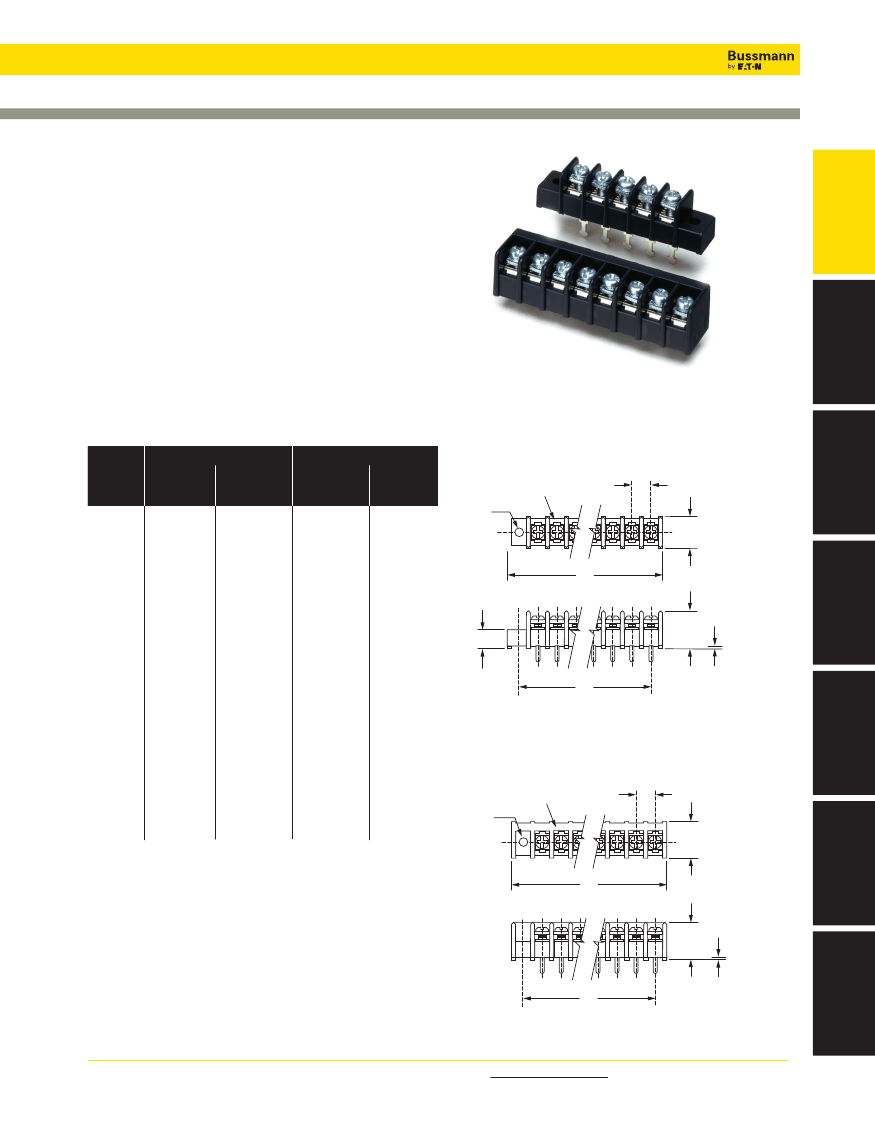

Dimensions - in (mm)
A5000 Series
Terminal Blocks:
Panel & Rail Mount
Poles
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
MOUNTING ENDS
A
B
Mount
Overall
Centers
Length
0.75
1.00
1.25
1.50
1.75
2.00
2.25
2.50
2.75
3.00
3.25
3.50
3.75
4.00
4.25
4.50
4.75
5.00
5.25
5.50
5.75
6.00
6.25
6.50
6.75
7.00
7.25
–
–
1.06
1.31
1.56
1.81
2.06
2.31
2.56
2.81
3.06
3.31
3.56
3.81
4.06
4.31
4.56
4.81
5.06
5.31
5.56
5.81
6.06
6.31
6.56
6.81
7.06
7.31
7.56
–
–
BARRIER ENDS
A
B
Pole
Overall
Centers
Length
0.25
0.50
0.75
1.00
1.25
1.50
1.75
2.00
2.25
2.50
2.75
3.00
3.25
3.50
3.75
4.00
4.25
4.50
4.75
5.00
5.25
5.50
5.75
6.00
6.25
6.50
6.75
7.00
7.25
0.56
0.81
1.06
1.31
1.56
1.81
2.06
2.31
2.56
2.81
3.06
3.31
3.56
3.81
4.06
4.31
4.56
4.81
5.06
5.31
5.56
5.81
6.06
6.31
6.56
6.81
7.06
7.31
7.56
0.12
(3.0)
Ø
#3-48
screw
0.250
(6.35)
0.43
(10.9)
Power Distribution
Blocks
B
Mount End
Barrier End
0.50
(12.7)
0.025
(0.64)
Barrier End
0.25
(6.35)
Mount End
A
Wire Management
Products
CB5000 Series
#3-48
screw
0.12
(3.0)
Ø
0.250
(6.35)
Edge Connectors,
One-Sided Boards
0.50
(12.7)
* Dimensions in inches. To convert to millimeters, multiply by 25.4.
B
Mount End
Barrier End
0.50
(12.7)
Compliance
References
0.025
(0.64)
Mount End
A
Barrier End
For additional product information, visit www.bussmann.com
5
Terminal Blocks - Single Row
Terminal Blocks:
Single & Double Row
Part Numbering System
A5
nn
C B5
nnn
Series
A5
- standard barrier
CB5
- closed back
Terminal Style
Base/End
Poles
Screw Options
Options
nn
01*
- handwired
02
- printed circuit
04
- wire wrap tail
n
1
- mount end
2
- barrier end
nn
02
to
30
02
to
28
on mount
end base
07
nn
07
- steel SEMS
std. wire ready
nnn
C1
to
C8
- 0.110˝ QC
L1
to
L6
marking options (pg 27)
MP
- mounting plate 0.120˝ dia
OJ**
- over barrier jumper
EuroMag Series
*Only available with mount end base style on A5 Series
**Contact factory for configuration
Inches (Millimeters)
Terminal Styles
Terminal Blocks:
Panel & Rail Mount
0.40
(10.2)
0.10
(2.54)
0.025
(.64)
0.12
(3.0)
0.055
(1.40)
0.16
(4.1)
0.032
(0.81)
0.045
(1.14)
0.50
(12.7)
0.14
(3.6)
0.025
(0.64)
0.12
(3.0)
01
Handwired
02
Circuit Board
04
Wire Wrap Tail
Power Distribution
Blocks

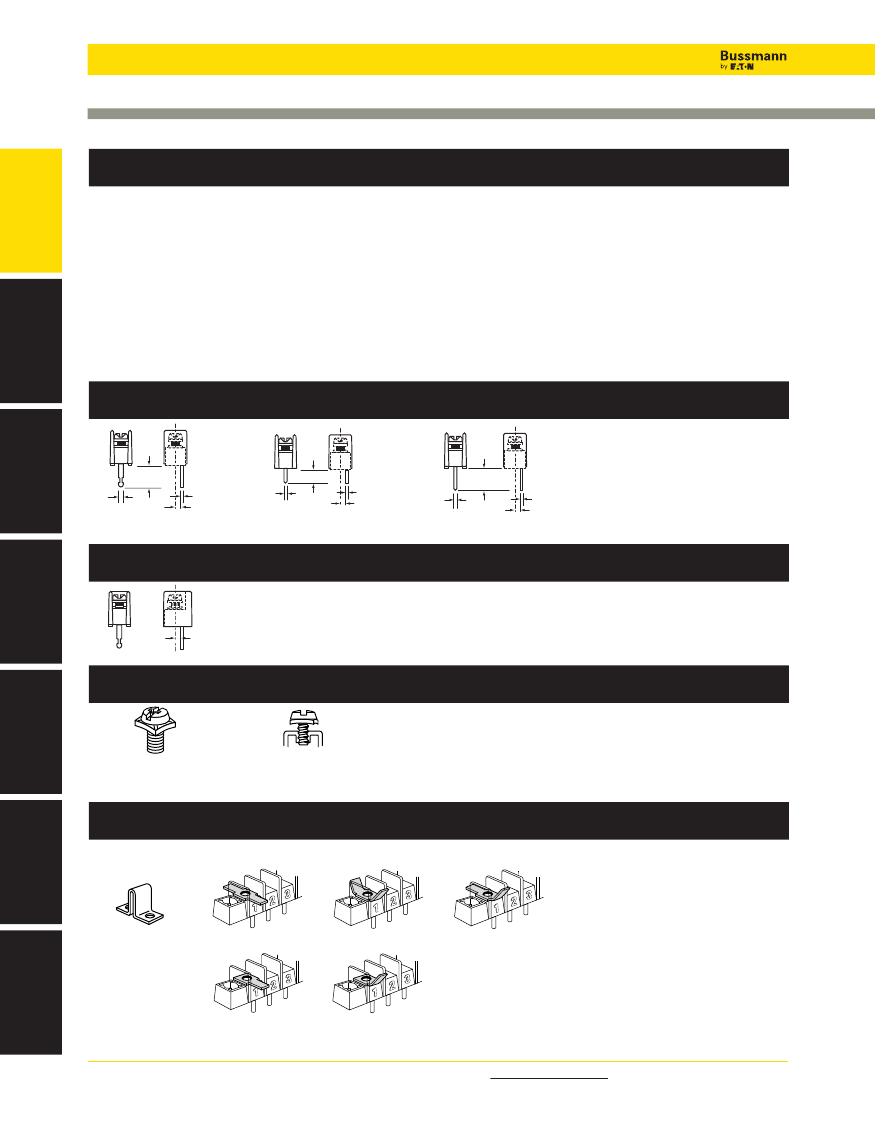

CB5 Terminal Exit Options
Inches (Millimeters)
0.12
(3.0)
Exit Rear
(std.)
Wire Management
Products
Screw Options
Wire ready screws standard on all terminal styles
(Bulk ordering part numbers are in parentheses)
07
Steel SEMS
Zinc-Plated
(B001-7035-J)
07
Standard
Wire Ready
Edge Connectors,
One-Sided Boards
Hardware Options
Jumpers
(Bulk ordering part numbers are in parentheses)
Inches (Millimeters)
Quick Connects
Blade Width 0.110” (For other orientations, contact factory.)
OJ (OJ12-J)
C1 (5C1-J)*
C2 (5C2-J)*
C4 (5C4-J)*
Compliance
References
C7 (5C7-J)
* N/A on CB5 Series.
C8 (5C8-J)
6
For additional product information, visit www.bussmann.com
