10-658-10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 10-658-10

10-658-10: DescriptionIC u0026 Component Sockets PROGRAM HEADER/COVER 10 PINS; CategoryThe connector; File Size690KB，1 Pages; ManufacturerAries Electronics

Download Datasheet Parametric View All

10-658-10 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	10-658-10	-	-	View	Buy Now

10-658-10 Overview

IC u0026 Component Sockets PROGRAM HEADER/COVER 10 PINS

10-658-10 Parametric

Parameter Name	Attribute value
Product Category	IC & Component Sockets
Manufacturer	Aries Electronics
RoHS	Details
Pitch	2.54 mm
Contact Plating	Tin
Mounting Style	PCB
Factory Pack Quantity	1

Preview

Download Datasheet

View All

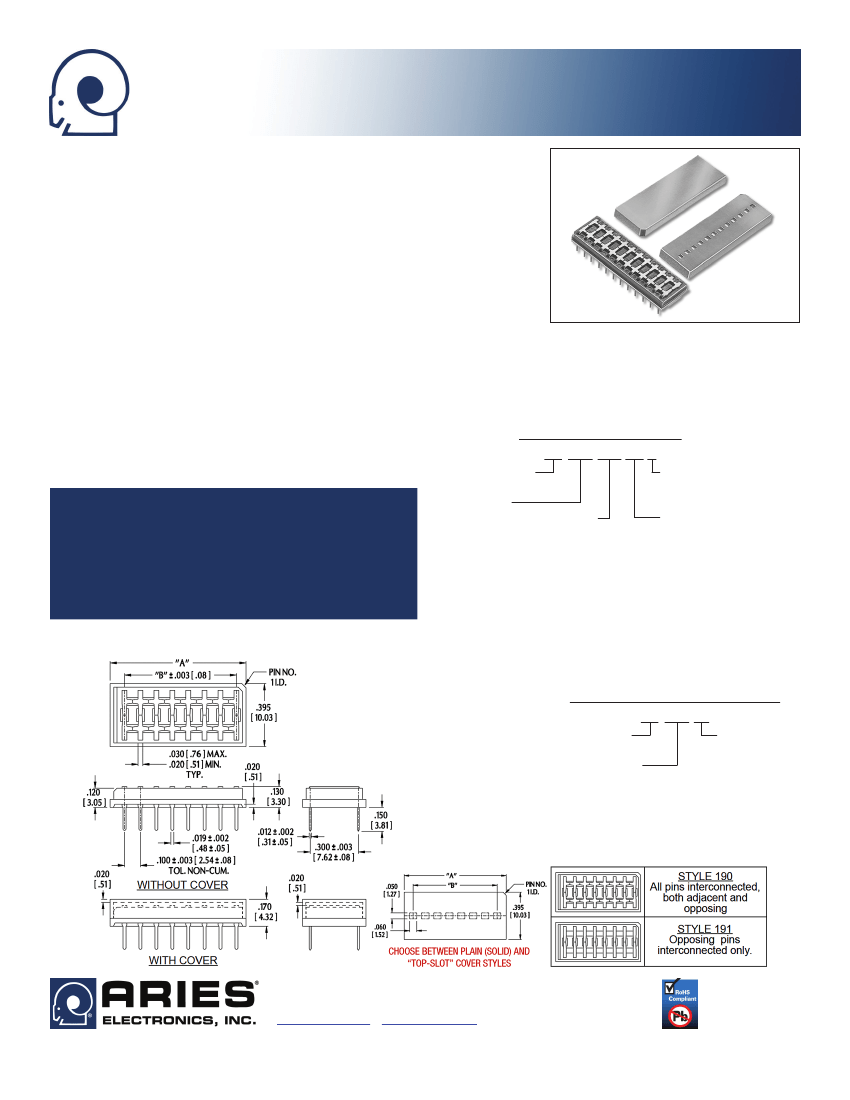

Series 680

Program Header and Cover

FEATURES

• Complete versatility for programming within the unit itself, thus eliminating the need

for DIP switches in many situations.

• Available pre-programmed from Aries, or do-it-yourself using Aries Hand Tool P/N

T-680. Consult Data Sheet 22002 for Programming Tool information.

• Available with plain (solid) or “top-slot” press-on covers. Plain covers protect pro-

grams while “top-slot” covers allow programming of opposing pins through square

openings on top.

GENERAL SPECIFICATIONS

• STANDARD BODY AND COVER: black UL 94V-0 Glass filled 4/6 Nylon

• PINS: Brass 260 3/4-hard, ASTM B-36

CUSTOMIZATION:

In addition to the standard products shown

• PIN PLATING: “-T” 50-150µ [1.27µ] min. matte Sn per ASTM B545-97(2004)

on this page, Aries specializes in custom design and production.

e1 over 50µ [1.27µ] min. Ni per SAE AMS-QQ-N-290B; “-TL” 50-150µ [1.27 -

Special materials, platings, sizes, and configurations can be

furnished, depending on the quantity.

NOTE:

Aries reserves the

3.81µ] min. 60/40 Sn/Pb per SAE AMS-P-81728 over 50µ [1.27µ] min. Ni per

right to change product general specifications without notice.

SAE AMS-QQ-N-290B

• CURRENT RATING: 1 amp

• OPERATING TEMPERATURE: 221°F [105°C]

ORDERING INFORMATION

MOUNTING CONSIDERATIONS

• SUGGESTED PCB HOLE SIZE: 0.032 ±0.002 [0.81±0.05] dia.

ALL DIMENSIONS: INCHES [MILLIMETERS]

ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED

“A” # PINS PER ROW x 0.100 [2.54] +0.050 [1.27]

“B” (# PINS PER ROW -1) x 0.100 [2.54]

CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS

XX-680-19X XX X

No. of Pins

4 thru 24

Series

Interconnection Styles

see below

Optional Top Slot = “C”

preassembled to header

Style 191 only

Plating

T = Sn

TL = Sn/Pb

COVER ORDERING INFORMATION

XX-68X-10

No. of Pins

4 thru 24

Cover Series

655 = Plain

658 = Top Slot

Cover No.

Bristol, PA 19007-6810 USA

TEL (215) 781-9956 • FAX (215) 781-9845

WWW.ARIESELEC.COM • INFO@ARIESELEC.COM

PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED

16005

Rev. AA
