HFJ11-E1G01ERL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> HFJ11-E1G01ERL

HFJ11-E1G01ERL: DescriptionI/O Controller Interface IC Enhanced USB-to-UART BRIDGE; CategoryThe connector; File Size504KB，3 Pages; ManufacturerHALO Electronics

Download Datasheet Parametric View All

HFJ11-E1G01ERL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HFJ11-E1G01ERL	-	-	View	Buy Now

HFJ11-E1G01ERL Overview

I/O Controller Interface IC Enhanced USB-to-UART BRIDGE

HFJ11-E1G01ERL Parametric

Parameter Name	Attribute value
Product Category	Modular Connectors / Ethernet Connectors
Manufacturer	HALO Electronics
RoHS	Details
Product	Modular Jacks
USOC Codes	RJ45
Number of Positions	14 Position
Number of Ports	1 Port
Performance Category	Industrial
Mounting Style	Panel
Termination Style	Through Hole
Shielding	Shielded
Voltage Rating	1.5 kV
Color	Silver
Packaging	Tube
Contact Material	Phosphor Bronze
Contact Plating	Gold
Gender	Female
Housing Material	Polyester
Mounting Angle	Right Angle
Number of Rows	1 Row
Pitch	2.54 mm
Factory Pack Quantity	26
Type	Modular Jacks

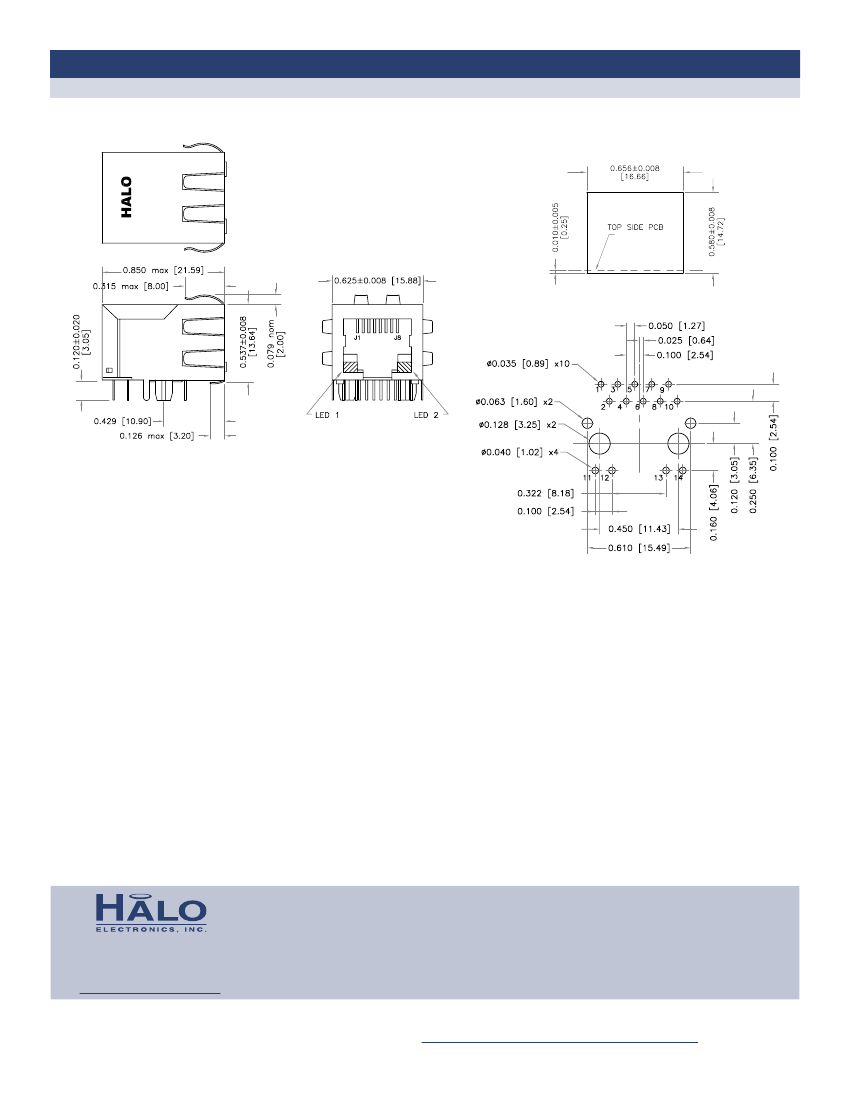

Preview

Download Datasheet

View All

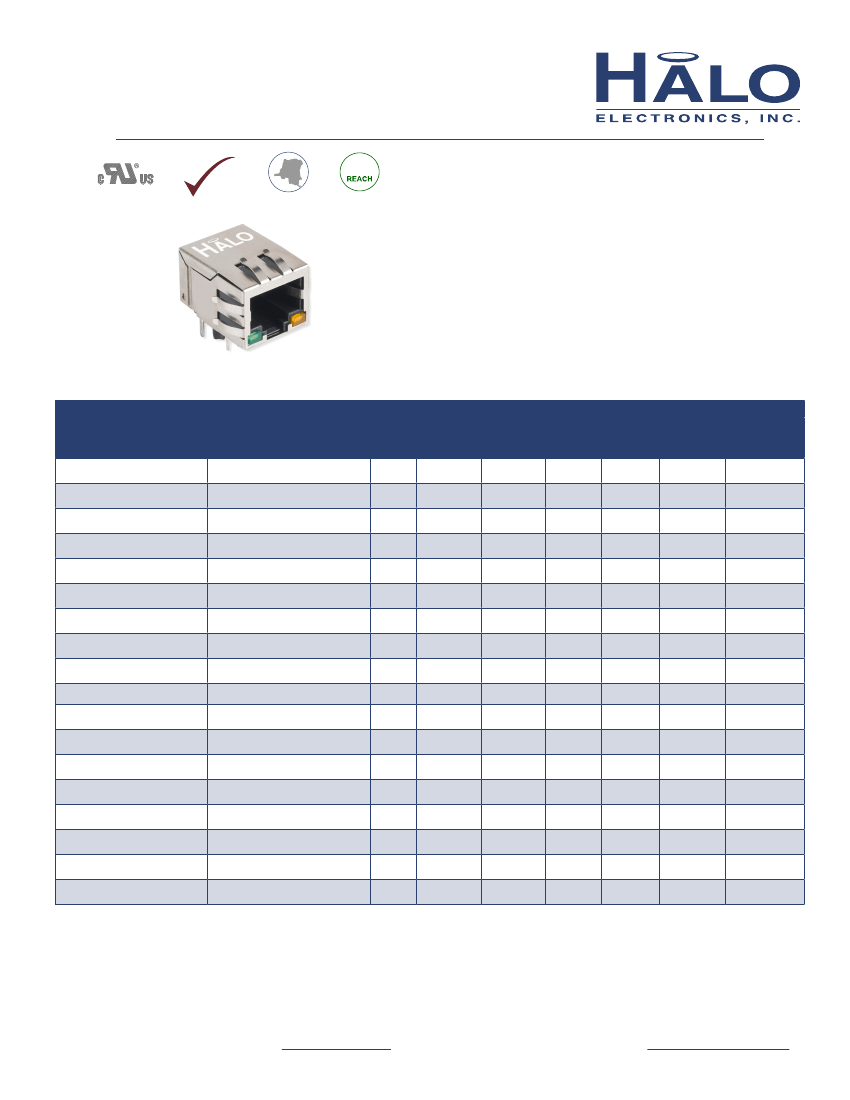

FastJack

™

1x1 Tab-Down Gigabit Short Body RJ45

RoHS

Compliant

Conflict

FREE

Product Features:

Gigabit (10/100/1000) Ethernet RJ45

IEEE802.3ab Compliant

350uH min OCL at 8mA DC Bias Across the

Full Temp Range

30µ” Gold Plating (min) on Contacts

100% Compliance Testing

1500Vrms Hi-Pot

Proprietary Robust Contact Design

Part Number

Standard Temp

Extended Temp

(0 to 70°C)

(-40 to +85°C)

HFJ11-1G01ERL

HFJ11-1G01E-L11RL

HFJ11-1G01E-L12RL

HFJ11-1G06ERL

HFJ11-1G06E-L11RL

HFJ11-1G06E-L12RL

HFJ11-1G11ERL*

HFJ11-1G11E-L11RL*

HFJ11-1G11E-L12RL*

HFJ11-1G16ERL*

HFJ11-1G16E-L11RL*

HFJ11-1G16E-L12RL*

HFJ11-1G41ERL*

HFJ11-1G41E-L11RL*

HFJ11-1G41E-L12RL*

HFJ11-1G46ERL*

HFJ11-1G46E-L11RL*

HFJ11-1G46E-L12RL*

HFJ11-E1G01ERL

HFJ11-E1G01E-L11RL

HFJ11-E1G01E-L12RL

HFJ11-E1G06ERL

HFJ11-E1G06E-L11RL

HFJ11-E1G06E-L12RL

HFJ11-E1G11ERL*

HFJ11-E1G11E-L11RL*

HFJ11-E1G11E-L12RL*

HFJ11-E1G16ERL*

HFJ11-E1G16E-L11RL*

HFJ11-E1G16E-L12RL*

HFJ11-E1G41ERL*

HFJ11-E1G41E-L11RL*

HFJ11-E1G41E-L12RL*

HFJ11-E1G46ERL*

HFJ11-E1G46E-L11RL*

HFJ11-E1G46E-L12RL*

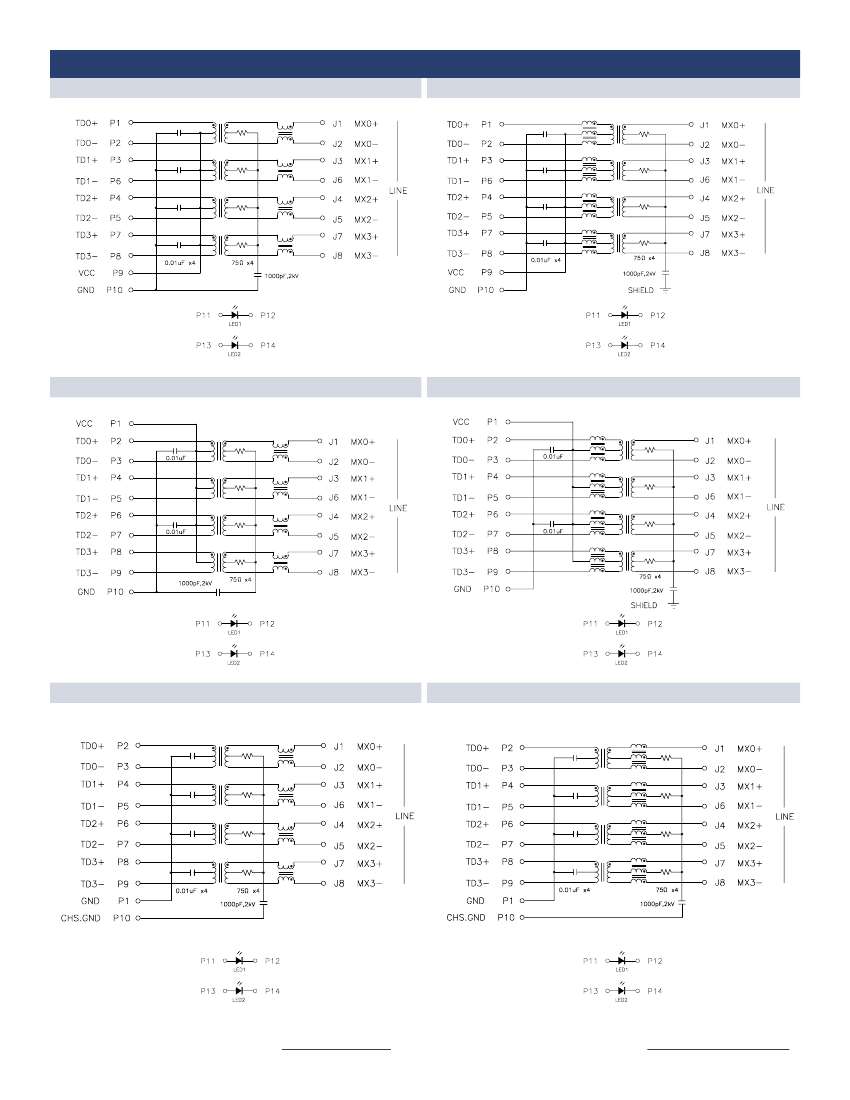

Circuit

LED’s

(L/R)

None

G/G

G/Y

None

G/G

G/Y

None

G/G

G/Y

None

G/G

G/Y

None

G/G

G/Y

None

G/G

G/Y

Return Loss (min)

1-40MHz 60MHz 80MHz 100MHz

-18dB

-14dB

-12dB

-10dB

PHY

Drive

Current

Voltage

*Recommended for New Designs

Notes:

1. LED Key : G = Green, Y = Yellow

2. Other LED colors, bi-colors, polarities, and current limiting versions available

3. Unshielded and without ground shield tabs available

4. Part specific datasheets available

5. Tab-up versions avaliable

For additional information contact your

local representative,

or HALO’s support staff at (650) 903-3800 or

info@haloelectronics.com
