M80-4710642 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> M80-4710642

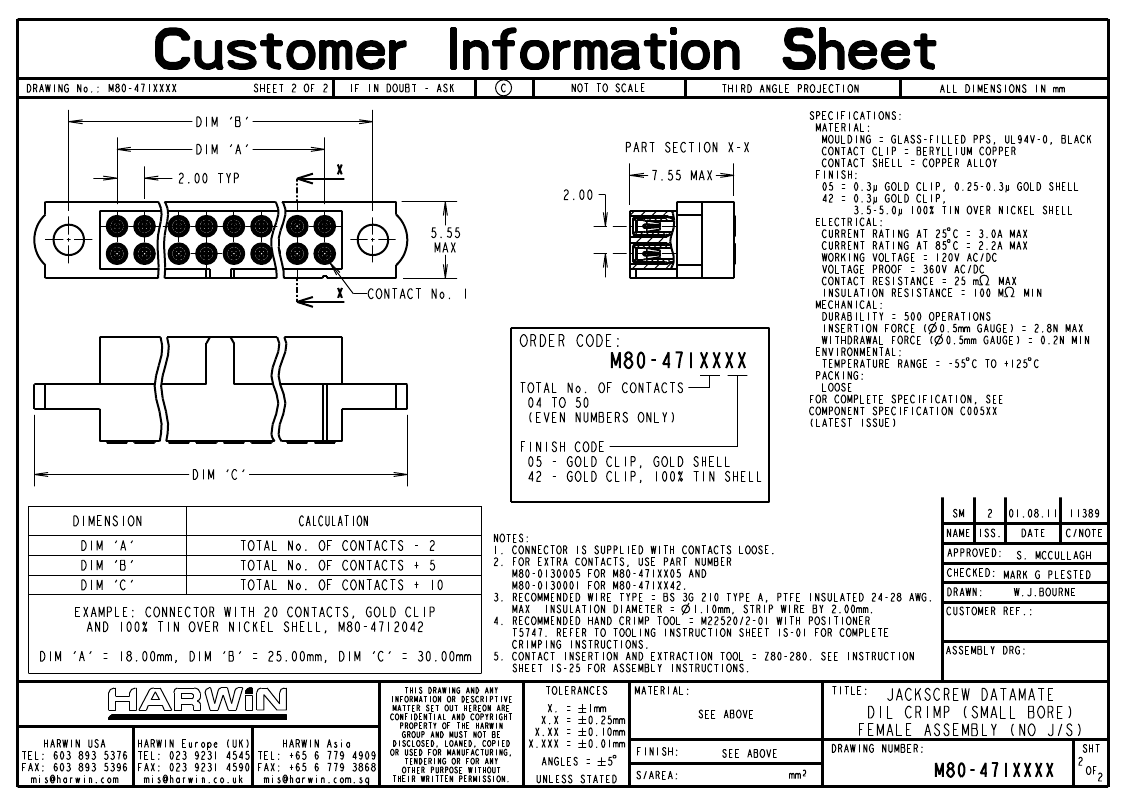

Preview

M80-4710642: DescriptionHeaders u0026 Wire Housings 3+3 POS FEM W/O J/S SM BORE TIN; CategoryThe connector The connector; File Size72KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M80-4710642 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M80-4710642	-	-	View	Buy Now

M80-4710642 Overview

Headers u0026 Wire Housings 3+3 POS FEM W/O J/S SM BORE TIN

M80-4710642 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	COMPATIBLE CONTACT: M80-0130001
body width	0.219 inch
subject depth	0.297 inch
body length	0.63 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	LOOSE
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	JACKSCREW
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	12u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	6
UL Flammability Code	94V-0
Maximum wire diameter	24 AWG
Minimum wire diameter	28 AWG

Preview

Download Datasheet
