46011-0400

Description
Power to the Board MiniFit Vert BMI Hdr Asy 4ckt V-2 Tin
CategoryThe connector    The connector
File Size40KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

46011-0400 Online Shopping

Suppliers Part Number Price MOQ In stock
46011-0400 - - View Buy Now

46011-0400 Overview

Power to the Board MiniFit Vert BMI Hdr Asy 4ckt V-2 Tin

46011-0400 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
Factory Lead Time7 weeks
Board mount optionsHOLE .112-.124
body width0.59 inch
subject depth0.55 inch
body length0.685 inch
Body/casing typePLUG
Connector typeRECTANGULAR POWER CONNECTOR
Contact to complete cooperationSN ON NI
Contact point genderFEMALE
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleSQ PIN-SKT
Insulation resistance1000000000 Ω
Insulator colorNATURAL
insulator materialNYLON
Plug contact pitch0.165 inch
Match contact row spacing0.165 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
PCB contact patternRECTANGULAR
PCB contact row spacing5.5118 mm
Plating thickness100u inch
Rated current (signal)13 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.14 inch
Terminal pitch4.191 mm
Termination typeSOLDER
Total number of contacts4
Base Number Matches1
This document was generated on 10/20/2017
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0460110400
Active
Mini-Fit Plus Connector System
Mini-Fit Plus Header, 4.20mm Pitch, Dual Row, Vertical, Blind Mating, 4 Circuits, with
Snap-in Plastic Peg PCB Lock, PA Polyamide Nylon 6/6, UL 94V-2, Tin (Sn) 1.27µm
Over Nickel (Ni) Plating, Halogen Free
Documents:
3D Model
Drawing (PDF)
Agency Certification
UL
General
Product Family
Series
Application
Comments
Product Specification PS-45750-001-001 (PDF)
RoHS Certificate of Compliance (PDF)

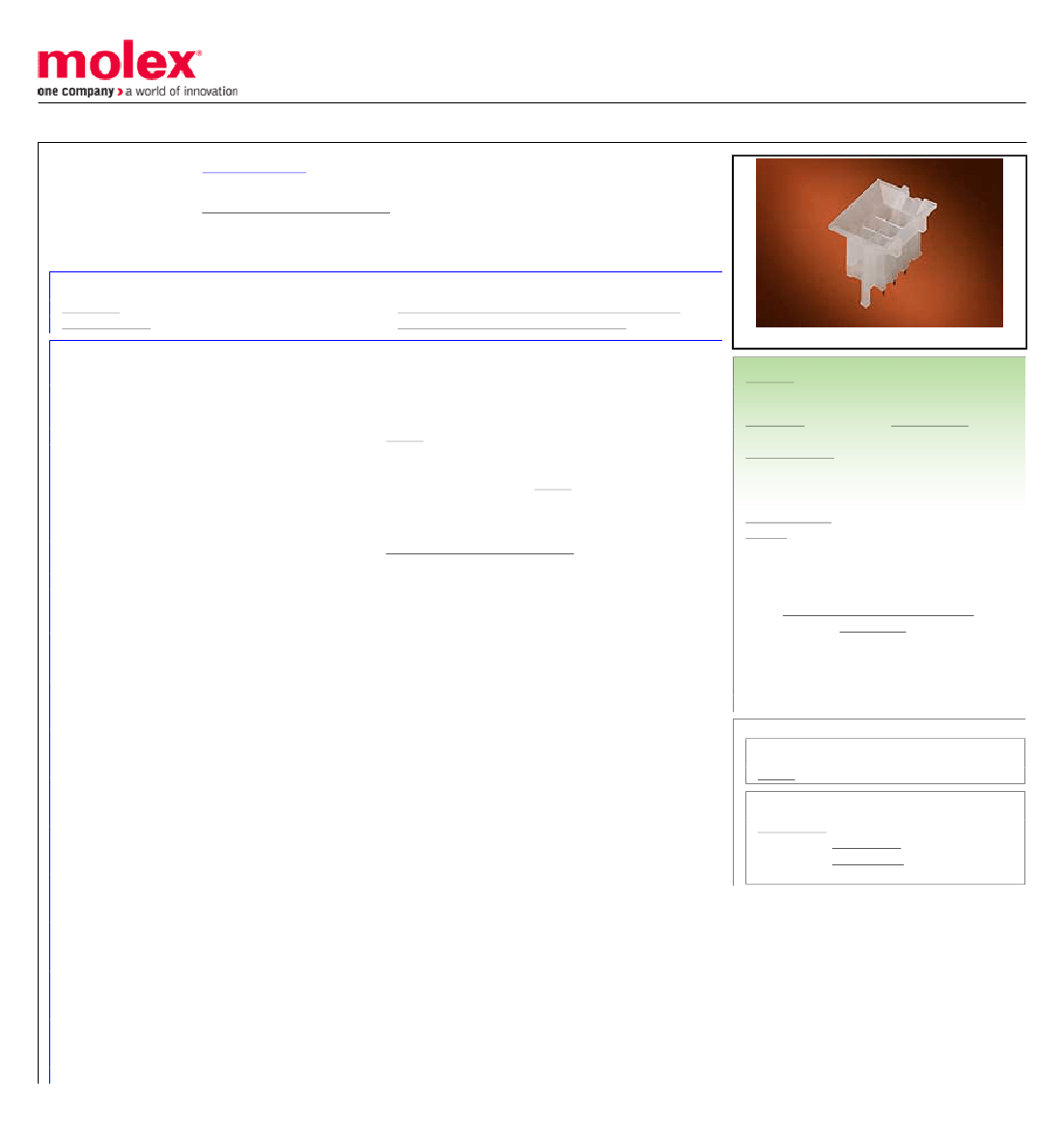

Series image - Reference only
E29179
PCB Headers
46011
Board-to-Board, Power, Wire-to-Board
Current = 13A max. per circuit when header is mated to
a receptacle loaded with 45750 Mini-Fit Plus HCS Crimp
Terminal Crimped to 16 AWG wire., See Molex product
specification PS-45750-001 for additional current de-
rating information.
Mini-Fit Plus Connector System
Mini-Fit Plus
822350725941
No
4
4
Natural
30
No
94V-2
Yes
Yes
None
Yes
Copper Alloy
Tin
Tin
Nylon
1.344/g
2
Vertical
1.80mm
Yes
Yes
1.78mm
Tray
4.20mm
2.540µm
1.270µm
Yes
Yes
Fully
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/30/2017 (7 July
2017)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Overview
Product Name
UPC
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Plating min - Mating
Plating min - Termination
Polarized to Mating Part
Polarized to PCB
Shrouded
Search Parts in this Series
46011 Series
Mates With
15-06-0041 Mini-Fit BMI Panel Mount
Receptacle, 39-01-2045 Mini-Fit Jr.
Receptacle, 46010-0421 Mini-Fit Plus
Receptacle Header
