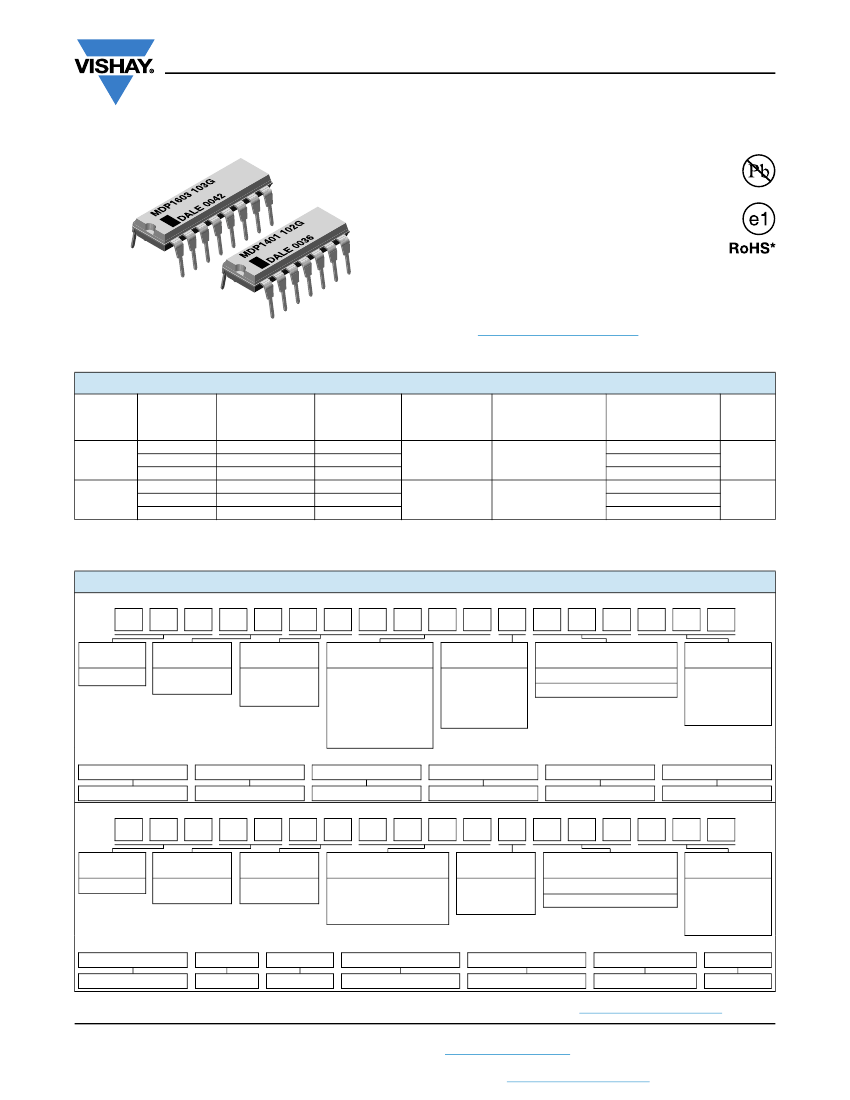

MDP 01, 03, 05
www.vishay.com
Vishay Dale
Thick Film Resistor Networks, Dual-In-Line, Molded DIP
FEATURES
• Isolated, bussed, and dual terminator schematics
available
Available
• 0.160" (4.06 mm) maximum seated height and
rugged, molded case construction
• Thick film resistive elements
• Low temperature coefficient (-55 °C to +125 °C)
± 100 ppm/°C
Available
• Reduces total assembly costs
• Compatible with automatic inserting equipment
• Wide resistance range (10
to 2.2 M)
• Uniform performance characteristics
• Available in tube pack
• Material categorization: For definitions of compliance please
see
www.vishay.com/doc?99912
Note
*
This datasheet provides information about parts that are RoHS-compliant and/or parts that are non-RoHS-compliant. For example, parts
with lead (Pb) terminations are not RoHS-compliant. Please see the information/tables in this datasheet for details.
STANDARD ELECTRICAL SPECIFICATIONS
POWER RATING
GLOBAL
RESISTANCE
ELEMENT
(1)
TOLERANCE
(3)
MODEL/ SCHEMATIC
RANGE
NO. OF
P
70 °C
±%
PINS
W
01
0.125
10 to 2.2M
MDP 14
03
0.250
10 to 2.2M
1, 2, 5
05
0.125
Consult factory
01
0.125
10 to 2.2M
MDP 16
03
0.250
10 to 2.2M
1, 2, 5
05
0.125
Consult factory
Notes
(1)
For resistor power ratings at +25 °C see derating curves
(2)
Tighter tracking available
(3)
± 2 % standard, ± 1 %, and ± 5 % available
TEMPERATURE
COEFFICIENT
(-55 °C to +125 °C)
± ppm/°C
100
TCR
TRACKING
(2)
(-55 °C to +125 °C)
± ppm/°C
50
50
100
50
50
100
WEIGHT
g
1.3
100
1.5
GLOBAL PART NUMBER INFORMATION
New Global Part Numbering: MDP1403100RGD04 (preferred part numbering format)
M
GLOBAL
MODEL
MDP
D
P
1
4
0
3
1
0
0
R
G
D
0
4
SPECIAL
Blank = Standard
(Dash Number)
(up to 3 digits)
From
1 to 999
as applicable
PIN COUNT
14
= 14 pin
16
= 16 pin
SCHEMATIC
01
= Bussed
03
= Isolated
00
= Special
RESISTANCE
VALUE
R
=
K
= k
M
= M
10R0
= 10
680K
= 680 k
1M00
= 1.0 M
0000
= 0
Jumper
TOLERANCE
CODE
F
=±1%
G
=±2%
J
=±5%
S
= Special
Z
= 0
Jumper
PACKAGING
E04
= Lead (Pb)-free, tube
D04
= Tin/lead, tube
Historical Part Number Example: MDP1403101G (will continue to be accepted)
MDP
14
03
101
HISTORICAL MODEL
PIN COUNT
SCHEMATIC
RESISTANCE VALUE
G
TOLERANCE CODE
D04
PACKAGING
New Global Part Numbering: MDP1405121CGD04 (preferred part numbering format)
M
GLOBAL
MODEL
MDP
D
P
1
4
0
5
1
2
1
C
G
D
0
4
SPECIAL
Blank = Standard
(Dash Number)
(up to 3 digits)
From
1 to 999
as applicable
D04
PIN COUNT
14
= 14 pin
16
= 16 pin
SCHEMATIC
05
= Dual
terminator
RESISTANCE
VALUE
3 digit impedance code,
followed by alpha
modifier (see Impedance
Codes table)
TOLERANCE
CODE
F
=±1%
G
=±2%
J
=±5%
PACKAGING
E04
= Lead (Pb)-free, tube
D04
= Tin/lead, tube
Historical Part Number Example: MDP1405221271G (will continue to be accepted)
MDP
14
05
221
271
HISTORICAL MODEL
G
PIN COUNT SCHEMATIC RESISTANCE VALUE 1 RESISTANCE VALUE 2 TOLERANCE CODE PACKAGING
Note
• For additional information on packaging, refer to the Through-Hole Network Packaging document (www.vishay.com/doc?31542).
Revision: 12-Sep-13
Document Number: 31511
1
For technical questions, contact:
ff2aresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MDP 01, 03, 05
www.vishay.com
DIMENSIONS
in inches (millimeters)
A
±
0.010 (0.254)
0.120
±
0.005
(3.05
±
0.127)
0.310
±
0.010
(7.87
±
0.254)
0.250
±
0.005
(6.35
±
0.127)
Pin #1
Identification
Pin #1
0.030
(0.762) Typ.
Vishay Dale
0.075
±
0.015
(1.90
±
0.381)
0.100
±
0.010
(2.54
±
0.254)
Non-Accumulative Tol.
"C" Spaces
0.018
±
0.003
(0.457
±
0.076)
0.130 + 0.015
- 0.010
(3.30 + 0.381
- 0.254)
0.050
±
0.005
(1.27
±
0.127)
0.010 + 0.005
- 0.002
(0.254 + 0.127
- 0.051)
0.290 Min.
0.320 Nom.
0.360 Max.
(7.37 Min.
8.13 Nom.
9.14 Max.)
B
±
0.010 (0.254)
GLOBAL MODEL
MDP 14
MDP 16
A
0.750 (19.05)
0.850 (21.59)
B
0.600 (15.24)
0.700 (17.78)
C
6
7
TECHNICAL SPECIFICATIONS
PARAMETER
Package Power Rating (Maximum at +70 °C)
Voltage Coefficient of Resistance
Dielectric Strength
Insulation Resistance
Operating Temperature Range
Storage Temperature Range
UNIT
W
V
eff
V
AC
°C
°C
MDP14
1.73
< 50 ppm typical
200
> 10 000M minimum
-55 to +125
-55 to +150
MDP16
1.92
MECHANICAL SPECIFICATIONS
Marking Resistance to Solvents
Solderability
Body
Terminals
Weight
Permanency testing per MIL-STD-202, method 215
Per MIL-STD-202, method 208E
Molded epoxy
Solder plated leads
14 pin = 1.3 g; 16 pin = 1.5 g
IMPEDANCE CODES
CODE
500B
750B
800C
990A
101C
111C
121B
121C
131A
R
1
()
82
120
130
160
180
180
180
220
220
R
2
()
130
200
210
260
240
270
390
270
330
CODE
141A
181A
191A
221B
281B
381B
501C
102A
202B
R
1
()
270
330
330
330
560
560
620
1.5K
3K
R
2
()
270
390
470
680
560
1.2K
2.7K
3.3K
6.2K
Note
• For additional impedance codes, refer to the Dual Terminator Impedance Code Table document (www.vishay.com/doc?31530).
Revision: 12-Sep-13
Document Number: 31511
2
For technical questions, contact:
ff2aresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MDP 01, 03, 05
www.vishay.com
Vishay Dale

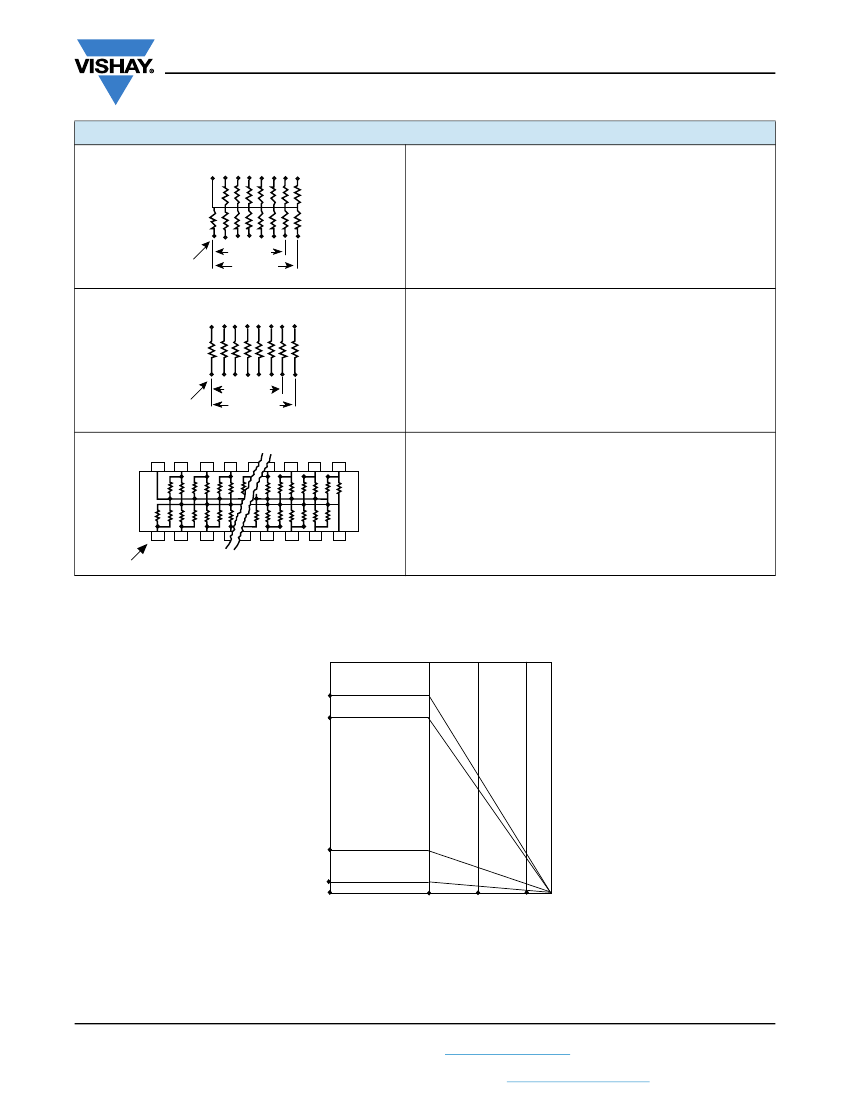

CIRCUIT APPLICATIONS
01 Schematic
13 and 15 resistors with one pin common
The MDPXX01 circuit provides a choice of 13 and 15 nominally equal
resistors, each connected between a common pin (14 and 16) and a
discrete PC board pin. Commonly used in the following applications:
• MOS/ROM Pull-up/Pull-down
• Open Collector Pull-up
• “Wired OR” Pull-up
• Power Driven Pull-up
• TTL Input Pull-down
• Digital Pulse Squaring
• TTL Unused Gate Pull-up
• High Speed Parallel Pull-up
• • • • • • • •
MDP1401
Pin #1
MDP1601
03 Schematic
7 or 8 isolated resistors
The MDPXX03 provides a choice of 7 and 8 nominally equal resistors,
each resistor isolated from all others and wired directly across.
Commonly used in the following applications:
• “Wired OR” Pull-up
• Power Driven Pull-up
• Powergate Pull-up
• Line Termination
• Long-line Impedance Balancing
• LED Current Limiting
• ECL Output Pull-down
• TTL Input Pull-down
MDP1403
Pin #1
MDP1603
05 Schematic
TTL dual-line terminator; pulse squaring
R1
R2
R1
R2
R2
R1
R2
R1
R2
R1
R2
R1
R2
R1
R2
R1
R1
R2 R2
R1
R2
R1
R2
R1
R2
R1
R2
R1
The MDPXX05 circuit contains 12 and 14 series pair of resistors. Each
series pair is connected between ground and a common line. The
junction of these resistor pairs is connected to the input terminals. The
05 circuits are designed for TTL dual-line termination and pulse
squaring.
Pin #1
MDP1405, MDP1605
Note
• Standard E24 resistance values stocked. Consult factory.
DERATING
Power Rating (W)
3.00
2.70
16 Pin Package
14 Pin Package
Single Resistor
0.380
03
0.190
- 50
01 and 05
+ 25
+ 70
+ 125 + 150
Ambient Temperature °C
Revision: 12-Sep-13
Document Number: 31511
3
For technical questions, contact:
ff2aresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MDP 01, 03, 05
www.vishay.com
Vishay Dale
MAX.
R
(TYPICAL TEST LOTS)
± 0.50 %
R
± 0.50 %
R
± 0.25 %
R
± 0.25 %
R
± 0.50 %
R
± 0.25 %
R
± 0.25 %
R
± 0.25 %
R
± 1.00 %
R
± 0.25 %
R
-
-
PERFORMANCE
TEST
Power Conditioning
Thermal Shock
Short Time Overload
Low Temperature Operation
Moisture Resistance
Resistance to Soldering Heat
Shock
Vibration
Load Life
Terminal Strength
Insulation Resistance
Dielectric Withstanding Voltage
CONDITIONS
1.5 rated power, applied 1.5 h “ON” and 0.5 h “OFF” for 100 h
± 4 h at +25 °C ambient temperature
5 cycles between -65 °C and +125 °C
2.5 x rated working voltage 5 s
45 min at full rated working voltage at -65 °C
240 h with humidity ranging from 80 % RH to 98 % RH
Leads immersed in +350 °C solder to within 1/16" of device body for 3 s
Total of 18 shocks at 100
g’s
12 h at maximum of 20
g’s
between 10 Hz and 2000 Hz
1000 h at +70 °C, rated power applied 1.5 h “ON,
0.5 h “OFF” for full 1000 h period. Derated according to the curve.
4.5 pound pull for 30 s
10 000 M (minimum)
No evidence of arcing or damage (200 V
RMS
for 1 min)
Revision: 12-Sep-13
Document Number: 31511
4
For technical questions, contact:
ff2aresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of
typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding
statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a
particular product with the properties described in the product specification is suitable for use in a particular application.
Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over
time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.
Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for
such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document
or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
© 2017 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED
Revision: 08-Feb-17
1
Document Number: 91000
京公网安备 11010802033920号
EEWORLD
