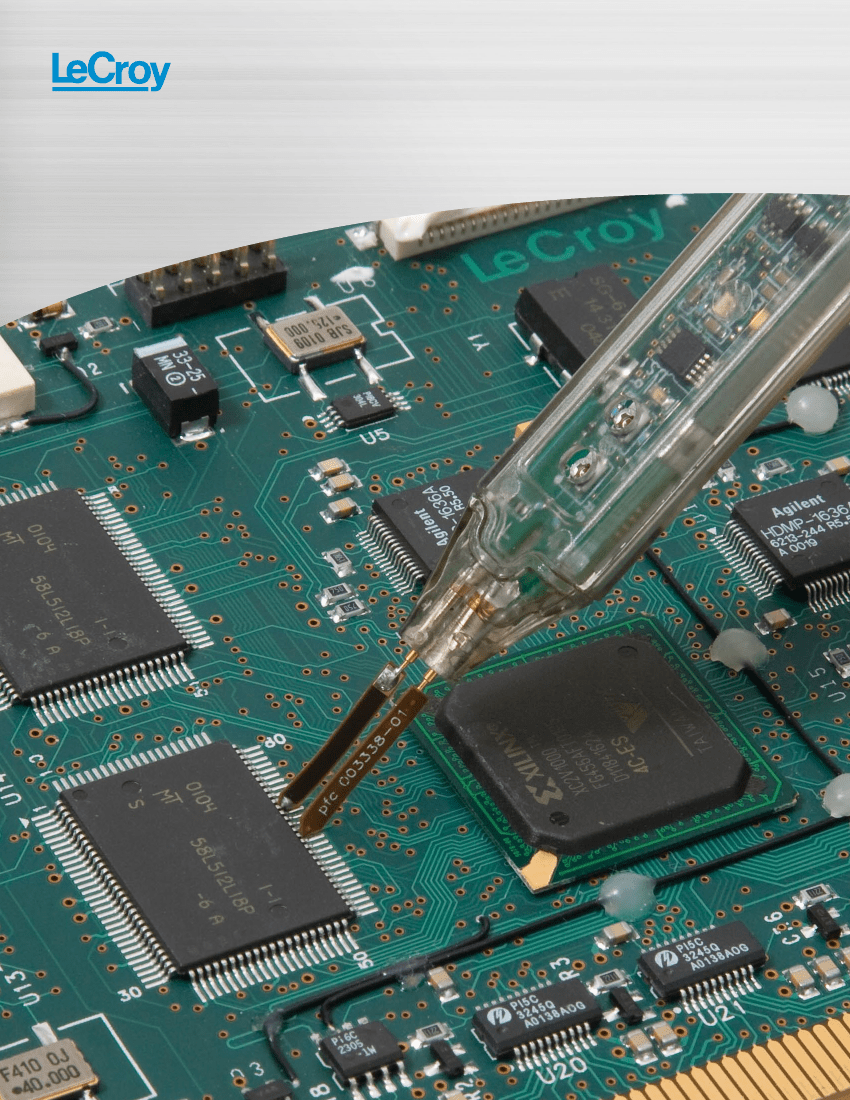

zD series active Differential probes
seborp laitnereffiD evitca seires Dz
the zD series probes provide
wide dynamic range, excellent
noise and loading performance
and an extensive set of probe tips,
leads, and ground accessories to
handle a wide range of probing
scenarios. the low 1 pf capacitance
means this probe is ideal for
all frequencies. the zD series
differential probes provide full
system bandwidth for all lecroy
oscilloscopes 1.5 GHz
and lower.
fully integrated
With the ProBus interface, the ZD500,
1000, and 1500 becomes an integral
part of the oscilloscope. All probe gain
and offset controls are transparent
to the user, making it easier to probe
the circuit without concern for which
gain setting to choose. When used
with a LeCroy digital oscilloscope, no
external power supply is required.
Wide Dynamic range
The ZD500, 1000, 1500 probes
provides transparent probe attenuation
so signals are always optimized for
the display. The differential range
is 18 V
p-p
with a differential offset
of ±8 and common mode range of
±10 V, making this versatile for every
probing application.
The differential input capacitance
is only 1 pF to minimize loading
distortion on the highest frequency
signals under test. System noise
of only 4 mV
rms
allows accurate
measurement of the smallest signals.
innovative probe leads
and tips provide excellent
signal performance Without
Degradation
Probing with long leads or accessories
is sometimes necessary to reach
the test points, but it comes at the
expense of reduced bandwidth,
increased capacitance, and added
noise. The ZD accessories are
engineered to provide the best signal
fidelity without ringing or distortions
commonly introduced with tip
accessories.
Wide applications
The wide dynamic range of
16 V
p-p
and offset range of ±8
suit this probe to a wide range of
applications and signal types. The
ZD differential probes are ideally
suited for Automotive, Serial Data,
power, and general purpose use.
2

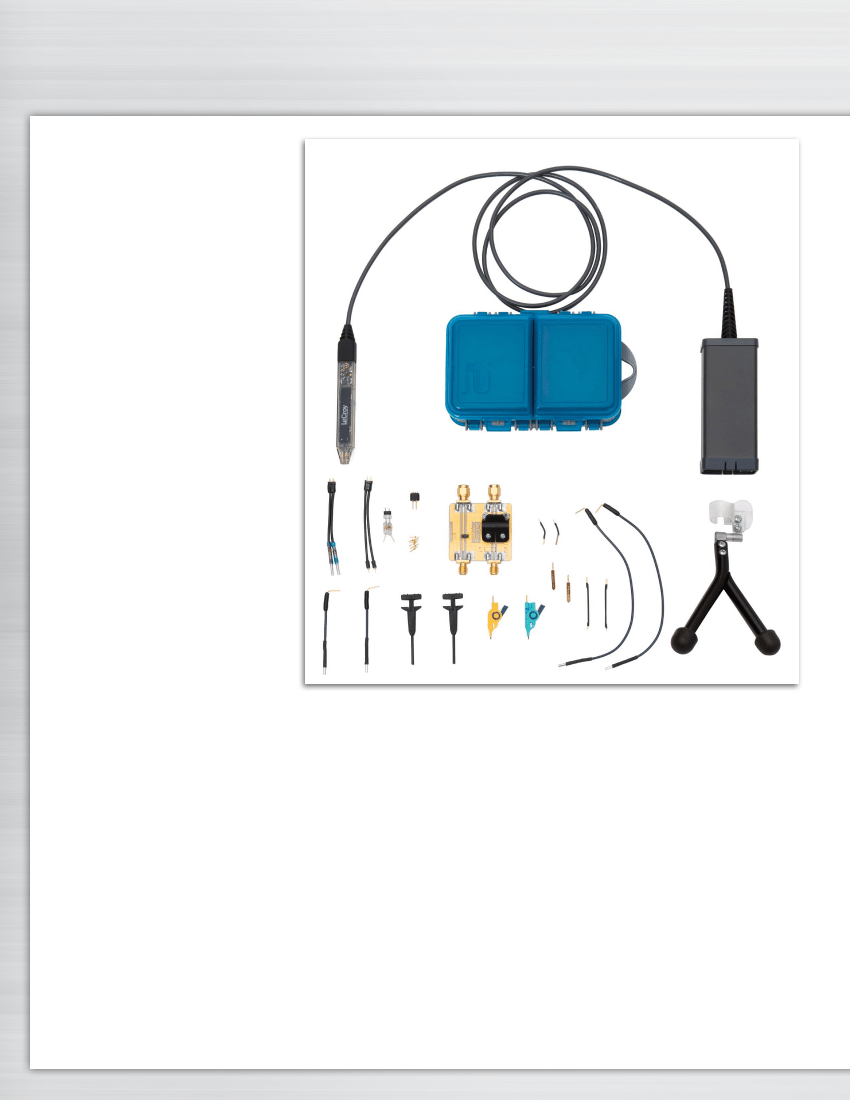

a variety of probe tips
for varied tasks
Engineers often need to probe a
variety of different test points in
confined spaces. The extensive
range of standard tip accessories
for the ZD Series of probes ensures
that this probe can meet any difficult
probing challenge.
zD series active Differential probes
SeborP lAitnereffiD evitcA SeireS DZ

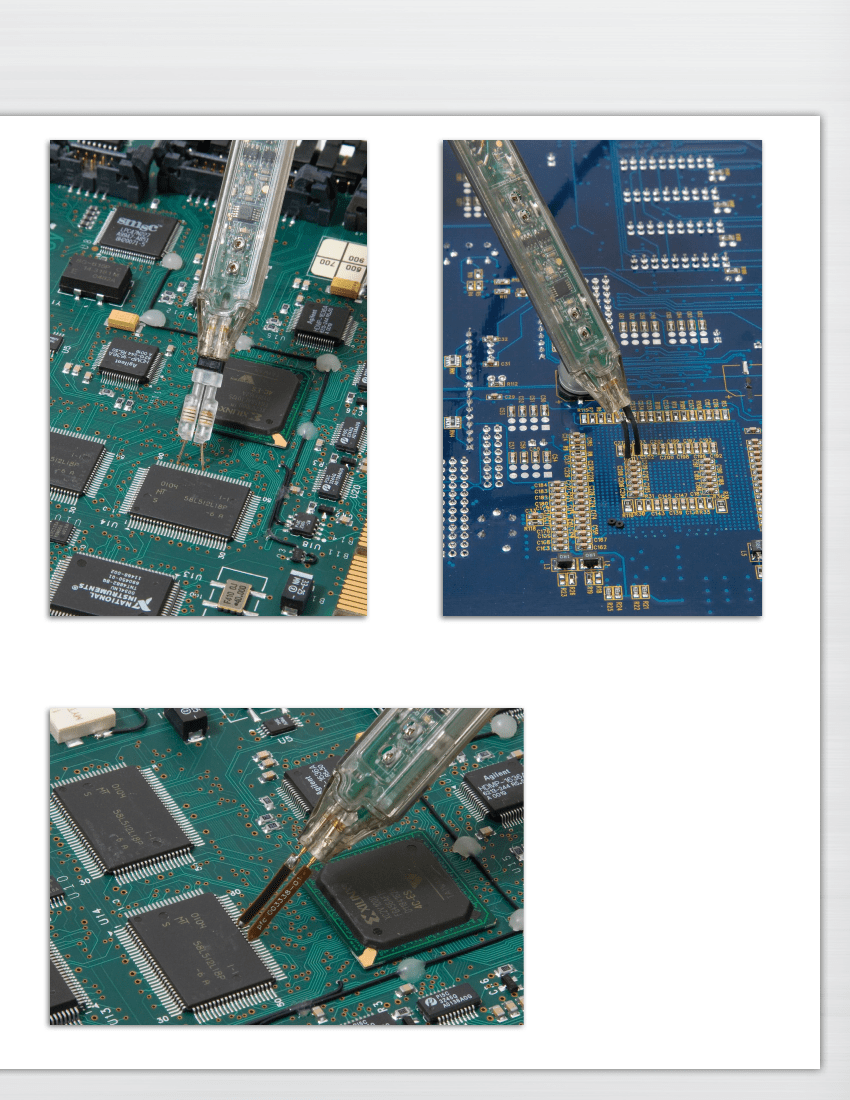

The short spring loaded ground leads can be used
as either a ground accessory or an extension of the
probe inputs.
The IC leads with a compensation
resistor provide excellent signal
fidelity when probing pins of an IC.
One side of each blade is insulated
to prevent shorting the signal to the
adjacent pin.
3
The Swivel Tip adapter can be adjusted to probe
test points ranging from 0 to .300” apart with
Z-Axis compliance.
specifications anD orDerinG information
specifications
electrical characteristics
Bandwidth (Warranted)
Bandwidth (Typical)
Risetime 10–90% (Typical)
Risetime 20–80% (Typical)
LF Attenuation Accuracy (Warranted)
Zero Offset (Typical)
(within 15 minutes after autozero)
System Noise (Typical)
Probe Noise Density (Typical)
Input Differential Range (Nominal)
Differential Offset Range (Nominal)
Offset Gain Accuracy (Typical)
Common Mode Range (Nominal)
Maximum Non-destruct Voltage
(Nominal)
CMRR (Typical)
DC Input Resistance (Nominal)
Differential Input Capacitance
(Typical)
1500 MHz
1700 MHz
270 ps
200 ps
1000 MHz
1200 MHz
375 ps
280 ps
2%
5 mV
1.75 mV
rms
38 nV/rt (Hz)
±8 V (16 V
p-p
)
±18 V
2%
±10 V
30 V
60 dB 50/60 Hz
30 dB 20 MHz
25 dB @ 1000 MHz
50 kΩ (Common Mode)
120 kΩ (Differential Mode)
< 1.0 pF
500 MHz
650 MHz
650 ps
500 ps
noitamrofni gniredro dna snoitacificeps
zD1500
zD1000
zD500
1.75 mV
rms
1.3 mV
rms
60 dB 50/60 Hz
30 dB 20 MHz
25 dB @ 1500 MHz
60 dB 50/60 Hz
30 dB 20 MHz
25 dB 500 MHz
ordering information
product Description
500 MHz, 1.0 pF, 1 MΩ Active Differential Probe
1 GHz, 1.0 pF, 1 MΩ Active Differential Probe
1.5 GHz, 1.0 pF, 1 MΩ Active Differential Probe
product code
ZD500
ZD1000
ZD1500
PACC-ZD001
PACC-ZD002
PACC-ZD003
PACC-ZD004
PACC-ZD005
PACC-ZD006
PACC-ZD009
PACC-LD003
product Description
Right Angle Connector Long, Qty 2
Micrograbber, Qty 2
Minigrabber, Qty 2
Short Spring Loaded Bendable Ground, Qty 2
Probe Calibration Fixture, Qty 1
ZD Replacement Kit
Hands Free Probe Holder, Qty1
customer service
LeCroy oscilloscopes and probes are designed, built, and tested to ensure high
reliability. In the unlikely event you experience difficulties, our digital oscilloscopes
are fully warranted for three years and our probes are warranted for one year.
This warranty includes:
•
No charge for return shipping
•
Long-term 7-year support
•
Upgrade to latest software at no charge
product code
PACC-LD004
PK006-4
PACC-CL001
PACC-CD008
PCF200
PK111
PACC-MS001
standard accessories
Y Lead Adapter, Qty 1
Solder-In Lead, Qty 2
Long Spring Loaded Bendable Ground, Qty 2
Tip Saver, Qty 2
Swivel Tip Adapter
Small IC Adapter, Qty 2
Micro Pogo Pin Tip, Qty 6
Right Angle Connector Short, Qty 2
1-800-5-LeCroy
www.lecroy.com
local sales offices are located throughout the world.
visit our website to find the most convenient location.
ZDProbesDS-25May11
PDF
© 2011 by LeCroy Corporation. All rights reserved. Specifications, prices, availability, and delivery subject to change.
without notice. Product or brand names are trademarks or requested trademarks of their respective holders.
