WaveSurfer 10
Oscilloscopes
1 GHz, 10 GS/s
Key Features
•
•
•
1 GHz, 10 GS/s, up to 16 Mpts/ch
MAUI - Advanced User Interface
Designed for Touch
Built for Simplicity
Made to Solve
The WaveSurfer 10 combines the MAUI advanced user interface
with powerful waveform processing, in addition to advanced math,
measurement and debug tools, to quickly analyze and find the root
cause of problems. With a 10.4” touch screen display, high performance
hardware, and compact form factor the WaveSurfer 10 is unique among
1 GHz oscilloscopes.
–
–
–
WaveScan - Advanced Search
and Find
Report Generation
•
LabNotebook Documentation and
•
•
Spectrum Analyzer Mode
•
Power Analysis Software
•
Serial Trigger and Decode
–
I C, SPI, UART
–
CAN, LIN, FlexRay, SENT
–
Ethernet 10/100BaseT,
USB 1.0/1.1/2.0, USB2.0-HSIC
–
Audio (I S, LJ, RJ, TDM)
–
MIL-STD-1553, ARINC 429
–
MIPI D-PHY, DigRF 3G, DigRF v4
–
Manchester, NRZ
•
Advanced Debug Toolkit adds:
–
10 GS/s on all 4 channels
–
16 Mpts/ch memory (32 Intlv’d)
–
Sequence Mode Segmented
Memory
–
History Mode Waveform
Playback
–
13 Additional Math Operators
–
2 Math Functions
10.4” Touch Screen Display
2
2
MAUI - A New Wave of Thinking
MAUI is the most advanced
oscilloscope user interface. MAUI
is designed for touch; all important
oscilloscope controls are accessed
through the intuitive touch screen.
MAUI is built for simplicity; time
saving shortcuts and intuitive dialogs
simplify setup. MAUI is made to solve;
deep set of debug and analysis
tools help identify problems and find
solutions quickly.
Advanced Debug Toolkit
With the addition of the Advanced
Debug Toolkit, the WaveSurfer 10
becomes an unparalleled debug and
analysis machine adding 10 GS/s
sample rate on 4 channels, 32 Mpts
of memory, sequence mode, history
mode, 13 additional math functions,
and 2 simultaneous math traces.
Capture Debug, Analyze,
Document
Easily accessible measurement, math
and debug tools, plus a wide variety of
serial data protocol decoders, and ac-
tive probes ensure the WaveSurfer 10
can capture and analyze any type of
waveform and simplify the debug pro-
cess. The LabNotebook tool provides
a fast way to save waveforms, save
setups and screen images, report
results, and view offline.
Uncompromised Performance
Many 1 GHz oscilloscopes are avail-
able at attractive entry-point prices,
however, they are often limited in
sample rate, memory or features. The
WaveSurfer 10 provides uncompro-
mised 1 GHz performance with up
to 10 GS/s per channel and 32 Mpts
of memory.
MAUI – A NEW WAVE OF THINKING
MAUI is the most advanced oscilloscope user interface
developed to put all the power and capabilities of the modern
oscilloscope right at your fingertips. Designed for touch;
all important oscilloscope controls are accessed through the
intuitive touch screen. Built for simplicity; time saving
shortcuts and intuitive dialogs simplify setup. Made to solve;
a deep set of debug and analysis tools helps identify problems
and find solutions quickly.
Oscilloscopes are constantly evolving to meet the rapidly changing test and measurement needs of today’s cutting edge
designs. Additional complexity and capabilities are introduced with each new feature, and in some cases when capabilities
of other instruments like a protocol analyzer, function generator or logic analyzer are added. With all this added capability
the oscilloscope becomes complex and cumbersome to use. The traditional user interface consisting of knobs, buttons,
soft keys and nested menus is unmanageable and more buttons are typically added to access the new functionality.
MAUI solves the complexity problem. MAUI eliminates the overwhelming number of buttons and knobs providing an
intuitive user interface that is designed for touch, built for simplicity and made to solve without sacrificing any features or
cutting edge test capabilities.
Designed for Touch
MAUI is designed for touch. All
important controls for vertical,
horizontal and trigger are always
one touch away. Touch the
waveform to position and drag a
box around it to zoom in for more
details. Position cursors, configure
measurements and interact with
tables all through simple
touch operation.
2
Built for Simplicity
MAUI is built for simplicity. Basic
waveform viewing and measure-
ment tools as well as advanced
math and analysis capabilities are
seamlessly integrated in a single
user interface. Time saving short-
cuts and intuitive dialogs simplify
setup and shorten debug time.
A
B
C
D
A
B

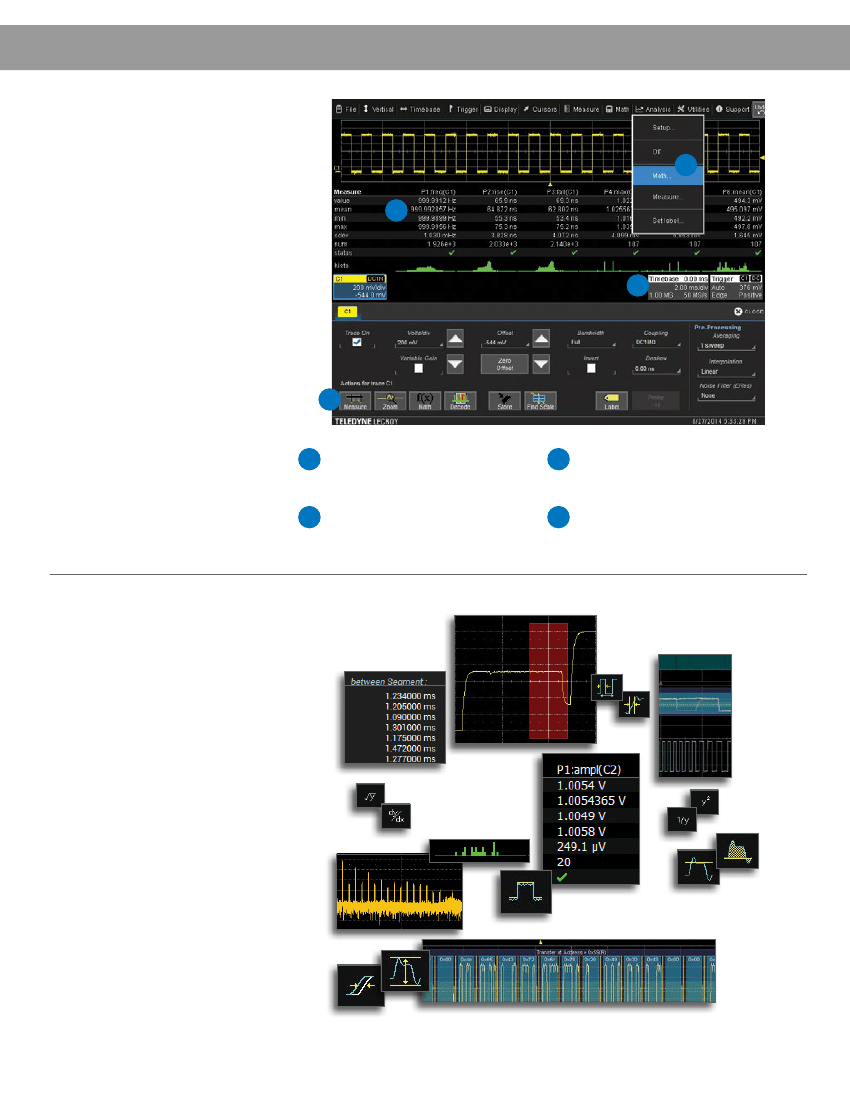

Access shortcuts to analysis tools
by touching the waveform.
Configure parameters by touching
measurement results.
C
D
Channel, timebase and trigger
descriptors provide easy access to
controls without navigating menus.
Shortcuts to commonly used functions
are displayed at the bottom of the
channel, math and memory menus.
Made to Solve
MAUI is made to solve. Measure all
aspects of a waveform to identify
problems. Debug with a large set of
time saving tools to find the cause
of problems. Solve problems fast
with powerful analysis tools.
3
ADVANCED TOOLS FOR WAVEFORM ANALYSIS
Embedded Controller Design
and Debug
Save time when working with embedded
controllers by adding high-performance
mixed signal capability with the
WaveSurfer 10. Capture digital signals
up to 250 MHz with up to 10 Mpts/Ch
memory, 1 GS/s and 18 channels.
Quickly and easily isolate specific
serial data events with I
2
C, SPI, UART,
RS-232, USB 1.0/1.1/2.0, USB2-HSIC,
10/100Base T ENET, Audio (I2S, LJ, RJ,
TDM), MIL-STD-1553, ARINC 429,
MIPI D-PHY, DigRF, CAN, CAN FD, LIN,
FlexRay, SENT, Manchester, and NRZ
trigger and decode options.

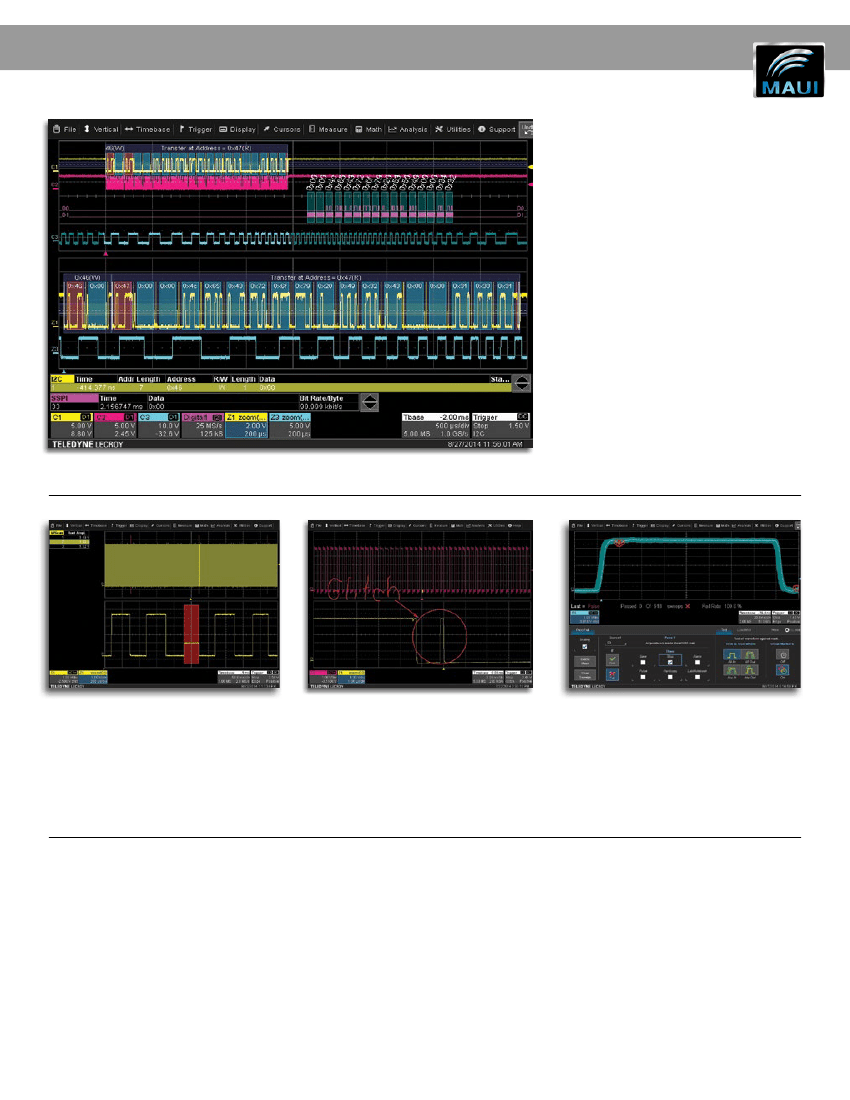

WaveScan Advanced Search
and Find Tool
Quickly search waveforms for
runts, glitches or other anomalies
with WaveScan.
LabNotebook Documentation
and Report Generation Tool
Save all results and data with a
single button press and create
custom reports with LabNotebook.
Pass/Fail Mask Testing
Built-in masking testing quickly
identifies problems and marks the
location. A history of the pass/fail
results can be displayed on the screen.
Enhanced Resolution
The enhanced resolution (ERES)
feature improves vertical resolu-
tion of the oscilloscope resulting
in cleaner traces and the ability to
see more signal details. Up to
3 bits of ERES can be applied.
Advanced Math and Measure
Use automatic measurement param-
eters with statistics and histicons as
well as math functions to understand
every waveform detail.
WaveStream Fast Viewing Mode
WaveStream provides a vibrant,
intensity graded (256 levels) display
with a fast update to closely
simulate the look and feel of an
analog oscilloscope.
4

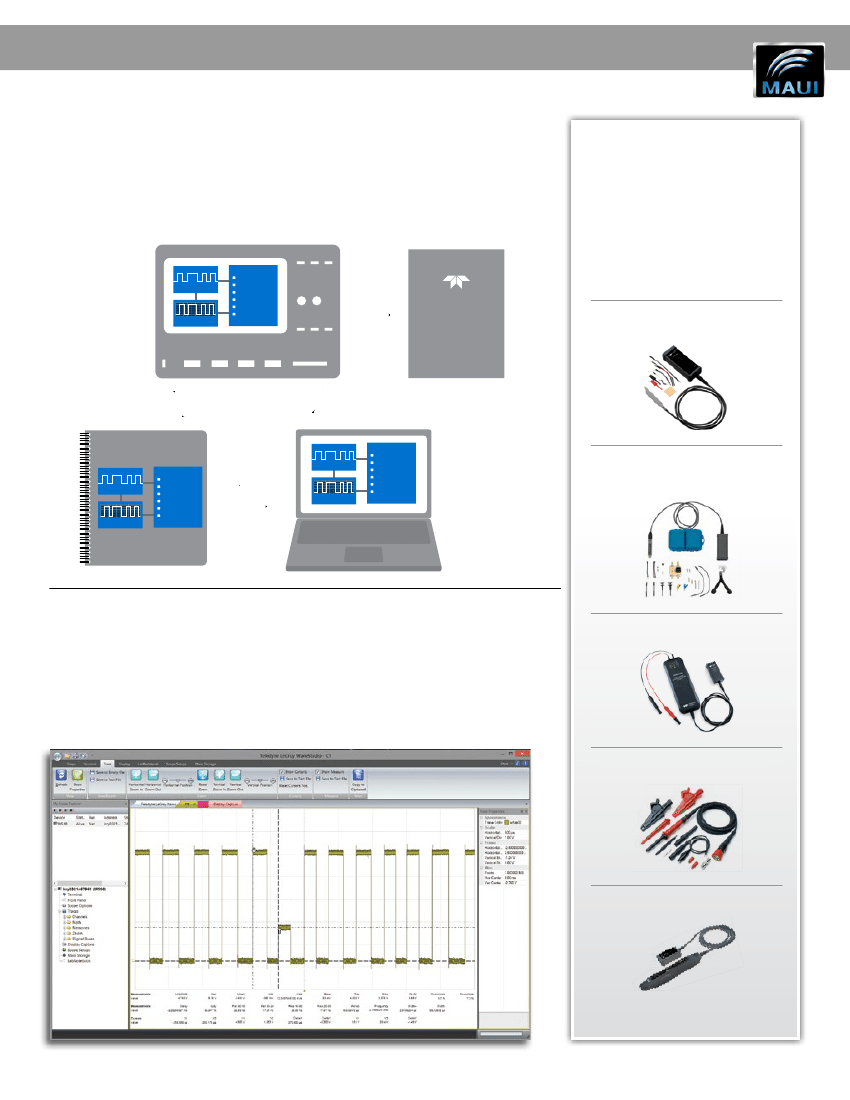

LabNotebook Documentation Tool
LabNotebook is a one-button tool to save and restore waveforms, measurements
and settings without navigating multiple menus. Custom reports can be created and
easily shared; saved waveforms can be measured and analyzed later both on the
oscilloscope or offline using the WaveStudio PC Utility.
Advanced Probe Interface
The advanced active probe
interface gives tremendous
flexibility for measuring high
voltages, high frequencies,
currents, or differential signals.
Waveform
Screen Capture
V/div
T/div
Memory Length
Sample Rate
Measurement
Math
REPORT
High Impedance Active Probes
Waveform
V/div
T/div
Memory Length
Sample Rate
Measurement
Math
Waveform
Screen Capture
V/div
T/div
Memory Length
Sample Rate
Measurement
Math
High Bandwidth
Differential Probes
Screen Capture
WaveStudio Offline Analysis Tool
WaveStudio is a fast and easy way to analyze acquired waveforms offline. Offline
tools include x and y axis cursors for quick measurements and 21 built-in automatic
measurements for more precise and accurate results. WaveStudio can also connect
to the oscilloscope for direct data transfer to the PC. Data saved with LabNotebook
can be shared with others using WaveStudio for easy collaboration.
High Voltage Differential Probes
High Voltage Passive Probes
Current Probes
5
