5405: DescriptionRF Adapters - Between Series ADAPTER,BNC FEMALE TO DOUBLE BAN PLUG; CategoryThe connector The connector; File Size30KB，1 Pages; ManufacturerPomona Electronics Inc.; Websitehttps://www.pomonaelectronics.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

5405 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5405	-	-	View	Buy Now

5405 Overview

RF Adapters - Between Series ADAPTER,BNC FEMALE TO DOUBLE BAN PLUG

5405 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Pomona Electronics Inc.
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Adapter type	BANANA-BINDING
Other features	MALE, ACRYLONITRILE BUTADIENE STYRENE
Body/casing type	PLUG-PLUG
Connector type	INTERCONNECTION DEVICE
Contact to complete cooperation	AU
Contact material	BRASS
Contact style	COAX
insulator material	ABS
Installation method	STRAIGHT
Maximum operating temperature	50 °C
Rated current (signal)	15 A
reliability	COMMERCIAL
Base Number Matches	1

Preview

Download Datasheet

View All

Pomona

Model 1286 & 5405

Double Banana Plug With

Binding Posts

FEATURES:

•

Converts Double Banana Jack Test Instruments to Binding Posts for test versatility.

•

Banana Plugs can be stacked vertically or horizontally.

•

Wires, spade lugs and pin tip plugs can be attached by means of the insulated knurl thumb knob.

•

Insulated knurl thumb knob is captive to prevent misplacement.

•

Banana Plugs feature Nickel/Gold Plated, Beryllium Copper for tarnish resistance & long insertion life.

MATERIALS:

Binding Post: Body – Brass, Nickel Plated (Model 1286), Brass, Gold Plated (Model 5405)

Insulator Knurl Thumb Knob: Polycarbonate, Color: Black, Red

Insulator: ABS, Molded to the binding Post and Banana Body

Marking: “1286 POMONA ELECTRONICS” or “5405 POMONA ELECTRONICS”

Banana Plug: Body: Brass, Nickel Plated (Model 1286), Brass, Gold Plated (Model 5405)

Spring: Beryllium Copper, Nickel Plated (Model 1286)

Beryllium Copper, Gold Plated (Model 5405)

RATINGS:

Operating Voltage: 2500 VDC

Operating Temperature: +50°C (+122°F).

Current: 15 Amperes Max.

ORDERING INFORMATION:

Model 1286 & 5405

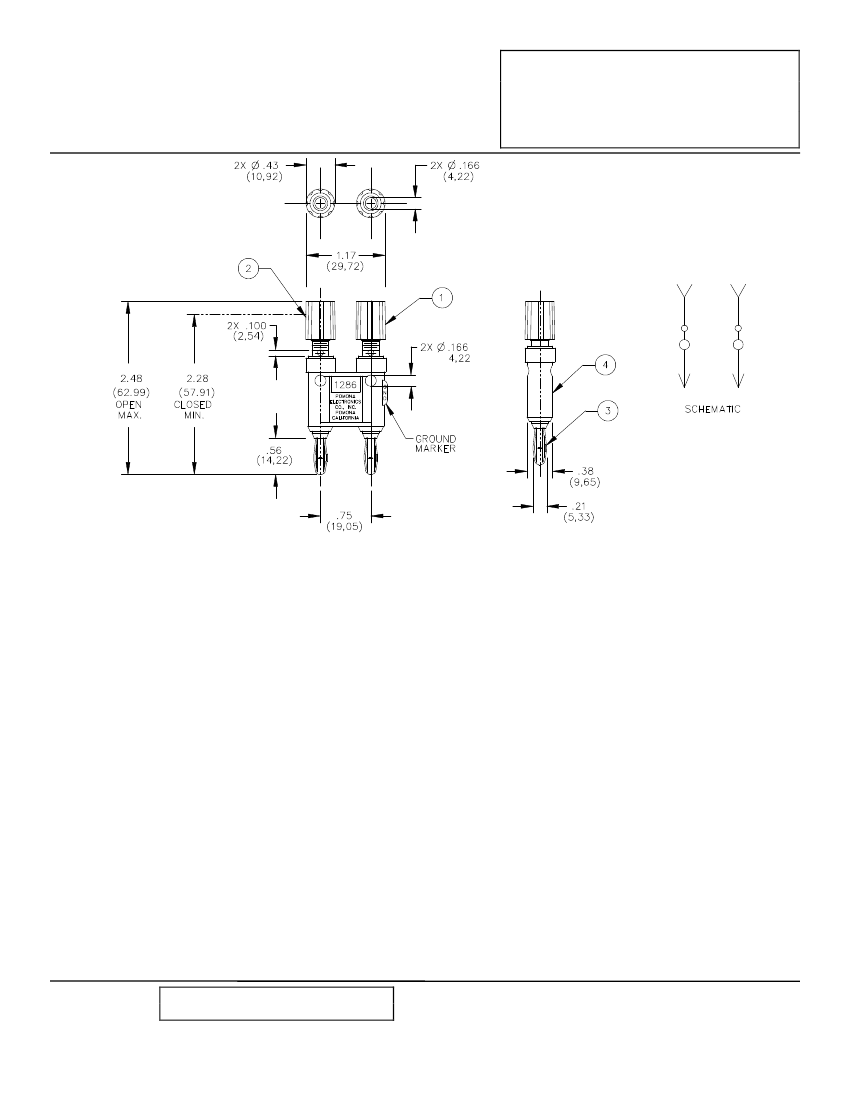

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).

All specifications are to the latest revisions. Specifications are subject to change without notice.

Registered trademarks are the property of their respective companies. Made in USA

6/9/99

SY/EH/LS

Sales: 909-469-2900 Fax: 909-629-3317

Technical Assistance: 800-241-2060

PomonaACCESS

90500

(800) 444-6785 or (949) 253-3858

More drawings available at www.pomonaelectronics.com

Page 1 of 1

R:\Release\DataSheet\1_Market_00\D1286_5405_1_01.doc
