Fluke 3000 FC
Series Test Tools
Now compatible with Fluke
Connect
™
Mobile App
Start building tomorrow’s test tool system
today with the Fluke 3000 FC Digital
Multimeter.
The new Fluke Connect system of test tools
communicates with the new Fluke Connect mobile
app on your Android™ or iOS smart device, allowing
you to share live measurements, monitor readings
from safe distances, and get your job done easier
than ever before. The wireless digital multimeter
functions as the mobile hub, displaying readings
from up to three module tools simultaneously from
up to 20 meters away. The Fluke Connect modules
also give you the flexibility to build your wireless
test tool system how you want when you want.
Technical Data
Fluke 3000 FC Test Tools
(Not compatible with Fluke CNX test tools)
•
•
•
•
•
•
•
•
Wireless Digital Multimeter
iFlex True-rms AC Current Clamp Module
True-rms AC Current Clamp Module
AC Voltage Module
K-Type Temperature Module
AC/DC Current Clamp Module
DC Voltage Module
PC Adapter
Built with
Productivity
See it. Save it. Share it.
All the facts, right in the field.
Fluke Connect with ShareLive
™
is the only wireless measurement system
that lets you stay in contact with your entire team without leaving the
field. The Fluke Connect mobile app is available for Android™ (4.3
and up) and iOS (4s and later) and works with over 20 different Fluke
products—the largest suite of connected test tools in the world. And more
are on the way. Go to the Fluke website to find out more.
Make the best decisions faster than ever before by viewing all
temperature, mechanical, electrical and vibration measurements for
each equipment asset in one place. Get started saving time and
increasing your productivity.
Download the app at:
•
Communicate with your iOS (4s and later) and
Android™ (4.3 and up) devices with the new Fluke
Connect mobile app
•
Wireless technology allows connectivity between
your phone, PC, and all Fluke Connect enabled test
tools
•
Let your team see what you see in an instant with
ShareLive™ video call
•
Save money and time by taking multiple measure-
ments simultaneously
•
Isolate intermittent events or record signal fluc-
tuations without even being there using the log
function on the modules
Smart phone not included with purchase.
Productivity (continued)
•
View results on your computer with the PC Adapter
•
Work with fewer interruptions by recording multiple
sessions before downloading. Data is saved to a PC
in .csv format (comma separated variable) file format
for easy viewing at your convenience
•
Capture readings at different intervals, with user-set
recording intervals from one second to one hour
•
Future proof your investment by adding functionality
to the 3000 FC DMM when you need it
Convenience
•
Send and communicate test data to your manager
and coworkers to assess abnormal system response
in seconds
•
Have all asset test results at your fingertips after
downloading to your PC for future asset performance
Safety
•
Be in multiple places at once, reducing the risk of
tracking and reliability programs
arc flash by separating yourself from hazardous
•
See multiple measurements on one screen at one
measurement situations
time (DMM and three modules, Ti200/300/400 and
•
Fluke 3000 FC meets Measurement Category 1000
five modules)
V CAT III and Category IV 600 V safety standards:
•
No more writing data down. Capture up to 65000
AC Current Clamp module and AC/DC Current Clamp
sets of min/max/avg readings over single or multiple
module 600 V CAT III; AC Voltage Module, DC Voltage
logging sessions using the recording capability. Each
Module, and iFlex Clamp Meters 600 V CAT IV/1000
reading and session is time stamped
CAT III
•
Avoid awkward or uncomfortable measurement posi-
tions. Set up the measurement once, step
back and read it as many times as you want, when
you want
•
View up to 6 live readings at once on the Fluke
Connect mobile app or a PC to get a complete
understanding of the situation
•
Easily see backlit displays in dark or dimly lit work
environments
•
Choose auto or manual ranging
•
Use the optional TPak Magnetic Hanger for even
more hands-free working
•
Integrated holster protects the meters, while probe
holders keep accessories organized
(RF connection time (binding time) can take up to 1 minute.)
2 Fluke Corporation
Fluke 3000 FC Series Test Tools. The Fluke Wireless Team.

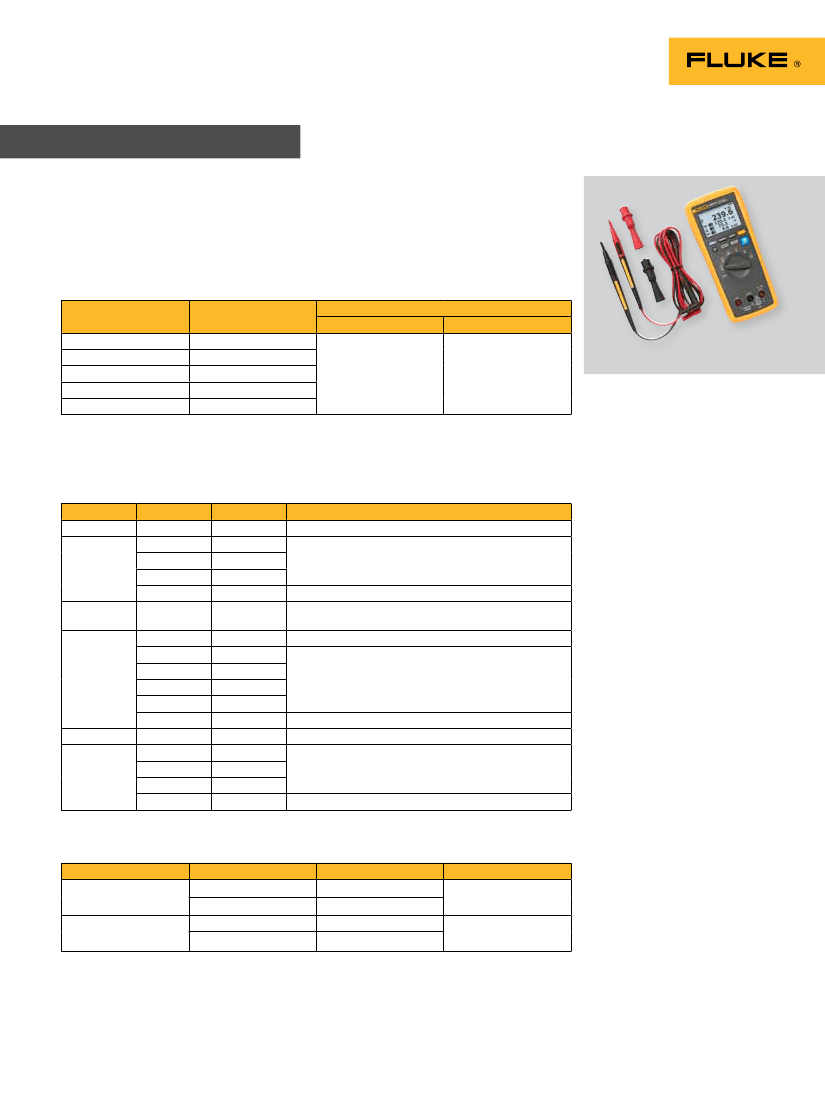

General specifications
Fluke 3000 FC Series Wireless Multimeter
Detailed specifications (Not compatible with Fluke CNX test tools)
For all specifications: accuracy is specified for one year after calibration, at operating temper-
atures of 18 °C to 28 °C, with relative humidity at 0 % to 90 %. Accuracy specifications take
the form of ± ([ % of Reading ] + [ Number of least significant digits ]).
AC voltage
Range
1
600.0 mV
6.000 V
60.00 V
600.0 V
1000 V
1
2
Resolution
0.1 mV
0.001 V
0.01 V
0.1 V
1 V
Accuracy
2,3,4
45 Hz to 500 Hz
500 Hz to 1 kHz
Contents
1.0 % + 3
2.0 % + 3
All ac voltage ranges are specified from 1 % of range to 100 % of range.
Crest factor of ≤ 3 at full scale up to 500 V, decreasing linearly to crest factor < 1.5 at 1000 V.
3
For non-sinusoidial waveforms, add
±
(2 % of reading + 2 % full scale) typical, for crest factor up to 3.
4
Do not exceed 10
7
V-Hz.
DC voltage, continuity, resistance, diode test and capacitance
Function
mV
V
Range
600.0 mV
6.000 V
60.00 V
600.0 V
1000 V
600 Ω
600.0 Ω
6.000 kΩ
60.00 kΩ
60.00 kΩ
600.0 kΩ
50.00 MΩ
2.000 V
1000 nF
10.00 μF
100.0 μF
9999 μF
1
Resolution
0.1 mV
0.001 V
0.01 V
0.1 V
1 V
1 Ω
0.1 Ω
0.001 kΩ
0.01 kΩ
0.1 kΩ
0.001 MΩ
0.01 MΩ
0.001 V
1 nF
0.01 μF
0.1 μF
1 μF
Accuracy
0.09 % + 2
0.09 % + 2
0.15 % + 2
Meter beeps at < 25 Ω, beeper detects opens or shorts
of 250 μs or longer.
0.5 % + 2
0.5 % + 1
1.5 % + 3
1 % + 2
1.2 % + 2
10 % typical
Ω
Ω
Diode test
µF
1
In the 9999 μF range for measurements to 1000 μF, the measurement accuracy is 1.2 % + 2.
AC and DC current
Function
mA AC (45 Hz to 1 kHZ)
mA DC
2
1
2
Range
1
60.00 mA
400.0 mA
3
60.00 mA
400.0 mA
3
Resolution
0.01 mA
0.1 mA
0.01 mA
0.1 mA
Accuracy
1.5 % + 3
0.5 % + 3
All ac current ranges are specified from 5 % of range to 100 % of range.
Input burden voltage (typical): 400 mA input 2 mV/mA.
3
400.0 mA accuracy specified up to 600 mA overload.
3 Fluke Corporation
Fluke 3000 FC Series Test Tools. The Fluke Wireless Team.
Frequency
Range
99.99 Hz
999.9 Hz
9.999 kHz
99.99 kHz
1
Resolution
0.01 Hz
0.1 Hz
0.001 kHz
0.01 kHz
Accuracy
[1]
0.1 % + 1
Frequency is specified up to 99.99 kHz in volts and up to 10 kHz in amps.
Input characteristics
Function
Overload
Protection
1100 V rms
1100 V rms
1100 V rms
Input Impedance
(nominal)
> 10 MΩ < 100 pF
> 10 MΩ < 100 pF
> 10 MΩ < 100 pF
Common Mode Rejection Ratio (1 kΩ unbalance)
> 120 dB at dc, 50 Hz or 60 Hz
> 60 dB, dc to 60 Hz
> 120 dB at dc, 50 Hz or 60 Hz
Full scale voltage
To 6 MΩ
< 0.7 V dc
2.000 V dc
50 MΩ
< 0.9 V dc
> 60 dB at 50 Hz or 60 Hz
Typical short circuit current
< 350 mA
< 1.1 mA
Normal Mode Rejection
> 60 dB at 50 Hz or 60 Hz
Open circuit test voltage
1100 V rms
1100 V rms
Function
mA
< 2.7 V dc
< 2.7 V dc
Overload Protection
Fused, 44/100 A, 1000 V FAST Fuse
Overload
600 mA overload for 2 minutes maximum, 10 minutes rest minimum
MIN/MAX recording
Function
DC functions
AC functions
Accuracy
The specified accuracy of the measurement function ± 12 counts for changes > 350 ms in duration.
The specified accuracy of the measurement function ± 40 counts for changes > 900 ms in duration.
General specifications (Not compatible with Fluke CNX test tools)
Maximum voltage between any
terminal and earth ground
Ω fuse protection from A inputs
Display (LCD)
1000 V dc or ac rms
0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part only
Update rate: 4/sec
Votls, amps, ohms: 6000 counts
Frequency: 10,000 counts
Capacitance: 1,000 counts
Three AA Alkaline batteries, NEDA 15A IEC LR6
250 hours minimum
2.4 GHZ ISM Band
Open air, unobstructed: Up to 20m
Obstructed, sheetrock wall: Up to 6.5m
Obstructed, concrete wall, or steel electrical enclosure: Up to 3.5m
Operating: -10 °C to 50 °C
Storage: -40 °C to 60 °C
0.1 X (specified accuracy) /°C (<18 °C or >28 °C)
0 % to 90 % (0 °C to 35 °C), 0 % to 75 % (35 °C to 40 °C), 0 % to 45 % (40 °C to 50 °C)
Operating: 2,000 m
Storage: 12,000 m
EN 61326-1:2006, EN 61326-2-2:2006. ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489
V1.8.1:2008, FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249,
FCCID : FCC: T68-FDMMBLE IC: 6627A-FDMMBLE
ANSI/ISA 61010-1 / (82.02.01): 3
rd
edition
CAN/CSA-C22.2 No 61010-1-12: 3
rd
edition
UL 61010-1: 3
rd
edition
IEC/EN 61010-1:2010
CSA, FCC, CE
IP54
2
4.75 cm x 9.3 cm x 20.7 cm (1.87 in x 3.68 in x 8.14 in)
340 g (12 oz)
Battery type
Battery life
RF communications
RF communication range
Temperature
Temperature coefficient
Relative humidity
Altitude
Electromagnetic compatibilty
EMI, RFI, EMC, RF
Safety compliance
Certifications
Ingress Protection (IP) rating
Pollution Degree
Size (H x W x L)
Weight
4 Fluke Corporation
Fluke 3000 FC Series Test Tools. The Fluke Wireless Team.

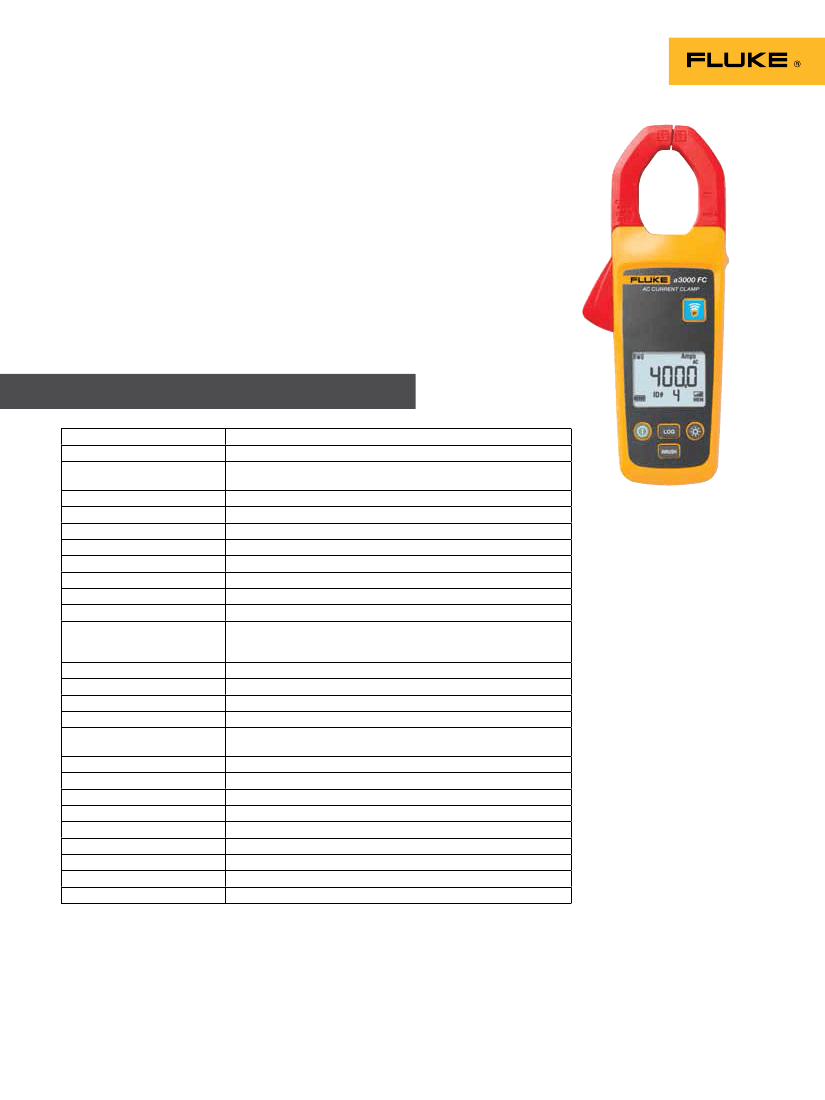

Fluke a3000 FC Wireless AC Current Clamp Module
A fully functional true-rms current clamp meter that wirelessly relays
measurements to other Fluke Connect™ enabled master units, listed
below.
•
Fluke 3000 FC DMM
•
Fluke Ti200/300/400 Infrared Camera
•
PC via optional pc3000 FC Adapter
•
Fluke Connect Mobile app
a3000 FC main features include:
•
True-rms ac clamp meter
•
Measure up to 400 A ac
•
Use as a standalone meter or as part of the system
•
Logging function for recording and saving up to 65,000 readings
•
Inrush function
a3000 FC general specifications
Range
Resolution
Accuracy
Inrush
Crest factor (50 Hz/60 Hz)
LCD w/backlight
Log rate/interval
Battery type
Battery life
Memory
RF communications
RF communication range
Operating temperature
Storage temperature
Temperature coefficient
Operating humidity
Altitude
EMC
Safety compliance
Safety rating
Certifications
Ingress Protection (IP) rating
Pollution Degree
Jaw opening
Size (HxWxD)
Weight
0.5 A to 400.0 A
0.1 A
400.0 A: 2 % ± 5 digits (10 Hz to 100 Hz), 2.5 % ± 5 digits
(100 Hz to 500 Hz)
Max displayed reading: 999.9A
3 at 500 A, 2.5 at 600 A, 1.42 at 1000 A, add 2 % for C.F. > 2
3½ digits
1 sec minimum/adjustable by PC
2 AA, NEDA 15 A, IEC LR6
400 hours
Record up to 65,000 readings
2.4 GHZ ISM Band
Open air, unobstructed: Up to 20 m
Obstructed, sheetrock wall: Up to 6.5 m
Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m
-10 °C to +50 °C
-40 °C to +60 °C
Add 0.1 x (specified accuracy)/°C (< 18 °C or > 28 °C)
90 % at 35 °C, 75 % at 40 °C, 45 % at 50 °C
Operating: 2,000 m
Storage: 12,000 m
EN 61326-1:2006
IEC 61010-1, 600 V CAT III, 3rd edition Pollution Degree 2
CAT III 600 V
CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
IP30
2
34 mm (1.33 in)
20.3 cm x 7.49 cm x 3.55 cm (8 in x 2.95 in x 1.4 in)
.22 kg (8 oz)
(Not compatible with Fluke CNX test tools)
5 Fluke Corporation
Fluke 3000 FC Series Test Tools. The Fluke Wireless Team.
京公网安备 11010802033920号
EEWORLD
